DANSVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDSV
DANSVILLE MUNI
PublicPUB

1 miles NW of DANSVILLE, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 34' 14"N 77° 42' 48"W
660' MSL
1660' MSL
09W
100LL
BUFFALO (BUF)
DETROIT
CLEVELAND (ZOB)
4/18/24-5/16/24
KDSV VFR
4:54 AM EDT
Broken 10,000'
10sm
49°F
31°F
29.99"Hg
320° 3kts
AO2 SLP166 T00941006 50007
KDSV 200854Z AUTO 32003KT 10SM BKN100 09/M01 A2999 RMK AO2 SLP166 T00941006 50007
List Your Business

KDSV FBOs, Flight Schools and Ground Support

Promote Listing
Dansville Aero
Freq: 123.0
Phone: (585) 330-8840
No Rating Available
0 Reviews (Read | Sign In To Write)

KDSV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDSV Hotels

No hotels are listed for this airport.

KDSV Restaurants

No restaurants are listed for this airport.

KDSV Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
585-335-2380
 118.325

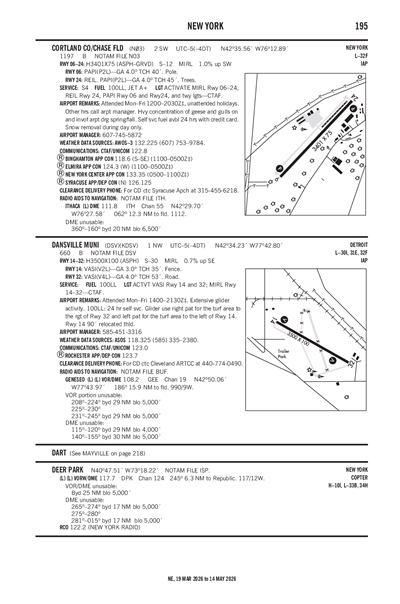

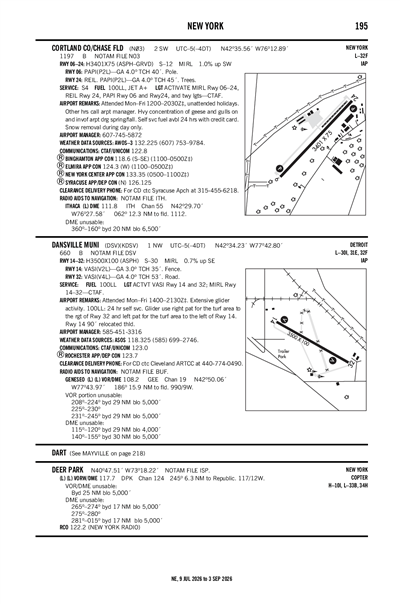

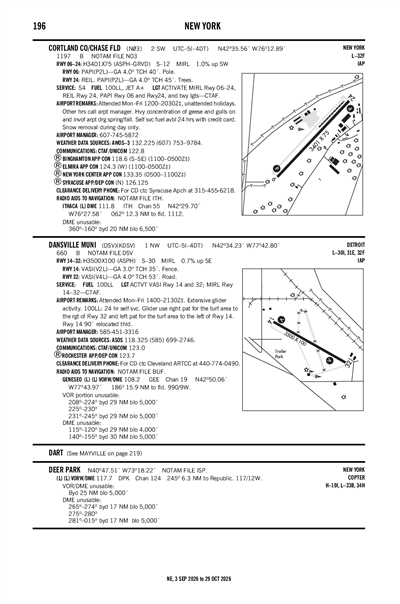

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KROC (33nm)
Sat, 4/20 1:30 AM EDT
Sat, 4/20 2:00 AM EDT - Sun, 4/21 2:00 AM EDT
VFR
2:00 AM EDT - 6:00 AM EDT
Overcast 9,000'
6sm
280° 8kts
VFR
6:00 AM EDT - 10:00 AM EDT
Scattered 20,000'
6sm
230° 7kts
VFR
10:00 AM EDT - 1:00 PM EDT
Showers in vicinity
Scattered 4,000'
6sm
260° 14kts
Gusts 21kts
VFR
1:00 PM EDT - 4:00 PM EDT
Light Showers and Rain and Mist
Broken 4,000'
6sm
280° 18kts
Gusts 25kts
VFR
4:00 PM EDT - 7:00 PM EDT
Showers in vicinity
Broken 4,000'
6sm
290° 15kts
Gusts 25kts
VFR
7:00 PM EDT - 11:00 PM EDT
Scattered 7,000'
6sm
270° 11kts
Gusts 17kts
VFR
11:00 PM EDT - 2:00 AM EDT
Few 25,000'
6sm
260° 8kts
KROC 200530Z 2006/2106 28008KT P6SM OVC090
   FM201000 23007KT P6SM SCT200
   FM201400 26014G21KT P6SM VCSH SCT040
   FM201700 28018G25KT 6SM -SHRA BR BKN040
   FM202000 29015G25KT P6SM VCSH BKN040
   FM202300 27011G17KT P6SM SCT070
   FM210300 26008KT P6SM FEW250
KDSV
Domestic
4/15/240721Z !DSV 04/007 DSV OBST TOWER LGT (ASR 1285244) 423045.10N0773806.90W (4.9NM SE DSV) 2285.1FT (210.0FT AGL) U/S 2404150721-2408130721
1/29/242112Z !DSV 01/002 DSV OBST TOWER LGT (ASR 1274620) 422840.40N0775158.00W (8.8NM SW DSV) 2009.2FT (260.2FT AGL) U/S 2401292112-2405282112
12/8/230213Z !DSV 12/002 DSV RWY 32 VASI U/S 2312080213-2504012000EST
FDC
6/16/231454Z !FDC 3/2279 DSV ODP DANSVILLE MUNI, DANSVILLE, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
TAKEOFF MINIMUMS: RWY 14, STANDARD WITH A MINIMUM CLIMB GRADIENT OF 513 FEET PER NM TO 3000, OR 2000-3 FOR CLIMB IN VISUAL CONDITIONS.
TAKEOFF MINIMUMS: RWY 32, 700-2 1/2 WITH A MINIMUM CLIMB GRADIENT OF 419 FEET PER NM TO 2400, OR 2000-3 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2306161454-2506161452EST
7/19/221240Z !FDC 2/5210 DSV IAP DANSVILLE MUNI, DANSVILLE, NY.
RNAV (GPS)-A, ORIG-A...
MSA VETUC 25 NM 4100.
2207191240-2407191240EST
7/19/221240Z !FDC 2/5208 DSV IAP DANSVILLE MUNI, DANSVILLE, NY.
RNAV (GPS) RWY 14, ORIG-C...
MSA YICUP 25 NM 4100.
2207191240-2407191240EST
No
MON - FRI 0900-1630
TOWN OF NORTH DANSVILLE
TOWN HALL, 14 CLARA BARTON ST
DANSVILLE, NY 14437
Phone: 585-335-2330
JEFF SHAVER
176 FRANKLIN STREET
DANSVILLE, NY 14437
Phone: 585-330-8840
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
DSV
--
ACTVT VASI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
15
1
0
0
0
0
Minor
Minor
None
None
Crop Dusting
Charter Service
Glider Service
Pilot Instruction
Glider Towing

Runway 14/32

3500 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 128°308°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 42° 34' 25"N 42° 34' 03"N
Longitude 77° 43' 06"W 77° 42' 29"W
Elevation 635' 660'
Threshold Crossing Height 35 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator V2L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-2EXTSV GLIDER ACTVTY. GLIDER USE RIGHT PAT FOR THE TURF AREA RIGHT OF RWY 32 & LEFT PAT FOR THE TURF AREA LEFT OF RWY 14.
A110-3CALL AMGR FOR FUEL AVAILABILITY.
A110-4FOR CD CTC CLEVELAND ARTCC AT 440-774-0490.
A110-5RWY 14 90 FT RELCTD THLD.
DANSVILLE MUNI (ICAO: KDSV, IATA: DSV) is a public airport located in DANSVILLE, NY.
