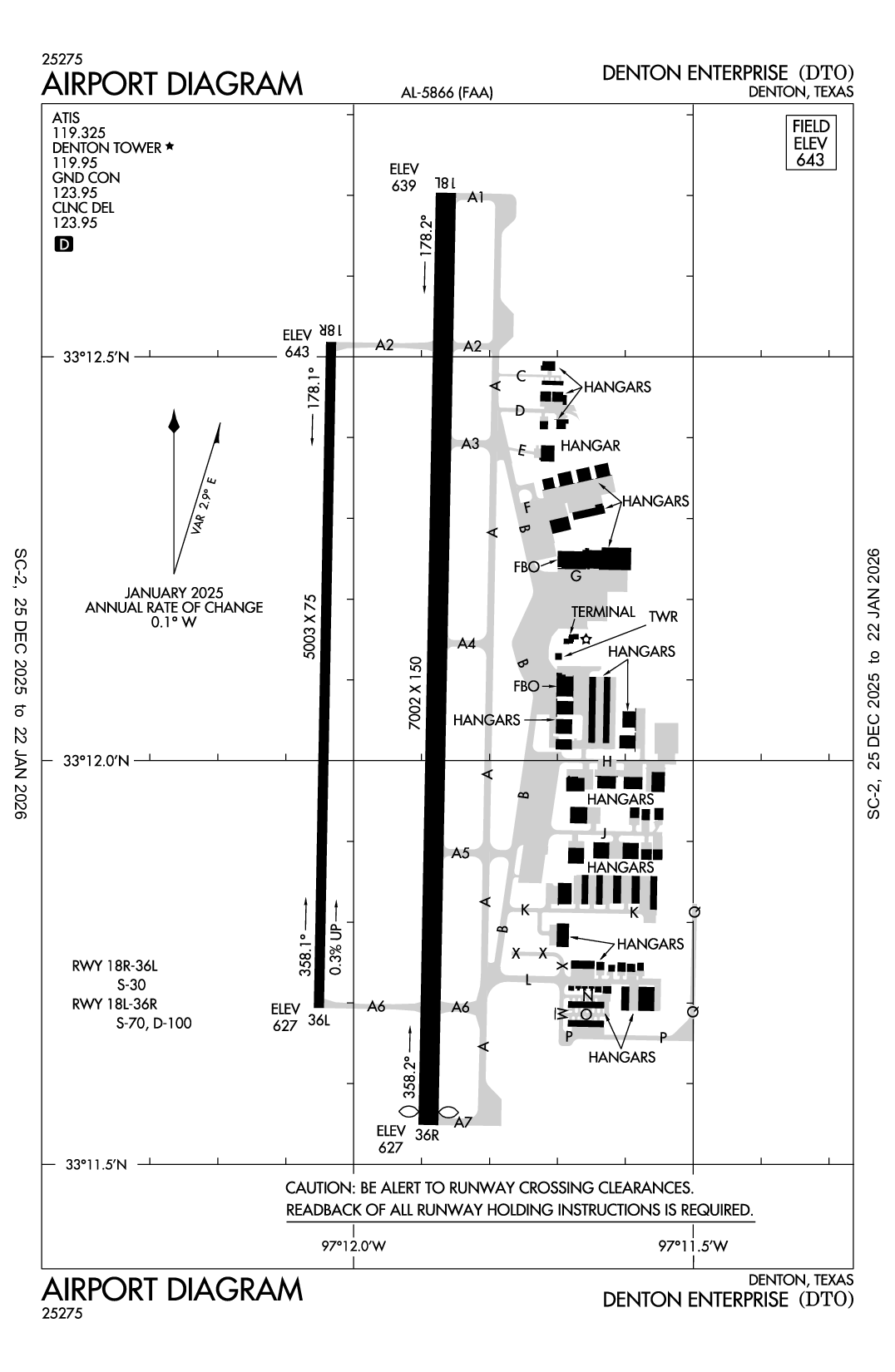

DENTON ENTERPRISE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDTO
DENTON ENTERPRISE
PublicPUB

3 miles W of DENTON, TX
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 12' 07"N 97° 11' 57"W
643' MSL
1443' MSL
04E
Jet A, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
6/16/22-7/14/22
KDTO VFR
4:53 AM CDT
Clear
10sm
80°F
66°F
29.90"Hg
180° 7kts
AO2 SLP115 T02670189
KDTO 060953Z AUTO 18007KT 10SM CLR 27/19 A2990 RMK AO2 SLP115 T02670189

KDTO FBOs, Flight Schools and Ground Support

US Trinity Aviation
Freq: 130.15
Phone: (940) 240-0359
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/14
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.05 7.68 7.68
US Jet Center
Freq: 130.575
Phone: (940) 297-6411
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 7/5
100LL Jet A Jet A+ Mogas UL94
Self Serve 6.47
Full Serve 8.47 7.69 7.69
Business Air
Freq: 131.225
Phone: (940) 898-1200
No Rating Available
0 Reviews (Read | Sign In To Write)

KDTO Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDTO Hotels

No hotels are listed for this airport.

KDTO Restaurants

No restaurants are listed for this airport.

KDTO Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.95

ASOS

ASOS
940-383-8457
119.325

Clearance Delivery

CD/P
123.95

Ground

GND/P
123.95

Tower

LCL/P
119.95

Terminal Area Forecast

KAFW (15nm)
Wed, 7/6 3:51 AM CDT
Wed, 7/6 4:00 AM CDT - Thu, 7/7 1:00 AM CDT
VFR
4:00 AM CDT - 1:00 AM CDT
Sky Clear
> 6sm
180° 12kts
KAFW 060851Z 0609/0706 18012KT P6SM SKC
KDTO
Domestic
6/28/220001Z !DTO 06/017 DTO NAV ILS RWY 18L PINCK LOM U/S 2206280001-2209302359EST
6/9/221546Z !DTO 06/006 DTO OBST CRANE (ASN 2022-ASW-7272-OE) 331332N0971120W (1.5NM NNE DTO) 794FT (140FT AGL) FLAGGED AND LGTD 2206091546-2209302300EST
1/19/220501Z !DTO 01/007 DTO AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
10/15/211319Z !DTO 10/024 DTO TWY A4 BTN TWY A AND TWY B CLSD 2110151319-PERM
12/31/201424Z !DTO 12/017 DTO RWY 18R/36L CLSD TO SIWL ACFT MORE THAN 30000LB 2012311424-PERM
12/31/201424Z !DTO 12/016 DTO RWY 18R/36L CLSD TO DW ACFT MORE THAN 50000LB 2012311424-PERM
12/31/201423Z !DTO 12/015 DTO RWY 18R/36L CLSD TO HEL SKID LDG 2012311423-PERM
FDC
6/27/221809Z !FDC 2/4987 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 36R, ORIG...
TDZE RWY 36L 641.
SIDESTEP 36L HAT 399 ALL CATS.
2206271809-2406271809EST
6/27/221805Z !FDC 2/4979 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 36L, ORIG...
TDZE RWY 36L 641.
LPV DA 891.
LNAV/VNAV DA 992.
LNAV 1000/HAT 359 ALL CATS.
2206271805-2406271805EST
6/21/221916Z !FDC 2/1977 DTO SID DENTON ENTERPRISE, DENTON, TX.
WORTH NINE DEPARTURE...
TEXICO TRANSITION: FROM LBB VORTAC TO TXO VORTAC MOCA 5600.
ALL OTHER DATA REMAINS AS PUBLISHED. 2206211916-2406211916EST
6/2/221112Z !FDC 2/2957 DTO IAP DENTON ENTERPRISE, DENTON, TX.
ILS OR LOC RWY 18L, ORIG...
S-ILS 18L NA, ALL CATS.
2206021112-2301121112EST
6/2/221112Z !FDC 2/2955 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 18L, ORIG...
LPV DA NA, ALL CATS.
LNAV/VNAV DA NA, ALL CATS.
2206021112-2301121112EST
6/2/221112Z !FDC 2/2953 DTO ODP DENTON ENTERPRISE, DENTON, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
TAKE-OFF MINIMUMS RWY 36R NA.
2206021112-2301121112EST
5/19/221730Z !FDC 2/6908 DTO SID DENTON ENTERPRISE, DENTON, TX. NANDR ONE (RNAV)
SID. PROCEDURE UNAVAILABLE. DO
NOT FILE.
2205191730-2208190001
4/19/221833Z !FDC 2/9877 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 36L, ORIG...
LNAV MDA 1000/HAT 364 ALL CATS. CHANGE PBN REQUIREMENTS NOTE TO
READ: RNP APCH-GPS. DELETE NOTE: *LNAV ONLY. DELETE ASTERISK FROM
VDP 1.2 NM TO
RW36L. DELETE ASTERISK FROM MINIMUM ALTITUDE AT HANSE 1.9 NM TO
RW36L 1280.
THIS IS RNAV (GPS) RWY 36L, ORIG-A. 2204191833-PERM
4/19/221200Z !FDC 2/9657 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 18R, ORIG...
LNAV/VNAV DA 993/HAT 350 ALL CATS. VIS 1 ALL CATS.
TEMPORARY CRANE, 782 MSL, 2973 FT EAST OF APCH END RWY 18R (2021-ASW-22279-OE).
2204191200-2207191114EST
4/19/221200Z !FDC 2/9656 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 18L, ORIG...
LNAV/VNAV DA 993/HAT 351 ALL CATS. VIS 5/8 ALL CATS.
LNAV MDA 1100/HAT 458 ALL CATS. VIS CATS C/D 7/8.
VDP 1.29 NM TO RW18L.
FOR INOPERATIVE ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 SM, AND LNAV CATS C/D VISIBILITY TO 1 3/8 SM.
TEMPORARY CRANE, 782 MSL, 2395 FT SE OF APCH END RWY 18L (2021-ASW-22279-OE).
2204191200-2207191114EST
3/24/221533Z !FDC 2/8887 DTO SID DENTON ENTERPRISE, DENTON, TX.
WORTH NINE DEPARTURE ...
LUBBOCK TRANSITION FROM ABILENE (ABI) VORTAC TO LUBBOCK (LBB) VORTAC MEA FL180, MOCA NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2203241533-2403241533EST
Yes
0600-2200
CITY OF DENTON
215 E. MCKINNEY
DENTON, TX 76201
Phone: 940-349-7736
SCOTT GRAY
5000 AIRPORT ROAD
DENTON, TX 76207-0207
Phone: 940-349-7736
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
DTO
--
DUSK-DAWN WHEN ATCT CLSD, MIRL RWY 18L/36R & 18R/36L PRESET TO LOW INTST; TO INCR INTST & ACTVT MALSR RWY 18L - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
252
61
25
7
0
0
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18L/36R

7002 ft. x 150 ft.
ASPH
Fair
NONE
MED

70,000lbs
100,000lbs
--
--
  Runway 18L Runway 36R
True Heading 181°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 12' 42"N 33° 11' 33"N
Longitude 97° 11' 52"W 97° 11' 53"W
Elevation 639' 627'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 18R/36L

5003 ft. x 75 ft.
ASPH
Excellent

MED

30,000lbs
--
--
--
  Runway 18R Runway 36L
True Heading 181°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 12' 31"N 33° 11' 42"N
Longitude 97° 12' 02"W 97° 12' 03"W
Elevation 643' 627'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 18L DESIGNATED AS A CALM WIND RWY.
A110-2ARPT CLSD TO ULTRALIGHTS AND GLIDERS.
A110-3MOWING OPNS ON ARPT MAY-SEP.
A110-4FOR CD WHEN ATCT IS CLSD CTC REGIONAL APCH AT 972-615-2799.
DENTON ENTERPRISE (ICAO: KDTO, IATA: DTO) is a public airport located in DENTON, TX.
