KDUG
BISBEE DOUGLAS INTL
PublicPUB

8 miles NW of DOUGLAS BISBEE, AZ
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 28' 08"N 109° 36' 14"W
4150' MSL
5150' MSL
12E
Jet A-1+, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
6/16/22-7/14/22
KFHU (39nm) MVFR
10:03 AM MST
Light Rain and Mist
Overcast 9,000'
Broken 6,000'
3sm
64°F
63°F
30.26"Hg
090° 3kts
AO2A LTG DSNT N SLP184
KFHU 011703Z 09003KT 3SM -RA BR BKN060 OVC090 18/17 A3026 RMK AO2A LTG DSNT N SLP184

KDUG FBOs, Flight Schools and Ground Support

Bisbee Douglas International Airport
Freq: 123.0
Phone: (520) 364-2771
Other: (520) 559-8700
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/21
100LL Jet A Jet A+ Mogas UL94
Self Serve 6.00 5.75
Full Serve 6.00 5.75

KDUG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDUG Hotels

No hotels are listed for this airport.

KDUG Restaurants

No restaurants are listed for this airport.

KDUG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
520-364-7208
119.275

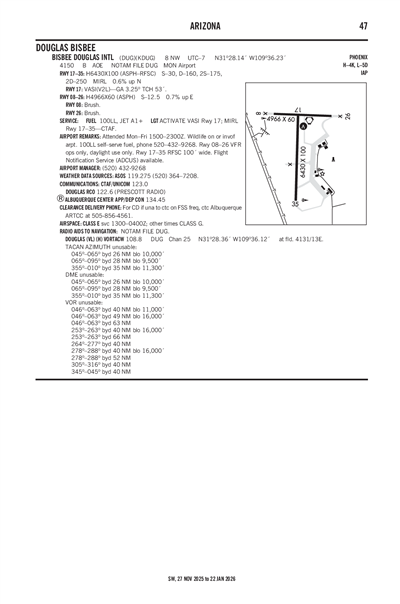

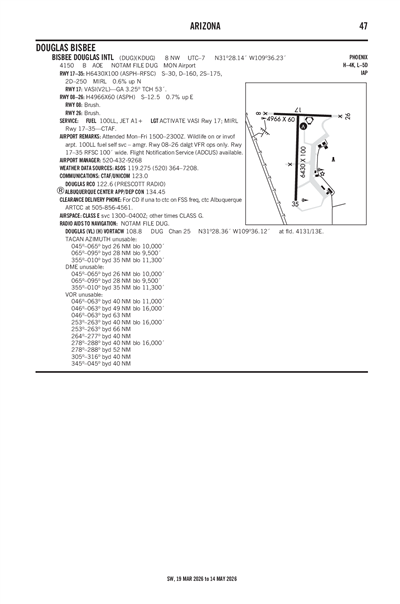

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFHU (39nm)
Fri, 7/1 9:55 AM MST
Fri, 7/1 9:00 AM MST - Sat, 7/2 1:00 PM MST
VFR
9:00 AM MST - 9:00 PM MST
Thunderstorm in vicinity
Broken 6,000'
> 6sm
30.09"Hg
VRB° 6kts
MVFR
Temporary 9:00 AM MST - 12:00 PM MST
Light Thunderstorm and Rain
Overcast 4,500'
4.97sm
VRB° 20kts
Gusts 30kts
VFR
Becoming 9:00 PM MST - 12:00 PM MST
Broken 30,000'
Broken 8,000'
Few 4,500'
> 6sm
30.09"Hg
240° 9kts
VFR
Becoming 12:00 PM MST - 1:00 PM MST
Thunderstorm in vicinity
Broken 5,000'
> 6sm
30.12"Hg
290° 9kts
TAF AMD KFHU 011655Z 0116/0220 VRB06KT 9999 VCTS BKN060CB QNH3010INS
   TEMPO 0116/0119 VRB20G30KT 8000 -TSRA OVC045CB
   BECMG 0204/0205 24009KT 9999 NSW FEW045 BKN080 BKN300 QNH3009INS
   BECMG 0219/0220 29009KT 9999 VCTS BKN050CB QNH3011INS TX25/0121Z TN15/0212Z
KDUG
Domestic
6/1/220401Z !DUG 05/011 DUG AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2206010401-2406010401
5/23/221501Z !DUG 05/009 DUG AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF DUG SFC-400FT AGL 2205231501-2305232359
2/1/221554Z !DUG 02/001 DUG AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF DUG SFC-7000FT 2202011554-2212312359
7/28/211231Z !DUG 07/001 DUG SVC AUTOMATED WX BCST SYSTEM ALTIMETER SETTING/CEILING/DP/PRECIPITATION/T/TS/VIS/WX/WIND NOT AVBL 2107281231-2302242200
No
MON-FRI 0800-1700
COCHISE COUNTY
1415 WEST MELODY LANE BLDG F
BISBEE, AZ 85603
Phone: (520) 432-9268
DANIEL COXWORTH
1415 W. MELODY LANE , BUILDING E
BISBEE, AZ 85603
Phone: (520) 432-9268
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
DUG
--
ACTVT MIRL RY 17/35 & VASI RY 17 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
Airport of Entry
2
0
0
0
0
0
Minor
Minor
None
None
None

Runway 08/26

4966 ft. x 60 ft.
ASPH
Fair



12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 28' 27"N 31° 28' 26"N
Longitude 109° 36' 39"W 109° 35' 41"W
Elevation 4,116' 4,150'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

6430 ft. x 100 ft.
ASPH
Good
RFSC
MED

30,000lbs
160,000lbs
250,000lbs
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 28' 26"N 31° 27' 22"N
Longitude 109° 36' 16"W 109° 36' 16"W
Elevation 4,124' 4,089'
Threshold Crossing Height 53 ft. AGL --
Visual Glide Path Angle 3.25° --
Visual Slope Indicator V2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1THE TWY TO RY 35 IS IN POOR CONDITION WITH RUTS & LOOSE AGGREGATE.
A110-2WILDLIFE ON OR INVOF ARPT.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
BISBEE DOUGLAS INTL (ICAO: KDUG, IATA: DUG) is a public airport located in DOUGLAS BISBEE, AZ.
