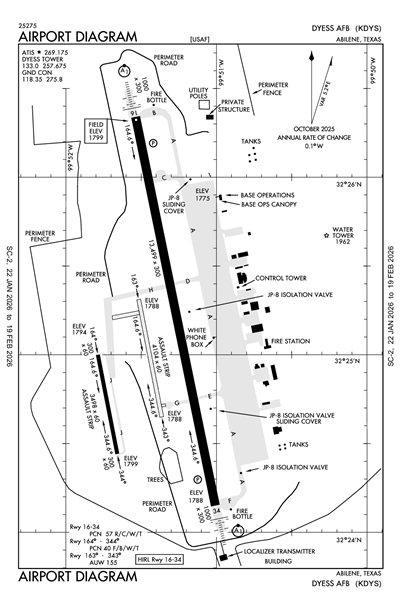

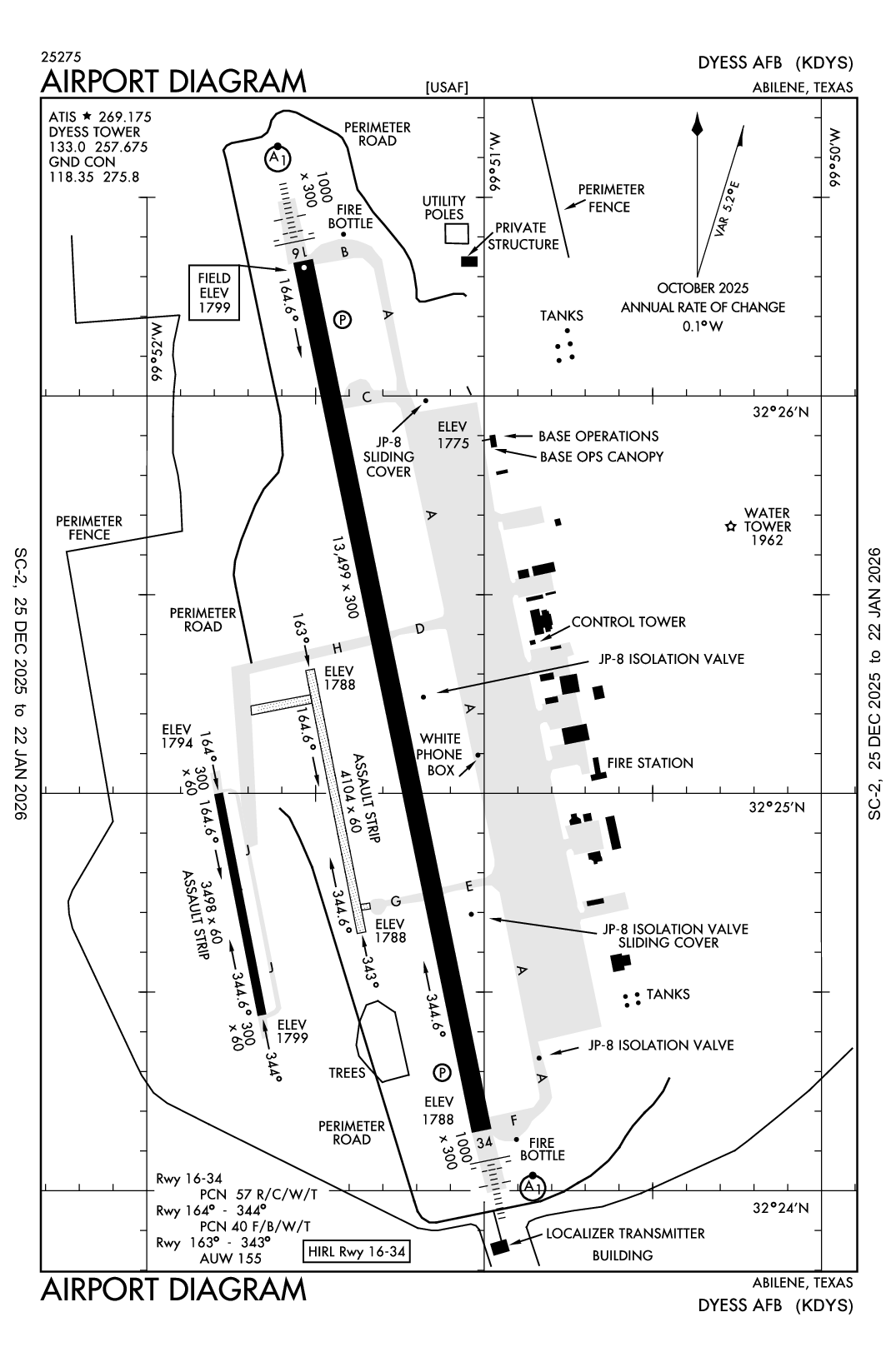

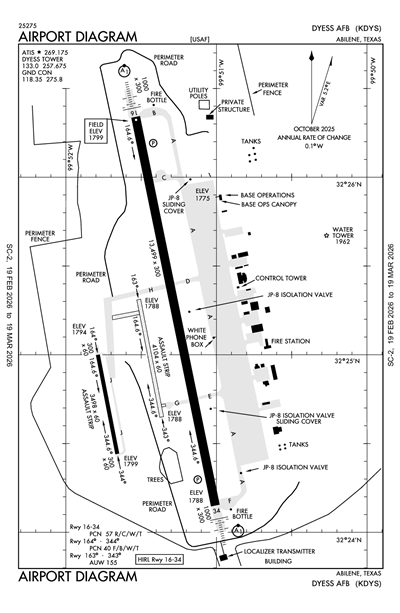

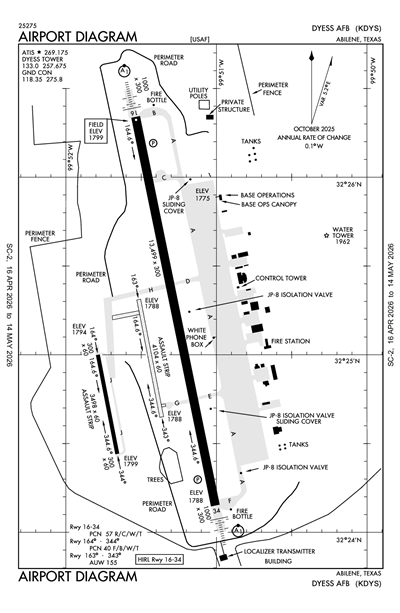

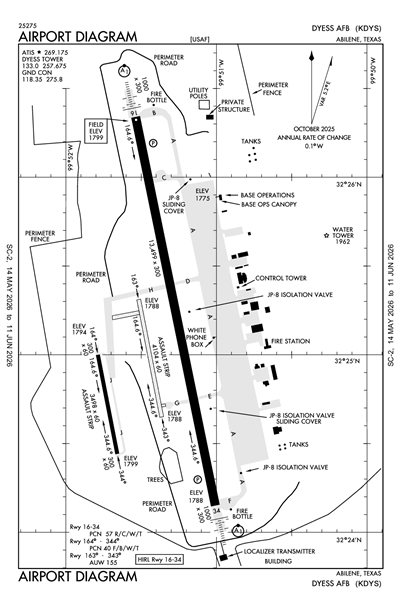

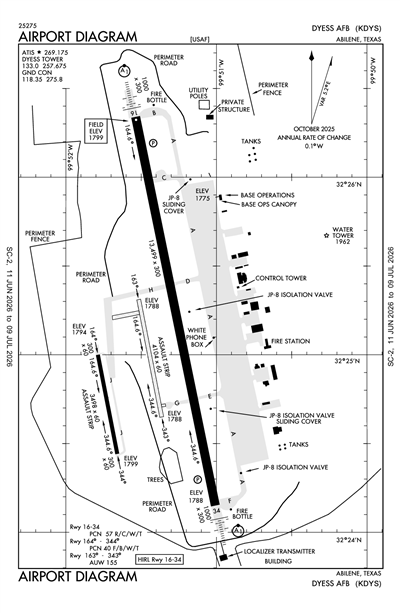

DYESS AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDYS
ICAO KDYSIATA DYSLocal DYS
DYESS AFB
PrivatePVT

5 miles SW of ABILENE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 25' 07"N 99° 51' 24"W
Elevation
1790' MSL
Pattern Alt
2790' MSL
Mag Variation
5°E
Declination
5°E
Fuel
JET A (FSII)
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KDYS VFR
11:55 AM CST
Clear
10sm
53°F
16°F
30.66"Hg
020° 6kts
AO2 SLP387 T01151089 10118 21029 50002
METAR KDYS 221755Z AUTO 02006KT 10SM CLR 12/M09 A3066 RMK AO2 SLP387 T01151089 10118 21029 50002
+ Add Your Business

KDYS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

Pilot-To-Dispatcher (PTD) 139.3

Ground

DYESS GROUND 118.35

Tower

DYESS TOWER 133.0

Approach

ABILENE APPROACH 125.0
EAST
ABILENE APPROACH 127.2
WEST

Departure

ABILENE DEPARTURE 125.0
EAST
ABILENE DEPARTURE 127.2
WEST

Emergency

Emergency 121.5

Terminal Area Forecast

KDYS
Sun, 2/22 12:40 PM CST
Sun, 2/22 12:00 PM CST - Mon, 2/23 5:00 PM CST
VFR
12:00 PM CST - 8:00 AM CST
Sky Clear
6sm
30.50"Hg
VRB° 6kts
VFR
Becoming 8:00 AM CST - 11:00 AM CST
Sky Clear
6sm
30.50"Hg
160° 12kts
Gusts 18kts
VFR
Becoming 11:00 AM CST - 5:00 PM CST
Sky Clear
6sm
30.30"Hg
VRB° 6kts
TAF AMD KDYS 221840Z 2218/2323 VRB06KT 9999 SKC QNH3050INS
   BECMG 2314/2315 16012G18KT 9999 SKC QNH3050INS
   BECMG 2317/2318 VRB06KT 9999 SKC QNH3029INS TX13/2222Z TN01/2313Z LAST NO AMD AFT 2218 NEXT 2312
KDYS
EffectiveExpiresCategoryNOTAM
Military
2/27/26
0030Z
2/27/26
0330Z
NR DYESS AFB TX MULTIPLE C130'S IN THE VICINITY OF DYESS AFB, TX, SFC TO 10000 MSL, CONDUCTING VFR AND IFR AIRDROPS WITHIN 10NM OF MARRION DROPZONE, N32 24.800/W 099 51.600, BELOW MINIMUM IFR ALTITUDE IAW FAA WAIVER 4371.
2/26/26
1630Z
2/26/26
1930Z
NR DYESS AFB TX MULTIPLE C130'S IN THE VICINITY OF DYESS AFB, TX, SFC TO 10000 MSL, CONDUCTING VFR AND IFR AIRDROPS WITHIN 10NM OF MARRION DROPZONE, N32 24.800/W 099 51.600, BELOW MINIMUM IFR ALTITUDE IAW FAA WAIVER 4371.
2/26/26
0030Z
2/26/26
0330Z
NR DYESS AFB TX MULTIPLE C130'S IN THE VICINITY OF DYESS AFB, TX, SFC TO 10000 MSL, CONDUCTING VFR AND IFR AIRDROPS WITHIN 10NM OF MARRION DROPZONE, N32 24.800/W 099 51.600, BELOW MINIMUM IFR ALTITUDE IAW FAA WAIVER 4371.
2/25/26
1630Z
2/25/26
1930Z
NR DYESS AFB TX MULTIPLE C130'S IN THE VICINITY OF DYESS AFB, TX, SFC TO 10000 MSL, CONDUCTING VFR AND IFR AIRDROPS WITHIN 10NM OF MARRION DROPZONE, N32 24.800/W 099 51.600, BELOW MINIMUM IFR ALTITUDE IAW FAA WAIVER 4371.
2/25/26
0030Z
2/25/26
0330Z
NR DYESS AFB TX MULTIPLE C130'S IN THE VICINITY OF DYESS AFB, TX, SFC TO 10000 MSL, CONDUCTING VFR AND IFR AIRDROPS WITHIN 10NM OF MARRION DROPZONE, N32 24.800/W 099 51.600, BELOW MINIMUM IFR ALTITUDE IAW FAA WAIVER 4371.
2/24/26
0030Z
2/24/26
0330Z
NR DYESS AFB TX MULTIPLE C130'S IN THE VICINITY OF DYESS AFB, TX, SFC TO 10000 MSL, CONDUCTING VFR AND IFR AIRDROPS WITHIN 10NM OF MARRION DROPZONE, N32 24.800/W 099 51.600, BELOW MINIMUM IFR ALTITUDE IAW FAA WAIVER 4371.
2/23/26
1630Z
2/23/26
1930Z
NR DYESS AFB TX MULTIPLE C130'S IN THE VICINITY OF DYESS AFB, TX, SFC TO 10000 MSL, CONDUCTING VFR AND IFR AIRDROPS WITHIN 10NM OF MARRION DROPZONE, N32 24.800/W 099 51.600, BELOW MINIMUM IFR ALTITUDE IAW FAA WAIVER 4371.
2/23/26
1630Z
2/23/26
1930Z
NR DYESS AFB TX MULTIPLE C130'S IN THE VICINITY OF DYESS AFB, TX, SFC TO 10000 MSL, CONDUCTING VFR AND IFR AIRDROPS WITHIN 10NM OF MARRION DROPZONE, N32 24.800/W 099 51.600, BELOW MINIMUM IFR ALTITUDE IAW FAA WAIVER 4371.
2/22/26
1840Z
2/23/26
0600Z
Aerodrome!KDYS M0255/26 DYS AD AIRPORT CLSD CONTACT COMMAND POST FOR EMERGENCIES AT 325-696-1921 2602221840-2602230600
2/21/26
2225Z
2/22/26
1455Z
Aerodrome!KDYS M0254/26 DYS AD AIRPORT CLSD CONTACT COMMAND POST FOR EMERGENCIES AT 325-696-1921 2602212225-2602221455
2/21/26
1640Z
2/24/26
1640Z
M0253/26 NOTAMC M0252/26
2/20/26
2205Z
2/23/26
2205Z
M0249/26 NOTAMC M0245/26
2/20/26
2204Z
2/23/26
2204Z
M0248/26 NOTAMC M0244/26
2/20/26
2204Z
2/23/26
2204Z
M0247/26 NOTAMC M0223/26
2/20/26
0423Z
2/23/26
0423Z
M0240/26 NOTAMC M0227/26
2/20/26
0344Z
2/23/26
0344Z
M0239/26 NOTAMC M0188/26
2/19/26
2158Z
2/22/26
2158Z
M0237/26 NOTAMC M0235/26
2/17/26
1838Z
5/8/26
2359Z
NO COMBAT OFFLOAD AND CREW SWAPS AUTHORIZED ON THE TA RAMP DUE TO LIMITED PARKING. COORDINATED TRANSIENT AIRCRAFT PARKING ONLY.
2/17/26
1708Z
4/17/26
2359Z
ARFF STATUS IS RED?REDUCED LEVEL OF SERVICE IS PROVIDED FOR INITIAL RESPONSE TO C-130 E/H/J, A-10, F-15, F-16, F-22, C-12, C-21, CV-22, C-38, T-1, U-2, UV-18. AIRCRAFT EMERGENCIES, SCENE ASSESSMENT AND IMPLEMENTATION OF MITIGATION TACTICS. THIS REDUCED LEVEL OF SERVICE REPRESENTS INCREASED RISK/LOSS POTENTIAL DUE TO LACK OF EMERGENCY RESPONSE CAPABILITES TO PERFORM RESCUE AND MITIGATION TACTICS SIMULTANEOUSLY. FIRE EMERGENCY SERVICES OBJECTIVES MAY NOT BE SUCCESSFUL DURING SITUATIONS WHERE SIMULTANEOUS RESCUE AND FIREFIGHTING ACTIVIES ARE REQUIRED.
2/10/26
2141Z
4/30/26
1234Z
Runway!KDYS M0170/26 DYS RWY 163/343 CLSD 2602102141-2604301234
2/9/26
1602Z
5/9/26
2359Z
Taxiway!KDYS M0154/26 DYS TWY C CLSD FOR MEN AND EQUIPMENT. 2602091602-2605092359
2/9/26
1300Z
5/8/26
2359Z
C-130 RAMP PARKING SPOTS Y1, Y2, Y3 CLOSED
2/9/26
1300Z
5/8/26
2359Z
TRANSIENT RAMP PARKING SPOTS K1, K2, K3, Z1, Z2, Z3 CLSD
2/5/26
1522Z
4/30/26
2359Z
Aerodrome!KDYS V0013/26 DYS AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC W RWY 16 LOC LANDING MINIMA WITH STEPDOWN FIX CHANGE TO: CIRCLING CAT C 2440 - 1 ¾ 650 (700 - 1 ¾) LOC LANDING MINIMNA WITHOUT LAST STEPDOWN FIX CHANGE TO: CIRCLING CAT C 2440 - 1 ¾ 650 (700 - 1 ¾) 2602051522-2604302359
2/5/26
0654Z
5/4/26
2359Z
TaxiwayTWY J TWY H DIRECTIONAL SIGN UNLIT.
2/5/26
0654Z
5/4/26
2359Z
OBSTRUCTION LIGHT ON RWY 34 GLIDESCOPE UNLIT.
2/3/26
1610Z
4/30/26
2359Z
Aerodrome!KDYS V0010/26 DYS AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC W RWY 34 LOC LANDING MINIMNA WITH STEPDOWN FIX CHANGE TO CAT A,B 2240/24 452 (500 - 1/2) CAT C,D,E 2240/45 452 (500 - 7/8) WITHOUT LAST STEPDOWN FIX CAT A,B 2420/24 632 (700 - ½) CAT C,D,E 2420 -1 3/8 632 (700 - 1 3/8) 2602031610-2604302359
2/3/26
1603Z
4/30/26
2359Z
Aerodrome!KDYS V0009/26 DYS AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI TACAN X RWY 34 MINIMAN CHANGE: CIRCLING CAT C TO 2440 - 1¾ 650 (700 - 1¾) 2602031603-2604302359
2/3/26
1559Z
4/30/26
2359Z
Aerodrome!KDYS V0008/26 DYS AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI ILS OR LOC X RWY 34 ALS INOP NOTES WITHOUT LAST STEPDOWN FIX CHANGE TO: S-LOC 34: WHEN ALS INOP INCREASE CAT CDE VIS TO 1¾ MILES 2602031559-2604302359
2/1/26
0000Z
4/30/26
1159Z
Aerodrome!KDYS V0002/26 DYS AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC W RWY 34 AMDT TEXT LOC LANDING MINIMA WITH STEPDOWN FIX CHANGE TO: CAT A & CAT B 2240/24 452 (500-1/2), CAT C, CAT D, & CAT E 2240/45 452 (500-7/8) LOC LANDING MINIMA WITHOUT STEPDOWN FIX CHANGE TO CAT A & CAT B 2420/24 632 (700-1/2) 2602010000-2604301159
1/26/26
1609Z
4/20/26
2359Z
Taxiway!KDYS M0081/26 DYS TWY B HOLD SIGN NORTH SIDE LGT U/S 2601261609-2604202359
1/22/26
1556Z
4/17/26
2359Z
CUSTOMS NOT AVAILABLE
1/22/26
1503Z
4/20/26
2359Z
OPEN TRENCHES IN INFIELD BETWEEN TAXIWAY ALPHA AND RUNWAY 16/34. LAT/LONG OF EACH TRENCH AS FOLLOWS:32.42793 N 99.85341 W, 32.42654 N 99.85311 W, 32.42424 N 99.85255, 32.42032 N 99.85164 W, 32.41946 N 99.85146 W, 32.41889 N 99.85132 W, 32.41840 99.85122 W, 32.41655 N 99.85079 W, 32.41475 N 99.85034 W
1/21/26
1939Z
4/4/26
2359Z
B-1 RAMP PARKING SPOTS A1-A4 AND B1-B4 CLOSED. MEN AND EQUIPMENT WORK IN PROGRESS.
1/6/26
1230Z
3/17/26
2359Z
NORTH WINDCONE UNLIT
12/28/25
0320Z
3/23/26
2359Z
TaxiwayTWY A AND TWY E DIRECTIONAL SIGN UNLIT
12/28/25
0315Z
3/23/26
2359Z
TaxiwayTWY A AND TWY FOXTROT LOCATION SIGN UNLIT
12/28/25
0309Z
3/23/26
2359Z
Taxiway!KDYS M1272/25 DYS TWY J LOCATION SIGN WEST SIDE NOT LGTD 2512280309-2603232359
Yes
Unknown
USAF
DYESS AFB
ABILENE, TX 79607
COMMANDER
DYESS AFB
ABILENE, TX 79607
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
Sunset to Sunrise
--
N/A
Yes
No
No
None
No
Major
Major
None
Low Pressure
None

Runway 16/34

13500 ft. x 300 ft.

CONC
NONE
HIGH
57/R/C/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 169°349°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 26' 20"N 32° 24' 09"N
Longitude 99° 51' 32"W 99° 51' 01"W
Elevation 1,790' 1,788'
Threshold Crossing Height 48 ft. AGL 53 ft. AGL
Visual Glide Path Angle 2.6° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 163/343

3500 ft. x 60 ft.

DIRT
NONE


--
--
--
--
  Runway 163 Runway 343
True Heading 169°349°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 25' 15"N 32° 24' 41"N
Longitude 99° 51' 34"W 99° 51' 26"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 164/344

3498 ft. x 60 ft.

ASPH
NONE

40/F/B/W/T
--
--
--
--
  Runway 164 Runway 344
True Heading 169°349°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 24' 60"N 32° 24' 26"N
Longitude 99° 51' 48"W 99° 51' 40"W
Elevation 1,794' 1,799'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RSTD: INBD ACFT WITH DV CODE 6 OR ABV CTC AFLD OPS 20 MIN PRIOR ARR MON-FRI, CTC COMD POST ON UHF OR DSN 461-1921. 45 MIN PRIOR WKEND AND HOL.
A110-10CAUTION: ACFT LRGR THAN C130 ONLY ALLOWED 180 DEG TURNS ON CONC SFC AT N AND S ENDS OF RWY 16-34.
A110-12TFC PAT: DUR VMC DEP ACFT MUST REMAIN AT OR BLW 3000' TIL FLD BDRY TO ENSURE SEPARATION FR VFR OVERHEAD.
A110-13BEARING STRENGTH RWY 161-341: AUW 155.
A110-18TFC PAT: RSRS APPLIES TO ALL LOCAL ACFT. B1 8000', C130 5000' SEPARATION, B1 RQR MIN CEIL/VIS 1500'/3 SM AND RWY SFC DRY.
A110-21JASU: 1(MD-3) 1(MA-1A) 1(AM32A-60A) 1(A/M32A-86).
A110-23FLUID: LPOX DE-ICE.
A110-24OIL: O-133-148-156.
A110-25CAUTION: EXTV VFR ASSAULT STRIP TFC W OF RWY 16-34.
A110-26CAUTION: AFLD SIGNS RQR B52 ACFT EXIT RWY 16-34 AT TWY F.
A110-31SERVICE: TRAN ALERT SVC AVBL MON-FRI 1400-0400Z++; CLSD WKEND AND HOL.
A110-32CAUTION: DURING BWC MODERATE AND SEVERE, AIRCREWS SHOULD COMPLY WITH OWNING MAJCOM/UNIT GUIDANCE; AIRCREWS CAN OBTAIN CURRENT BWC FR ATIS/PTD. BASH PHASE II IN EFFECT APR - JUN AND SEP - NOV.
A110-33CAUTION: COMSEC STORED AT COMMAND POST.
A110-37RSTD: NO ARR/DEP WHEN LIGHTNING WI 5 NM WO OG/CC APVL.
A110-40RSTD: QUIET HR POLICY 0400-1000Z++.
A110-42MISC: AFLD WX MNT BY AN/FMQ-19 ASOS, AUGMENTED BY HUMAN OBSN WHEN RQR. ATC WILL RELAY TWR PREV VIS, RCR/RSC AND VIRGA RMK TO ACFT. AUGMENTED SFC VIS RSTD 090-160 BY BLDG.
A110-43MISC: FOR CUSTOMS REFER TO FCG OR AP-1.
A110-44RSTD: PPR VALID +/- 30 MINUTES. PPR WILL NOT BE ISSUED FOR TRAN ACFT REQ RWY 163/343 AND RWY 164/344. LZ164/344 HAS A NON-STD LTG SYS. TRAN ACFT MUST OBTAIN BRIEFING FM 317 OSK PRIOR TO NGT OPNS. WITHOUT FORMAL NOTIFICATION FROM 317 OSK, TRAN ACFT USING RWY 163/343 OR 164/344 AT NGT WITHOUT LGT (OVERT OR COVERT) AND WITH RESPECTIVE MAJCOM/A3 APVL MUST NOTIFY AFLD MGMT AND REQ SEPARATE NOTAM FOR UNLGTD LZ OPNS.
A110-45PARK SPOTS A1 AND B1 USED FOR TAXI OPNS ONLY.
A110-47RSTD: PRK SPOTS A12, A13 AND A20 ARE DESIGNATED ACFT GRD EQPT (AGE) SPOTS.
A110-49RSTD: TYE RAMP CLSD.
A110-5CAUTION: INTS TRNG AND FORMATION FLT OF HVY ACFT IN THE IMMED VCNTY.
A110-51RSTD: TWY G RSTD TO DAYLT OPS ONLY; EXC NVG OPS AND MAINT TOW.
A110-53SERVICE-FUEL: A+ IS NATO F-24 EQUIVALENT WITH EXTRA ADDITIVES (CI/LI AND SDA).
A110-55RSTD: PRK SPOTS A1 & B1 AVBL FOR TAXI ONLY.
A110-56COMMUNICATIONS-TWR: UHF EQUIPPED ACFT SHALL USE 257.675 TO MAX EXTENT POSSIBLE.
A110-6MISC: ALL AMC ACFT CTC AMCC PRIOR TO ARR DSN 461-1984, C325-696-1984..
A110-61MISC: WX FCST SVC AVBL DUR AFLD OPR HRS; DSN 461-2524, C325-696-2524. ALL 175-1 WX REQ RQR 2 HR NOTICE.
A110-62TRAN ALERT: NO MIL FLEET SVC AVBL, LTD TRAN SVC AVBL.
A110-63CAUTION: NMRS UNMKD SPALLS THRU OUT RWY 16/34. CTC AFLD MGMT OPS DSN 461-2515 FOR FURTHER INFO.
A110-64RSTD: B-52 ACFT APCH/LDG DYESS AFB MUST PRVD AT LEAST 2-4 HRS NOTICE BFR ARR FOR AFLD PREP.
A110-65OPRG HRS: OPR 1300-0559Z++ MON-FRI FOR ALL ACFT, 1500-2300Z++ SAT-SUN FOR 7 BW AND 317 AW ONLY; CLSD HOL, HOL WKEND AND AFGSC FAM DAYS. IN CASE OF AFT HR EMERG NTFY 7 BW COMD POST AT 325-696-1921.
A110-66MISC: FIRE BOTTLES LCTD AT N AND S HAMMERHEADS.
A110-8PPR CTC AFLD MGMT AT 7OSS.OSAA.AMOPS@US.AF.MIL FOR PPR REQ FORM DSN 461-2515/2258. MIN 24 HR NOTICE RQR AND REQ NO MORE THAN 7 DAYS PRIOR. PPR VALID +/- 30 MINUTES OF SKED LDG. ALL DIVERTS MUST CTC AFLD MGMT TO CONFIRM RAMP SPACE/TRAN SVC AVBL.
A110-9CSTMS/AG/IMG: CSTMS AVBL, CTC SECURITY FORCES DSN 461-2131/2132 24 HR IN ADVANCE.
A30-163/343RWY USED AS AN ASSAULT STRIP.
E147TPA: 1210 FT AGL RECTANGULAR, 1710 FT AGL OVERHEAD.
DYESS AFB (ICAO: KDYS, IATA: DYS) is a private airport located in ABILENE, TX, US.
