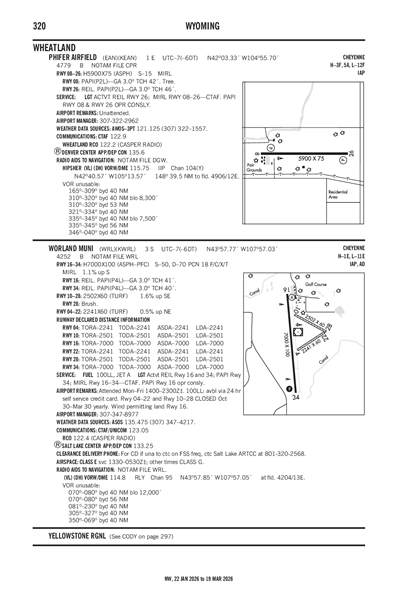

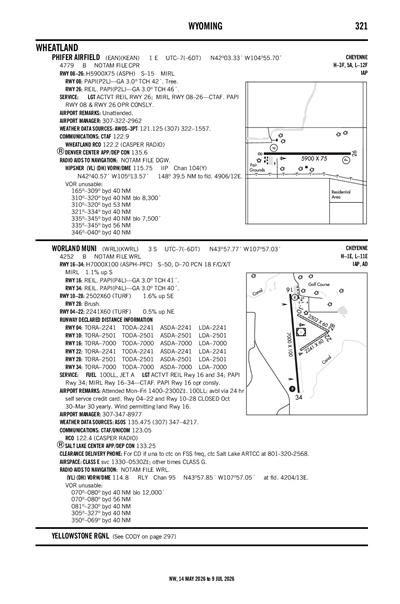

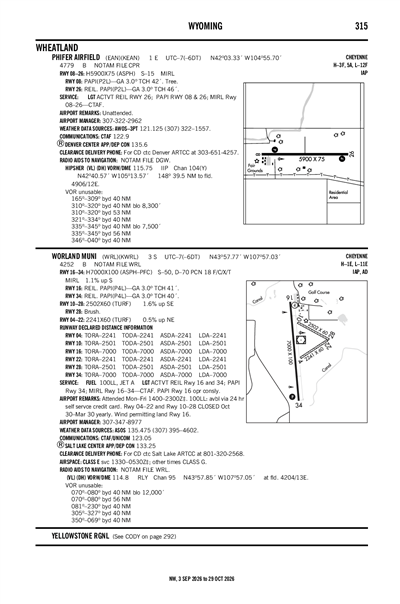

PHIFER AIRFIELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEAN
ICAO KEANIATA EANLocal EAN
PHIFER AIRFIELD
PublicPUB

1 miles E of WHEATLAND, WY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 03' 20"N 104° 55' 42"W
Elevation
4779' MSL
Pattern Alt
5779' MSL
Mag Variation
8°E
Declination
9°E
Fuel
None Listed
FSS
CASPER (CPR)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
10/1/26-10/29/26
KEAN VFR
10:30 PM MDT
Scattered 9,000'
10sm
61°F
44°F
29.97"Hg
160° 5kts
AO2 T01590069
METAR KEAN 230430Z AUTO 16005KT 10SM SCT090 16/07 A2997 RMK AO2 T01590069
+ Add Your Business

KEAN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 121.125
(307) 322-1557

Common

CTAF 122.9
ACTVT REIL RWY 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.

Center

DENVER CENTER 135.6
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 135.6/363.025 (LUSK RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KGUR (15nm)
Thu, 10/22 3:00 PM MDT
Thu, 10/22 3:00 PM MDT - Fri, 10/23 9:00 PM MDT
VFR
3:00 PM MDT - 5:00 PM MDT
Sky Clear
6sm
30.00"Hg
250° 9kts
Gusts 18kts
VFR
Becoming 5:00 PM MDT - 10:00 AM MDT
Scattered 14,000'
6sm
29.82"Hg
VRB° 6kts
VFR
Temporary 4:00 AM MDT - 6:00 AM MDT
Broken 12,000'
N/A
Calm
VFR
Becoming 10:00 AM MDT - 7:00 PM MDT
Sky Clear
6sm
29.85"Hg
250° 14kts
Gusts 26kts
VFR
Becoming 7:00 PM MDT - 9:00 PM MDT
Sky Clear
6sm
29.91"Hg
VRB° 6kts
TAF KGUR 222100Z 2221/2403 25009G18KT 9999 SKC QNH3001INS
   BECMG 2223/2300 VRB06KT 9999 SCT140 QNH2983INS
   TEMPO 2310/2312 BKN120
   BECMG 2316/2317 25014G26KT 9999 SKC QNH2984INS
   BECMG 2401/2402 VRB06KT 9999 SKC QNH2992INS TX25/2221Z TN04/2312Z
KEAN
EffectiveExpiresCategoryNOTAM
Domestic
3/6/26
2148Z
3/6/28
2359Z
!CPR 03/022 EAN OBST TOWER LGT (ASR 1064345) 420753.00N1052953.00W (25.83NM W EAN) 7658FT (233FT AGL) U/S 2603062148-2803062359
No
UNATNDD
TOWN OF WHEATLAND
600 9TH ST
WHEATLAND, WY 82201
Phone: 307-322-2962
TABITHA ENNIS
600 9TH STREET
WHEATLAND, WY 82201
Phone: 307-322-2962
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
CPR
--
ACTVT REIL RWY 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 08/26

5900 ft. x 75 ft.
ASPH
Good
NONE
MED

15,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 03' 20"N 42° 03' 20"N
Longitude 104° 56' 21"W 104° 55' 03"W
Elevation 4,779' 4,766'
Threshold Crossing Height 42 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1FOR CD CTC DENVER ARTCC AT 303-651-4257.
A75-TPILOT SUPPLIED ROPES REQUIRED.
A81-APTACTVT REIL RWY 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
E111ESTAB PRIOR TO 1959.
PHIFER AIRFIELD (ICAO: KEAN, IATA: EAN) is a public airport located in WHEATLAND, WY, US.
