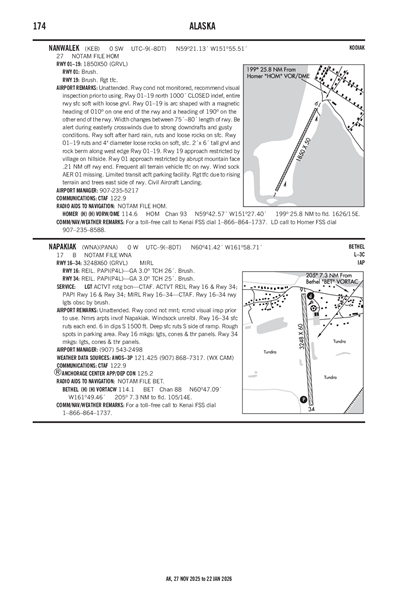

NANWALEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEB
NANWALEK
PublicPUB

0 miles SW of NANWALEK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
59° 21' 08"N 151° 55' 31"W
27' MSL
1027' MSL
14E
None Listed
HOMER (HOM)
KODIAK
ANCHORAGE (ZAN)
1/22/26-2/19/26
PASO (9nm) LIFR
12:29 AM AKST
Overcast 300'
7sm
33°F
33°F
29.58"Hg
Calm
AO2 T00060006 TSNO $
SPECI PASO 010929Z AUTO 00000KT 7SM OVC003 01/01 A2958 RMK AO2 T00060006 TSNO $
+ Add Your Business

KEB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAHO (22nm)
Sat, 1/31 8:23 PM AKST
Sat, 1/31 9:00 PM AKST - Sun, 2/1 9:00 PM AKST
VFR
9:00 PM AKST - 1:00 AM AKST
Broken 6,000'
Scattered 4,000'
6sm
050° 5kts
VFR
1:00 AM AKST - 3:00 PM AKST
Fog in vicinity
Few 1,000'
6sm
040° 3kts
VFR
3:00 PM AKST - 9:00 PM AKST
Showers in vicinity
Broken 6,000'
Scattered 4,000'
6sm
060° 4kts
TAF PAHO 010523Z 0106/0206 05005KT P6SM SCT040 BKN060
   FM011000 04003KT P6SM VCFG FEW010
   FM020000 06004KT P6SM VCSH SCT040 BKN060
KEB
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0767
KEVIN JONES
2320 KACHEMAK DR
HOMER, AK 99603
Phone: 907-235-5217
HOMER FSS (HOM)
Toll Free: LC235-8588
HOM
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

1850 ft. x 50 ft.
GRAVEL
Poor
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 10°190°
Traffic Pattern Left Right
Markings
Markings Condition POOR
Latitude 59° 20' 59"N 59° 21' 17"N
Longitude 151° 55' 34"W 151° 55' 27"W
Elevation 27' 27'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-12BE ALERT DURING EASTERLY CROSSWINDS DUE TO STRONG DOWNDRAFTS AND GUSTY CONDITIONS.
A110-13WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-14RWY 01/19 NORTH 1000 FT CLOSED INDEF, ENTIRE RWY SFC SOFT WITH LOOSE GRVL.
A110-15RWY 01/19 NORTH 1000 FT CLOSED INDEF, ENTIRE RWY SFC SOFT WITH LOOSE GRVL.
A110-16RWY CONDITION NOT MONITORED, RECOMMEND VISUAL INSPECTION PRIOR TO USING.
A110-2RY 19 APCH RSTRD BY VILLAGE ON HILLSIDE. RY 01 APCH RSTRD BY ABRUPT MOUNTAIN FACE .21 NM OFF RY END.
A110-4LIMITED TNST ACFT PARKING FACILITY.
A110-5DAY VFR ONLY.
A110-6FREQUENT ALL TERRAIN VEH TRAFFIC ON RWY.
A110-9TURBULENCE DUE TO VARIABLE WINDS AND CLOSE IN HIGH TERRAIN AT EACH END OF RUNWAY. NO OVER RUN AT END OF RWY 19.
A16ALSO 907-235-5217.
A23-19RIGHT TRAFFIC DUE TO RISING TERRAIN AND TREES EAST SIDE OF RY.
A30-01/19THE RY IS ARC SHAPED WITH A MAGNETIC HEADING OF 010 DEGS ON ONE END OF THE RY AND A HEADING OF 190 DEGS ON THE OTHER END OF THE RY. WIDTH CHANGES BTWN 75-80 FT LENGTH OF RY.
A31-01/19RY 01/19 N 1000 FT CLSD INDEFLY; RMNDR 850 FT SOFT.
A33-01/19_CONDRY SOFT, RUTS & 4 IN DIAM LOOSE ROCKS ON SFC.
A33-01/19_SURFRY SOFT AFTER HARD RAIN, RUTS AND LOOSE ROCKS ON SFC.
A42-01_CONDRYS 01 & 19 END & EDGES NOT MKD, DUE TO HIGH WINDS & WATER EROSION.
A83WIND SOCK APCH END RWY 01 MISSING.
NANWALEK (IATA: KEB) is a public airport located in NANWALEK, AK, US.
