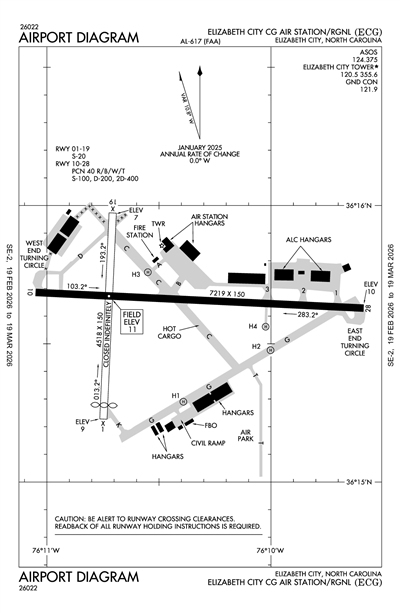

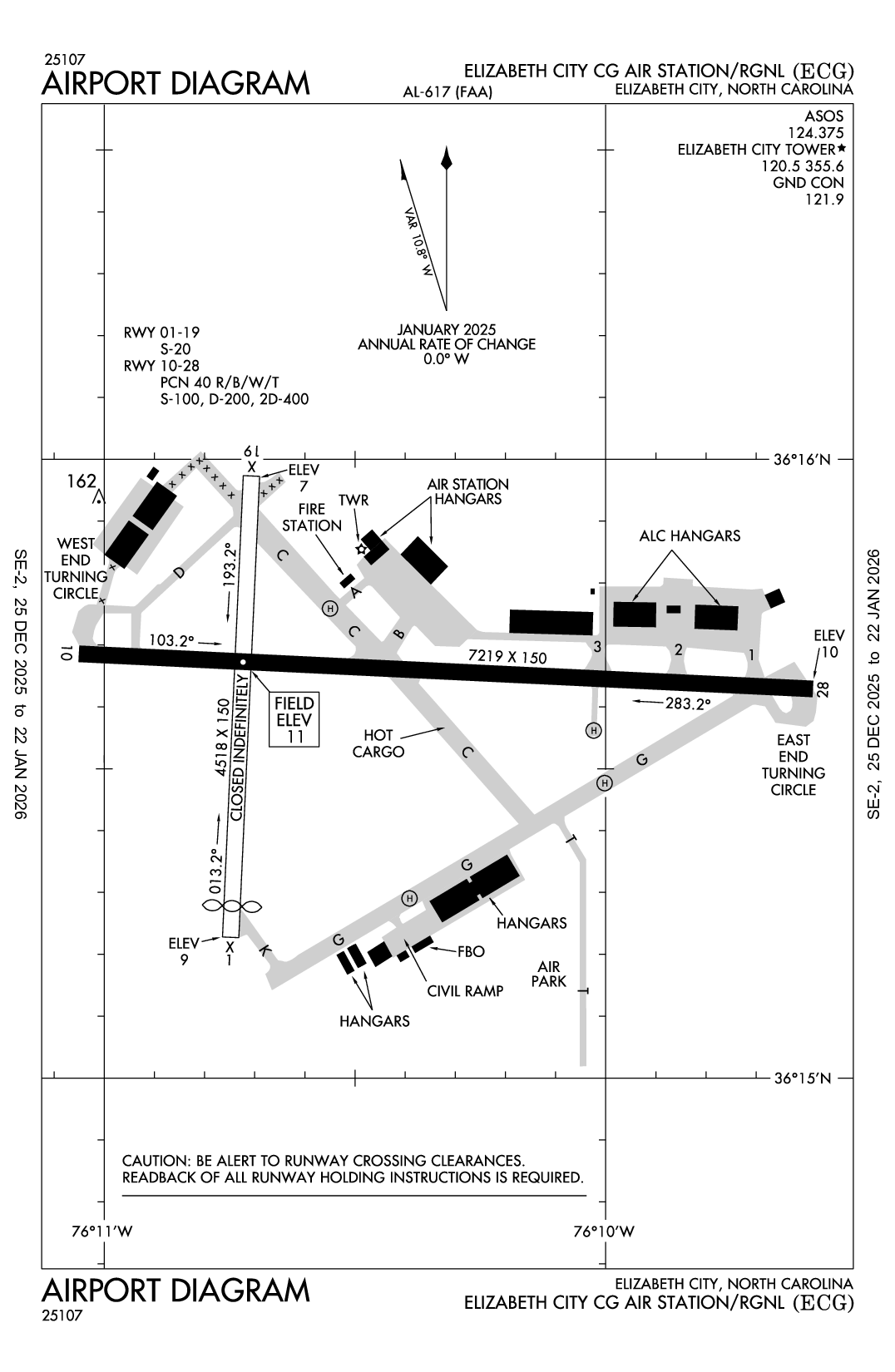

ELIZABETH CITY CG AIR STATION/RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KECG
ELIZABETH CITY CG AIR STATION/RGNL
PublicPUB

3 miles SE of ELIZABETH CITY, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 15' 38"N 76° 10' 28"W
11' MSL
1011' MSL
11W
Jet A-1+, 100LL
RALEIGH (RDU)
WASHINGTON
WASHINGTON (ZDC)
6/16/22-7/14/22
KECG VFR
2:54 AM EDT
Clear
10sm
69°F
66°F
30.25"Hg
Calm
AO2 SLP242 T02060189
KECG 300654Z AUTO 00000KT 10SM CLR 21/19 A3025 RMK AO2 SLP242 T02060189
List Your Business

KECG FBOs, Flight Schools and Ground Support

Promote Listing
Elizabeth City Regional Airport
Freq: 122.95
Phone: (252) 335-5634
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/21
 100LL Jet A Jet A+ Mogas UL94
Self Serve 7.70
Full Serve 7.95 6.95

KECG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KECG Hotels

No hotels are listed for this airport.

KECG Restaurants

No restaurants are listed for this airport.

KECG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.5

ASOS

ASOS
252-338-4750
 124.375

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KECG
Thu, 6/30 2:57 AM EDT
Thu, 6/30 3:00 AM EDT - Fri, 7/1 2:00 AM EDT
VFR
3:00 AM EDT - 4:00 AM EDT
Sky Clear
> 6sm
Calm
MVFR
4:00 AM EDT - 8:00 AM EDT
Mist
Sky Clear
5sm
VRB° 3kts
VFR
8:00 AM EDT - 2:00 PM EDT
Sky Clear
> 6sm
180° 4kts
VFR
2:00 PM EDT - 6:00 PM EDT
Scattered 5,000'
> 6sm
140° 9kts
VFR
6:00 PM EDT - 2:00 AM EDT
Sky Clear
> 6sm
170° 5kts
KECG 300657Z 3007/0106 00000KT P6SM SKC
   FM300800 VRB03KT 5SM BR SKC
   FM301200 18004KT P6SM SKC
   FM301800 14009KT P6SM SCT050
   FM302200 17005KT P6SM SKC
KECG
Domestic
6/30/221100Z !ECG 06/021 ECG OBST MOORED BALLOON WI AN AREA DEFINED AS 1NM RADIUS OF 361319N0760759W (2.5NM SE ECG) 5000FT (2986FT AGL) LGTD 2206301100-2206302100
6/29/221730Z !ECG 06/022 ECG TWY G BTN FIXED BASE OPR RAMP SOUTH ENTRANCE AND TWY K CLSD 2206291730-2209302359
6/28/221255Z !ECG 06/019 ECG OBST TOWER LGT (ASR 1003292) 361656.00N0761243.00W (2.2NM NW ECG) 278.9FT (269.0FT AGL) U/S 2206281255-2209282359
6/27/221100Z !ECG 06/017 ECG OBST MOORED BALLOON WI AN AREA DEFINED AS 1NM RADIUS OF 361319N0760759W (2.5NM SE ECG) 3000FT (2986FT AGL) LGTD DLY 1100-2100 2206271100-2207012100
6/25/221631Z !ECG 06/016 ECG OBST TOWER LGT (ASR 1005177) 362017.30N0761605.50W (6.4NM NW ECG) 420.9FT (416.0FT AGL) U/S 2206251631-2207242355
6/15/220156Z !ECG 06/008 ECG OBST TOWER LGT (ASR 1242552) 362017.20N0761448.70W (5.8NM NW ECG) 340.9FT (334.0FT AGL) U/S 2206150156-2209152359
6/15/220155Z !ECG 06/007 ECG OBST TOWER LGT (ASR 1061310) 362015.40N0761446.10W (5.7NM NW ECG) 340.9FT (334.0FT AGL) U/S 2206150155-2209152359
5/17/221121Z !ECG 05/011 ECG RWY 19 VASI U/S 2205171121-2305312000EST
5/17/221120Z !ECG 05/010 ECG RWY 01 VASI U/S 2205171120-2305312000EST
5/4/221834Z !ECG 05/004 ECG OBST TOWER LGT (ASR 1007525) 361819.00N0761608.90W (5.2NM WNW ECG) 325.1FT (310.0FT AGL) U/S 2205041834-2208042359
1/19/220501Z !ECG 01/011 ECG AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13

2201190501-2401190501
12/22/211539Z !ECG 12/024 ECG RWY 01/19 CLSD 2112221539-2312222359
10/29/211706Z !ECG 10/037 ECG TWY K CLSD 2110291706-2210292359
FDC
4/4/221717Z !FDC 2/3169 ECG IAP ELIZABETH CITY CG AIR
STATION/RGNL, ELIZABETH CITY, NC.
VOR/DME RWY 10, ORIG-F...
S-10 MDA 540/HAT 529 ALL CATS.
CIRCLING CATS A/B MDA 540/HAA 529, CIRCLING CAT C MDA 640/HAA 629,
CAT C VISIBILITY 1 3/4 SM.
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
CARRITUCK ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET AND
INCREASE S-10 VISIBILITY CATS C/D 1/8 SM.
DELETE CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
CURRITUCK ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET AND
INCREASE S-10 CAT D VISIBILITY 1/4 SM AND CIRCLING CAT C VISIBILITY
1/4 SM.
THIS IS VOR/DME RWY 10, ORIG-G. 2204041717-PERM
4/4/221713Z !FDC 2/3155 ECG IAP ELIZABETH CITY CG AIR
STATION/RGNL, ELIZABETH CITY, NC.
ILS OR LOC RWY 10, AMDT 1C...
S-ILS 10 DA 261/HAT 250 ALL CATS.
CIRCLING CAT C/D MDA 640/HAA 629, CAT C VISIBILITY 1 3/4 SM.
THIS IS ILS OR LOC RWY 10, AMDT 1D. 2204041713-PERM
4/4/221713Z !FDC 2/3154 ECG IAP ELIZABETH CITY CG AIR
STATION/RGNL, ELIZABETH CITY, NC.
VOR/DME RWY 28, AMDT 1D...
TDZE 10.
S-28 MDA 380/HAT 370 ALL CATS.
CIRCLING CAT C MDA 640/HAA 629, CAT C VISIBILITY 1 3/4 SM.
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
CARRITUCK ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET AND
INCREASE S-28 VISIBILITY CATS C/D 1/8 SM.
DELETE NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
CURRITUCK ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET AND
INCREASE S-28 CAT C VISIBILITY 1/4 SM AND CIRCLING CAT C VISIBILITY
1/4 SM.
THIS IS VOR/DME RWY 28, AMDT 1E. 2204041713-PERM
4/4/221713Z !FDC 2/3153 ECG IAP ELIZABETH CITY CG AIR
STATION/RGNL, ELIZABETH CITY, NC.
VOR/DME RWY 19, AMDT 10H...
TDZE 11.
S-19 MDA 480/HAT 469 ALL CATS, CAT C VISIBILITY 1 3/8.
CIRCLING CAT C MDA 640/HAA 629, CAT C VISIBILITY 1 3/4 SM.
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
CARRITUCK ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET.
DELETE NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
CURRITUCK ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET AND
INCREASE S-19 CAT C VISIBILITY 1/4 SM AND CIRCLING CAT C VISIBILITY
1/4 SM.
THIS IS VOR/DME RWY 19, AMDT 10I. 2204041713-PERM
3/25/221411Z !FDC 2/9459 ECG IAP ELIZABETH CITY CG AIR STATION/RGNL, ELIZABETH CITY, NC.
ILS OR LOC RWY 10, AMDT 1C...
MISSED APPROACH: CLIMB TO 500 THEN CLIMBING LEFT TURN TO 2000 DIRECT TO CVI VORTAC AND HOLD,
ECG VOR/DME OUT OF SERVICE. 2203251411-2211041411EST
3/25/221214Z !FDC 2/9415 ECG IAP ELIZABETH CITY CG AIR STATION/RGNL, ELIZABETH CITY, NC.
VOR/DME RWY 10, ORIG-F...
S-10 MDA 540/HAT 529 ALL CATS. VIS CATS C/D 1 1/2.
CIRCLING CATS A/B MDA 540/HAA 529. CIRCLING CAT C MDA 640/HAA 629. CIRCLING CAT C VIS 1 3/4 SM.
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE CARRITUCK ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET AND S-10 VISIBILITY CATS C/D 1/8 SM.
2203251214-2311041214EST
Yes
MON-FRI 0800-2100
SAT-SUN 0800-1700
FOR GA ATTENDANCE AFTER HRS AND HOLIDAYS CALL 252-562-2472 OR CTC NOS. POSTED ON TRML DOOR.
USCG BASE ELIZABETH CITY
USCG BASE-ELIZABETH CITY OPS MNGR, 1664 WEEKSVILLE RD
ELIZABETH CITY, NC 27909
Phone: 252-334-5388
ROBERT POPP, CIV USCG
1664 WEEKSVILLE RD
ELIZABETH CITY, NC 27909
Phone: (252) 334-5388
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
ECG
--
ACTVT RWY 10 SALS; CNTRLN LGTS RWY 10/28; HIRL RWY 10/28 - CTAF. WHEN ATCT CLSD PAPI RWYS 10 & 28 OPR CONSLY; RWY 01/19 MIRL OTS INDEFLY.
Clear-Green
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
31
2
0
1
72
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

4518 ft. x 150 ft.
ASPH CONC
Poor

MED

20,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 2°182°
Traffic Pattern Right Right
Markings NPI NPI
Markings Condition POOR POOR
Latitude 36° 15' 14"N 36° 15' 58"N
Longitude 76° 10' 45"W 76° 10' 42"W
Elevation 9' 7'
Threshold Crossing Height 25 ft. AGL 30 ft. AGL
Visual Glide Path Angle 2.75° 2.75°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

7219 ft. x 150 ft.
CONC
Good

HIGH

100,000lbs
200,000lbs
400,000lbs
--
  Runway 10 Runway 28
True Heading 92°272°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 15' 41"N 36° 15' 38"N
Longitude 76° 11' 03"W 76° 09' 35"W
Elevation 10' 10'
Threshold Crossing Height 49 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights SALS
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes
A110-1NO LINE-OF-SIGHT BETWEEN RWY ENDS.
A110-11COAST GUARD COMPLEX HAS NUMEROUS BLDGS WI THE BLDG RSTRN LINES.
A110-13RWY 01/19 & TWY K WEST OF THE CIVIL RAMP CLSD TO ALL OPNS.
A110-16ALL DOD TBJT ACFT FULL STOP ONLY, PRACTICE APCHS AND VFR TOUCH-N-GOS PROHIBITED.
A110-19FLUID: SP LHOX OIL: O-133-156 TRAN ALERT- NO TRANS MAINT, LTD SVC, TRAN A/C MUST REMAIN WITH ACFT TO PROVIDE TECH DRCT/ASSIST IN SVCG.
A110-2ACFT WITH TAIL HEIGHTS TO 50 FT PARKED ON APRON FIRST 2000 FT FM RWY 28 R SIDE 250 FT FM RWY CNTRLN.
A110-21CG ALC RAMP ATTENDED 1200-2000Z++.
A110-22CIV RAMP ATNDD M-F 0800-2100, SAT-SUN 0800-1700 FOR CIV ATTENDANT AFTER HRS & HOL C252-562-2472 DUR HR ATNDD.
A110-23SAR MAY RQR H24 ATCT STAFF 0200-1300Z++; TRANS INTENTIONS IN THE BLIND ON 120.5.
A110-24SEE FLIP AP/1 SUPP ARPT INFO.
A110-26NOISE ABATEMENT PROCEDURES IN EFFECT, CALL AMGR 252-334-5388.
A110-27ALL ACFT DESTINED FOR CG AIR STATION CONTACT ELIZABETH CITY AIR ON 345.0, 10 MIN PRIOR TO LDG. ALL ACFT DESTINED FOR CG ALC CTC FLT OPS 123.1.
A110-28RWY AND TWY SFC COND NOT MNT WKENDS OR MON-FRI BTN 2000Z-1200Z.
A110-29MISC: NON-FRANGIBLE HIGH VOLTAGE BOXES LOCATED ON S EDGE OF ALC RAMP.
A110-3FACILITIES AND RAMPS NORTH OF RWY 10/28 RSTRD TO OFFL CG BUS ONLY.
A110-30MISC: PORTIONS OF ALC PRK RAMP NOT VIS FROM TWR.
A110-31MISC: RWY 01/19 RWY HOLD SIGNS AT TWY K AND D NOT COINCIDENTAL WITH COR PAINTED RWY HOLD MARKINGS.
A110-35MISC: AFLD MOWING SEASON APR-OCT. EXPCT INCREASED BIRD ACT IN VCNTY OF MOWERS OPR ON AFLD.
A110-36PPR IF ACN EXCEEDS PUBL PCN. CTC CG AFLD MGR C252-334-5388 TO OBTAIN APVL.
A110-37FOR CD WHEN ATCT CLSD, CTC NORFOLK APCH AT 757-464-0757.
A110-38RWY 10/28 INCRD POTENTIAL FOR HYDROPLANING DUE TO RUBBER DEPOSITS, CNTRLN OBSC.
A110-5INTERMITTENT TETHERED BLN OPNS 3 NM SE; DALGT HRS AT 3000 FT.
A110-9SEASONAL LOW-FLYING AGRI ACFT BASED IN THE LOCAL AREA.
ELIZABETH CITY CG AIR STATION/RGNL (ICAO: KECG, IATA: ECG) is a public airport located in ELIZABETH CITY, NC.
