iFlightPlanner



...

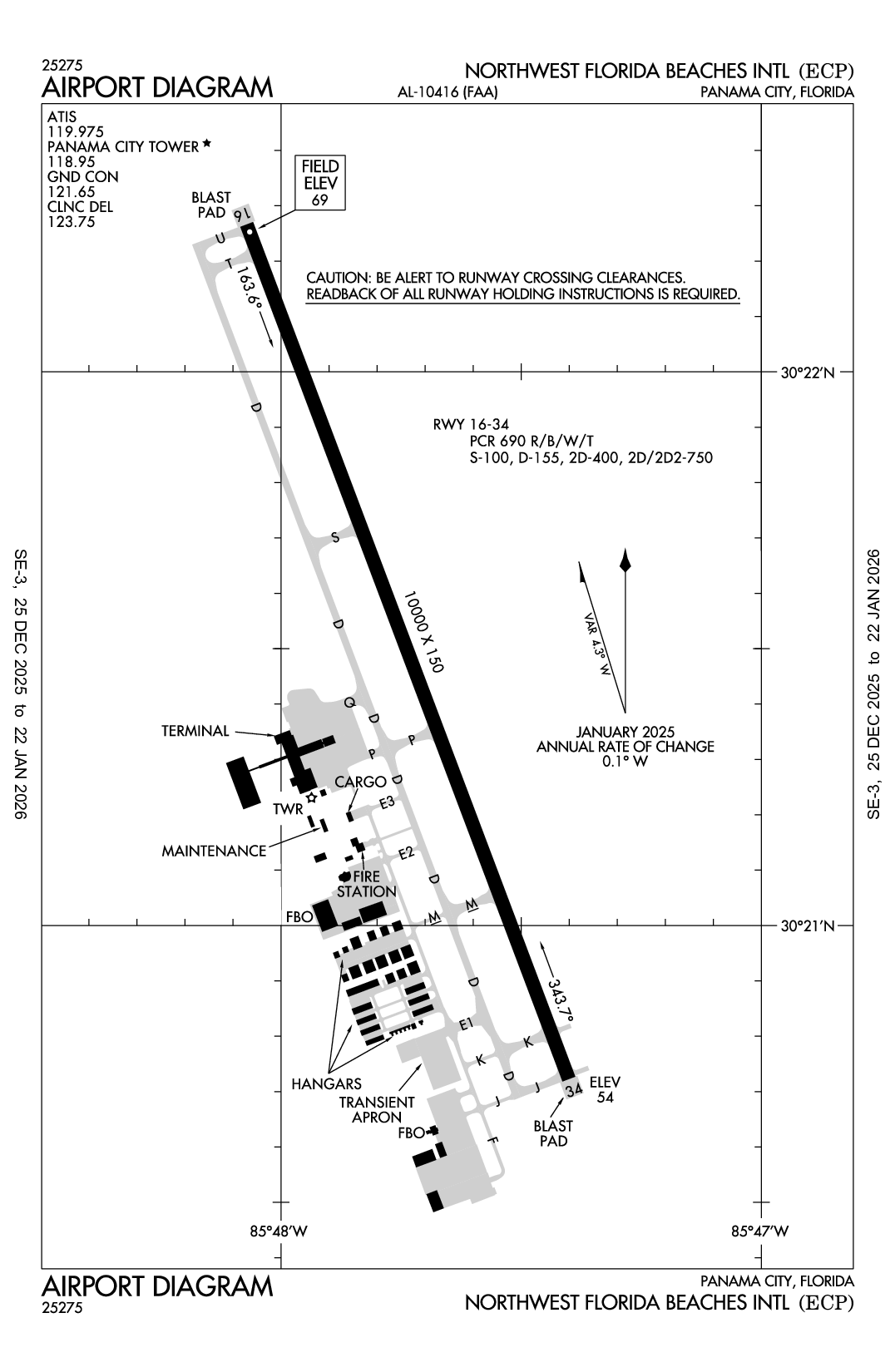

NORTHWEST FLORIDA BEACHES INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KECP
NORTHWEST FLORIDA BEACHES INTL
PublicPUB

16 miles NW of PANAMA CITY, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 21' 30"N 85° 47' 44"W
69' MSL
1069' MSL
03W
Jet A, 100LL
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
6/16/22-7/14/22
KECP VFR
6:53 AM CDT
Scattered 2,100'
10sm
78°F
76°F
30.05"Hg
Calm
AO1 SLP185 T02560244 10256 20228 53019
KECP 061153Z 00000KT 10SM SCT021 26/24 A3005 RMK AO1 SLP185 T02560244 10256 20228 53019

KECP FBOs, Flight Schools and Ground Support

Sheltair
Freq: 130.0
Phone: (850) 233-4717
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/23
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 9.39 8.92 8.99
Sunshine Turbine
Phone: (850) 296-9009
No Rating Available
0 Reviews (Read | Sign In To Write)

KECP Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KECP Hotels

No hotels are listed for this airport.

KECP Restaurants

No restaurants are listed for this airport.

KECP Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 118.95

ATIS

ATIS
119.975

ASOS

ASOS
850-235-7857
119.975

Emergency

EMERG
121.5

Ground

GND/P
121.65

Tower

LCL/P
118.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KECP
Wed, 7/6 6:20 AM CDT
Wed, 7/6 7:00 AM CDT - Thu, 7/7 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Sky Clear
> 6sm
040° 3kts
VFR
10:00 AM CDT - 2:00 PM CDT
Scattered 4,000'
> 6sm
220° 6kts
VFR
2:00 PM CDT - 7:00 PM CDT
Thunderstorm in vicinity
Scattered 4,000'
> 6sm
210° 6kts
VFR
7:00 PM CDT - 7:00 AM CDT
Scattered 25,000'
> 6sm
VRB° 3kts
KECP 061120Z 0612/0712 04003KT P6SM SKC
   FM061500 22006KT P6SM SCT040
   FM061900 21006KT P6SM VCTS SCT040CB
   FM070000 VRB03KT P6SM SCT250
KECP
Domestic
7/3/220526Z !ECP 07/002 ECP OBST TOWER LGT (ASR 1030783) 301047.80N0853810.30W (13.4NM SE ECP) 299.5FT (264.8FT AGL) U/S 2207030526-2207180426
7/2/221512Z !ECP 07/001 ECP OBST TOWER LGT (ASR 1282211) 302114.30N0860643.50W (16.5NM W ECP) 345.8FT (324.8FT AGL) U/S 2207021512-2208011512
6/25/221310Z !ECP 06/026 ECP OBST TOWER LGT (ASR 1028143) 302125.50N0860551.10W (15.7NM W ECP) 283.1FT (265.1FT AGL) U/S 2206251310-2207251310
6/24/222256Z !ECP 06/025 ECP OBST TOWER LGT (ASR 1063681) 301257.40N0855112.00W (9.1NM SSW ECP) 285.8FT (257.9FT AGL) U/S 2206242256-2207090400
6/24/220522Z !ECP 06/024 ECP OBST TOWER LGT (ASR 1275391) 302526.80N0854053.90W (7.2NM NE ECP) 340.9FT (256.9FT AGL) U/S 2206240522-2207090422
6/23/220521Z !ECP 06/022 ECP OBST TOWER LGT (ASR 1247761) 302834.80N0855815.20W (11.4NM NW ECP) 303.1FT (262.1FT AGL) U/S 2206230521-2207080421
6/21/220325Z !ECP 06/020 ECP OBST TOWER LGT (ASR 1209491) 301126.70N0854709.60W (10.0NM S ECP) 271.7FT (257.9FT AGL) U/S 2206210325-2207210325
6/20/221201Z !ECP 06/019 ECP OBST TOWER LGT (ASR 1063640) 301000.00N0854025.00W (13.0NM SSE ECP) 231.3FT (209.6FT AGL) U/S 2206201201-2210212359
6/9/221955Z !ECP 06/011 ECP OBST TOWER LGT (ASR 1026396) 301941.60N0854121.80W (5.8NM ESE ECP) 551.8FT (500.0FT AGL) U/S 2206091955-2209070400
6/9/221609Z !ECP 06/010 ECP OBST TOWER LGT (ASR 1026865) 302122.80N0860629.30W (16.3NM W ECP) 288.1FT (270.0FT AGL) U/S 2206091609-2207091609
6/7/221515Z !ECP 06/007 ECP OBST TOWER LGT (ASR 1306206) 302005.50N0860320.00W (13.5NM W ECP) 362FT (320FT AGL) U/S 2206071515-2209092359
6/2/220101Z !ECP 06/002 ECP OBST TOWER LGT (ASR 1057617) 303042.70N0852916.90W (18.6NM ENE ECP) 1285.1FT (1148.0FT AGL) U/S 2206020101-2208300400
5/31/221705Z !ECP 05/055 ECP OBST TOWER LGT (ASR 1225559) 302754.60N0860458.40W (16.1NM WNW ECP) 264.1FT (220.1FT AGL) U/S 2205311705-2208172359
5/29/220908Z !ECP 05/052 ECP OBST TOWER LGT (ASR 1029304) 302146.60N0860722.20W (17.0NM W ECP) 321.2FT (308.1FT AGL) U/S 2205290908-2207130907
5/24/221629Z !ECP 05/042 ECP NAV PFN NDB U/S 2205241629-PERM
2/28/222231Z !ECP 02/028 ECP TWY F BTN TWY J AND FIXED BASE OPR SOUTH RAMP CLSD 2202282231-PERM
10/5/211427Z !ECP 10/003 ECP OBST CRANE (ASN UNKNOWN) 301907N0854804W (2.3NM SW ECP) UNKNOWN (196FT AGL) FLAGGED AND LGTD 2110051427-2210032200
6/16/211515Z !ECP 06/027 ECP OBST STACK (ASN UNKNOWN) 301606N0854200W (7.5NM SE ECP) UNKNOWN (206FT AGL) NOT LGTD 2106161515-PERM
FDC
2/17/212151Z !FDC 1/4861 ECP IAP NORTHWEST FLORIDA BEACHES INTL, PANAMA CITY, FL.
ILS OR LOC RWY 16, AMDT 3A...
S-LOC 16 MDA 440/HAT 371.
2102172151-2302172151EST
Yes
ALL
PANAMA CITY-BAY CO ARPT & INDST DIS
6300 WEST BAY PARKWAY
PANAMA CITY BEACH, FL 32409
Phone: 850-763-6751
PARKER MCCLELLAN
6300 WEST BAY PARKWAY
PANAMA CITY BEACH, FL 32409
Phone: 850-763-6751
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
ECP
--
WHEN ATCT CLSD ACTVT MALSR RWY 16; REIL RWY 34; TDZ RWY 16; CNTLN RWY 16/34; PAPI RWY 16 & 34; HIRL RWY 16/34 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
75
8
18
1
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 16/34

10000 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
56 /R/B/W/T
100,000lbs
155,000lbs
400,000lbs
750,000lbs
  Runway 16 Runway 34
True Heading 159°339°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 22' 16"N 30° 20' 43"N
Longitude 85° 48' 04"W 85° 47' 24"W
Elevation 69' 54'
Threshold Crossing Height 72 ft. AGL 86 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-2MIL VIP ARR/DEP SHALL BE AT ARPT TERM WITH PRIOR APVL FM ARPT AUTH - 850-763-6751 EXT 306.
A110-3TWY J BTN TWY D & TAXILANE F CLSD TO ACFT WITH WINGSPAN GTR THAN 80 FT EXC 1 HR PPR - 850-769-6033. TWY K, M, E2, E3 BTN TWY D & TAXILANE F RSTRD TO ACFT WITH WINGSPAN GTR THAN 80 FT.
A110-4BIRDS ON & INVOF ARPT.
NORTHWEST FLORIDA BEACHES INTL (ICAO: KECP, IATA: ECP) is a public airport located in PANAMA CITY, FL.
