iFlightPlanner



...

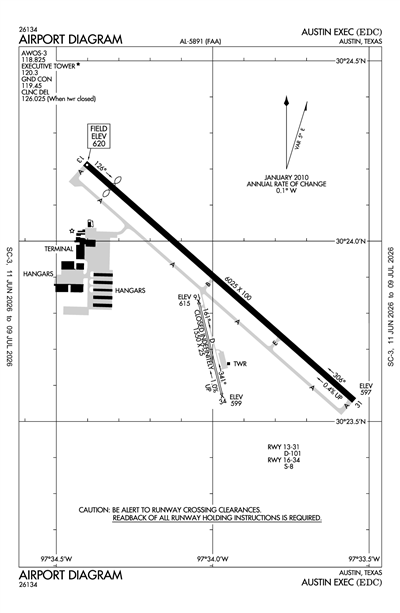

AUSTIN EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEDC
ICAO KEDCLocal EDC
AUSTIN EXEC
PublicPUB

12 miles NE of AUSTIN, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 23' 51"N 97° 33' 59"W
Elevation
620' MSL
Pattern Alt
1620' MSL
Mag Variation
3°E
Declination
5°E
Fuel
JET A (FSII), 100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
10/1/26-10/29/26
KEDC VFR
1:55 PM CDT
Broken 7,000'
Scattered 3,800'
10sm
90°F
73°F
29.96"Hg
170° 8kts
Gusts 18kts
AO2 T03230230 $
METAR KEDC 141855Z AUTO 17008G18KT 130V200 10SM SCT038 BKN070 32/23 A2996 RMK AO2 T03230230 $
+ Add Your Business

KEDC FBOs

Promote Listing
Henriksen Jet Center
UNICOM: 122.975
Phone: (512) 247-7678
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 10/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 8.85
Full Serve 10.25 11.15
Fuel Notes
Prices include tax

KEDC Aircraft Service & Maintenance

Promote Listing
Castleberry Instruments & Avionics
Phone: (512) 251-5322
Fax: (512) 251-7322
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.825
(512) 616-2967

Common

CTAF 120.3
ACTVT REIL RWYS 13 & 31; MIRL RWY 13/31 - CTAF.
UNICOM 122.975

Clearance

Clearance Delivery 126.025
WHEN EDC TWR CLSD

Ground

EXECUTIVE GROUND 119.45
0700-2200

Tower

EXECUTIVE TOWER 120.3
0700-2200

Arrival

POTRR STAR 127.225

Approach

AUSTIN APPROACH 127.225

Departure

AEROZ DP 127.225
AUSTIN DEPARTURE 127.225
BNDIA DP 127.225
ELOEL DP 127.225
ILEXY DP 127.225
MUCKY DP 127.225
SAYBR DP 127.225

Terminal Area Forecast

KAUS (14nm)
Wed, 10/14 12:22 PM CDT
Wed, 10/14 1:00 PM CDT - Thu, 10/15 7:00 PM CDT
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 4,000'
6sm
170° 13kts
Gusts 23kts
VFR
5:00 PM CDT - 7:00 PM CDT
Light Thunderstorm and Rain
Broken 5,000'
6sm
Calm
VFR
7:00 PM CDT - 12:00 AM CDT
Scattered 5,000'
6sm
140° 11kts
Gusts 21kts
VFR
12:00 AM CDT - 6:00 AM CDT
Scattered 2,500'
6sm
150° 8kts
MVFR
6:00 AM CDT - 12:00 PM CDT
Broken 2,500'
6sm
150° 3kts
MVFR
Temporary 8:00 AM CDT - 11:00 AM CDT
Broken 1,500'
N/A
Calm
VFR
12:00 PM CDT - 7:00 PM CDT
Scattered 25,000'
6sm
170° 7kts
TAF KAUS 141722Z 1418/1524 17013G23KT P6SM BKN040
   PROB30 1422/1424 P6SM -TSRA BKN050CB
   FM150000 14011G21KT P6SM SCT050
   FM150500 15008KT P6SM SCT025
   FM151100 15003KT P6SM BKN025
   TEMPO 1513/1516 BKN015
   FM151700 17007KT P6SM SCT250
KEDC
EffectiveExpiresCategoryNOTAM
Domestic
9/19/26
1455Z
12/18/26
0400Z
!EDC 09/007 EDC OBST TOWER LGT (ASR 1223280) 301610.20N0972641.80W (9.9NM SE EDC) 754.9FT (258.9FT AGL) U/S 2609191455-2612180400
8/4/26
1935Z
10/31/26
2359Z
!EDC 08/005 EDC OBST TOWER LGT (ASR 1052838) 301916.00N0973722.00W (5.4NM SSW EDC) 892.7FT (249.3FT AGL) U/S 2608041935-2610312359
8/4/26
1934Z
10/31/26
2359Z
!EDC 08/004 EDC OBST TOWER LGT (ASR 1052841) 301912.00N0973728.00W (5.5NM SSW EDC) 879.3FT (249.3FT AGL) U/S 2608041934-2610312359
7/31/26
1938Z
12/31/26
0500Z
!EDC 07/003 EDC OBST CRANE (ASN 2026-ASW-3885-OE) 302538N0973505W (2.0NM NNW EDC) 1036FT (404FT AGL) FLAGGED AND LGTD 2607311938-2612310500
Yes
ALL
TRAVIS COUNTY FIELD LLC
2916 CARDIFF ROAD
BROOKSHIRE, TX 77423
Phone: 512-247-7678
REED BRICKEY
6012 AVIATION DR
PFLUGERVILLE, TX 78660
Phone: 713-679-4308
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
EDC
--
ACTVT REIL RWYS 13 & 31; MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
None
None
Charter Service
Pilot Instruction

Runway 13/31

6025 ft. x 100 ft.
ASPH
Good
NONE
MED

--
101,000lbs
--
--
  Runway 13 Runway 31
True Heading 132°312°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 30° 24' 13"N 30° 23' 34"N
Longitude 97° 34' 24"W 97° 33' 33"W
Elevation 620' 597'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

1550 ft. x 25 ft.
ASPH
Failed
NONE


8,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 166°346°
Traffic Pattern Left Left
Markings
Markings Condition POOR POOR
Latitude 30° 23' 50"N 30° 23' 35"N
Longitude 97° 34' 03"W 97° 33' 58"W
Elevation 615' 599'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-5VFR DEPS REQUESTING ATC SVC REMAIN CLEAR OF THE FINAL APCH CRS OF KAUS RWYS 18L & 18R. IF THE ACFT IS INITIALLY EASTBOUND, CTC AUS APCH CTL ON 127.22. IF THE ACFT IS INITIALLY WESTBOUND CTC AUS APCH CTL ON 125.32. AUS CLEAREANCE DELIVERY 126.025.
A110-6RWY 13/31 TWY EDGES ARE MKD BY REFLECTOR POSTS.
A110-7NW END OF RWY 13/31 & TWY A HAS A 16 FT DROP OFF AT END OF PAVEMENT.
A110-8FOR CD CTC AUSTIN APCH AT 512-369-7865.
A16RBRICKEY@AUSTINEXECUTIVEAIRPORT.COM
A30-16/34CLSD INDEFLY.
A33-16/34_CONDEXTSV CRACKING, VEGETATION GROWING THROUGH.
A57-13APCH SLOPE 23:1 TO DSPLCD THR.
A58-3410 TREE, 100 FT DSTC, 50 FT R.
A81-APTACTVT REIL RWYS 13 & 31; MIRL RWY 13/31 - CTAF.
AUSTIN EXEC (ICAO: KEDC, IATA: EDC) is a public airport located in AUSTIN, TX, US.
