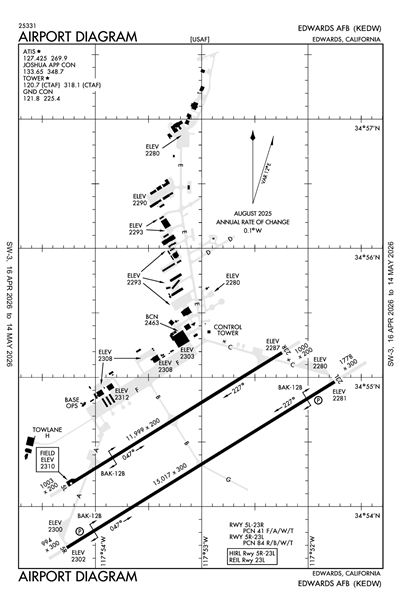

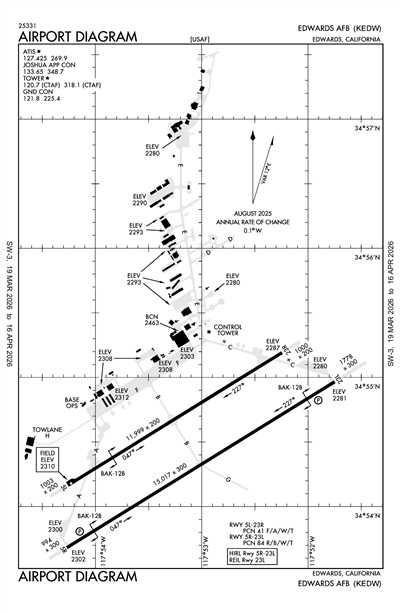

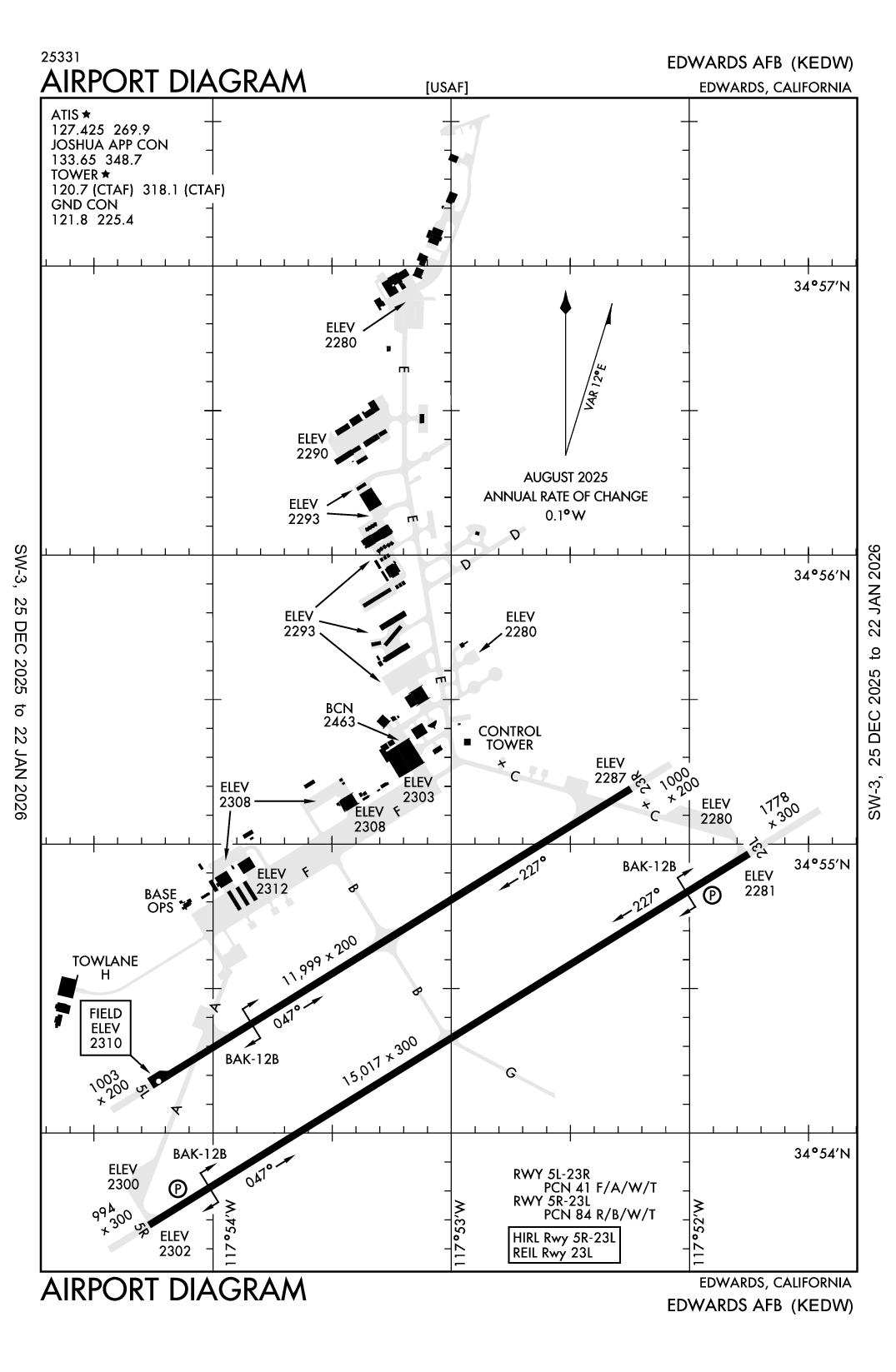

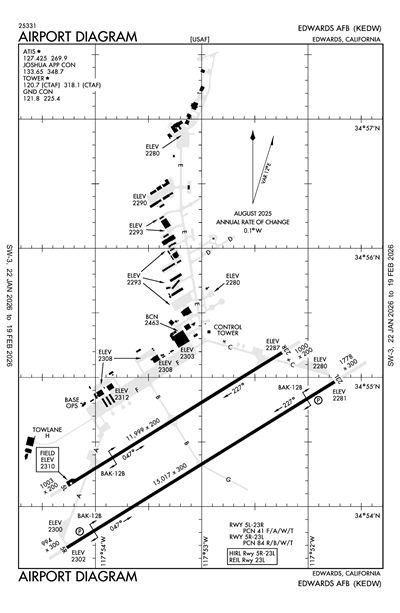

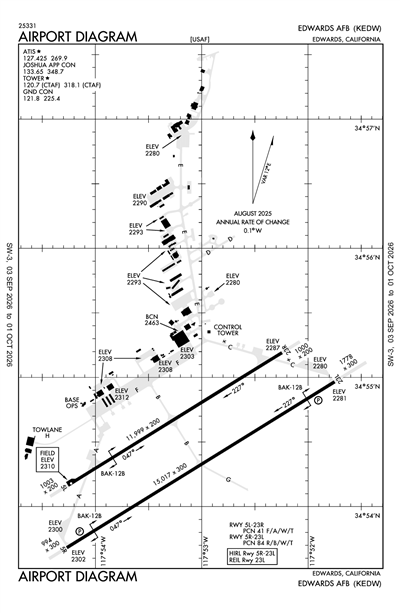

EDWARDS AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEDW
ICAO KEDWIATA EDWLocal EDW
EDWARDS AFB
PrivatePVT

6 miles SW of EDWARDS, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 54' 29"N 117° 53' 08"W
Elevation
2311' MSL
Pattern Alt
3311' MSL
Mag Variation
12°E
Declination
12°E
Fuel
100LL, JP-8
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
10/1/26-10/29/26
KEDW VFR
7:55 PM PDT
Few 30,000'
40sm
83°F
34°F
29.92"Hg
080° 7kts
AO2A SLP111 T02860011 53008
METAR KEDW 030255Z 08007KT 40SM FEW300 29/01 A2992 RMK AO2A SLP111 T02860011 53008
+ Add Your Business

KEDW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.425
Hours: 1400-0600Z++

Common

CTAF 120.7
UHF 318.1

Ground

EDWARDS GROUND 121.8
OPR 1400-0600Z++MON-FRI, 1400-2200Z++ SAT, CLSD SUN AND HOL.

Tower

EDWARDS TOWER 120.7
OPR 1400-0600Z++MON-FRI, 1400-2200Z++ SAT, CLSD SUN AND HOL.

Approach

JOSHUA APPROACH 133.65

Departure

JOSHUA DEPARTURE 133.65

Emergency

Emergency 121.5

Military

NASA OPS 135.825

Terminal Area Forecast

KEDW
Fri, 10/2 6:00 PM PDT
Fri, 10/2 6:00 PM PDT - Sat, 10/3 8:00 PM PDT
VFR
6:00 PM PDT - 7:00 PM PDT
Few 25,000'
6sm
29.97"Hg
070° 9kts
VFR
Becoming 7:00 PM PDT - 8:00 PM PDT
Scattered 25,000'
Few 12,000'
6sm
29.88"Hg
070° 9kts
VFR
Becoming 8:00 PM PDT - 8:00 AM PDT
Scattered 25,000'
Few 12,000'
6sm
29.94"Hg
VRB° 5kts
VFR
Becoming 8:00 AM PDT - 2:00 PM PDT
Sky Clear
6sm
29.97"Hg
050° 9kts
VFR
Becoming 2:00 PM PDT - 6:00 PM PDT
Sky Clear
6sm
29.91"Hg
060° 12kts
Gusts 18kts
VFR
Becoming 6:00 PM PDT - 8:00 PM PDT
Sky Clear
6sm
29.94"Hg
080° 9kts
TAF AMD KEDW 030100Z 0301/0403 07009KT 9999 FEW250 QNH2996INS
   BECMG 0302/0303 07009KT 9999 FEW120 SCT250 QNH2989INS
   BECMG 0303/0304 VRB05KT 9999 FEW120 SCT250 QNH2993INS
   BECMG 0315/0316 05009KT 9999 SKC QNH2996INS
   BECMG 0321/0322 06012G18KT 9999 SKC QNH2992INS
   BECMG 0401/0402 08009KT 9999 SKC QNH2993INS TX36/0323Z TN16/0314Z LAST NO AMDS AFT 0301 NEXT 0513
KEDW
EffectiveExpiresCategoryNOTAM
Domestic
10/3/26
1400Z
10/5/26
0200Z
!EDW 09/004 EDW AIRSPACE UNMANNED ROCKET WI AN AREA DEFINED AS 3NM RADIUS OF EDW339022 SFC-FL420 DLY 1400-0200 2610031400-2610050200
3/24/26
2235Z
12/31/26
2359Z
!EDW 03/002 EDW AIRSPACE UAS WI AN AREA DEFINED AS 1.3NM RADIUS OF 351459N1175802W (5.5NM NE L71) SFC-225FT AGL 2603242235-2612312359
Military
10/3/26
1700Z
10/3/26
2130Z
AerodromeAERODROME PJE 2NMR EDW 212.1/15.9 (ERICKSON DZ), SFC TO 10,000' AGL.
10/3/26
1330Z
10/5/26
0200Z
AerodromeAERODROME MULTIPLE MODEL AIRCRAFT LAUNCHES AT ROSAMOND NORTH EXHIBIT AREA. (34-52- 000N/118-04-200W, 34-52-000N/118-05-500W, 34-53- 100N/118-05-500W, 34-53-100N/118-04-200W) SFC TO 400? AGL.
10/3/26
0700Z
10/5/26
2359Z
AerodromeAERODROME SUAS 2NMR OF 34 59.830N, -117 39.257W, SFC-400" AGL
10/3/26
0100Z
10/3/26
0500Z
M1129/26 NOTAMN Q) ZLA/QXXXX/IV/NBO/A/000/999/3454N11753W005 A) KEDW B) 2610030100 C) 2610030500 E) AERODROME CLSD. COORDINATE EMERGENCY/MISSION ESSENTIAL REQUESTS THROUGH THE COMMAND POST AT DSN 527-3040, COMMERCIAL 661-277-3040, OR STANDBY 661-904-3432.
10/3/26
0100Z
10/31/26
0100Z
AerodromeAERODROME AERODROME AVOID 1/2 NMR OF AFRL AREA 1-42 (34.89132011"/-117.64751443") FOR ENGINE LOX/JET A TEST, SFC TO 5060 MSL.
10/1/26
2038Z
10/4/26
2038Z
M1127/26 NOTAMC M1124/26
10/1/26
2036Z
10/4/26
2036Z
M1126/26 NOTAMC M1125/26
9/29/26
1510Z
10/30/26
2359Z
MEN AND EQUIPMENT ON TAXIWAY CHARLIE INTERMITTENTLY
9/29/26
1507Z
10/30/26
2359Z
MEN AND EQUIPMENT ON TAXIWAY ECHO. ADJACENT TO THE NASA RAMP
9/25/26
1333Z
12/24/26
0500Z
MOBILE ARRESTING GEAR SYSTEM EQUIPMENT INSTALLED ON APPROACH END OF RWY 23R. CABLE DE-RIGGED.
9/25/26
1329Z
12/24/26
0500Z
TaxiwayTWY F BETWEEN TWY B AND TWY C 45FT SOUTH OF CENTERLINE 3 INCH PAVEMENT GAP 882 FEET IN LENGTH. ACFT SHALL REMAIN ON TWY F CENTERLINE BETWEEN TWY B AND TWY C. IF OFFSET IS REQUIRED, OFFSET NORTH OF CENTERLINE.
9/25/26
1318Z
12/24/26
0500Z
5 DRM SOUTH OF RWY 23L UNSERVICEABLE.
9/25/26
1317Z
12/24/26
0500Z
M1090/26 NOTAMN Q) ZLA/QXXXX/IV/NBO/A/000/999/3454N11753W005 A) KEDW B) 2609251317 C) 2612240500 E) CRACKED PAVEMENT ON TWY B BETWEEN RWY 23R AND RWY 23L 5 FEET WEST OF CENTERLINE.
9/25/26
1315Z
12/24/26
0500Z
EXPEDITIONARY AIRFIELD LIGHTING SYSTEM (EALS) INSTALLED ON RWY 23R. OFF WHEN AERODROME CLOSED. CONTACT AIRFIELD MANAGEMENT WITH REQUESTS TO USE EALS OUTSIDE OF AIRFIELD HOURS PRIOR TO SERVICE NEEDED.
9/25/26
1313Z
10/9/26
0500Z
HANGAR 1623 TOWLANE CLOSED.
9/25/26
1310Z
12/24/26
0500Z
AerodromeAERODROME CLOSED DAILY BETWEEN 2200L-0600L (0500Z-1300Z) MONDAY-FRIDAY. CLOSED ON WEEKENDS, FEDERAL HOLIDAYS, AND WING GOAL DAYS. AIRCREW MUST COORDINATE AFTER-HOURS REQUESTS 7 DAYS IN ADVANCE TO UTILIZE THE AERODROME DURING CLOSED PERIODS. COORDINATE EMERGENCY/MISSION ESSENTIAL REQUESTS THROUGH THE COMMAND POST AT DSN 527-3040, COMMERCIAL 661-277-3040, OR STANDBY 661-904-3432.
9/21/26
1714Z
10/9/26
0001Z
MEN AND EQUIPMENT OPERATING NORTH OF THE SOUTH BASE RUNWAY ON THE EASTERN SIDE OF THE RUNWAY OUTSIDE OF THE CMA . A TOWER INTERMITTENT 30FEET TALL WILL BE GOING UP AND DOWN PERIODICALLY. CREW WILL BE WORKING FROM 0700L(1400Z) TO 1700L (0000Z).
9/15/26
1427Z
11/16/26
2300Z
BASH PHASE II IN EFFECT. INCREASED BIRD ACTIVITY ON AND ABOVE THE AERODROME. AIRCREWS REMAIN VIGILANT ESPECIALLY DURING ARRIVAL AND DEPARTURE PHASES. MULTIPLE APPROACHES AND DEPARTURES RESTRICTED FROM 1 HOUR PRIOR TO 1 HOUR AFTER BOTH SUNRISE AND SUNSET
9/8/26
1453Z
11/30/26
0500Z
M1003/26 NOTAMN Q) ZLA/QMRTT/IV/NBO/A/000/999/3454N11753W005 A) KEDW B) 2609081453 C) 2611300500 E) CAUTION: NON-FRANGIBLE OBSTRUCTION ON RWY23R LOCATED 167FT SOUTH OF RWY CENTERLINE & 1350FT FROM RWY23R THRESHOLD. N34.917694, W117.874306
9/8/26
1453Z
11/30/26
0500Z
CAUTION: NON-FRANGIBLE OBSTRUCTION ON RWY23R LOCATED 185FT NORTH OF RWY CENTERLINE & 1380FT FROM RWY23R THRESHOLD. N34.918528, W117.875028
9/5/26
0100Z
10/4/26
0100Z
AVOID 1/2 NMR OF AFRL AREA 1-42 (34.89132011"/-117.64751443") FOR ENGINE LOX/JET A TEST, SFC TO 5060 MSL.
9/1/26
0700Z
11/27/26
1950Z
AerodromeAERODROME LIGHTS OUT OPERATIONS ROUTINELY OCCUR IN R2515, SFC - UNLIMITED
7/13/26
1740Z
10/9/26
0500Z
MEN AND EQUIPMENT OPERATING ON RAMP 7.
7/13/26
1652Z
10/10/26
0500Z
USE CAUTION: CONCRETE SLABS HAVE STARTED TO LIFT ON RUNWAY 05R/23L BY UP TO 1/2 OF AN INCH. LOCATED APPROXIMATELY 57FT SOUTH OF RUNWAY CENTERLINE, 290FT NORTH OF TAXIWAY GOLF SOUTHWEST ENTRY/EXIT LINE. AIRCREW ARE ADVISED TO REMAIN ON RUNWAY CENTERLINE AT ALL TIMES. DEVIATION TO THE SOUTH OF RUNWAY CENTERLINE HAS THE POTENTIAL TO CAUSE TIRE DAMAGE.
Yes
MON-FRI
CLSD WKEND, HOL, AND AFMC FAMILY DAYS.
OPR MON 1400-FRI 0600Z++. BASED ON MSN RQMNTS, AFLD MAY CLOSE AFTER SKED LAST LDG. NOTAM WILL BE ISSUED ADVERTISING EARLY AFLD CLOSURES.
USAF
EDWARDS AFB
EDWARDS, CA 93523
BASE OPERATIONS
EDWARDS AFB
EDWARDS, CA 93523
Phone: 661-277-3808
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
EDW
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
Low Pressure
High & Low Pressure
None

Runway 05L/23R

12000 ft. x 200 ft.

ASPH
NONE

41/F/A/W/T
--
--
--
--
  Runway 05L Runway 23R
True Heading 58°238°
Traffic Pattern
Markings
Markings Condition
Latitude 34° 54' 10"N 34° 55' 12"N
Longitude 117° 54' 17"W 117° 52' 15"W
Elevation 2,310' 2,287'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 05R/23L

15024 ft. x 300 ft.

CONC
NONE
HIGH
84/R/B/W/T
--
--
--
--
  Runway 05R Runway 23L
True Heading 58°238°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 34° 53' 40"N 34° 54' 59"N
Longitude 117° 54' 18"W 117° 51' 45"W
Elevation 2,303' 2,282'
Threshold Crossing Height 48 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 07/25

8000 ft. x 50 ft.

CONC
NONE

22/R/C/W/T
--
--
--
--
  Runway 07 Runway 25
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-13A-GEAR - BAK-12B(B) IN RAISED POSN ON DEP END OF ACT RWY. BAK-12B(B) RQR 20 MIN PN FOR APCH END ENGAGEMENT. WHEN AFLD CLSD BAK-12B(B) IN RAISED POSN DEP END RWY 23, REMOVED APCH END RWY 23. 8 PT TIE-DOWNS ON ALL BAK-12B IN RAISED POSN.
A110-14JASU: (A/M32C-10D) (MA-3D) 2(A/M32A-86D) (MC-5 LO-PACK) (SGNSC) (PMU-29E) 2(A/M32A-60A).
A110-15FUEL: 1 HR REFUEL DELAY CAN BE EXP.
A110-16FLUID: JOAP SOAP SP PRESAIR LHOX LOX.
A110-17OIL: O-156, 0-147, O-148
A110-27MISC - ACFT WITH DV INBD CTC PTD 40 NM OUT. NO COMSEC AVBL; AIRCREW LTD TO OWN RESOURCES ON ARR OR IN CASE OF EXTV DELAY. UHF EQPT ACFT MUST USE UHF (NOT VHF) IN PAT. NO RVR CAPABILITIES.
A110-294. RSTD - SOUTH BASE RWY 07/25 IS LIMITED TO LIGHT AIRCRAFT (12,500 POUNDS GROSS WEIGHT OR LESS), NO TURBOJETS.
A110-30MISC: TSNT ACFT MAY EXP IFR SEPN DLYS ENTERING R2508 COMPLEX. TSNT ACFT EXP EXTV RFL DLYS.
A110-31NOISE ABTMT PROC EFF 0400-1300Z++. 412 OG APVL RQRD FOR TGL. RWY 23L/R ALL ACFT MNTN RWY HDG TIL ABM JIPOP (EDW226013), THEN CLIMB ON HDG BTN 226 DEG CCW TO 360 DEG. NO EBND TURNS TIL PASSING EDW 245 RDL.
A110-32MISC: CARGO AIRCRAFT REQUIRING SUPPORT MUST ARRIVE PRIOR TO 0200Z++. NO SPACE A PASSENGER SUPPORT AVAILABLE.
A110-331. RSTD - OFFL BUS ONLY, PPR ALWAYS. CTC BASE OPS DSN 527-2222/4185, C661-277-2222/4185 OR PREFERABLY E-MAIL PPR REQ FORM TO S53D74@US.AF.MIL FOR PPR NR. PPR AND ASP BRIEFING RQRD FOR ALL ACFT (NO EXC); EDWARDS PPR BRIEFING LCTD AT WWW.EDWARDS.AF.MIL/R-2515-AIRSPACE. TRNS THRU ASP MUST BE PRIOR COORD WITH ASP MGR DSN 527-2515.
A110-342. RSTD-TRAN SHOULD BE PRIOR COORD IN ADVANCE WITH AIRSPACE MGR DSN 527-2446 OR SPORT RCF DSN 527-3928. ALL PPR RQR MIN 24 HR PRIOR NOTICE, NO SAME DAY PPR AVBL. PPR WILL NOT BE ISSUED MORE THAN 5 DAYS PRIOR TO ARRIVAL. ALL PPR VALID +/- 30 MIN PPR TIME; PPR THAT FAIL TO ARR WITHIN 30 MIN OF ORIG ETA INTO EDWARDS WILL BE CONSIDERED CNL UNLESS PRIOR COORD HAS BEEN MADE. FONE COORD RQR FOR PPR OUTSIDE OF BLOCK TIME.
A110-353. RSTD - PRACTICE APCH TO EDWARDS AFB MAIN BASE RWY, NORTH BASE RWY AND LAKE BED RWY PROH WHEN TWR CLSD. CTC NASA FLT OPS C661-276-3213 EXC FOR PPR. NON-NASA REGISTERED ACFT MUST CONTACT NASA TO PARK ON NASA RAMP. S BASE RWY 07-25 CLSD OFFL SS-SR.
A110-36CAUTION: USE CAUTION FOR UAS ARR/DEP FROM RWY 05L/23R, SOUTH BASE RWY 07/25, NORTH BASE RWY 06/24, THE ROGERS/ROSAMOND LAKEBED RUNWAY COMPLEX AND WITHIN R-2515. CTC ATC FOR UAS FLT ACT.
A110-39CAUTION - VFR INITIAL FLOWN 1500 FT N OF RWY CNTRLN DUE TO STEEP STRAIGHT IN SIMULATED FLAME OUT AND SHUTTLE APCH TO RWY.
A110-40CAUTION: CAUTION - PAY CAREFUL ATTN TO ACFT ALIGNMENT ON FINAL TO PRECLUDE INADVERTENT LDG ON S BASE RWY 25. NUMEROUS UNMRK/UNLGTD OBST SUR ARPT.
A110-41CAUTION - OBSERVER VIS RSTD SW-N DUE BLDG OBST VISION.
A110-42RSTD: RWY 05L-23R DAYLT ONLY OPS.
A110-43SERVICE-LGT: ILS AND PAPI NOT COINCIDENTAL.
A110-45TSNT ALERT SVC AVBL 1400-0600Z++ WKD. TSNT SVC UNAVBL FOR MULT ACFT TURNS/SORTIES. TRANSPORTATION SVC AVBL 1400-2330Z++ WKD. LTD FLEET SVC AVBL. NO PRIORITY BASIS.
A110-46CAUTION: OCNL WX BALLOON LAUNCHES 1 1/4NM NORTH WEST (APPROX 290 DEG) FROM ATCT.
A110-47MISC: NON-PARTICIPATING ACFT MAY EXP SIGNIFICANT DELAYS WHILE SPECIAL USE AIRSPACE IS SANITIZED TO ALLOW FOR TRANSIT UNDER IFR. NON-PARTICIPATING ACFT PLAN TO ARR/DEP 0200-0600Z++, 1400-1700Z++ AND 1900-2100Z++. ADVANCED COORD AND APVL RQR OUTSIDE ABV TIMES.
A110-48BASH PHASE II IN EFF 1 MAR - 30 APR AND 15 SEP - 15 NOV (SEE NOTAMS FOR SPECIFIC DATES).
A110-49CSTMS/AG/IMG - NOT TO BE USED AS AOE. NO CSTMS OR AG INSPN AVBL.
A110-505. RSTD: UNAVBL AS A PRIM OR DIVERT LCTN AFTER PUBL AFLD HRS. AFLD HRS SUBJECT TO CHG NEAR FEDERAL HOL; UPDATES POSTED VIA NOTAM. CALL EDWARDS AFB BOPS FOR MOST CURRENT ALFD HRS.
A110-51RWY COND CODE (RWYCC) NOT RPTD.
A110-52RSTD: AIRCREW REQ TO USE KEDW AS ALTN LCTN MUST PRE-COORD WITH AFLD MGMT PRIOR TO MSN LAUNCH TO ENSURE AFLD WILL BE OPEN.
A110-53MISC: BASE OPS DSN 527-2222/3197, C661-277-2222/3197; FAX DSN 527-5544/8787, C661-277-5544/8787.
A110-54CAUTION: SOUTH BASE RWY 07/25 HAS POTENTIAL FOR HYDROPLANING DUR AND AFTER RAINFALL EVENTS. PILOTS USE CTN WHEN BRKG DUR WET RWY COND.
A110-55CAUTION: RWY 05L/23R AND 05R/23L HAVE POTENTIAL FOR HYDROPLANING DUR AND AFTER RAINFALL EVENTS. PILOTS USE CTN WHEN BRKG DUR WET RWY COND.
A110-57RWY: FIRST 1000 FT RWY 05L AND FIRST 1000 FT RWY 23R CONC. MID 10000 FT OF RWY 05L/23R IS POROUS FRICTION SFC.
A110-58RSTD: VTOL/STOVL OPS NOT AUTH.
A17-D1CLSD WKEND, HOL, AND AFMC FAMILY DAYS.
A17-H1OPR MON 1400-FRI 0600Z++. BASED ON MSN RQMNTS, AFLD MAY CLOSE AFTER SKED LAST LDG. NOTAM WILL BE ISSUED ADVERTISING EARLY AFLD CLOSURES.
A19ESTIMATED ARP CALCULATED BASED ON RY 05L/23R & 05R/23L ONLY.
A43-05RUNUSBL BYD 7 DEG RIGHT OF RWY CNTRLN.
A43-23LUNUSBL BYD 7 DEG RIGHT OF RWY CNTRLN.
A70-100LL100LL FUEL AVBL THRU PRIOR ARNGMT WITH AERO CLUB ONLY DSN 527-2376, C661-275-2376.
E100UHF 318.1
E60-05L_BAK-12HOOK BAK-12(B)(2500')
E60-05R_BAK-12HOOK BAK-12B(B)(1518')
E60-23L_BAK-12HOOK BAK-12B(B) (1559')
EDWARDS AFB (ICAO: KEDW, IATA: EDW) is a private airport located in EDWARDS, CA, US.
