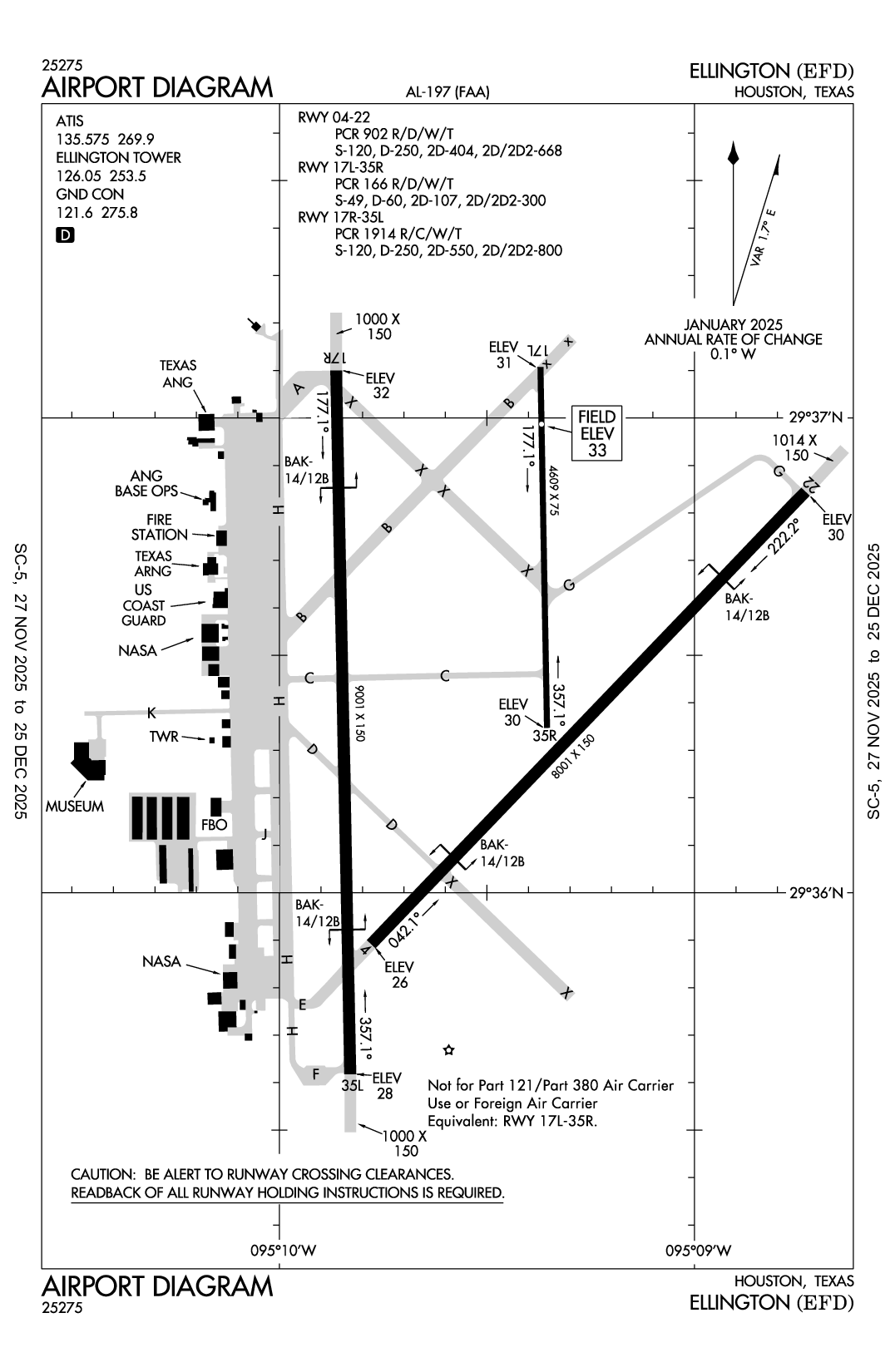

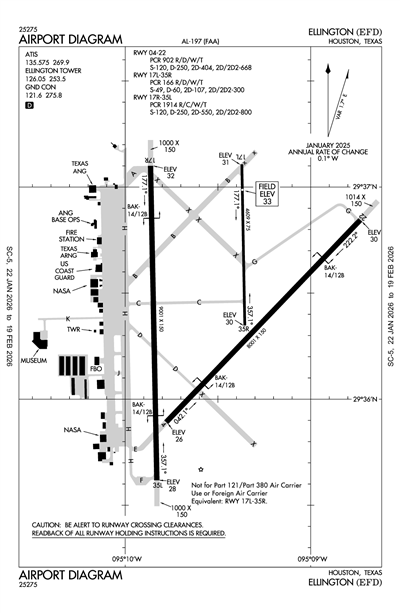

ELLINGTON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEFD
ICAO KEFDIATA EFDLocal EFD
ELLINGTON
PublicPUB

15 miles SE of HOUSTON, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 36' 26"N 95° 09' 31"W
Elevation
33' MSL
Pattern Alt
633' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A, 100LL
FSS
FORT WORTH (FTW)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
4/16/26-5/14/26
KEFD MVFR
8:54 PM CDT
Overcast 2,700'
Broken 1,800'
10sm
79°F
73°F
29.88"Hg
160° 11kts
METAR KEFD 290154Z 16011KT 10SM BKN018 OVC027 26/23 A2988
+ Add Your Business

KEFD FBOs

Promote Listing
On the Fly
UNICOM: 122.95
Phone: (713) 847-4234
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.30
Full Serve
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 130.25
Phone: (281) 484-6551
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/27
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.39 8.26
Fuel Notes
Prices include tax

KEFD Aircraft Service & Maintenance

Promote Listing
Brazos Avionics Inc.
Phone: (281) 788-6972
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.575
(713) 847-4430
AWOS-3 135.575
(713) 847-4430

Common

UNICOM 122.95

Ground

ELLINGTON GROUND 121.6

Tower

ELLINGTON TOWER 126.05

Arrival

BLUBELL STAR 124.225
CESAN STAR 121.3
HUDZY STAR 120.05
OHIIO STAR 120.05
SNDAY RNAV STAR 124.225
TKNIQ STAR 119.625
TSHIRT STAR 119.175
TSHRT STAR 119.175
WAPPL STAR 120.05

Approach

HOUSTON APPROACH 134.45

Departure

ALEXANDRIA DP 134.45
BLTWY RNAV DP 134.45
BORRN RNAV DP 134.45
CRIED DP 134.45
DREMR DP 134.45
EL DORADO DP 134.45
GIFFA DP 134.45
HOODO RNAV DP 134.45
HOUSTON DEPARTURE 134.45
INDIE RNAV DP 134.45
KARRR RNAV DP 134.45
LEONA DP 134.45
LUFKIN DP 134.45
LURIC DP 134.45
MMALT RNAV DP 134.45
STRYA DP 134.45
STYCK DP 134.45
TRUAX DP 134.45
WATFO DP 134.45
WYLSN RNAV DP 134.45

Emergency

Emergency 121.5

Military

ANG COMD POST 142.2
ANG OPS 142.2

Terminal Area Forecast

KEFD
Tue, 4/28 3:00 PM CDT
Tue, 4/28 3:00 PM CDT - Wed, 4/29 9:00 PM CDT
VFR
3:00 PM CDT - 10:00 PM CDT
Scattered 2,500'
6sm
29.88"Hg
180° 12kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 6,000'
MVFR
Becoming 10:00 PM CDT - 10:00 AM CDT
Broken 1,500'
6sm
29.85"Hg
190° 9kts
MVFR
Becoming 10:00 AM CDT - 3:00 PM CDT
Light Showers and Rain
Overcast 2,500'
4.97sm
29.91"Hg
180° 6kts
VFR
Becoming 3:00 PM CDT - 9:00 PM CDT
Showers in vicinity
Overcast 3,500'
Scattered 2,500'
6sm
29.85"Hg
170° 6kts
TAF KEFD 282000Z 2820/3002 18012G25KT 9999 SCT025 520006 QNH2988INS
   BECMG 2903/2904 19009KT 9999 BKN015 QNH2986INS
   BECMG 2915/2916 18006KT 8000 -SHRA OVC025 QNH2990INS
   BECMG 2920/2921 17006KT 9999 VCSH SCT025 OVC035 QNH2984INS TX32/2822Z TN24/2912Z
KEFD
EffectiveExpiresCategoryNOTAM
Domestic
4/30/26
1245Z
4/30/26
1345Z
Runway!EFD 04/016 EFD RWY 17R/35L CLSD 2604301245-2604301345
4/27/26
2036Z
5/1/26
2200Z
!EFD 04/018 EFD TWY H HLDG PSN MARKINGS AT RWY 04/22 SOUTH SIDE NOT STD 2604272036-2605012200
4/23/26
1705Z
4/30/26
2300Z
!EFD 04/015 EFD TWY C BTN RWY 17L/35R AND RWY 17R/35L WIP SFC PAINTING CENTERLINE REMOVED 2604231705-2604302300
4/22/26
1504Z
6/26/26
2300Z
!EFD 04/014 EFD TWY B SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 17L REMOVED 2604221504-2606262300
4/20/26
1941Z
7/20/26
2359Z
!EFD 04/013 EFD OBST TOWER LGT (ASR 1288174) 293620.60N0951040.30W (1.0NM W EFD) 237.2FT (200.1FT AGL) U/S 2604201941-2607202359
4/15/26
1822Z
!EFD 04/006 EFD SVC AUTOMATED WX BCST SYSTEM VIS/PRESENT WX UNREL 2604151822-2605292359EST
3/23/26
1506Z
10/19/26
2200Z
!EFD 03/036 EFD TWY G CLSD 2603231506-2610192200
3/23/26
1506Z
10/19/26
2200Z
!EFD 03/035 EFD TWY D BTN RWY 04/22 AND RWY 17R/35L CLSD 2603231506-2610192200
3/23/26
1200Z
10/19/26
2200Z
Runway!EFD 03/031 EFD RWY 04/22 CLSD 2603231200-2610192200
3/23/26
0600Z
10/24/26
0600Z
!EFD 03/028 EFD NAV ILS RWY 22 U/S 2603230600-2610240600
3/23/26
0600Z
10/24/26
0600Z
!EFD 03/027 EFD AD AP RVR ALL U/S 2603230600-2610240600
3/23/26
0600Z
10/24/26
0600Z
Runway!EFD 03/019 EFD RWY 22 ALS U/S 2603230600-2610240600
2/28/26
0012Z
4/30/26
2300Z
Runway!EFD 02/017 EFD RWY 04/22 EDGE MARKINGS NOT STD 2602280012-2604302300
2/28/26
0012Z
4/30/26
2300Z
Runway!EFD 02/016 EFD RWY 35L PAPI U/S 2602280012-2604302300
2/28/26
0011Z
4/30/26
2300Z
Runway!EFD 02/015 EFD RWY 22 RTZL U/S 2602280011-2604302300
2/28/26
0011Z
4/30/26
2300Z
Runway!EFD 02/014 EFD RWY 35L SEQUENCED FLG LGT U/S 2602280011-2604302300
9/10/25
1513Z
9/10/26
1214Z
!EFD 09/009 EFD AIRSPACE SEE ZHU 09/191 UAS 2509101513-2609101214
7/25/25
1919Z
8/31/26
2100Z
!EFD 07/050 EFD NAV ILS RWY 22 GP U/S 2507251919-2608312100
FDC
4/29/26
1300Z
5/6/26
1732Z
!FDC 6/6501 EFD SID ELLINGTON, HOUSTON, TX.
ALEXANDRIA THREE DEPARTURE...
CRESTVIEW TRANSITION,MCCOMB TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
ALL OTHER DATA REMAINS AS PUBLISHED,
MCB VORTAC OUT OF SERVICE. 2604291300-2605061732EST
4/29/26
1300Z
5/6/26
1511Z
!FDC 6/6393 EFD IAP ELLINGTON, HOUSTON, TX.
ILS Z OR LOC Z RWY 17R, AMDT 7...
ILS Z OR LOC Z RWY 22, AMDT 4...
ILS Z OR LOC Z RWY 35L, AMDT 7...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VUH VOR/DME OUT OF SERVICE. 2604291300-2605061511EST
4/24/26
1553Z
!FDC 6/5600 EFD IAP U.S. DOD ELLINGTON, HOUSTON, TX.
HI - ILS Y OR LOC Y RWY 17R, AMDT 4B...
S-LOC 17R CATS C/D/E VISIBILITY RVR 5500..
2604241553-2804241553EST
3/11/26
1501Z
!FDC 6/6679 EFD IAP ELLINGTON, HOUSTON, TX.
TACAN RWY 4, ORIG-B...
S-4 CAT C VISIBILITY 1 3/8. CHANGE HELICOPTER VISIBILITY REDUCTION
NOTE TO READ: RWY 4 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT
AUTHORIZED.
THIS IS TACAN RWY 4, ORIG-C. 2603111501-PERM
2/27/26
1847Z
!FDC 6/1294 EFD ODP ELLINGTON, HOUSTON, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TEXTUAL DEPARTURE PROCEDURE.
TAKEOFF MINIMUMS RWY 22: 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 218 FT/NM TO 300 OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT/NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1500 FEET PRIOR TO DER.
2602271847-2802271847EST
2/13/26
1339Z
!FDC 6/3830 EFD SID ELLINGTON, HOUSTON, TX.
CRIED ONE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2602131339-2802141339EST
2/13/26
1339Z
!FDC 6/3829 EFD SID ELLINGTON, HOUSTON, TX.
LEONA FOUR DEPARTURE...
BONHAM TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2602131339-2802141339EST
2/6/26
1554Z
!FDC 6/1067 EFD IAP ELLINGTON, HOUSTON, TX.
ILS Z OR LOC Z RWY 17R, AMDT 7...
TACAN RWY 17R, ORIG-B...
ELLINGTON (EFD) 11 DME ARC MINIMUM ALTITUDE 2500.
2602061554-2802061551EST
2/2/26
2033Z
!FDC 6/9643 EFD IAP ELLINGTON, HOUSTON, TX.
RNAV (GPS) RWY 22, AMDT 2D...
LNAV/VNAV DA/HAT 346/315.
2602022033-2802022033EST
3/12/25
1402Z
!FDC 5/2010 EFD SID ELLINGTON, HOUSTON, TX.
KARRR SEVEN DEPARTURE (RNAV)...
CORPUS CHRISTI TRANSITION YOMOM TO CRP VORTAC MOCA 1600.
TRUAX TRANSITION,WWREN TRANSITION KAVCY TO RIIGG MOCA 2100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503121402-2703121402EST
Military
4/1/26
1938Z
6/26/26
2100Z
AerodromeAERODROME RWY 04 DEP END CABLE IS OUT OF SERVICE.
Yes
ALL
CITY OF HOUSTON
16930 JFK BLVD
HOUSTON, TX 77032
Phone: 281-233-3000
ARTURO MACHUCA
BLDG 510 ELLINGTON FIELD
HOUSTON, TX 77034
Phone: 713-847-4200
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
EFD
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
Landing Rights Airport
Major
Major
Low Pressure
Low Pressure
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 04/22

8001 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
404,000lbs
668,000lbs
  Runway 04 Runway 22
True Heading 44°224°
Traffic Pattern Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 29° 35' 53"N 29° 36' 51"N
Longitude 95° 09' 47"W 95° 08' 44"W
Elevation 26' 30'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17L/35R

4609 ft. x 75 ft.
CONC
Fair
NONE


49,000lbs
60,000lbs
107,000lbs
300,000lbs
  Runway 17L Runway 35R
True Heading 179°359°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 29° 37' 06"N 29° 36' 21"N
Longitude 95° 09' 22"W 95° 09' 21"W
Elevation 31' 30'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

9001 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
800,000lbs
  Runway 17R Runway 35L
True Heading 179°359°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 37' 06"N 29° 35' 37"N
Longitude 95° 09' 52"W 95° 09' 50"W
Elevation 32' 28'
Threshold Crossing Height 48 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF MALSF
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1TWY B UNLGTD EAST OF RY 17R/35L; DALGT USE ONLY.
A110-11NMRS BIRDS ON AND INVOF ARPT ALL QUADRANTS.
A110-23RWY 17R ARRESTING BARRIERS 1500 FT LCTD IN SAFETY AREA 14 INCH LIP EACH SIDE OF RWY.
A110-24RWY 35L ARRESTING BARRIERS 1849 FT LCTD IN SAFETY AREA 14 INCH LIP EACH SIDE OF RWY.
A110-29FLUID: LHOX HPOX
A110-30SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-31CAUTION: NMRS SMALL ACFT WITH EXTV TRNG IN AREA OF ARPT.
A110-35NS ABTMT: NOISE SENSITIVE AREAS S AND E OF FLD. JET ACFT RSTD TO STR-IN FULL STOP LDG ONLY BTN 2200-0700 DLY, 2200-1300 SUN. ON DEP JET ACFT MIN USE OF AFTER BURNERS AND CLIMB RWY HDG TO 1000 PRIOR TO TURNS OR REJOIN.
A110-38CG: MIN 24 HR PPR EXC CG MSN. C713-578-3000.
A110-39STREET LGTS LCTD 700 FT EAST OF RWY 17R APCH MAY BE MISTAKEN FOR APCH LGTS.
A110-4BE ALERT FOR MIL ACFT AT 1600 MSL MAKING OVHD APCHS.
A110-41MISC: PRK RAMP CAP TDT710.
A110-48ANG: ANG RAMP CLSD TO ALL ACFT EXEC OFFL BUS ONLY. 24 HRS PPR, CTC BASE OPS, 1200-2130Z++ TUE-FRI, CLSD WKEND & HOL. DSN 454-2142, C281-929-2142. COMD POST AVBL 24 HR, DSN 454-2716, C281-929-2716. ALL OTHER TRAN ACFT CTC FBO 281-484-6551.
A110-49RWY 04 ARRESTING BARRIERS 1563 FT LCTD IN SAFETY AREA 14 INCH LIP EACH SIDE OF RWY.
A110-50RWY 22 ARRESTING BARRIERS 1496 FT LCTD IN SAFETY AREA 14 INCH LIP EACH SIDE OF RWY.
A110-52SERVICE - AGEAR: POTENTIAL FOR TAIL HOOK SKIP ON RWY 17R/35L AND RWY 04/22 DUE TO CNTLN LGT WITHIN 200' OF RWY A-G. AGEAR: A-GEAR LGTD MRK PLACEMENT EXCEEDS 75' FR RWY EDGE.
A110-53ARPT CLSD TO ACFT WITH WINGSPAN 171 FT OR GREATER EXCEPT 24 HRS PPR 281-433-1612.
A110-54SERVICE-FUEL: A++ (MIL).
A110-55ANG OPS COMD POST 288.5.
A110-56ANG: BASH PHASE II COND JUN-SEP FOR MIGRATORY BIRDS. BASH PHASE I OCT-MAY.
A110-57JASU: 1(-95) 1(-86) 1(JETEX5).
A110-58UAS OPS WI ELLINGTON CLASS D ASP, OPR HRS VARY.
A110-59PPR FOR UNSCHEDULED AIR CARRIER OPS, CTC 281-433-1612.
A110-60TWY B EAST OF RWY 17R-35L NOT AVBL FOR AIR CARRIER ACFT.
A110-61NSTD AFLD MRK ON ANG ACFT PRK APN.
A110-770 FT AGL TANKS LCTD 1400 FT NE OF RY 17R APCH.
A110-9RWY 17L/35R BTWN TWYS C & G - DUAL PURPOSE RWY/TWY WITH TWY LGTS.
A30-17L/35RRWY 17L/35R NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-04/22PCR VALUE: 902/R/D/W/T
A39-17L/35RPCR VALUE: 166/R/D/W/T
A39-17R/35LPCR VALUE: 1914/R/C/W/T
E111PROVIDED ARPT CONTINUES TO BE CONTROLLED BY ATCT, RWY 04/22 IS DEVELOPED AS PRIMARY RWY UPGRADED TO PIR CAPABLE OF USE BY ANG & NASA ACFT.
E147TPA: 1067 FT AGL VFR RECTANGULAR, 1567 FT AGL OVERHEAD, 567 FT AGL LGT ACFT.
E60-04_BAK-12BAK-14 BAK-12B(B) (1563').
E60-17R_BAK-12BAK-14 BAK-12B(B) (1500').
E60-22_BAK-12BAK-14 BAK-12B(B) (1496').
E60-35L_BAK-12BAK-14 BAK-12B(B) (1850').
ELLINGTON (ICAO: KEFD, IATA: EFD) is a public airport located in HOUSTON, TX, US.
