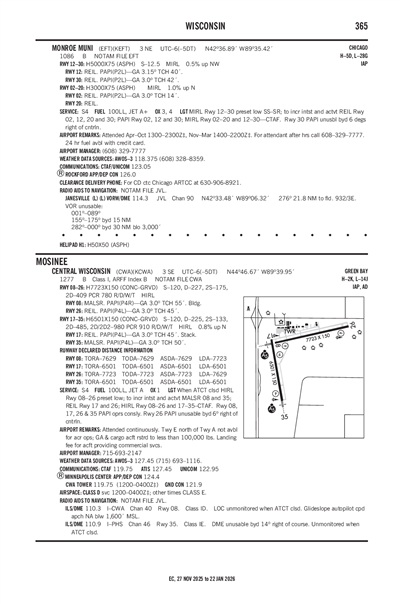

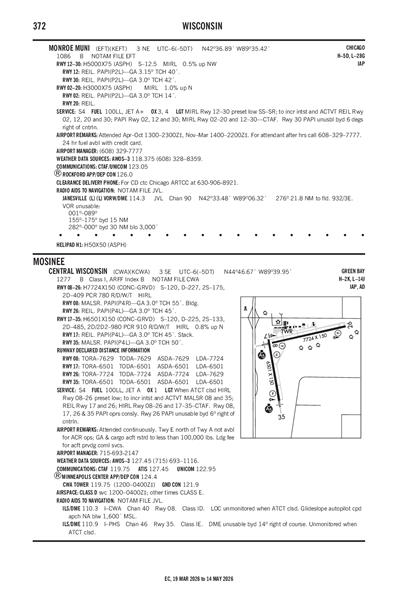

MONROE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEFT
ICAO KEFTLocal EFT
MONROE MUNI
PublicPUB

3 miles NE of MONROE, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 36' 54"N 89° 35' 25"W
Elevation
1086' MSL
Pattern Alt
2086' MSL
Mag Variation
3°W
Declination
0°
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
5/14/26-6/11/26
KEFT VFR
9:15 PM CDT
Clear
10sm
64°F
28°F
29.92"Hg
170° 10kts
AO2 LTG DSNT NW T01801025
METAR KEFT 150215Z AUTO 17010KT 10SM CLR 18/M02 A2992 RMK AO2 LTG DSNT NW T01801025
+ Add Your Business

KEFT FBOs

Promote Listing
Monroe Municipal Airport
UNICOM: 123.05
Phone: (608) 329-7777
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/20
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.35 5.46
Full Serve 6.35 6.46
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.375
(608) 328-8359

Common

CTAF 123.05
MIRL RWY 12/30 PRESET LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 02, 12, 20 & 30; PAPI RWY 02, 12 & 30; MIRL RWY 02/20 & 12/30 - CTAF.
UNICOM 123.05

Approach

ROCKFORD APPROACH 126.0

Departure

ROCKFORD DEPARTURE 126.0

Terminal Area Forecast

KJVL (24nm)
Thu, 5/14 6:20 PM CDT
Thu, 5/14 7:00 PM CDT - Fri, 5/15 7:00 PM CDT
VFR
7:00 PM CDT - 11:00 PM CDT
Few 25,000'
6sm
180° 7kts
VFR
11:00 PM CDT - 6:00 AM CDT
Broken 15,000'
6sm
150° 7kts
VFR
3:00 AM CDT - 6:00 AM CDT
Light Showers and Rain
Overcast 3,500'
6sm
Calm
VFR
6:00 AM CDT - 4:00 PM CDT
Broken 5,000'
6sm
200° 12kts
Gusts 22kts
VFR
4:00 PM CDT - 7:00 PM CDT
Few 20,000'
Few 5,000'
6sm
200° 14kts
TAF KJVL 142320Z 1500/1524 18007KT P6SM FEW250
   FM150400 15007KT P6SM BKN150
   PROB30 1508/1511 6SM -SHRA OVC035
   FM151100 20012G22KT P6SM BKN050
   FM152100 20014KT P6SM FEW050 FEW200
KEFT
EffectiveExpiresCategoryNOTAM
Domestic
5/13/26
0136Z
9/10/26
0136Z
!EFT 05/002 EFT OBST TOWER LGT (ASR 1034968) 425019.70N0894333.20W (14.7NM NNW EFT) 1546.3FT (370.1FT AGL) U/S 2605130136-2609100136
4/29/26
1757Z
6/29/26
2359Z
!EFT 04/006 EFT OBST TOWER LGT (ASR 1238080) 423601.70N0893004.60W (4.0NM ESE EFT) 1190.6FT (256.6FT AGL) U/S 2604291757-2606292359
4/18/26
0248Z
5/15/26
2359Z
!EFT 04/004 EFT OBST TOWER LGT (ASR 1037797) 423436.00N0894134.00W (5.1NM WSW EFT) 1516.7FT (456.7FT AGL) U/S 2604180248-2605152359
4/4/26
2225Z
6/4/26
2225Z
!EFT 04/002 EFT OBST TOWER LGT (ASR 1239172) 424354.90N0893735.00W (7.2NM NNW EFT) 1294.6FT (256.6FT AGL) U/S 2604042225-2606042225
FDC
3/11/26
1502Z
!FDC 6/6680 EFT IAP MONROE MUNI, MONROE, WI.
RNAV (GPS) RWY 12, ORIG-B...
LNAV CAT C VISIBILITY 1 1/8. CHANGE ALTIMETER NOTE TO READ: WHEN
LOCAL ALTIMETER SETTING NOT RECEIVED, USE FEP ALTIMETER SETTING AND
INCREASE ALL MDAS 100 FEET AND LNAV VISIBILITY CAT C 1/4 SM, LNAV
VISIBILITY CAT D 1/8 SM, AND CIRCLING VISIBILITY CAT C 1/4 SM.
CHANGE VDP NA NOTE TO READ: VDP NA WHEN USING FEP ALTIMETER
SETTING.
THIS IS RNAV (GPS) RWY 12, ORIG-C. 2603111502-PERM
No
APR-OCT 0700-1700
NOV-MAR 0800-1600
FOR ATTENDANT AFT HRS CALL 608-329-7777.
CITY OF MONROE
1110 18TH AVENUE
MONROE, WI 53566
Phone: 608-329-4101
ROB DRIVER
W4711 HWY 59
MONROE, WI 53566
Phone: (608) 329-7777
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
EFT
--
MIRL RWY 12/30 PRESET LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 02, 12, 20 & 30; PAPI RWY 02, 12 & 30; MIRL RWY 02/20 & 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Pilot Instruction
Aircraft Rental

Runway 02/20

3000 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 16°196°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 42° 36' 38"N 42° 37' 06"N
Longitude 89° 35' 40"W 89° 35' 29"W
Elevation 1,056' 1,085'
Threshold Crossing Height 14 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 12/30

5000 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 122°302°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 37' 08"N 42° 36' 42"N
Longitude 89° 35' 49"W 89° 34' 52"W
Elevation 1,086' 1,062'
Threshold Crossing Height 40 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3.15° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

50 ft. x 50 ft.

ASPH
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 42° 37' 09"N N/A
Longitude 89° 35' 32"W N/A
Elevation 1,084' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A17-M1FOR ATTENDANT AFT HRS CALL 608-329-7777.
A43-30PAPI UNUSBL BYD 6 DEGS RIGHT OF CNTRLN.
A70-100LL24 HR FUEL AVBL WITH CREDIT CARD.
A81-APTMIRL RWY 12/30 PRESET LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 02, 12, 20 & 30; PAPI RWY 02, 12 & 30; MIRL RWY 02/20 & 12/30 - CTAF.
MONROE MUNI (ICAO: KEFT, IATA: EFT) is a public airport located in MONROE, WI, US.
