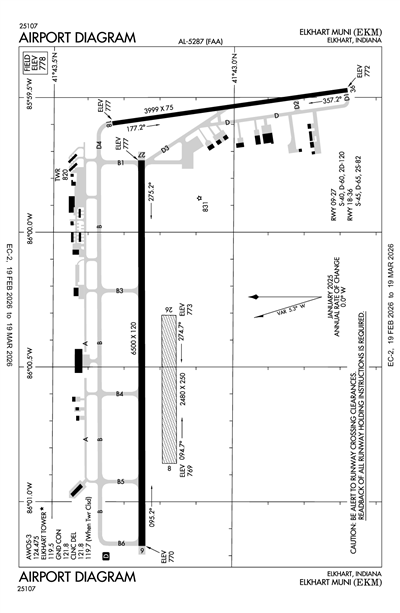

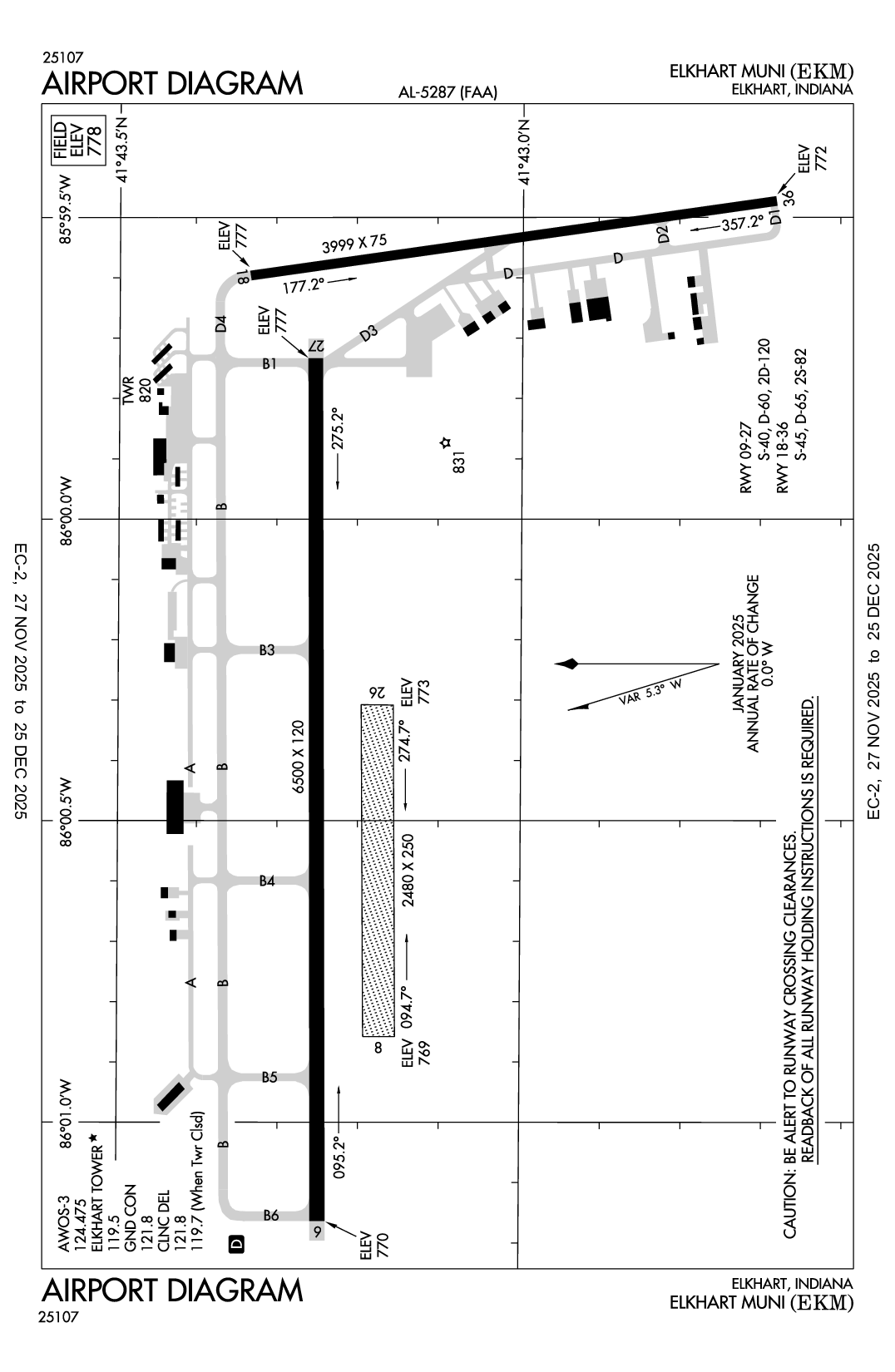

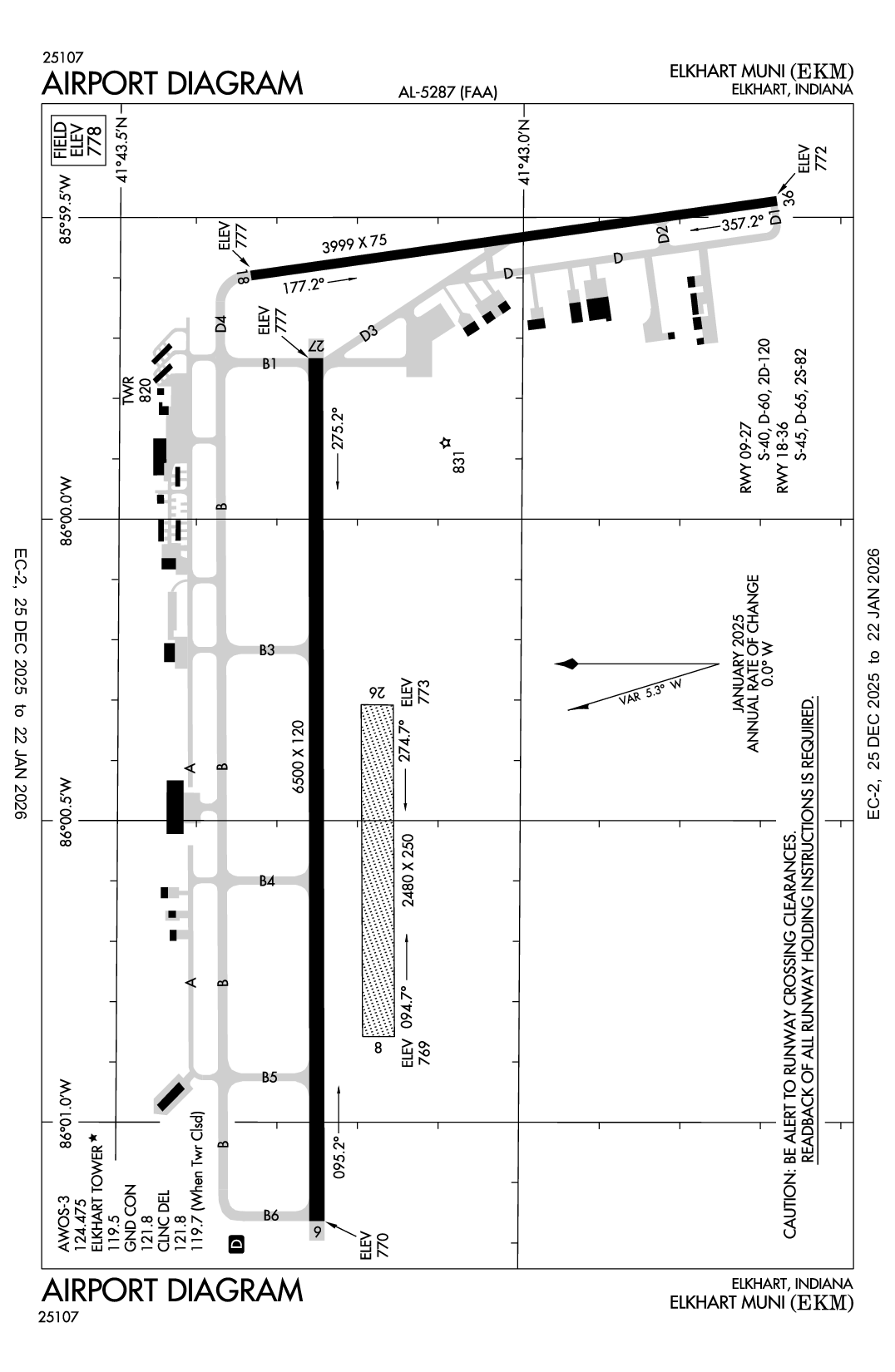

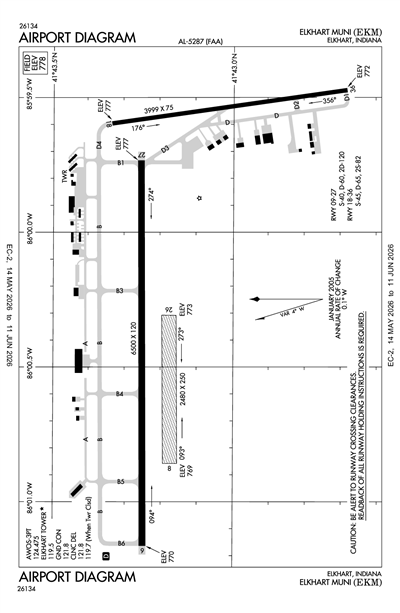

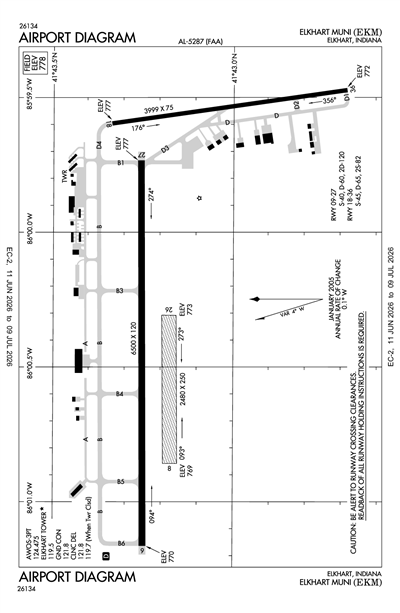

ELKHART MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEKM
ICAO KEKMIATA EKILocal EKM
ELKHART MUNI
PublicPUB

3 miles NW of ELKHART, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 43' 10"N 86° 00' 12"W
Elevation
778' MSL
Pattern Alt
1778' MSL
Mag Variation
5°W
Declination
4°W
Fuel
JET A, 100LL
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
7/9/26-8/6/26
KEKM VFR
3:55 PM EDT
Few 37,000'
10sm
84°F
71°F
29.87"Hg
300° 9kts
AO2 T02910218 $
METAR KEKM 091955Z AUTO 30009KT 10SM FEW370 29/22 A2987 RMK AO2 T02910218 $
+ Add Your Business

KEKM FBOs

Promote Listing
Indiana Flight Center
UNICOM: 122.95
Phone: (574) 266-4040
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.05
Full Serve 7.20 6.59
Fuel Notes
Prices include tax
JET A is premixed with Prist (FSII).

KEKM Other Businesses

King Aero Aviation Services
Phone: (574) 304-5781
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 124.475
(574) 264-9002

Common

CTAF 119.5
ACTVT MALSR RWY 27; REIL RWY 09, 18 & 36; VASI RWY 09 & 36; PAPI RWY 18 & 27 - CTAF. WHEN ATCT CLSD HIRL RWY 09/27; MIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 119.7
WHEN ELKHART TWR CLSD
Clearance Delivery 121.8

Ground

ELKHART GROUND 121.8
0700-2100 MON-FRI, 0800-1800 SAT-SUN.

Tower

ELKHART TOWER 119.5
0700-2100 MON-FRI, 0800-1800 SAT-SUN.

Approach

SOUTH BEND APPROACH 118.55

Departure

SOUTH BEND DEPARTURE 118.55

Center

SOUTH BEND CENTER 127.55
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON 127.55/307.175 (GOSHEN RCAG) WHEN SOUTH BEND APCH CTL CLSD.

Terminal Area Forecast

KSBN (14nm)
Thu, 7/9 1:20 PM EDT
Thu, 7/9 2:00 PM EDT - Fri, 7/10 2:00 PM EDT
MVFR
2:00 PM EDT - 6:00 PM EDT
Showers in vicinity
Broken 10,000'
Broken 2,500'
6sm
240° 9kts
MVFR
Temporary 2:00 PM EDT - 6:00 PM EDT
Light Thunderstorm and Rain
Overcast 2,500'
4sm
Calm
VFR
6:00 PM EDT - 10:00 PM EDT
Broken 15,000'
6sm
280° 6kts
MVFR
10:00 PM EDT - 4:00 AM EDT
Light Thunderstorm and Rain
Overcast 2,500'
4sm
Calm
VFR
10:00 PM EDT - 8:00 AM EDT
Showers in vicinity
Broken 10,000'
6sm
VRB° 3kts
VFR
8:00 AM EDT - 1:00 PM EDT
Broken 5,000'
6sm
VRB° 4kts
VFR
1:00 PM EDT - 2:00 PM EDT
Showers in vicinity
Broken 5,000'
6sm
320° 6kts
TAF KSBN 091720Z 0918/1018 24009KT P6SM VCSH BKN025 BKN100
   TEMPO 0918/0922 4SM -TSRA OVC025CB
   FM092200 28006KT P6SM BKN150
   FM100200 VRB03KT P6SM VCSH BKN100
   PROB30 1002/1008 4SM -TSRA OVC025CB
   FM101200 VRB04KT P6SM BKN050
   FM101700 32006KT P6SM VCSH BKN050
KEKM
EffectiveExpiresCategoryNOTAM
Domestic
7/7/26
2105Z
!EKM 07/007 EKM COM REMOTE TRANS/REC 119.7 U/S 2607072105-2607222000EST
7/7/26
1245Z
7/17/26
2000Z
Runway!EKM 07/006 EKM RWY 36 VASI U/S 2607071245-2607172000
7/7/26
1245Z
7/17/26
2000Z
Runway!EKM 07/005 EKM RWY 18 PAPI UNUSABLE 2607071245-2607172000
7/7/26
0400Z
7/17/26
0359Z
Runway!EKM 07/004 EKM RWY 18/36 CLSD 2607070400-2607170359
6/26/26
1151Z
!EKM 06/015 EKM NAV ILS RWY 27 OM U/S 2606261151-2610272000EST
6/17/26
1353Z
8/31/26
2359Z
Runway!EKM 06/010 EKM RWY 18/36 NOT GROOVED 2606171353-2608312359
4/17/26
1800Z
7/20/26
0100Z
!EKM 04/007 EKM SVC TWR OPN PLUS SEE CHART SUPPLEMENT FRI-SUN 1800-0100 2604171800-2607200100
4/13/26
1300Z
7/16/26
2100Z
!EKM 04/006 EKM SVC TWR OPN PLUS SEE CHART SUPPLEMENT MON-THU 1300-2100 2604131300-2607162100
4/9/26
1348Z
7/31/26
2359Z
!EKM 04/004 EKM SVC AUTOMATED WX BCST SYSTEM 124.475 U/S 2604091348-2607312359
FDC
6/29/26
1439Z
!FDC 6/1415 EKM IAP ELKHART MUNI, ELKHART, IN. RNAV (GPS) RWY 36, ORIG-B... LNAV CAT C VISIBILITY 1 3/8. CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SBN ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET AND CIRCLING VISIBILITY CAT D 1/4 SM. THIS IS RNAV (GPS) RWY 36, ORIG-C. 2606291439-PERM
Yes
0600-2200
CITY OF ELKHART
1211 CO RD 6 W
ELKHART, IN 46514
Phone: 574-264-5217
ANDY JONES
1211 CO RD 6 W
ELKHART, IN 46514
Phone: 574-264-5217
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
EKM
--
ACTVT MALSR RWY 27; REIL RWY 09, 18 & 36; VASI RWY 09 & 36; PAPI RWY 18 & 27 - CTAF. WHEN ATCT CLSD HIRL RWY 09/27; MIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Minor
Low Pressure
None
Charter Service
Aircraft Rental
Aircraft Sales

Runway 08/26

2480 ft. x 250 ft.
TURF
Excellent
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 41° 43' 10"N 41° 43' 11"N
Longitude 86° 00' 51"W 86° 00' 19"W
Elevation 769' 773'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

6500 ft. x 120 ft.
CONC
Excellent
GRVD
HIGH

40,000lbs
60,000lbs
120,000lbs
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 43' 15"N 41° 43' 15"N
Longitude 86° 01' 10"W 85° 59' 44"W
Elevation 770' 777'
Threshold Crossing Height 38 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

3999 ft. x 75 ft.
ASPH
Fair
GRVD
MED

45,000lbs
65,000lbs
--
--
  Runway 18 Runway 36
True Heading 172°352°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 41° 43' 20"N 41° 42' 41"N
Longitude 85° 59' 36"W 85° 59' 28"W
Elevation 777' 772'
Threshold Crossing Height 38 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2TWY MKD WITH REFLECTORS; TWY A UNAVBL TO ACFT WITH MORE THAN 30 PAX SEATS.
A110-3(E94) SWARS.
A110-4FOR CD WHEN ATCT CLSD, CTC SOUTH BEND ATCT ON FREQ. WHEN SOUTH BEND ATCT CLSD, CTC CHICAGO ARTCC AT 630-906-8921.
A30-08/26VFR OPS DRG ATCT HRS ONLY.
A42-08_MARKWHITE CORNER MKRS.
A42-18_CONDFADED.
A42-26_MARKWHITE CORNER MKRS.
A42-36_CONDFADED.
A43-36VASI UNUSBL 7 DEG LEFT & RIGHT OF CNTRLN.
A58-367 FT BRUSH L & R OF CNTRLN 100 FT FM THR.
A81-APTACTVT MALSR RWY 27; REIL RWY 09, 18 & 36; VASI RWY 09 & 36; PAPI RWY 18 & 27 - CTAF. WHEN ATCT CLSD HIRL RWY 09/27; MIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.
ELKHART MUNI (ICAO: KEKM, IATA: EKM) is a public airport located in ELKHART, IN, US.
