iFlightPlanner



...

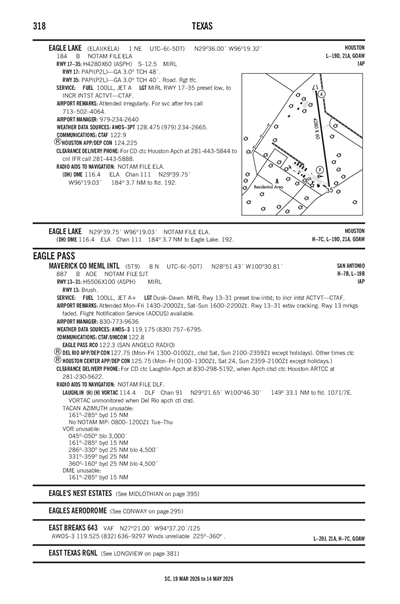

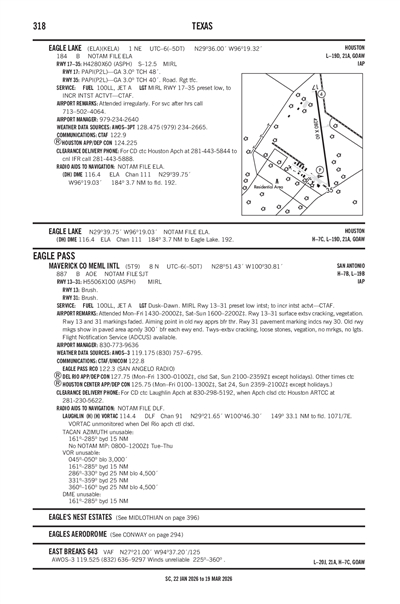

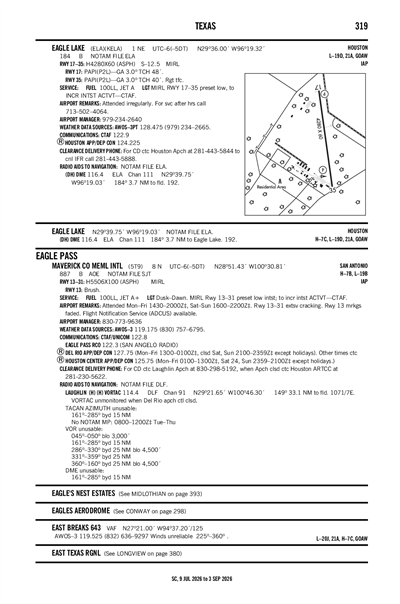

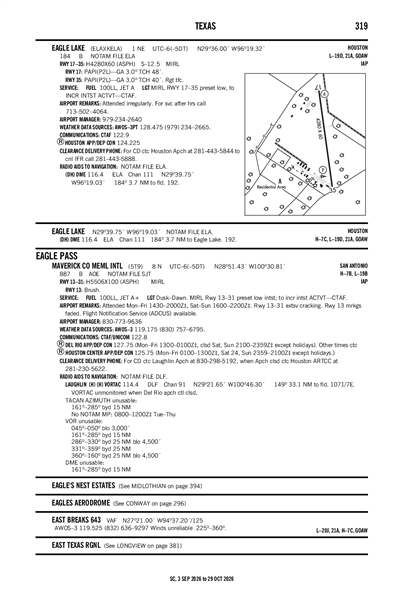

EAGLE LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KELA
ICAO KELAIATA ELALocal ELA
EAGLE LAKE
PublicPUB

1 miles NE of EAGLE LAKE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 36' 00"N 96° 19' 19"W
Elevation
184' MSL
Pattern Alt
1184' MSL
Mag Variation
3°E
Declination
5°E
Fuel
JET A, 100LL
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
5/14/26-6/11/26
KELA MVFR
10:35 AM CDT
Broken 2,600'
Broken 1,000'
10sm
78°F
74°F
30.02"Hg
090° 3kts
AO2 T02570235
METAR KELA 041535Z AUTO 09003KT 10SM BKN010 BKN026 26/24 A3002 RMK AO2 T02570235
+ Add Your Business

KELA FBOs

Promote Listing
Eagle Lake Aviation
Phone: (713) 502-4064
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.94 4.09
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 128.475
(979) 234-2665

Common

CTAF 122.9
MIRL RWY 17/35 PRESET LOW; TO INCR INTST ACTVT - CTAF.

Approach

HOUSTON APPROACH 124.225

Departure

HOUSTON DEPARTURE 124.225

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSGR (35nm)
Thu, 6/4 6:27 AM CDT
Thu, 6/4 7:00 AM CDT - Fri, 6/5 7:00 AM CDT
IFR
Temporary 7:00 AM CDT - 9:00 AM CDT
Broken 800'
N/A
Calm
VFR
7:00 AM CDT - 11:00 AM CDT
Showers in vicinity
Broken 3,500'
Scattered 2,000'
Few 500'
6sm
VRB° 5kts
VFR
11:00 AM CDT - 1:00 PM CDT
Showers in vicinity
Broken 3,500'
Scattered 2,500'
6sm
090° 7kts
MVFR
Temporary 1:00 PM CDT - 5:00 PM CDT
Thunderstorm and Rain and Mist
Broken 3,500'
4sm
Calm
VFR
1:00 PM CDT - 9:00 PM CDT
Thunderstorm in vicinity
Broken 3,500'
6sm
100° 9kts
VFR
9:00 PM CDT - 12:00 AM CDT
Showers in vicinity
Broken 3,500'
Scattered 2,500'
6sm
110° 7kts
MVFR
12:00 AM CDT - 7:00 AM CDT
Showers in vicinity
Broken 2,500'
Scattered 1,500'
6sm
100° 5kts
MVFR
3:00 AM CDT - 7:00 AM CDT
Thunderstorm and Rain
Broken 1,500'
4sm
Calm
TAF KSGR 041127Z 0412/0512 VRB05KT P6SM VCSH FEW005 SCT020 BKN035
   TEMPO 0412/0414 BKN008
   FM041600 09007KT P6SM VCSH SCT025 BKN035
   FM041800 10009KT P6SM VCTS BKN035CB
   TEMPO 0418/0422 4SM TSRA BR BKN035CB
   FM050200 11007KT P6SM VCSH SCT025 BKN035
   FM050500 10005KT P6SM VCSH SCT015 BKN025
   PROB30 0508/0512 4SM TSRA BKN015CB
KELA
EffectiveExpiresCategoryNOTAM
Domestic
6/4/26
0736Z
9/2/26
0736Z
!ELA 06/002 ELA OBST TOWER LGT (ASR 1213213) 295127.80N0961907.50W (15.3NM NE ELA) 635.8FT (337.9FT AGL) U/S 2606040736-2609020736
6/4/26
0313Z
11/4/26
1600Z
!ELA 06/001 ELA OBST TOWER LGT (ASR 1280989) 294026.80N0960620.80W (12.2NM ENE ELA) 518.0FT (379.9FT AGL) U/S 2606040313-2611041600
5/17/26
0103Z
6/16/26
2359Z
!ELA 05/008 ELA OBST TOWER LGT (ASN 2024-ASW-10790-OE) 292652N0962355W (9.9NM SSW ELA) 484FT (325FT AGL) U/S 2605170103-2606162359
5/14/26
1515Z
6/28/26
0400Z
!ELA 05/007 ELA OBST TOWER LGT (ASR 1055564) 294601.60N0961414.70W (10.9NM NNE ELA) 702.8FT (486.9FT AGL) U/S 2605141515-2606280400
5/11/26
0652Z
6/25/26
0651Z
!ELA 05/006 ELA OBST TOWER LGT (ASR 1021936) 294557.70N0961351.60W (11.0NM NNE ELA) 512.1FT (293.0FT AGL) U/S 2605110652-2606250651
3/25/26
1450Z
Runway!ELA 03/005 ELA RWY 35 PAPI U/S 2603251450-2609282111EST
3/25/26
1450Z
Runway!ELA 03/004 ELA RWY 17 PAPI U/S 2603251450-2609282111EST
No
IREG
FOR SVC AFT HRS CALL 713-502-4064
CITY OF EAGLE LAKE
PO BOX 38
EAGLE LAKE, TX 77434
Phone: 979-234-2640
VICTOR SHIMEK
PO BOX 38
EAGLE LAKE, TX 77434
Phone: 979-234-2640
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
ELA
--
MIRL RWY 17/35 PRESET LOW; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 17/35

4280 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 171°351°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 36' 21"N 29° 35' 39"N
Longitude 96° 19' 23"W 96° 19' 15"W
Elevation 184' 182'
Threshold Crossing Height 48 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
A14CITY INSPECTOR/ARPT MGR.
A17-M1FOR SVC AFT HRS CALL 713-502-4064
A58-3515 FT RD, 68 FT DSTC, 220 FT R; 15 FT RD, 27 FT DSTC, 250 R.
A81-APTMIRL RWY 17/35 PRESET LOW; TO INCR INTST ACTVT - CTAF.
E111PREDATES ACT.
EAGLE LAKE (ICAO: KELA, IATA: ELA) is a public airport located in EAGLE LAKE, TX, US.
