iFlightPlanner



...

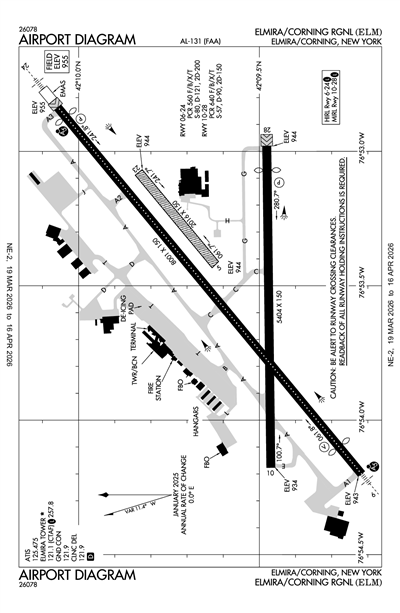

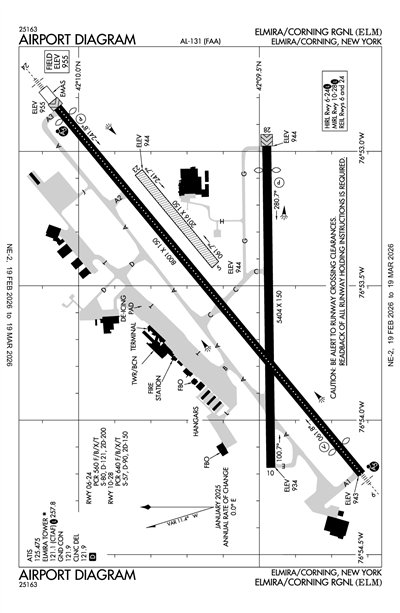

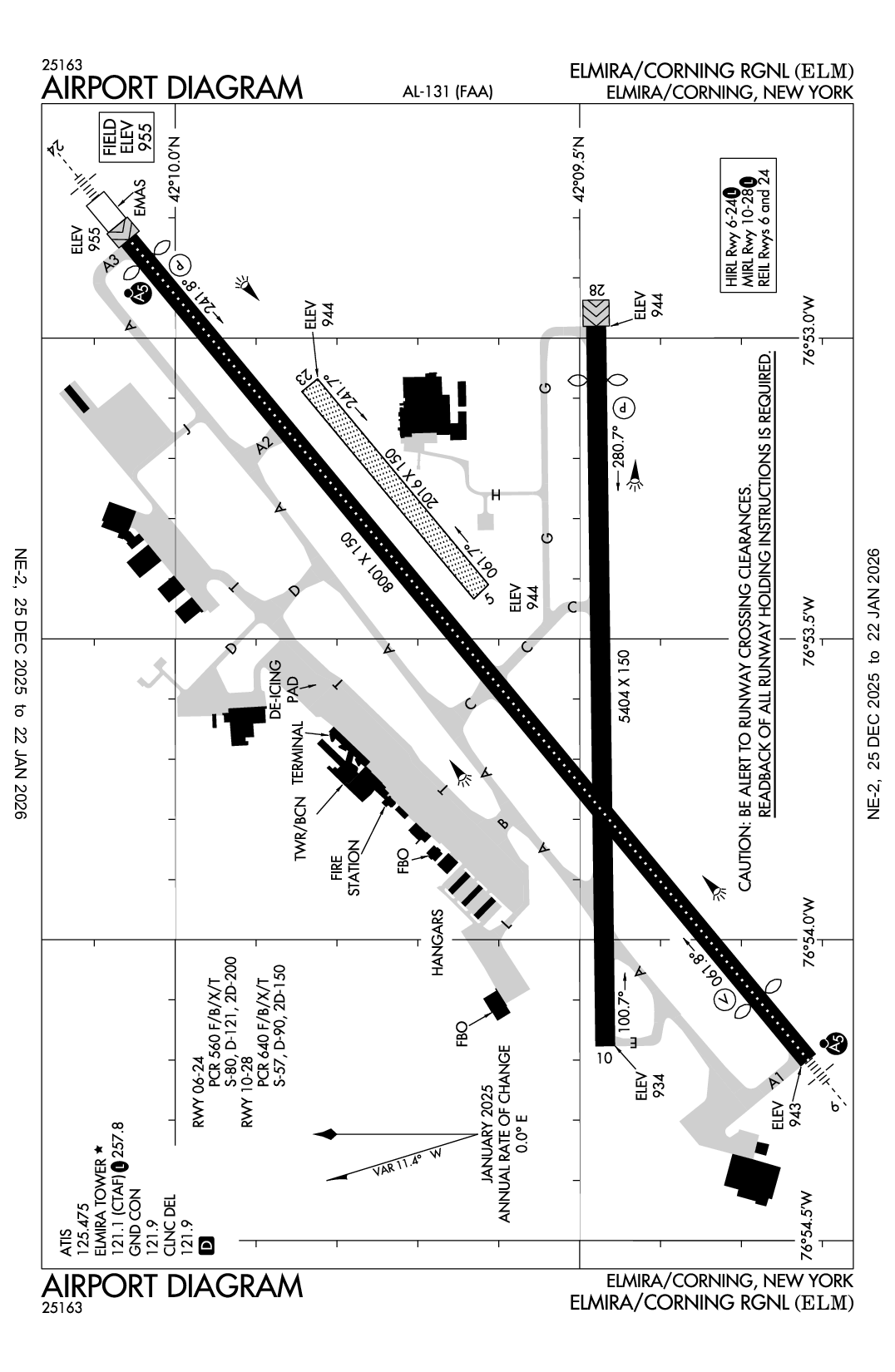

ELMIRA/CORNING RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KELM
ELMIRA/CORNING RGNL
PublicPUB

6 miles NW of ELMIRA/CORNING, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 09' 35"N 76° 53' 30"W
954' MSL
2499' MSL
12W
Jet A, 100LL
BUFFALO (BUF)
NEW YORK
NEW YORK (ZNY)
9/7/23-10/5/23
KELM VFR
7:53 PM EDT
Clear
10sm
55°F
49°F
30.27"Hg
180° 3kts
AO2 SLP251 T01280094 10206 20111 53003
KELM 272353Z AUTO 18003KT 10SM CLR 13/09 A3027 RMK AO2 SLP251 T01280094 10206 20111 53003
List Your Business

KELM FBOs, Flight Schools and Ground Support

Promote Listing
Premier Aviation
Freq: 130.225
Phone: (607) 301-1390
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, World Fuel
As of 9/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.98
Full Serve 6.98 7.14 7.21
Promote Listing
Atlantic Aviation
Freq: 122.95
Phone: (607) 739-3597
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 9/20
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.99 7.48

KELM Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KELM Hotels

No hotels are listed for this airport.

KELM Restaurants

No restaurants are listed for this airport.

KELM Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 121.1

ATIS

ATIS
 125.475

Approach/Departure

APCH/P DEP/P
 128.425
APCH/S DEP/S
 118.15

Clearance Delivery

CD/P
 121.9

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 121.1

Other

TRSA
 128.425

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KELM
Wed, 9/27 7:34 PM EDT
Wed, 9/27 8:00 PM EDT - Thu, 9/28 8:00 PM EDT
VFR
8:00 PM EDT - 5:00 AM EDT
Scattered 20,000'
> 6sm
VRB° 3kts
IFR
Temporary 2:00 AM EDT - 5:00 AM EDT
Mist
Scattered 400'
2sm
Calm
LIFR
Temporary 5:00 AM EDT - 9:00 AM EDT
Mist
Broken 200'
2sm
Calm
MVFR
5:00 AM EDT - 9:30 AM EDT
Mist
Scattered 400'
3sm
Calm
VFR
9:30 AM EDT - 8:00 PM EDT
Scattered 20,000'
> 6sm
130° 7kts
KELM 272334Z 2800/2824 VRB03KT P6SM SCT200
   TEMPO 2806/2809 2SM BR SCT004
   FM280900 00000KT 3SM BR SCT004
   TEMPO 2809/2813 2SM BR BKN002
   FM281330 13007KT P6SM SCT200
KELM
Domestic
9/28/230215Z !ELM 09/050 ELM SVC ELMIRA APP CLSD CTC NEW YORK ARTCC 133.35, FOR CLR DELIVERY 2309280215-2309280230
9/28/230215Z !ELM 09/049 ELM SVC TWR CLSD CTC NEW YORK ARTCC 133.35, FOR CLR DELIVERY 2309280215-2309280230
9/27/232345Z !ELM 09/047 ELM SVC TWR CLSD CTC NEW YORK ARTCC 133.35, FOR CLR DELIVERY 2309272345-2309280015
8/12/231440Z !ELM 08/027 ELM OBST TOWER LGT (ASR 1281346) 421037.10N0764743.20W (4.4NM ENE ELM) 1672.9FT (189.0FT AGL) U/S 2308121440-2311100400
8/9/230601Z !ELM 08/014 ELM OBST TOWER LGT (ASR 1006946) 420155.00N0764701.00W (9.1NM SSE ELM) 2086.9FT (319.9FT AGL) U/S 2308090601-2310092359
7/18/231224Z !ELM 07/028 ELM TWY ALL SFC MARKINGS NOT STD 2307181224-2309292359EST
7/18/231224Z !ELM 07/027 ELM RWY 10/28 SFC MARKINGS NOT STD 2307181224-2309292359EST
7/18/231223Z !ELM 07/026 ELM RWY 06/24 SFC MARKINGS NOT STD 2307181223-2309292359EST
FDC
1/25/231722Z !FDC 3/7068 ELM ODP ELMIRA/CORNING RGNL, ELMIRA/CORNING, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10...
TAKE-OFF MINIMUMS RWY 06, 500-2 3/4 OR STANDARD WITH MINIMUM CLIMB OF 355FT PER NM TO 1500.
TAKE-OFF MINIMUMS RWY 10, RWY 10: 500-2 WITH MINIMUM CLIMB OF 270 FT PER NM TO 2200 OR STANDARD WITH MINIMUM CLIMB OF 425 FT PER NM TO 1500 OR 2100-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2301251722-2501251722EST
1/18/231829Z !FDC 3/4649 ELM IAP ELMIRA/CORNING RGNL, ELMIRA/CORNING, NY.
RNAV (GPS) RWY 28, AMDT 3C...
RNAV (GPS) RWY 6, AMDT 3...
CIRCLING CAT A MDA 2040/HAA 1085, CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165.
2301181829-2501181829EST
1/18/231829Z !FDC 3/4648 ELM IAP ELMIRA/CORNING RGNL, ELMIRA/CORNING, NY.
ILS OR LOC RWY 24, AMDT 20...
CIRCLING CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165. (ERINN FIX MINIMUMS) CIRCLING CAT A MDA 2040/HAA 1085, CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165.
2301181829-2501181829EST
1/18/231829Z !FDC 3/4647 ELM IAP ELMIRA/CORNING RGNL, ELMIRA/CORNING, NY.
ILS OR LOC RWY 6, AMDT 6...
CIRCLING CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165. (CONAC FIX MINIMUMS) CIRCLING CAT A MDA 2040/HAA 1085, CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165.
2301181829-2501181829EST
Yes
ALL
COUNTY OF CHEMUNG
276 SING SING RD., SUITE 1
HORSEHEADS, NY 14845
Phone: 607-739-5621
THOMAS FREEMAN
276 SING SING RD.,SUITE 1
HORSEHEADS, NY 14845
Phone: 607-739-5621
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
ELM
--
WHEN ATCT CLSD ACTVT MALSR RWY 06 & 24; CNTRLN LGTS RWY 06/24; HIRL RWY 06/24; TWY LIGHTS ON TWY A, A1, A2, A3, B, D, J, L, T & C NORTH OF RWY 06/24 - CTAF. WHEN ATCT CLSD MIRL RWY 10/28; TWY LIGHTS ON TWY E, G, H, & C SOUTH OF RWY 06/24 NOT AVBL.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
21
3
12
1
0
0
Major
Major
Low Pressure
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

2017 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 50°230°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 09' 37"N 42° 09' 50"N
Longitude 76° 53' 25"W 76° 53' 05"W
Elevation 943' 944'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

8001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
50 /F/C/X/T
80,000lbs
121,000lbs
200,000lbs
--
  Runway 06 Runway 24
True Heading 50°230°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 09' 13"N 42° 10' 03"N
Longitude 76° 54' 12"W 76° 52' 50"W
Elevation 943' 954'
Threshold Crossing Height 51 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 10/28

5404 ft. x 150 ft.
ASPH
Good
GRVD
MED
17 /F/C/X/T
57,000lbs
90,000lbs
150,000lbs
--
  Runway 10 Runway 28
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 09' 28"N 42° 09' 29"N
Longitude 76° 54' 11"W 76° 52' 59"W
Elevation 934' 944'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ACFT WITH WINGSPANS GTR THAN 93 FEET SHOULD USE EXTREME CARE WHEN TAXIING ON TWY T ADJ TO APRONS.
A110-11RWY 10 OPNS PROHIBITED FOR ACFT WITH APCH SPEEDS GTR THAN OR EQUAL TO 121 KNOTS AND/OR WINGSPANS GTR THAN OR EQUAL TO 118 FT .
A110-12COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -22C.
A110-13TWY H, J, & L LTD TO DESIGN GROUP II ACFT.
A110-14TRML RAMP IS UNCONTROLLED. DO NOT CALL FOR PUSH/POWER BACK. ADVISE GC WHEN READY TO TAXI FOR DEP.
A110-15TWY T BTN TXY L AND TWY D NONMOVEMENT AREA.
A110-16FOR CD IF UNA TO CTC ON FSS FREQ, CTC NEW YORK ARTCC AT 631-468-1425.
A110-2EXTSV GLIDER ACT ON & INVOF ARPT.
A110-3BIRDS & DEER ON & INVOF ARPT.
A110-4RWY 05/23 (SOUTHEAST OF RWY 06/24) UNMARKED SEASONAL USE TURF RWY CLSD 1 DEC THROUGH 30 APR.
A110-5FOR LAND SIDE ACCESS FM APRON WHEN FBO CLSD CTC ELM ARPT ATTENDANT AT 607-426-5621.
A110-6WINTER DE-ICING ON GLYCOL APRON ONLY.
A110-7BLIMP ACT RQRS PPR, CTC ARPT MGMT AT 607-426-5621.
ELMIRA/CORNING RGNL (ICAO: KELM, IATA: ELM) is a public airport located in ELMIRA/CORNING, NY.
