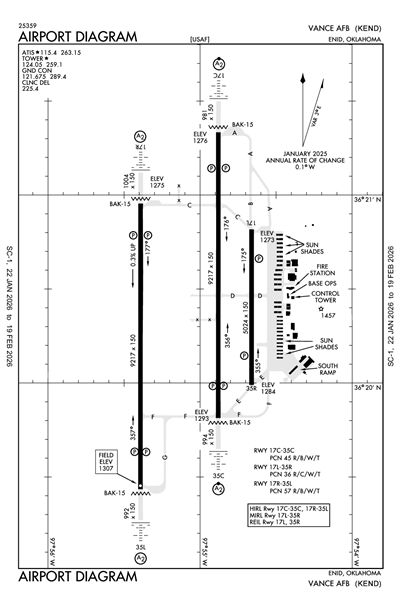

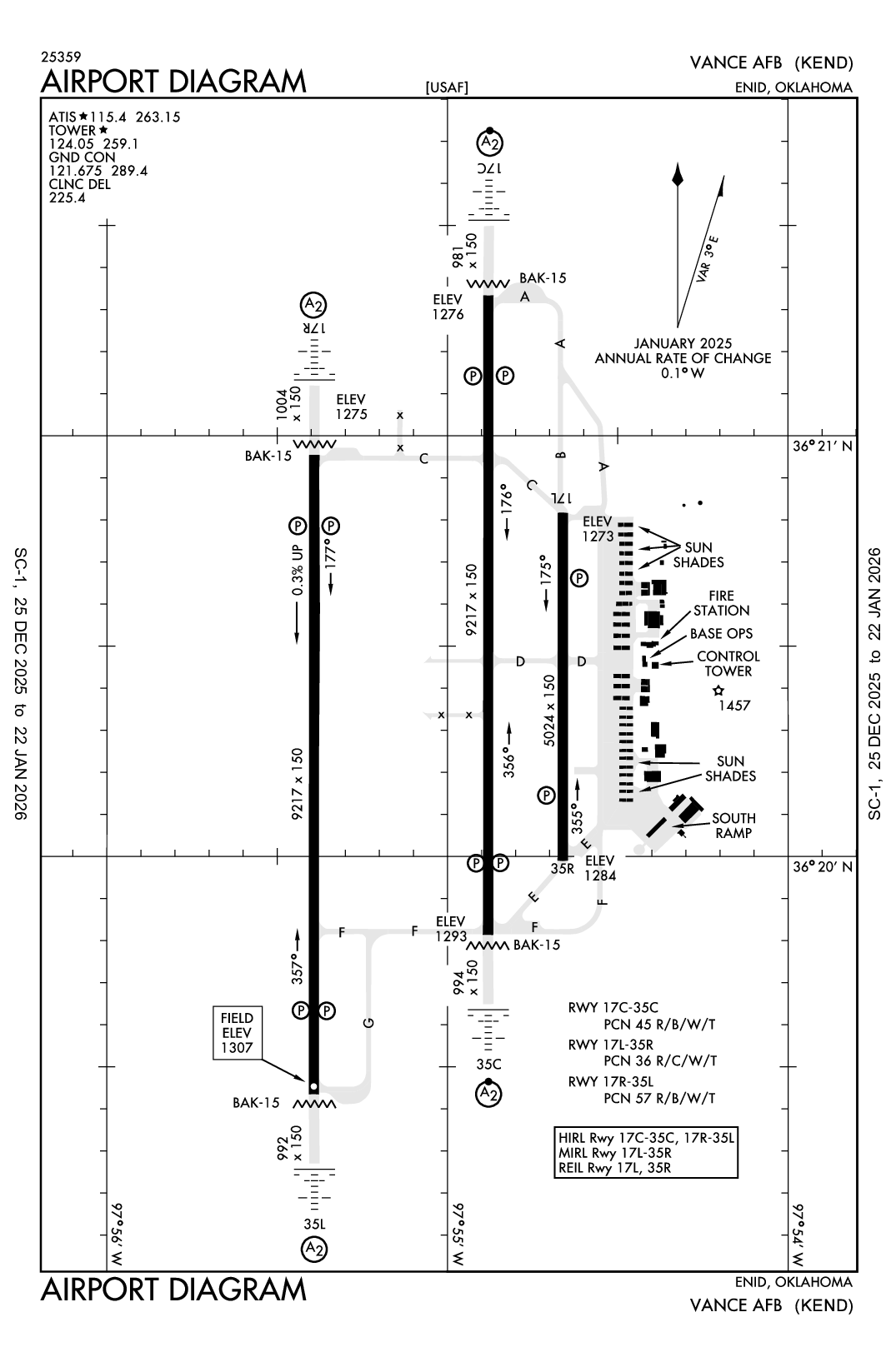

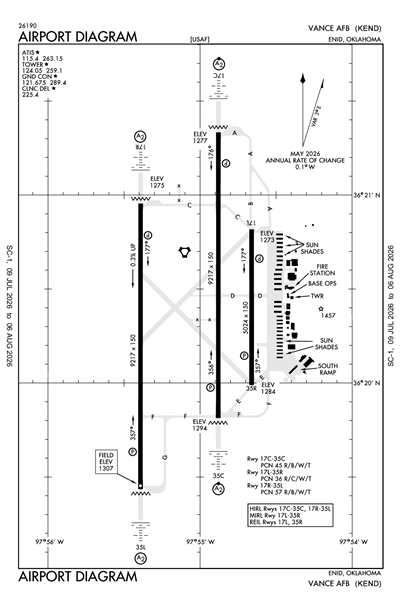

VANCE AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEND
ICAO KENDIATA ENDLocal END
VANCE AFB
PrivatePVT

3 miles S of ENID, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 20' 23"N 97° 55' 02"W
Elevation
1313' MSL
Pattern Alt
2313' MSL
Mag Variation
4°E
Declination
5°E
Fuel
None Listed
FSS
MC ALESTER (MLC)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
6/11/26-7/9/26
KEND VFR
1:55 PM CDT
Scattered 19,000'
Few 2,100'
10sm
79°F
69°F
30.02"Hg
150° 10kts
AO2A SLP155 T02610206 $
METAR KEND 241855Z 15010KT 10SM FEW021 SCT190 26/21 A3002 RMK AO2A SLP155 T02610206 $
+ Add Your Business

KEND FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 115.4
Hours: 1300-0200Z++WKD (1 MAY-31 OCT); 1300-0100Z++WKD (1 NOV-30 APR); 2000-0000Z++ SUN, CLSD SAT & FEDERAL HOL.

Ground

VANCE GROUND 121.675
1300-0200Z++WKD, 1900-2300Z++ SUN ; CLSD SAT & FEDERAL HOL. GND CTL AND CLNC DEL SVC AVBL 15 MIN PRIOR TO AFLD OPENING. OTHER TIMES BY NOTAM

Tower

VANCE TOWER 124.05
1300-0200Z++WKD, 1900-2300Z++ SUN ; CLSD SAT & FEDERAL HOL. GND CTL AND CLNC DEL SVC AVBL 15 MIN PRIOR TO AFLD OPENING. OTHER TIMES BY NOTAM

Approach

VANCE APPROACH 118.075
337-037 TO 19 DME, FL220 & BLW
VANCE APPROACH 119.775
169-007 WITHIN 18 DME, 9500 FT & BLW
VANCE APPROACH 120.525
169-007 10000 FT TO FL240
VANCE APPROACH 120.525
337-169 FL230 TO FL240
VANCE APPROACH 121.3
037-169 6500 FT & BLW
VANCE APPROACH 125.45
7000 FT TO FL220
VANCE APPROACH 126.75
209-337 TO 18 DME, FL240 & BLW

Departure

VANCE DEPARTURE 120.525

Center

VANCE CENTER 127.8
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 127.8/319.1 (PONCA CITY RCAG) WHEN VANCE APCH CTL (END) CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KEND
Wed, 6/24 1:00 PM CDT
Wed, 6/24 1:00 PM CDT - Thu, 6/25 7:00 PM CDT
VFR
1:00 PM CDT - 4:00 PM CDT
Broken 15,000'
Few 12,000'
6sm
30.00"Hg
130° 9kts
VFR
Becoming 4:00 PM CDT - 3:00 AM CDT
Scattered 12,000'
6sm
30.00"Hg
120° 6kts
MVFR
Becoming 3:00 AM CDT - 4:00 PM CDT
Thunderstorm in vicinity
Broken 1,500'
6sm
29.91"Hg
120° 10kts
Gusts 20kts
IFR
Temporary 4:00 AM CDT - 10:00 AM CDT
Light Thunderstorm and Rain
Broken 800'
2.98sm
Calm
VFR
Becoming 4:00 PM CDT - 7:00 PM CDT
Scattered 3,500'
6sm
29.73"Hg
150° 9kts
TAF KEND 241800Z 2418/2524 13009KT 9999 FEW120 BKN150 QNH3001INS
   BECMG 2421/2422 12006KT 9999 SCT120 QNH2999INS
   BECMG 2508/2509 12010G20KT 9999 VCTS BKN015CB QNH2990INS
   TEMPO 2509/2515 4800 -TSRA BKN008CB
   BECMG 2521/2522 15009KT 9999 NSW SCT035 QNH2972INS TX25/2421Z TN21/2511Z
KEND
EffectiveExpiresCategoryNOTAM
Domestic
6/19/26
1114Z
6/25/26
0153Z
!MLC 06/270 END AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM RADIUS OF 361638N0975112W (6.7NM SSW WDG) SFC-100FT AGL FRI-WED SR-SS 2606191114-2606250153
Military
6/26/26
2300Z
6/27/26
0100Z
M0491/26 NOTAMN Q) ZKC/QFALC/IV/NBO/A/000/999/3620N09755W005 A) KEND B) 2606262300 C) 2606270100 E) AERODROME CLSD
6/24/26
1706Z
6/27/26
1706Z
M0528/26 NOTAMC M0527/26
6/24/26
1617Z
6/27/26
1617Z
M0526/26 NOTAMC M0522/26
6/24/26
1605Z
6/27/26
1605Z
M0525/26 NOTAMC M0519/26
6/24/26
1602Z
6/27/26
1602Z
M0524/26 NOTAMC M0520/26
6/24/26
1508Z
6/27/26
1508Z
M0523/26 NOTAMC M0521/26
6/24/26
1224Z
7/10/26
2359Z
Taxiway!KEND M0518/26 END TWY F HLDG PSN SIGN FOR ILS WEST SIDE AT RWY 17C/35C NOT LGTD 2606241224-2607102359
6/24/26
1222Z
7/10/26
2359Z
Runway!KEND M0517/26 END RWY 35C HLDG PSN SIGN AT TWY F WEST NOT LGTD 2606241222-2607102359
6/24/26
1221Z
7/10/26
2359Z
Runway!KEND M0516/26 END RWY 35C HLDG PSN SIGN AT TWY F EAST NOT LGTD 2606241221-2607102359
6/24/26
1219Z
7/10/26
2359Z
Taxiway!KEND M0515/26 END TWY F TACAN CHECKPOINT SIGN AT RWY 17C/35C NOT LGTD 2606241219-2607102359
6/24/26
1216Z
7/10/26
2359Z
Taxiway!KEND M0514/26 END TWY F HLDG PSN SIGN FOR ILS EAST SIDE AT RWY 17C/35C NOT LGTD 2606241216-2607102359
6/24/26
1214Z
7/10/26
2359Z
Runway!KEND M0513/26 END RWY 35R HLDG PSN SIGN AT TWY E WEST NOT LGTD 2606241214-2607102359
6/24/26
1209Z
6/27/26
1209Z
M0512/26 NOTAMC M0504/26
6/24/26
1209Z
6/27/26
1209Z
M0511/26 NOTAMC M0503/26
6/24/26
1209Z
6/27/26
1209Z
M0510/26 NOTAMC M0502/26
6/24/26
1208Z
7/10/26
2359Z
Taxiway!KEND M0509/26 END TWY E HLDG PSN SIGN FOR ILS AT RWY 17C/35C NOT LGTD 2606241208-2607102359
6/24/26
1137Z
6/27/26
1137Z
M0508/26 NOTAMC M0501/26
6/24/26
1137Z
6/27/26
1137Z
M0507/26 NOTAMC M0500/26
6/24/26
1137Z
6/27/26
1137Z
M0506/26 NOTAMC M0496/26
6/24/26
1137Z
6/27/26
1137Z
M0505/26 NOTAMC M0495/26
6/23/26
1454Z
7/10/26
2359Z
Taxiway!KEND M0499/26 END TWY E EDGE LGTS U/S ON SOUTH SIDE OF TWY E BTWN RWY 17L/35R & PARALLEL TAXILANE 2606231454-2607102359
6/23/26
1452Z
7/10/26
2359Z
Taxiway!KEND M0498/26 END TWY E EDGE LGTS U/S BTWN RWY 17L/35R & RWY 17C/35C 2606231452-2607102359
6/23/26
1451Z
7/10/26
2359Z
Taxiway!KEND M0497/26 END TWY F EDGE LGTS U/S BTWN RWY 17C/35C & PARALLEL TAXILANE. 2606231451-2607102359
6/23/26
1353Z
6/26/26
1353Z
M0494/26 NOTAMC M0493/26
6/23/26
1204Z
8/21/26
2359Z
Navigation!KEND M0492/26 END NAV VORTAC NOT MNT 2606231204-2608212359
6/23/26
0030Z
6/26/26
0100Z
Aerodrome!KEND M0478/26 END AD AIRPORT CLSD DLY 0030-0100 2606230030-2606260100
6/15/26
1613Z
9/11/26
2359Z
RunwayRWY 35C VOR/DME OR TACAN APPROACH AVAILABLE FOR 71ST FTW AIRCRAFT ONLY.
6/15/26
1612Z
9/11/26
2359Z
RunwayRWY 17C VOR/DME OR TACAN APPROACH AVAILABLE FOR 71ST FTW AIRCRAFT ONLY.
6/15/26
1553Z
9/11/26
2359Z
Navigation!KEND M0466/26 END NAV ILS RWY 35C COMMISSIONED FOR USE BY 71ST FTW AIRCRAFT ONLY. 2606151553-2609112359
6/15/26
1552Z
9/11/26
2359Z
Navigation!KEND M0465/26 END NAV ILS RWY 17C COMMISSIONED FOR USE BY 71ST FTW AIRCRAFT ONLY. 2606151552-2609112359
6/12/26
1314Z
8/28/26
2359Z
Navigation!KEND M0456/26 END NAV ILS RWY 17R U/S 2606121314-2608282359
6/12/26
1312Z
8/28/26
2359Z
Navigation!KEND M0455/26 END NAV ILS RWY 35L U/S 2606121312-2608282359
5/30/26
0001Z
8/25/26
2359Z
RunwayM0413/26 NOTAMN Q) ZKC/QLPAS/IV/BO/A/000/999/3620N09755W005 A) KEND B) 2605300001 C) 2608252359 E) RWY 35L PAPI RIGHT SIDE UNSERVICEABLE
5/30/26
0001Z
8/25/26
2359Z
OBST MULTIPLE LIGHTS ALL (HEIGHT 3 FT.- 12 FT AGL) LOCATED BTN 900 FT AND 1300 FT SOUTH AND SOUTHEAST APCH END RWY 35R.OBSTRUCTIONS VIOLATE CLEAR ZONE AND ADCS IMAGINARY SFCS.
5/20/26
1332Z
6/30/26
2359Z
TaxiwayTWY F TACAN CHECK POINT MARKINGS UNUSABLE
5/20/26
1331Z
6/30/26
2359Z
TaxiwayTWY A TACAN CHECKPOINT MARKINGS UNUSABLE
Yes
SUN 1900-2300Z
MON-FRI 1300-0200Z++
CLSD SAT & FED HOL; OT BY NOTAM.
U.S. AIR FORCE
71 FTW VANCE AFB
ENID, OK 73705
Phone: 580-213-7101
LAWRENCE FRANKLIN
71FTW VANCE AFB VANCE AFB
ENID, OK 73705
Phone: 580-213-7424
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Cargo Handling

Runway 17C/35C

9217 ft. x 150 ft.
CONC
Good
GRVD
HIGH
45/R/B/W/T
--
--
--
--
  Runway 17C Runway 35C
True Heading 180°360°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 21' 20"N 36° 19' 49"N
Longitude 97° 54' 53"W 97° 54' 53"W
Elevation 1,276' 1,293'
Threshold Crossing Height 51 ft. AGL 41 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights SALSF SALSF
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17L/35R

5024 ft. x 150 ft.
CONC
Good
GRVD
MED
36/R/C/W/T
--
--
--
--
  Runway 17L Runway 35R
True Heading 180°360°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 36° 20' 49"N 36° 19' 59"N
Longitude 97° 54' 40"W 97° 54' 40"W
Elevation 1,273' 1,284'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17R/35L

9217 ft. x 150 ft.
CONC
Good
GRVD
HIGH
57/R/B/W/T
--
--
--
--
  Runway 17R Runway 35L
True Heading 180°360°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 20' 57"N 36° 19' 26"N
Longitude 97° 55' 23"W 97° 55' 24"W
Elevation 1,275' 1,307'
Threshold Crossing Height 48 ft. AGL 49 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights SALS SALS
Centerline Lights No No
Runway End Identifier Lights No No
A110-10BEARING STRENGTH RWY 04-22: ST127 SBTT379 DDT547.
A110-12BEARING STRENGTH RWY 17L-35R: TRT544.
A110-13BEARING STRENGTH RWY 17R-35L: TRT540.
A110-14BEARING STRENGTH RWY 17C-35C: SBTT535 DDT790 TRT469.
A110-20MISC: DV CODE 7 OR HYR ARR CTC VANCE OPS 20 MIN PRIOR TO ETA.
A110-22JUSTMISC: WX OBS LMTD ALL QUAD; ALL EOR NOT VIS FM OBS PT; WHEN FOG AND/OR LO CLOUDS OVR AER 17/35 COND RPT FM OBS PT MAY NOT BE REPRESENTATIVE.
A110-24JASU: 8(A/M32A-86) 10(AM32-95).
A110-26FLUID: SP PRESAIR LPOX LOX.
A110-27OIL: O-148-156 SOAP.
A110-28TRAN ALERT: AVBL DURG PUBL/NOTAM OPS HRS; NO FLEET SVC AVBL; TSNT DEICING UNAVBL.
A110-33CTN: SOME OBST LGT NSTD; ONLY VIS TO 3 MI.
A110-34CTN: ACFT SUNSHADES 735 FT E OF RWY 17L/35R.
A110-38RSTD: PPR AT LEAST 72 BUSINESS HRS IN ADV CTC VANCE AFLD MGT OPS DSN 448-7426, C580-213-7426.
A110-40CTN: LED OBST LGTS MAY NOT BE VIS NVD OR NGT VISION GOGGLES.
A110-41COM/NAV WEATHER: AWOS - 24/7 AUTOMATED OBS; AUGMENTED ONLY DURG OPS HR OR SEV WX.
A110-44WIND SOCK UNLGTD WHEN RWY UNLGTD.
A110-45MISC: VANCE WX OPR H24 (STANDBY PERS MNT ON SAT AND FEDERAL HOL); DSN 448-7203/7530, C580-213-7203/7530. ALL 175-1 WX REQUEST RQR 2 HR NTC. AFLD WX MNT BY AN/FMQ-19 ASOS, AUGMENTED BY HUMAN OBSN WHEN RQR. WX OBSN LTD ALL QUAD DUE BLDG, HGR, SHELTERS AND ACFT OBST VIEW. ALL EOR NOT VIS FR OBSN PT. WHEN FOG AND/OR LOW CLOUDS PRESENT OVER APCH END RWY COND RPT FR OBSN PT MAY NOT BE REPRESENTATIVE.
A110-46RSTD: OFFL BUS; SUBMIT REQ TO AFLD MGMT AT DSN 448-7425/7426 C580-213-7425/7426.
A110-47RSTD: RWY 17C-35C CLSD TIL APRX APR 2025.
A110-48MISC: MIGRATORY BIRD ACT BASH (PHASE II) 15 APR - 31 MAY AND 1 NOV - 28 FEB OR ACTIVE VIA NOTAM.
A110-49MISC: AFLD WX OBS RPRTD 24/7 VIAAN/FMQ-19 AWOS; AUGMENTED BY HUMAN OBSN WHEN REQRD.
A110-5RSTD: DURG VMC DEP RMN BLW 2300 FT UNTIL DER TO ENSURE SEPN FM VFR OVHD PAT UNLESS OTRW CLEARED BY ATC.
A17-D3CLSD SAT & FED HOL; OT BY NOTAM.
A34-17C/35CRWY 17C/35C IS GROOVED CONC.
A34-17L/35RMID 2000 FT IS GROOVED.
A43-17C4-LGT PAPI LCTD BOTH SIDES OF RWY 17C.
A43-17R4-LGT PAPI LCTD BOTH SIDES OF RWY 17R.
A43-35C4-LGT PAPI LCTD BOTH SIDES OF RWY 35C.
A43-35L4-LGT PAPI LCTD BOTH SIDES OF RWY 35L.
A43-35RPAPI UNUSBL BYD 9 DEGS RIGHT AND LEFT OF CNTRLN.
A49-17CNSTD; INSTALLED ON PRECISION RWY.
A49-35CNSTD; INSTALLED ON PRECISION RWY.
E60-17C_MA-1ABAK-15 CHAG (154 FT OVRN).
E60-17R_MA-1ABAK-15 CHAG (152 FT OVRN).
E60-35C_MA-1ABAK-15 CHAG (154 FT OVRN).
E60-35L_MA-1ABAK-15 CHAG (152 FT OVRN).
VANCE AFB (ICAO: KEND, IATA: END) is a private airport located in ENID, OK, US.
