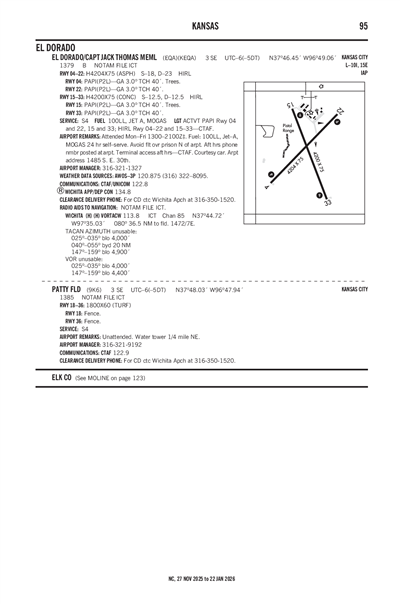

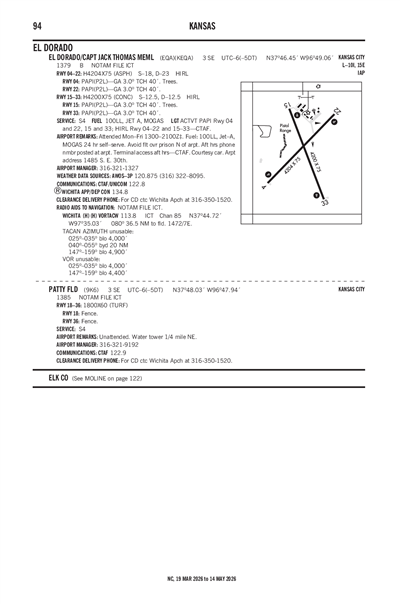

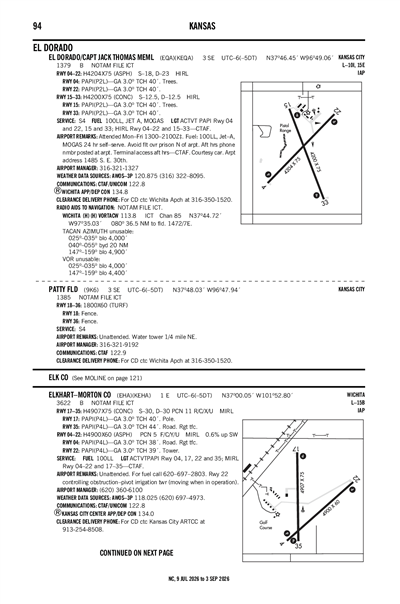

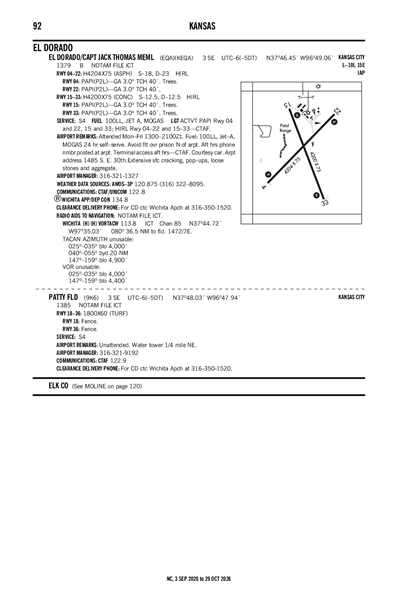

EL DORADO/CAPT JACK THOMAS MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEQA
EL DORADO/CAPT JACK THOMAS MEML
PublicPUB

3 miles SE of EL DORADO, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 46' 27"N 96° 49' 04"W
1379' MSL
2379' MSL
05E
JET A, 100LL, MOGAS
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
12/25/25-1/22/26
KEQA VFR
5:15 PM CST
Clear
10sm
59°F
32°F
29.72"Hg
180° 8kts
AO2
METAR KEQA 072315Z AUTO 18008KT 10SM CLR 15/00 A2972 RMK AO2
+ Add Your Business

KEQA FBOs

Promote Listing
El Dorado Airport
UNICOM: 122.8
Phone: (316) 321-1327
Other: (316) 587-3412
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 1/6
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.18 4.00 4.44
Full Serve 5.18 4.00 4.44
Fuel Notes
Prices include tax

KEQA Aircraft Service & Maintenance

Promote Listing
TD Aerospace LLC
Phone: (316) 775-1885
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
316-322-8095
 120.875

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIAB (23nm)
Wed, 1/7 12:00 PM CST
Wed, 1/7 12:00 PM CST - Thu, 1/8 6:00 PM CST
VFR
12:00 PM CST - 4:00 PM CST
Broken 25,000'
6sm
29.70"Hg
200° 12kts
Gusts 22kts
Moderate, Clear Air, Occasional: 1,000 - 3,000'
VFR
Becoming 4:00 PM CST - 1:00 AM CST
Overcast 20,000'
Few 12,000'
6sm
29.62"Hg
180° 9kts
Moderate, Clear Air, Occasional: 1,000 - 3,000'
VFR
Becoming 1:00 AM CST - 3:00 AM CST
Showers in vicinity
Overcast 20,000'
Broken 12,000'
Few 500'
6sm
29.59"Hg
160° 7kts
Moderate, Clear Air, Occasional: 1,000 - 5,000'
MVFR
Becoming 3:00 AM CST - 7:00 AM CST
Light Showers and Rain
Overcast 12,000'
Broken 7,000'
Scattered 500'
4.97sm
29.50"Hg
170° 6kts
Moderate, Clear Air, Occasional: 2,000 - 5,000'
IFR
Becoming 7:00 AM CST - 11:00 AM CST
Light Rain and Thunderstorm in vicinity
Overcast 1,200'
Broken 500'
3.73sm
29.41"Hg
070° 6kts
Moderate, Clear Air, Occasional: 1,000 - 5,000'
IFR
Temporary 8:00 AM CST - 11:00 AM CST
Thunderstorm and Rain
Overcast 500'
2.98sm
VRB° 15kts
Gusts 25kts
IFR
Becoming 11:00 AM CST - 2:00 PM CST
Showers in vicinity
Overcast 4,000'
Broken 800'
6sm
29.41"Hg
220° 9kts
Moderate, Clear Air, Occasional: 1,000 - 4,000'
MVFR
Becoming 2:00 PM CST - 6:00 PM CST
Broken 3,000'
Scattered 2,000'
6sm
29.44"Hg
230° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: 1,000 - 5,000'
TAF KIAB 071800Z 0718/0824 20012G22KT 9999 BKN250 520102 QNH2970INS
   BECMG 0722/0723 18009KT 9999 FEW120 OVC200 520102 QNH2962INS
   BECMG 0807/0808 16007KT 9999 VCSH FEW005 BKN120 OVC200 520104 QNH2960INS
   BECMG 0809/0810 17006KT 8000 -SHRA SCT005 BKN070 OVC120 520203 QNH2950INS
   BECMG 0813/0814 07006KT 6000 -RA VCTS BKN005 OVC012CB 520104 QNH2940INS
   TEMPO 0814/0817 VRB15G25KT 4800 TSRA OVC005
   BECMG 0817/0818 22009KT 9999 VCSH BKN008 OVC040 520103 QNH2940INS
   BECMG 0820/0821 23015G25KT 9999 NSW SCT020
KEQA
EffectiveExpiresCategoryNOTAM
Domestic
1/8/26
1400Z
1/8/26
2200Z
!ICT 01/019 EQA AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF EQA SFC-3500FT AGL ACFT CS FLC78
2601081400-2601082200
No
MON-FRI 0700-1500
CITY OF EL DORADO
220 E 1ST AVE
EL DORADO, KS 67042
Phone: 316-321-9100
LARRY ARNOLD
220 E 1ST AVE
EL DORADO, KS 67042
Phone: 316-321-1327
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT PAPI RWY 04 & 22, 15 & 33; HIRL 4/22 AND 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

4204 ft. x 75 ft.
ASPH
Fair
NONE
HIGH

18,000lbs
23,000lbs
--
--
  Runway 04 Runway 22
True Heading 43°223°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 46' 13"N 37° 46' 43"N
Longitude 96° 49' 23"W 96° 48' 47"W
Elevation 1,376' 1,378'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

4200 ft. x 75 ft.
CONC
Good
NONE
HIGH

12,000lbs
12,000lbs
--
--
  Runway 15 Runway 33
True Heading 159°339°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 46' 45"N 37° 46' 06"N
Longitude 96° 49' 12"W 96° 48' 53"W
Elevation 1,373' 1,379'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1AVOID FLT OVR PRISON N OF ARPT.
A110-2FOR CD CTC WICHITA APCH AT 316-350-1520.
A110-3AFT HRS PHONE NMBR POSTED AT ARPT.
A110-4COURTESY CAR.
A110-5TERMINAL ACCESS AFT HRS CTAF.
A110-6PHYS ADR 1485 S.E. 30TH.
EL DORADO/CAPT JACK THOMAS MEML (ICAO: KEQA, IATA: EQA) is a public airport located in EL DORADO, KS.
