iFlightPlanner



...

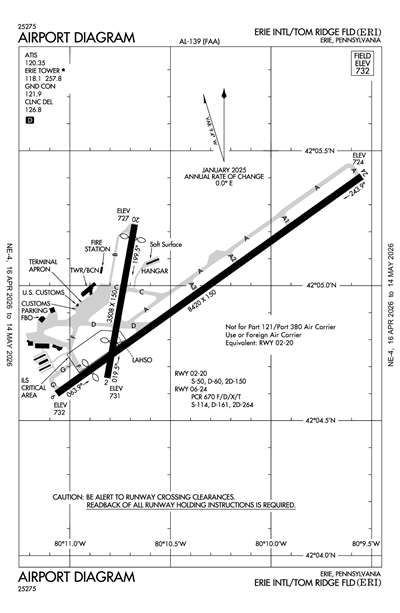

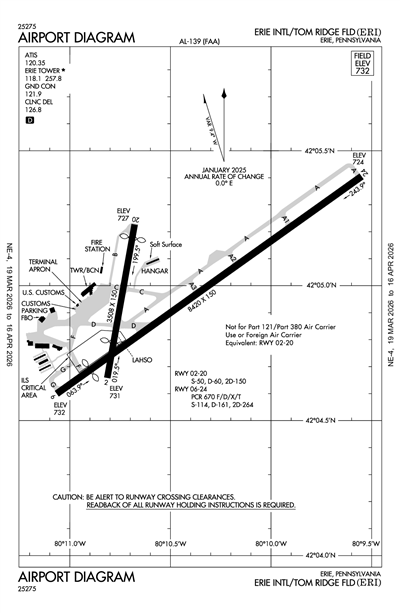

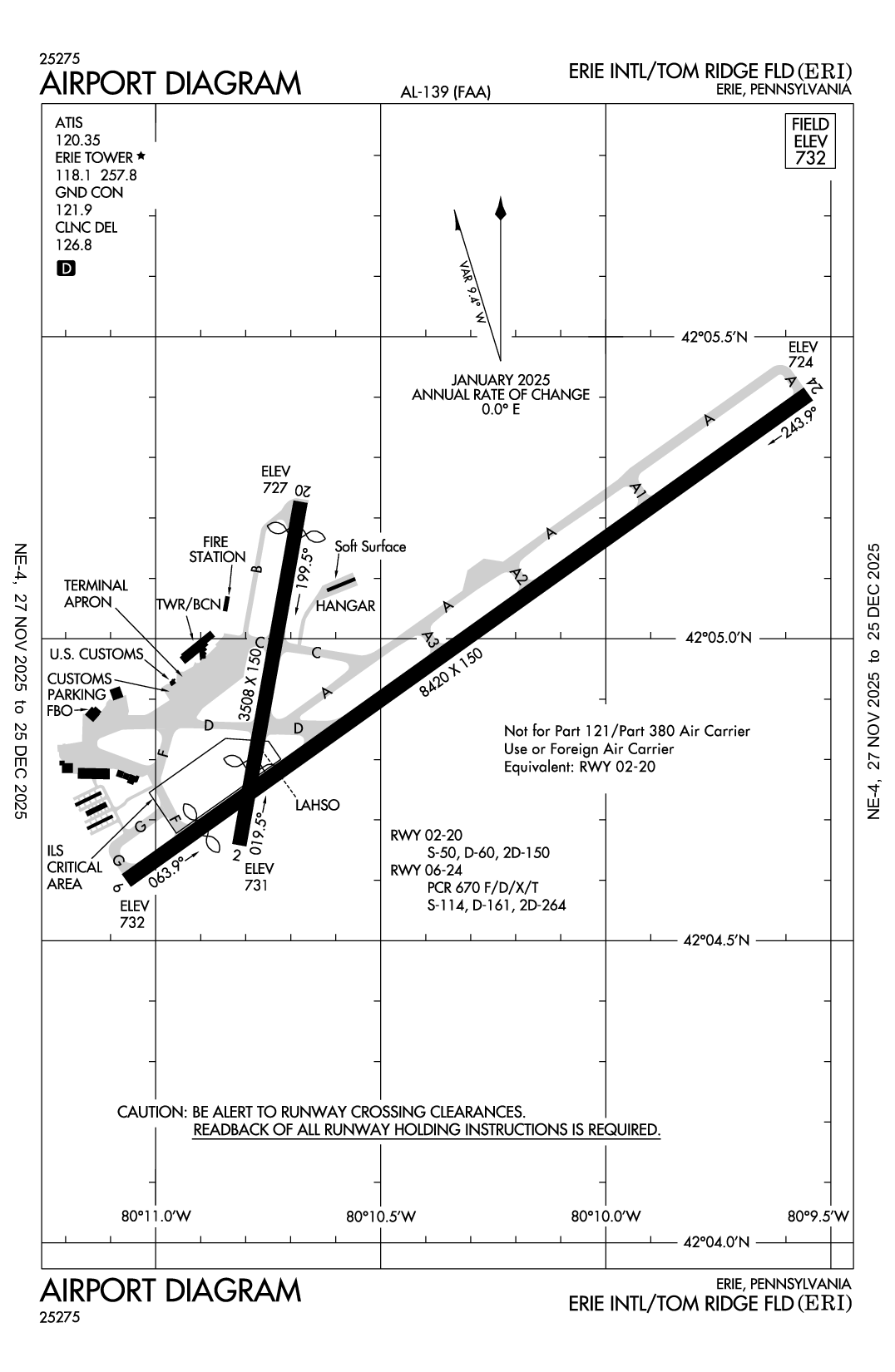

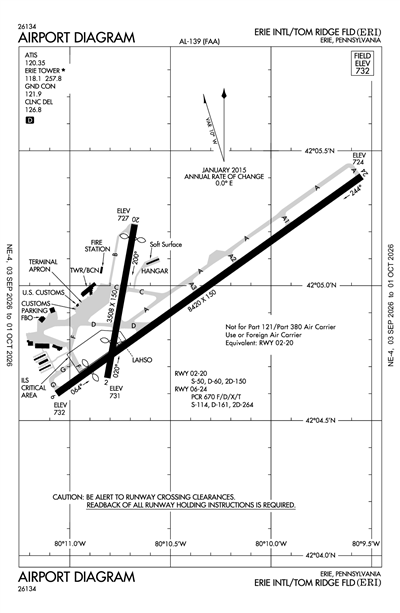

ERIE INTL/TOM RIDGE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KERI
ICAO KERIIATA ERILocal ERI
ERIE INTL/TOM RIDGE FLD
PublicPUB

5 miles SW of ERIE, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 04' 59"N 80° 10' 26"W
Elevation
732' MSL
Pattern Alt
1732' MSL
Mag Variation
9°W
Declination
10°W
Fuel
JET A, 100LL
FSS
ALTOONA (AOO)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
6/11/26-7/9/26
KERI VFR
10:51 PM EDT
Scattered 5,000'
10sm
82°F
72°F
29.97"Hg
190° 5kts
AO2 SLP141 T02780222 53008 $
METAR KERI 010251Z 19005KT 10SM SCT050 28/22 A2997 RMK AO2 SLP141 T02780222 53008 $
+ Add Your Business

KERI FBOs

Promote Listing
North Coast Air
UNICOM: 122.95
Phone: (814) 836-9220
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/26
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.49 7.89 7.99
Fuel Notes
Prices include tax
Fuel Hours
Regular Hours:
Mon-Fri: 0700-2300/Sat: 0700-2200/Sun: 0700-2100.
Regular and Holiday Hours Vary.
Contact FBO for current hours. $150.00/hour After Hours Fee applies.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.35
ASOS 120.35
(724) 252-2105

Common

CTAF 118.1
WHEN ATCT CLSD ACTVT MALSR RY 06/24; PAPI RY 06/24; HIRL RY 06/24; VASI RY 20; MIRL RY 02/20 & TWY LGTS - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 126.8

Ground

ERIE GROUND 121.9
0600-0000

Tower

ERIE TOWER 118.1
0600-0000

Terminal

TRSA 121.0

Approach

BUFFALO APPROACH 121.0

Departure

BUFFALO DEPARTURE 121.0

Center

BUFFALO CENTER 127.075
LOW, APCH/DEP SVC PRVDD BY BUFFALO APCH (BUF) ON FREQS 121.0/257.8 0600-0000. APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 127.075/292.175 (WATERFORD RCAG) 0000-0600.

Emergency

Emergency 121.5

Terminal Area Forecast

KERI
Tue, 6/30 7:24 PM EDT
Tue, 6/30 8:00 PM EDT - Wed, 7/1 8:00 PM EDT
VFR
8:00 PM EDT - 2:00 PM EDT
Sky Clear
6sm
220° 6kts
VFR
2:00 PM EDT - 8:00 PM EDT
Few 5,000'
6sm
260° 11kts
Gusts 20kts
TAF KERI 302324Z 0100/0124 22006KT P6SM SKC
   FM011800 26011G20KT P6SM FEW050
KERI
EffectiveExpiresCategoryNOTAM
Domestic
7/5/26
0100Z
7/5/26
0300Z
!ERI 06/196 ERI AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS .25NM RADIUS OF 420452N0801304W (2.2NM WSW ERI) SFC-300FT AGL 2607050100-2607050300
7/1/26
0316Z
9/29/26
0316Z
!ERI 07/001 ERI OBST TOWER LGT (ASR 1210189) 415640.00N0802402.20W (13.1NM SW ERI) 1084.0FT (258.9FT AGL) U/S 2607010316-2609290316
6/30/26
2004Z
7/1/26
2100Z
Runway!ERI 06/209 ERI RWY 06 PAPI U/S 2606302004-2607012100
6/30/26
2004Z
7/1/26
2100Z
Runway!ERI 06/208 ERI RWY 24 LAND AND HOLD SHORT OPS LGT U/S 2606302004-2607012100
6/30/26
1130Z
6/30/26
1847Z
!ERI 06/205 ERI AD AP ALL SFC WIP GRASS CUTTING 2606301130-2606301847
6/30/26
1100Z
6/30/26
1430Z
Runway!ERI 06/197 ERI RWY 06/24 CLSD 2606301100-2606301430
6/30/26
1021Z
6/30/26
1100Z
Runway!ERI 06/204 ERI RWY 24 FICON 5/5/5 100 PCT WET OBS AT 2606301021. 2606301021-2606301100
6/29/26
2144Z
10/27/26
2144Z
!ERI 06/200 ERI OBST TOWER LGT (ASR 1022725) 415756.60N0801908.60W (9.6NM SW ERI) 1165.0FT (289.0FT AGL) U/S 2606292144-2610272144
6/28/26
1313Z
7/3/26
1900Z
!ERI 06/194 ERI TWY D HLDG PSN SIGN NORTHEAST SIDE FOR RWY 06/24 OBSC 2606281313-2607031900
6/26/26
1757Z
9/24/26
1757Z
!ERI 06/191 ERI OBST TOWER LGT (ASR 1016008) 415758.40N0801943.20W (9.9NM SW ERI) 1169.9FT (297.9FT AGL) U/S 2606261757-2609241757
6/25/26
1925Z
9/23/26
1925Z
!ERI 06/177 ERI OBST TOWER LGT (ASR 1053045) 415646.00N0802406.50W (13.1NM SW ERI) 1151.2FT (325.1FT AGL) U/S 2606251925-2609231925
6/25/26
1628Z
6/30/26
2000Z
Runway!ERI 06/175 ERI RWY 06 PAPI U/S 2606251628-2606302000
6/25/26
1628Z
6/30/26
2000Z
Runway!ERI 06/174 ERI RWY 24 LAND AND HOLD SHORT OPS LGT U/S 2606251628-2606302000
6/25/26
1000Z
7/4/26
2359Z
!ERI 06/155 ERI OBST CRANE (ASN UNKNOWN) 424153N0801123W (1.3NM W ERI)
UNKNOWN (50FT AGL) FLAGGED DLY 1000-2359 2606251000-2607042359
6/25/26
0215Z
Runway!ERI 06/160 ERI RWY 20 VASI U/S 2606250215-2607172000EST
6/15/26
1548Z
7/3/26
2100Z
!ERI 06/105 ERI TWY D HLDG PSN SIGN NORTH SIDE FOR RWY 02/20 NOT STD 2606151548-2607032100
6/1/26
1730Z
7/3/26
2100Z
!ERI 06/006 ERI TWY D BTN RWY 02/20 AND 06/24 SAFETY AREA NOT STD N EDGE 2606011730-2607032100
6/1/26
1309Z
7/3/26
2100Z
!ERI 06/002 ERI TWY A EDGE LGT NOT STD 2606011309-2607032100
6/1/26
1307Z
7/3/26
2100Z
!ERI 06/001 ERI TWY D BTN RWY 02/20 AND RWY 06/24 CLSD TO ACFT WINGSPAN MORE THAN 100FT 2606011307-2607032100
6/1/26
1100Z
7/3/26
2100Z
!ERI 05/210 ERI TWY C BTN HANGAR 20 ACCESS RAMP AND TWY A CLSD 2606011100-2607032100
6/1/26
1100Z
7/3/26
2100Z
!ERI 05/209 ERI TWY A BTN TWY D AND TWY A3 CLSD 2606011100-2607032100
Yes
MON-FRI 0500-2300
SAT-SUN 0500-2200
ERIE REGIONAL ARPT AUTHORITY
4411 W 12TH ST
ERIE, PA 16505
Phone: 814-833-4258
DEREK MARTIN
4411 W 12TH ST
ERIE, PA 16505
Phone: 814-833-4258
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
ERI
--
WHEN ATCT CLSD ACTVT MALSR RY 06/24; PAPI RY 06/24; HIRL RY 06/24; VASI RY 20; MIRL RY 02/20 & TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
High & Low Pressure
None
Avionics
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 02/20

3508 ft. x 150 ft.
ASPH
Fair
NONE
MED

50,000lbs
60,000lbs
150,000lbs
--
  Runway 02 Runway 20
True Heading 10°190°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 04' 39"N 42° 05' 14"N
Longitude 80° 10' 49"W 80° 10' 41"W
Elevation 731' 727'
Threshold Crossing Height -- 69 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

8420 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

114,000lbs
161,000lbs
264,000lbs
--
  Runway 06 Runway 24
True Heading 54°234°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 04' 36"N 42° 05' 24"N
Longitude 80° 11' 04"W 80° 09' 33"W
Elevation 732' 724'
Threshold Crossing Height 54 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights
A110-2BIRDS ON & INVOF ARPT.
A110-3EXTENSIVE NON-RADIO & ULTRALGT ACFT OPR 3.5-5 NM SOUTHWEST OF ARPT AT OR BLO 700 FT AGL MAY 1-OCT 31 ANNUALLY SR-SS.
A110-4FLIGHT NOTIFICATION SERVICE (ADCUS) AVAILABLE; PRIOR RESERVATION REQUIRED; PHONE 814-833-1355.
A110-6FOR CD CTC BUFFALO APCH AT 716-626-6920, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0232.
A110-7INDEX C AVAIL UPON REQUEST
A30-02/20RWY 02/20 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-06/24PCR VALUE: 670/F/D/X/T
A49-06MALSR UNMON.
A49-24MALSR UNMON.
A57-02APCH RATIO 22:1 TO DTHR FOR 60 FT TREES 459 FT FM RWY END 29 FT RT.
A57-06APCH RATIO 30:1 TO DTHR FOR +103 FT TREES 2227 FT FM RWY END 699 FT LEFT.
A57-20APCH RATIO 18:1 TO DTHR; 53 FT TREES 680 FT FM RWY END, 77 FT LEFT.
A58-02+31 FT RR ANGLES ACROSS RWY CL +32 FT OBST LGTD POLE 106 FT FM AER 17 FT RT.
A58-06+21 FT OBST LGTD POLE AT 8 FT FROM AER 325 FT R, +15 FT BILLBOARD AT 189 FT FROM AER 327 FT R.
A58-20+15 FT ROAD AT AER 225 FT R. +9 FT FENCE 65 FT FM RWY END 128 FT R.
A81-APTWHEN ATCT CLSD ACTVT MALSR RY 06/24; PAPI RY 06/24; HIRL RY 06/24; VASI RY 20; MIRL RY 02/20 & TWY LGTS - CTAF.
E80RAMP USAGE FEE FOR ACFT CLEARING CUSTOMS. FEE BASED ON ACFT WGT, CTC ARPT FOR FEE SKED.
ERIE INTL/TOM RIDGE FLD (ICAO: KERI, IATA: ERI) is a public airport located in ERIE, PA, US.
