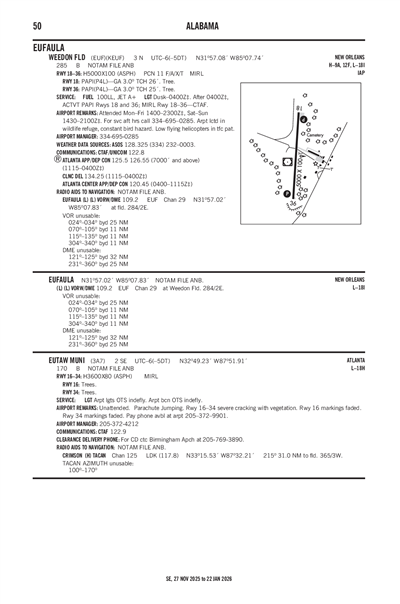

WEEDON FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEUF
WEEDON FLD
PublicPUB

3 miles N of EUFAULA, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 57' 05"N 85° 07' 44"W
285' MSL
1285' MSL
04W
Jet A+, 100LL
ANNISTON (ANB)
NEW ORLEANS
ATLANTA (ZTL)
11/30/23-12/28/23
KEUF VFR
3:58 PM CST
Clear
10sm
61°F
35°F
30.08"Hg
280° 3kts
AO2 SLP185 I1000 T01610017
KEUF 052158Z AUTO 28003KT 10SM CLR 16/02 A3008 RMK AO2 SLP185 I1000 T01610017
List Your Business

KEUF FBOs, Flight Schools and Ground Support

Promote Listing
Eufaula Jet Center
Freq: 122.8
Phone: (334) 687-2051
Other: (334) 367-9003
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 11/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.67
Full Serve 5.69

KEUF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEUF Hotels

No hotels are listed for this airport.

KEUF Restaurants

No restaurants are listed for this airport.

KEUF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
334-687-5596
 128.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLSF (24nm)
Tue, 12/5 5:00 PM EST
Tue, 12/5 5:00 PM EST - Wed, 12/6 11:00 PM EST
VFR
5:00 PM EST - 8:00 PM EST
Few 20,000'
6sm
30.06"Hg
280° 6kts
VFR
Becoming 8:00 PM EST - 9:00 AM EST
Scattered 4,500'
6sm
30.09"Hg
VRB° 4kts
Moderate, Clear Air, Frequent: 1,000 - 6,000'
VFR
Becoming 9:00 AM EST - 6:00 PM EST
Few 20,000'
6sm
30.24"Hg
340° 12kts
Gusts 20kts
Light Turbulence: 1,000 - 3,000'
VFR
Becoming 6:00 PM EST - 11:00 PM EST
Few 20,000'
6sm
30.27"Hg
350° 6kts
TAF KLSF 052200Z 0522/0704 28006KT 9999 FEW200 QNH3005INS
   BECMG 0601/0603 VRB04KT 9999 SCT045 WSCONDS 530105 QNH3010INS
   BECMG 0614/0615 34012G20KT 9999 FEW200 510102 QNH3025INS
   BECMG 0623/0624 35006KT 9999 FEW200 QNH3027INS TX14/0522Z TN02/0611Z
KEUF
Domestic
12/4/232012Z !ANB 12/117 EUF OBST TOWER LGT (ASR 1310403) 320213.10N0850742.10W (5.13NM N EUF) 676FT (256FT AGL) U/S 2312042012-2401042300
12/2/230730Z !ANB 12/046 EUF OBST TOWER LGT (ASR 1242315) 315830.00N0851340.00W (5.2NM WNW EUF) 721.8FT (409.8FT AGL) U/S 2312020730-2312170630
12/1/231512Z !ANB 12/020 EUF OBST TOWER LGT (ASR 1310206) 320914.49N0851042.19W (12.4NM N EUF) 635FT (265FT AGL) U/S 2312011512-2312162300
11/29/230547Z !ANB 11/822 EUF OBST TOWER LGT (ASR 1288456) 321256.00N0845950.40W (17.3NM NNE EUF) 548.9FT (256.9FT AGL) U/S 2311290547-2312140447
11/29/230546Z !ANB 11/821 EUF OBST TOWER LGT (ASR 1227408) 320902.60N0851047.70W (12.2NM NNW EUF) 688.6FT (348.8FT AGL) U/S 2311290546-2312140446
11/28/230605Z !ANB 11/795 EUF OBST TOWER LGT (ASR 1034722) 321125.60N0850251.70W (15.0NM NNE EUF) 745.1FT (265.1FT AGL) U/S 2311280605-2312280001
11/22/230704Z !ANB 11/648 EUF OBST TOWER LGT (ASR 1252079) 315124.80N0850905.90W (5.8NM SSW EUF) 504.9FT (259.8FT AGL) U/S 2311220704-2312070604
11/20/231524Z !ANB 11/555 EUF OBST TOWER LGT (ASR 1296813) 314746.70N0850555.20W (9.4NM S EUF) 680.8FT (299.9FT AGL) U/S 2311201524-2312202359
11/14/231624Z !ANB 11/413 EUF OBST TOWER LGT (ASR 1300789) 321130.28N0850304.04W (15.0NM NNE EUF) 892FT (420FT AGL) U/S 2311141624-2312142300
11/12/230847Z !ANB 11/365 EUF OBST TOWER LGT (ASR 1020134) 315920.00N0845559.00W (10.3NM ENE EUF) 1011.8FT (464.9FT AGL) U/S 2311120847-2312120001
FDC
11/14/232053Z !FDC 3/1370 EUF ODP WEEDON FLD, EUFAULA, AL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF OBSTACLE NOTES: RWY 18, POLE 180 FT FROM DER, 353 FT LEFT OF CENTERLINE, 43 FT AGL/304 FT MSL.
TREE 1206 FT FROM DER, 579 FT LEFT OF CENTERLINE, 324 FT MSL.
TREE 2010 FT FROM DER, 723 FT RIGHT OF CENTERLINE, 342 FT MSL.
TREE 2050 FT FROM DER, 426 FT LEFT OF CENTERLINE, 343 FT MSL.
TREES BEGINNING 2478 FT FROM DER, 477 FT LEFT OF CENTERLINE, UP TO 360 FT MSL.
TREE 2708 FT FROM DER, 657 FT LEFT OF CENTERLINE, 375 FT MSL.
TREE 3604 FT FROM DER, 334 FT RIGHT OF CENTERLINE, 369 FT MSL.
RWY 36, TREE 16 FT FROM DER, 432 FT RIGHT OF CENTERLINE, 347 FT MSL.
TREES BEGINNING 1097 FT FROM DER, 324 FT LEFT OF CENTERLINE, UP TO 380 FT MSL.
TREE 1258 FT FROM DER, 581 FT RIGHT OF CENTERLINE, 360 FT MSL.
TREE 1357 FT FROM DER, 577 FT RIGHT OF CENTERLINE, 365 FT MSL.
TREE 2891 FT FROM DER, 1206 FT RIGHT OF CENTERLINE, 376 FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED. 2311142053-2511142053EST
No
0800-1700
FOR SVC AFT HRS CALL 334-695-0285.
CITY OF EUFAULA
BOX 219
EUFAULA, AL 36027
Phone: 334-688-2000
NIKKI OGLETREE
1730 N. EUFALA AVE
EUFAULA, AL 36027
Phone: 334-695-0285
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
DUSK-2200. AFTER 2200, ACTVT PAPI RWYS 18 & 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
11
1
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 18/36

5000 ft. x 100 ft.
ASPH
Good
NONE
MED
11 /F/A/X/T
--
--
--
--
  Runway 18 Runway 36
True Heading 184°4°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 57' 29"N 31° 56' 40"N
Longitude 85° 07' 42"W 85° 07' 46"W
Elevation 283' 277'
Threshold Crossing Height 26 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1LOW FLYING HELICOPTERS IN TFC PAT.
A110-2ARPT LCTD IN WILDLIFE REFUGE - CONSTANT BIRD HAZARD.
WEEDON FLD (ICAO: KEUF, IATA: EUF) is a public airport located in EUFAULA, AL.
