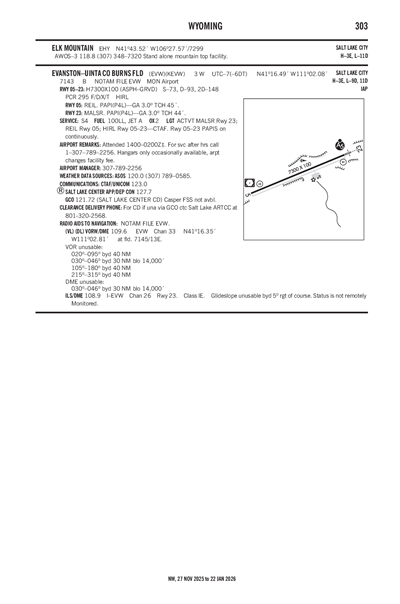

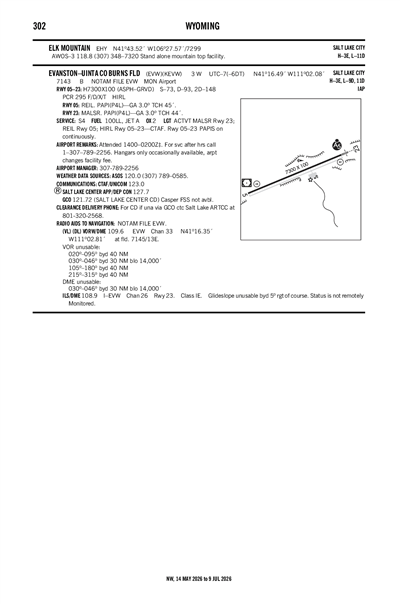

EVANSTON-UINTA COUNTY BURNS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEVW
EVANSTON-UINTA COUNTY BURNS FLD
PublicPUB

3 miles W of EVANSTON, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 16' 29"N 111° 02' 05"W
7142' MSL
8142' MSL
13E
Jet A, 100LL
CASPER (CPR)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
6/16/22-7/14/22
KEVW VFR
4:53 AM MDT
Clear
10sm
58°F
39°F
30.24"Hg
150° 6kts
AO2 SLP136 T01440039
KEVW 071053Z AUTO 15006KT 10SM CLR 14/04 A3024 RMK AO2 SLP136 T01440039
List Your Business

KEVW FBOs, Flight Schools and Ground Support

Promote Listing
Evanston Aviation
Freq: 123.0
Phone: (307) 789-2256
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.25
Full Serve 6.65 7.04 7.09

KEVW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEVW Hotels

No hotels are listed for this airport.

KEVW Restaurants

No restaurants are listed for this airport.

KEVW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
307-789-0585
 120.0

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEVW
Wed, 7/6 11:34 PM MDT
Thu, 7/7 12:00 AM MDT - Fri, 7/8 12:00 AM MDT
VFR
12:00 AM MDT - 9:00 AM MDT
Scattered 12,000'
> 6sm
150° 5kts
VFR
9:00 AM MDT - 4:00 PM MDT
Scattered 10,000'
> 6sm
230° 12kts
Gusts 22kts
VFR
4:00 PM MDT - 12:00 AM MDT
Sky Clear
> 6sm
170° 10kts
KEVW 070534Z 0706/0806 15005KT P6SM SCT120
   FM071500 23012G22KT P6SM SCT100
   FM072200 17010KT P6SM SKC
KEVW
Domestic
6/30/222334Z !EVW 06/002 EVW RWY 05/23 CLSD 2206302334-2207082359
5/28/222018Z !EVW 05/008 EVW RWY 05 PAPI U/S 2205282018-2209142359
4/11/220000Z !EVW 04/005 EVW RWY 23 ALS U/S 2204110000-2209142359
4/11/220000Z !EVW 04/004 EVW RWY 23 PAPI U/S 2204110000-2209142359
4/11/220000Z !EVW 04/003 EVW NAV ILS RWY 23 LOC/GP/DME U/S 2204110000-2209142359
1/19/220501Z !EVW 01/021 EVW AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO
TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT
A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE
METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-
12, 2021-23-13 2201190501-2401190501
FDC
6/14/221637Z !FDC 2/8603 EVW IAP EVANSTON-UINTA COUNTY BURNS FLD,
EVANSTON, WY.
VOR/DME RWY 5, ORIG...
CIRCLING CAT A MDA 7680/HAA 537, CAT B MDA 7760/HAA 617, CAT C MDA
7800/HAA 657, CAT D MDA 8000/HAA 857, VIS CAT D 2 3/4.
VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.00/TCH 45).
ALTERNATE MINIMUMS: STANDARD EXCEPT CAT D 900-2 3/4.
THIS IS VOR/DME RWY 5, ORIG-A. 2206141637-PERM
6/14/221628Z !FDC 2/8600 EVW IAP EVANSTON-UINTA COUNTY BURNS FLD,
EVANSTON, WY.
ILS OR LOC/DME RWY 23, AMDT 1...
CIRCLING CAT A MDA 7680/HAA 537, CAT B MDA 7760/HAA 617, CAT C MDA
7800/HAA 657, CAT D MDA 8000/HAA 857, VIS CAT D 2 3/4.
ALTERNATE MINIMUMS: ILS: STANDARD; LOC: STANDARD EXCEPT CAT D 900-2
3/4.
THIS IS ILS OR LOC/DME RWY 23, AMDT 1A. 2206141628-PERM
6/14/221628Z !FDC 2/8599 EVW IAP EVANSTON-UINTA COUNTY BURNS FLD,
EVANSTON, WY.
RNAV (GPS) RWY 23, AMDT 4...
CIRCLING CAT A MDA 7680/HAA 537, CAT B MDA 7760/HAA 617, CAT C MDA
7800/HAA 657, CAT D MDA 8000/HAA 857, VIS CAT D 2 3/4.
DELETE NOTE: DME/DME RNP-0.3 NA.
ADD PBN REQUIREMENTS NOTE: RNP APCH - GPS.
CHANGE NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV
NA BELOW -29°C OR ABOVE 34°C.
ALTERNATE MINIMUMS: STANDARD EXCEPT CAT D 900-2 3/4.
THIS IS RNAV (GPS) RWY 23, AMDT 4A. 2206141628-PERM
10/23/210002Z !FDC 1/6932 EVW ODP EVANSTON-UINTA COUNTY BURNS FLD, EVANSTON, WY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TEXTUAL DEPARTURE PROCEDURE RWY 5 NOT AUTHORIZED.
2110230002-2310220002EST
No
0700-1900
FOR SVC AFT HRS CALL 1-307-789-2256.
CITY OF EVANSTON
1200 MAIN ST
EVANSTON, WY 82930
Phone: (307) 783-0318
MIKE LASALLE
PO BOX 756
EVANSTON, WY 82931
Phone: 307-789-2256
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
EVW
--
ACTVT HIRL RY 05/23, MALSR RY 23 & REIL RY 05 - 123.0. PAPI RY 05 & RY 23 OPER CONT.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
16
3
0
0
0
0
Major
Major
None
Low Pressure
None

Runway 05/23

7300 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

30,000lbs
70,000lbs
--
--
  Runway 05 Runway 23
True Heading 66°246°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 16' 15"N 41° 16' 43"N
Longitude 111° 02' 49"W 111° 01' 21"W
Elevation 7,135' 7,136'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No
A110-2WILDLIFE ON & INVOF ARPT.
A110-4GCO AVBL ON FREQ 121.72 THRU SALT LAKE ARTCC CD, CASPER FSS NOT AVBL.
A110-5FOR CD IF UNA VIA GCO CTC SALT LAKE ARTCC AT 801-320-2568.
EVANSTON-UINTA COUNTY BURNS FLD (ICAO: KEVW, IATA: EVW) is a public airport located in EVANSTON, WY.
