KEWK
NEWTON-CITY-COUNTY
PublicPUB

3 miles E of NEWTON, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 03' 26"N 97° 16' 31"W
1534' MSL
2534' MSL
06E
Jet A, 100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
6/16/22-7/14/22
KEWK VFR
7:56 AM CDT
Clear
10sm
80°F
68°F
29.95"Hg
VRB° 5kts
AO2 SLP120 T02670200
KEWK 061256Z AUTO VRB05KT 10SM CLR 27/20 A2995 RMK AO2 SLP120 T02670200
List Your Business

KEWK FBOs, Flight Schools and Ground Support

Promote Listing
Metro North Flight Support
Freq: 123.0
Phone: (316) 284-6084
Other: (800) 899-2485
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.48 6.67

KEWK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEWK Hotels

No hotels are listed for this airport.

KEWK Restaurants

No restaurants are listed for this airport.

KEWK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
316-283-8789
 123.875

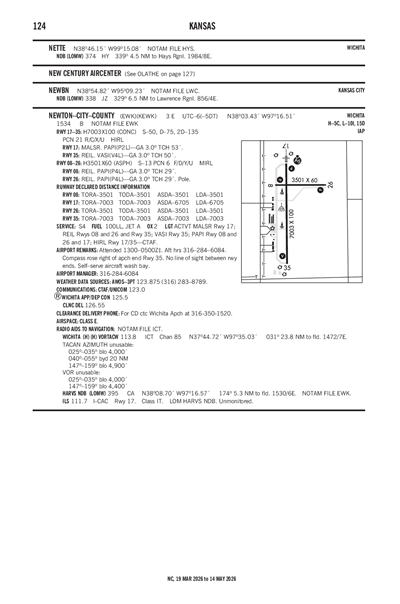

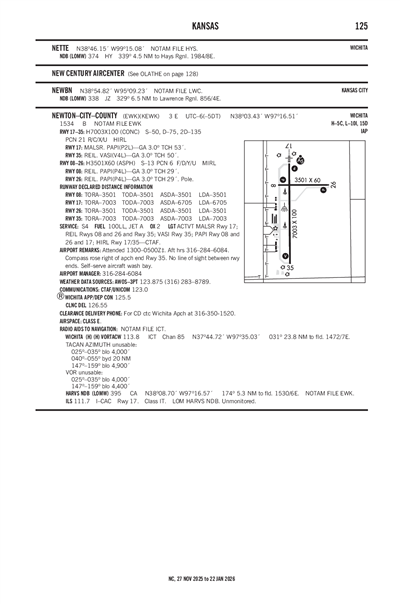

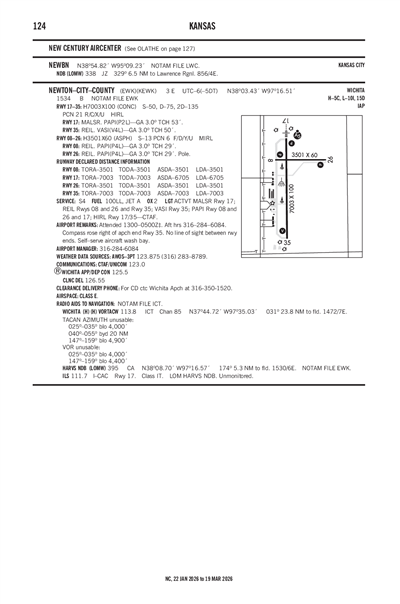

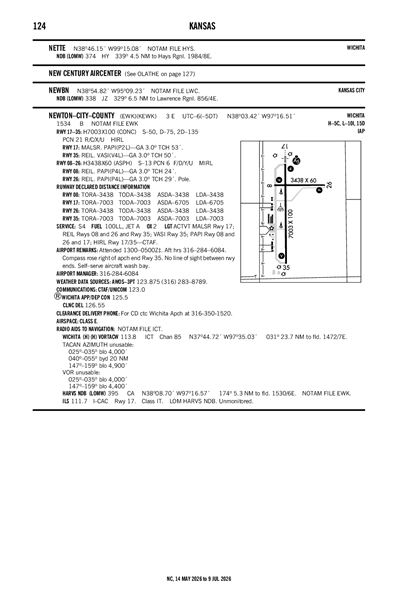

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KICT (26nm)
Wed, 7/6 6:49 AM CDT
Wed, 7/6 7:00 AM CDT - Thu, 7/7 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Scattered 15,000'
> 6sm
350° 10kts
VFR
9:00 AM CDT - 11:00 AM CDT
Few 25,000'
> 6sm
040° 6kts
VFR
11:00 AM CDT - 2:00 PM CDT
Few 25,000'
> 6sm
140° 10kts
VFR
2:00 PM CDT - 9:00 PM CDT
Few 25,000'
> 6sm
170° 13kts
VFR
9:00 PM CDT - 7:00 AM CDT
Scattered 25,000'
> 6sm
150° 10kts
KICT 061149Z 0612/0712 35010KT P6SM SCT150
   FM061400 04006KT P6SM FEW250
   FM061600 14010KT P6SM FEW250
   FM061900 17013KT P6SM FEW250
   FM070200 15010KT P6SM SCT250
KEWK
Domestic
7/3/220527Z !EWK 07/001 EWK OBST TOWER LGT (ASR 1032288) 380515.30N0972144.50W (4.5NM WNW EWK) 1877.0FT (419.9FT AGL) U/S 2207030527-2207180427
4/30/220401Z !EWK 04/015 EWK AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2204300401-2404300401
2/16/221554Z !EWK 02/007 EWK RWY 35 RWY END ID LGT U/S 2202161554-2208202111EST
FDC
6/3/221630Z !FDC 2/3665 EWK IAP NEWTON-CITY-COUNTY, NEWTON, KS.
ILS OR LOC RWY 17, AMDT 4B...
CIRCLING CAT A/B/C HAA 466, CAT D HAA 566.
S-LOC 17 VISIBILITY CAT D 5/8.
CHART: APT ELEV 1534.
CHART NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 2000.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
WICHITA DWIGHT D EISENHOWER NTL ALTIMETER SETTING: INCREASE S-ILS
17 DA TO 1819 FEET; INCREASE ALL MDAS 100 FEET AND VISIBILITY S-LOC
17 CAT C/D 3/8 SM.
THIS IS ILS OR LOC RWY 17, AMDT 4C. 2206031630-PERM
11/19/212220Z !FDC 1/0054 EWK IAP NEWTON-CITY-COUNTY, NEWTON, KS.
VOR/DME-A, AMDT 3A...
PROCEDURE NA.
2111192220-2212312220EST
No
0700-2300
PHONE NUMBER FOR FUEL AFT HRS 316-284-6084 AND IS POSTED AT ARPT.
CITY OF NEWTON HARVEY CO
810 N. OLIVER ROAD - BOX 426
NEWTON, KS 67114
Phone: 316-284-6089
BRIAN PALMER
P.O. BOX 426
NEWTON, KS 67114
Phone: 316-284-6084
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
EWK
--
ACTVT MALSR RWY 17; REIL RWYS 08 & 26 &35; VASI RWY 35; PAPI RWYS 08 & 26 & 17; HIRL RWY 17/35 - CTAF.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
72
5
6
1
0
0
Major
Major
None
Low Pressure
Charter Service
Pilot Instruction
Aircraft Sales

Runway 08/26

3501 ft. x 60 ft.
ASPH
Good

MED
6 /F/D/Y/U
13,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 03' 39"N 38° 03' 39"N
Longitude 97° 16' 44"W 97° 16' 01"W
Elevation 1,534' 1,533'
Threshold Crossing Height 29 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

7003 ft. x 100 ft.
CONC
Good

HIGH
21 /R/C/X/U
50,000lbs
75,000lbs
135,000lbs
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 38° 03' 54"N 38° 02' 44"N
Longitude 97° 16' 35"W 97° 16' 35"W
Elevation 1,529' 1,524'
Threshold Crossing Height 53 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1TOUCHDOWN AREA OF RY 26 IS NOT VISIBLE FRM TOUCHDOWN AREA OF EITHER RY 17 OR RY 35.
A110-2SELF-SERVE AIRCRAFT WASH BAY.
A110-3COMPASS ROSE RIGHT OF APCH END RY 35
A110-5FOR CD CTC WICHITA APCH AT 316-350-1520.
NEWTON-CITY-COUNTY (ICAO: KEWK, IATA: EWK) is a public airport located in NEWTON, KS.
