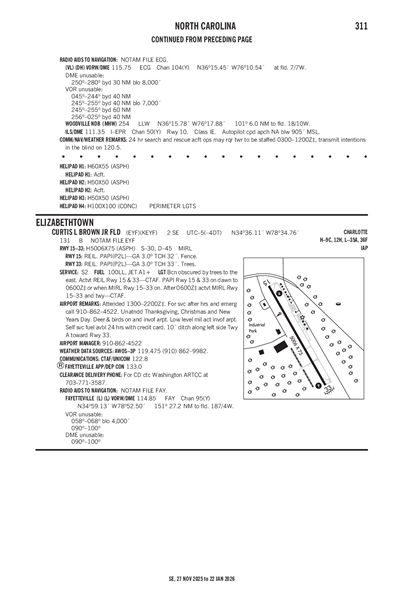

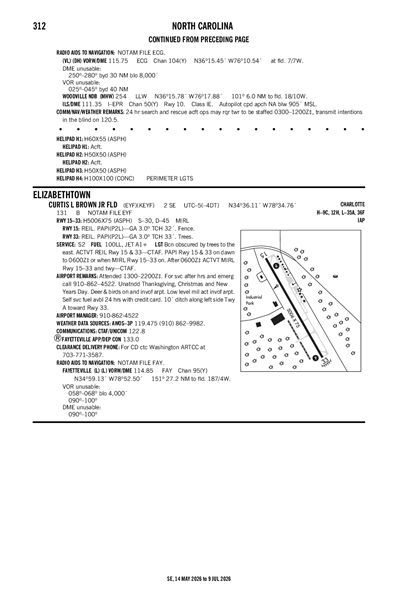

CURTIS L BROWN JR FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEYF
CURTIS L BROWN JR FLD
PublicPUB

2 miles SE of ELIZABETHTOWN, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 36' 07"N 78° 34' 45"W
131' MSL
1131' MSL
08W
Jet A-1+, 100LL
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
4/18/24-5/16/24
KEYF VFR
2:50 AM EDT
Scattered 12,000'
10sm
59°F
54°F
30.06"Hg
Calm
AO2 T01490123
KEYF 250650Z AUTO 00000KT 10SM SCT120 15/12 A3006 RMK AO2 T01490123
List Your Business

KEYF FBOs, Flight Schools and Ground Support

Promote Listing
Curtis L. Brown Jr. Field
Freq: 122.8
Phone: (910) 639-6877
Other: (910) 862-4522
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 3/31
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.10 4.50
Full Serve

KEYF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEYF Hotels

No hotels are listed for this airport.

KEYF Restaurants

No restaurants are listed for this airport.

KEYF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
910-862-9982
 119.475

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLBT (24nm)
Thu, 4/25 1:20 AM EDT
Thu, 4/25 2:00 AM EDT - Fri, 4/26 2:00 AM EDT
VFR
2:00 AM EDT - 6:00 AM EDT
Broken 7,000'
6sm
VRB° 3kts
VFR
6:00 AM EDT - 9:00 AM EDT
Mist
Sky Clear
6sm
Calm
VFR
9:00 AM EDT - 2:00 AM EDT
Sky Clear
6sm
020° 6kts
KLBT 250520Z 2506/2606 VRB03KT P6SM BKN070
   FM251000 00000KT 6SM BR SKC
   FM251300 02006KT P6SM SKC
KEYF
Domestic
4/25/242200Z !EYF 04/010 EYF AIRSPACE SEE ZDC 04/441 SPECIAL AERIAL REFUELING 2404252200-2404260330
4/17/241730Z !EYF 04/007 EYF TWY A, B CLSD 2404171730-2406152359
4/17/241620Z !EYF 04/006 EYF APRON MAIN APN CLSD 2404171620-2406152359
4/8/242003Z !EYF 04/002 EYF OBST TOWER LGT (ASR 1306804) 342601.50N0782914.60W (11.03NM SSE EYF) 408FT (325FT AGL) U/S 2404082003-2405082359
4/6/241302Z !EYF 04/001 EYF OBST TOWER LGT (ASR 1234192) 343859.60N0783251.00W (3.3NM NNE EYF) 378.0FT (315.0FT AGL) U/S 2404061302-2407062359
3/15/241335Z !EYF 03/005 EYF RWY 33 PAPI U/S 2403151335-2409162111EST
3/15/241333Z !EYF 03/004 EYF RWY 33 RWY END ID LGT U/S 2403151333-2409162111EST
3/15/241331Z !EYF 03/003 EYF RWY 15 PAPI U/S 2403151331-2409162111EST
2/28/240920Z !EYF 02/006 EYF OBST TOWER LGT (ASR 1268787) 342341.40N0781649.80W (19.0NM SE EYF) 348.4FT (309.7FT AGL) U/S 2402280920-2406012359
12/20/231500Z !EYF 12/005 EYF TWY C CLSD 2312201500-PERM
No
MON-SAT 0800-1700
FOR SVC AFTER HRS & EMERG CALL 910-862-4522. UNATNDD THANKSGIVING, CHRISTMAS, AND NEW YEARS DAY.
TOWN OF ELIZABETHTOWN
PO BOX 716
ELIZABETHTOWN, NC 28337
Phone: 910-862-2066
KEN HADAWAY
466 AIRPORT RD
ELIZABETHTOWN, NC 28337
Phone: 910-862-4522
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
EYF
--
ACTVT REIL RWY 15 & 33 - CTAF. PAPI RWY 15 & 33 ON DAWN TO 0100 OR WHEN MIRL RWY 15/33 ON. AFTER 0100 ACTVT MIRL RWY 15/33 AND TWY - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
10
2
0
4
0
1
Minor
Minor
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 15/33

5006 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
45,000lbs
--
--
  Runway 15 Runway 33
True Heading 144°324°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 36' 27"N 34° 35' 46"N
Longitude 78° 35' 03"W 78° 34' 28"W
Elevation 128' 122'
Threshold Crossing Height 32 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER & BIRDS ON AND INVOF ARPT.
A110-2LOW LEVEL MIL ACT INVOF ARPT.
A110-6BCN OBSCURED BY TREES TO THE EAST.
A110-8FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-910 FT DITCH ALONG LEFT SIDE TWY A TOWARD RWY 33.
CURTIS L BROWN JR FLD (ICAO: KEYF, IATA: EYF) is a public airport located in ELIZABETHTOWN, NC.
