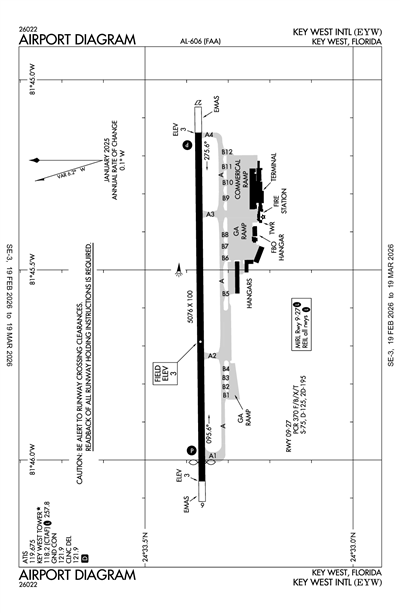

KEY WEST INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEYW
KEY WEST INTL
PublicPUB

2 miles E of KEY WEST, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
24° 33' 22"N 81° 45' 36"W
3' MSL
1003' MSL
04W
Jet A, 100LL
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
6/16/22-7/14/22
KEYW VFR
11:53 PM EDT
Few 2,800'
10sm
85°F
76°F
30.09"Hg
090° 11kts
AO2 SLP189 T02940244
KEYW 010353Z AUTO 09011KT 10SM FEW028 29/24 A3009 RMK AO2 SLP189 T02940244

KEYW FBOs, Flight Schools and Ground Support

Signature Flight Support
Freq: 130.85
Phone: (973) 624-1660
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/30
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 10.10 9.59

KEYW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEYW Hotels

No hotels are listed for this airport.

KEYW Restaurants

No restaurants are listed for this airport.

KEYW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.2

ATIS

ATIS
119.675

Clearance Delivery

CD/P
121.9

Emergency

EMERG
121.5

Ground

GND/P
121.9

Tower

LCL/P
118.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEYW
Thu, 6/30 7:20 PM EDT
Thu, 6/30 8:00 PM EDT - Fri, 7/1 8:00 PM EDT
VFR
8:00 PM EDT - 9:00 PM EDT
Thunderstorm in vicinity
Few 2,500'
> 6sm
100° 9kts
VFR
9:00 PM EDT - 8:00 PM EDT
Scattered 2,500'
> 6sm
110° 10kts
KEYW 302320Z 0100/0124 10009KT P6SM VCTS FEW025CB
   FM010100 11010KT P6SM SCT025
KEYW
Domestic
6/30/221142Z !EYW 06/036 EYW RWY 27 RWY END ID LGT U/S 2206301142-2212212000EST
6/26/221750Z !EYW 06/035 EYW OBST TOWER LGT (ASR 1030152) 243401.80N0814755.70W (2.2NM WNW EYW) 221.8FT (214.9FT AGL) U/S 2206261750-2209240400
6/26/221309Z !EYW 06/034 EYW OBST TOWER LGT (ASR 1031324) 244057.00N0812930.80W (16.9NM ENE EYW) 336.0FT (336.0FT AGL) U/S 2206261309-2207111209
6/26/220952Z !EYW 06/033 EYW RWY 09 RWY END ID LGT U/S 2206260952-2207112000EST
5/30/222302Z !EYW 05/019 EYW OBST TOWER LGT (ASR 1015966) 243942.00N0813138.00W (14.5NM ENE EYW) 223.8FT (219.8FT AGL) U/S 2205302302-2211302359
3/21/221928Z !EYW 03/026 EYW RWY 09 ENGINEERED MATERIALS ARST SYSTEM NOT STD 2203211928-2207311100
1/25/222314Z !EYW 01/020 EYW SVC PCL RWY 09 PAPI U/S 2201252314-2501062000EST
1/19/220501Z !EYW 01/007 EYW AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
9/23/211235Z !EYW 09/024 EYW OBST TOWER LGT (ASR 1029597) 243460.00N0814559.00W (1.6NM NNW EYW) 168.3FT (165.0FT AGL) U/S 2109231235-2209232359
9/15/211323Z !EYW 09/017 EYW OBST TOWER LGT (ASR 1242048) 243406.50N0814453.30W (1.0NM NE EYW) 155.8FT (155.8FT AGL) U/S 2109151323-2409152359
FDC
5/3/211739Z !FDC 1/9327 EYW IAP KEY WEST INTL, Key West, FL.
RADAR 1, AMDT 5...
ASR RWY 27: FAF 5.5 MILES FROM THRESHOLD, MINIMUM ALTITUDE 1600.
RECOMMENDED ALTITUDE 5 MILES 1440, 4 MILES 1120, 3 MILES 800, 2 MILES 480.
MISSED APPROACH: RWY 27: CLIMBING LEFT TURN TO 1600 ON
HEADING 180, THEN TURN RIGHT DIRECT EYW VORTAC AND HOLD..
2105031739-2312131739EST
5/3/211739Z !FDC 1/9326 EYW IAP KEY WEST INTL, Key West, FL.
RADAR 1, AMDT 5...
ASR RWY 9: FAF 5 MILES FROM THRESHOLD, MINIMUM ALTITUDE 1600, MINIMUM ALTITUDE 1.5 MILE FIX 580.
RECOMMENDED ALTITUDE 4 MILES 1280, 3 MILES 960, 2 MILES 640, 1.5 MILES 580.
MISSED APPROACH: RWY 9: CLIMBING RIGHT TURN TO 1600 ON
HEADING 180, THEN TURN RIGHT DIRECT EYW VORTAC AND HOLD..
2105031739-2312131739EST
Yes
0700-2300
MONROE COUNTY
3491 S ROOSEVELT BLVD
KEY WEST, FL 33040-5260
Phone: 305-809-5200
RICHARD STRICKLAND
3491 S ROOSEVELT BLVD
KEY WEST, FL 33040-5260
Phone: 305-809-5200
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
EYW
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
Airport of Entry
39
13
3
3
0
1
Major
Major
Low Pressure
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

5076 ft. x 100 ft.
ASPH
Excellent
GRVD
MED
75 /F/A/W/T
75,000lbs
125,000lbs
195,000lbs
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 24° 33' 22"N 24° 33' 22"N
Longitude 81° 46' 03"W 81° 45' 08"W
Elevation 3' 2'
Threshold Crossing Height 34 ft. AGL 34 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS ON & INVOF ARPT.
A110-2R-2916 LCTD 14 NM NE OF ARPT HAS STROBE LGT, MKD BLN & CABLE TO 14000 FT.
A110-3MIL JET TFC S & E OF ARPT; ACFT ENTERING TFC AREA FM SE THRU W.
A110-4ENTER TFC AREA BLW 2000 FT; REFER TO MIAMI VFR TAC FOR SUG VFR FLYWAY RTES.
A110-5NOISE SENSITIVE AREA; USE NBAA NOISE ABATEMENT PROC OTR TIMES; ENG RUNUPS IN DSGND AREA ON TWY A BTN TWY B10 & TWY B11; NO OPS 2300-0700 .
A110-6PPR FOR WINGSPAN MORE THAN 118 FT OR EXCEEDING RWY WT BRG CPTY - AMGR.
A110-7VFR DEP MNTN RWY HDG TIL RCHG FLD BOUNDARY THEN EXACT TURN N OR S.
A110-8TWY B5 NOT VSB FM ATCT.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC MIAMI ARTCC AT 305-716-1731.
KEY WEST INTL (ICAO: KEYW, IATA: EYW) is a public airport located in KEY WEST, FL.
