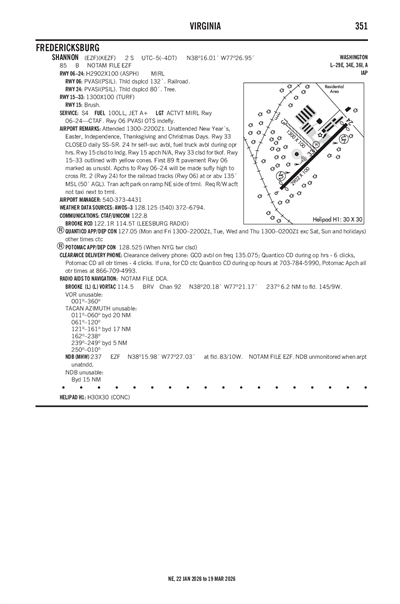

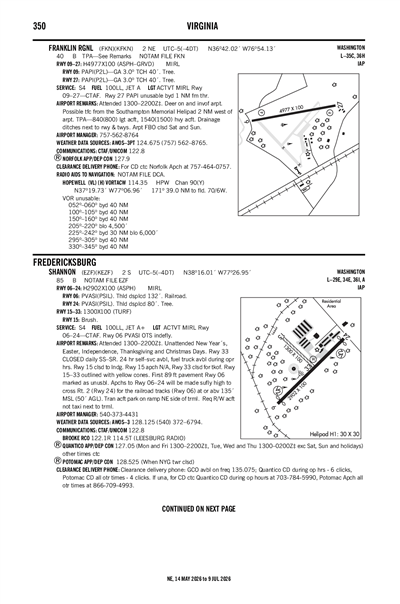

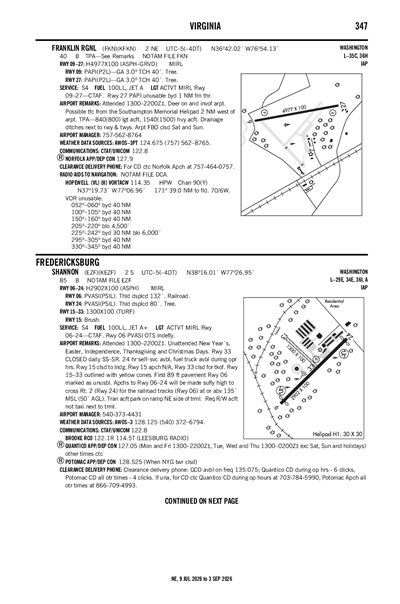

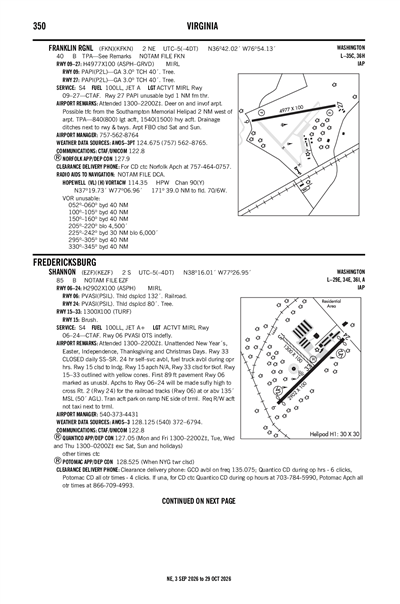

SHANNON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEZF
ICAO KEZFIATA EZFLocal EZF
SHANNON
PublicPUB

2 miles S of FREDERICKSBURG, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 16' 01"N 77° 26' 57"W
Elevation
85' MSL
Pattern Alt
1085' MSL
Mag Variation
10°W
Declination
10°W
Fuel
JET A (FSII), 100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
8/6/26-9/3/26
KEZF VFR
10:15 AM EDT
Clear
10sm
32°F
32°F
29.89"Hg
210° 3kts
AO2
METAR KEZF 231415Z AUTO 21003KT 10SM CLR A2989 RMK AO2
+ Add Your Business

KEZF FBOs

Promote Listing
Shannon Airport
UNICOM: 122.8
Phone: (540) 373-4431
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 8/3
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.99 7.49
Full Serve 8.89 7.49
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 128.125
(540) 372-6794

Common

CTAF 122.8
ACTVT MIRL RWY 06/24 - CTAF.
UNICOM 122.8

Arrival

HYPER STAR 133.0
PRTZL STAR 128.525
091-240
TIKEE STAR 120.45
TRSTN STAR 126.75
WAYNE STAR 128.525
091-240

Approach

QUANTICO APPROACH 127.05
QUANTICO APPROACH 128.525
Secondary - WHEN NYG TWR CLSD

Departure

QUANTICO DEPARTURE 127.05
QUANTICO DEPARTURE 128.525
Secondary - WHEN NYG TWR CLSD

Flight Service

Flight Service 122.1
(DCA), COMMUNICATIONS PRVDD BY LEESBURG RADIO ON FREQS 122.1R/114.5T (BROOKE RCO).
Ground Communication Outlet 135.075
CLEARANCE DELIVERY PHONE: GCO AVBL ON FREQ 135.075; QUANTICO CD DURING OP HRS - 6 CLICKS, POTOMAC CD ALL OTR TIMES - 4 CLICKS. IF UNA, FOR CD CTC QUANTICO CD DURING OP HOURS AT 703-784-5990, POTOMAC APCH ALL OTR TIMES AT 866-709-4993.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDCA (40nm)
Sun, 8/23 7:20 AM EDT
Sun, 8/23 8:00 AM EDT - Mon, 8/24 2:00 PM EDT
VFR
8:00 AM EDT - 9:00 AM EDT
Few 15,000'
Few 5,000'
6sm
190° 4kts
VFR
9:00 AM EDT - 11:00 AM EDT
Sky Clear
6sm
290° 8kts
VFR
11:00 AM EDT - 5:00 PM EDT
Few 20,000'
6sm
290° 12kts
Gusts 20kts
VFR
5:00 PM EDT - 1:00 AM EDT
Few 25,000'
6sm
270° 8kts
VFR
1:00 AM EDT - 11:00 AM EDT
Sky Clear
6sm
Calm
VFR
11:00 AM EDT - 2:00 PM EDT
Sky Clear
6sm
280° 11kts
TAF KDCA 231120Z 2312/2418 19004KT P6SM FEW050 FEW150
   FM231300 29008KT P6SM SKC
   FM231500 29012G20KT P6SM FEW200
   FM232100 27008KT P6SM FEW250
   FM240500 00000KT P6SM SKC
   FM241500 28011KT P6SM SKC
KEZF
EffectiveExpiresCategoryNOTAM
Domestic
8/28/26
1300Z
8/28/26
2100Z
!EZF 08/010 EZF AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF EZF SFC-3500FT AGL ACFT CS FLC89
2608281300-2608282100
8/22/26
0811Z
9/6/26
0711Z
!EZF 08/011 EZF OBST TOWER LGT (ASR 1278565) 381243.20N0770000.60W (21.2NM E EZF) 283.8FT (259.8FT AGL) U/S 2608220811-2609060711
8/20/26
0240Z
12/18/26
0240Z
!EZF 08/009 EZF OBST TOWER LGT (ASR 1015408) 381700.60N0773540.40W (6.9NM W EZF) 631.9FT (310.0FT AGL) U/S 2608200240-2612180240
8/18/26
1129Z
9/2/26
1029Z
!EZF 08/008 EZF OBST TOWER LGT (ASR 1221632) 381653.60N0772217.40W (3.8NM ENE EZF) 410.1FT (263.1FT AGL) U/S 2608181129-2609021029
8/18/26
0036Z
11/16/26
0136Z
!EZF 08/007 EZF OBST TOWER LGT (ASR 1228658) 381052.00N0771640.90W (9.5NM ESE EZF) 450.8FT (256.9FT AGL) U/S 2608180036-2611160136
8/11/26
0231Z
12/9/26
0231Z
!EZF 08/006 EZF OBST TOWER LGT (ASR 1055342) 380912.50N0773027.40W (7.4NM SSW EZF) 420.6FT (233.9FT AGL) U/S 2608110231-2612090231
8/5/26
0837Z
11/3/26
0937Z
!EZF 08/002 EZF OBST TOWER LGT (ASR 1227905) 381853.80N0771414.40W (10.4NM ENE EZF) 482.0FT (310.0FT AGL) U/S 2608050837-2611030937
8/1/26
0101Z
10/30/26
0101Z
!EZF 08/001 EZF OBST TOWER LGT (ASR 1059023) 381141.30N0773005.20W (5.0NM SSW EZF) 464.2FT (203.1FT AGL) U/S 2608010101-2610300101
7/25/26
0657Z
9/8/26
2200Z
!EZF 07/016 EZF OBST TOWER LGT (ASN 2008-AEA-4264-OE) 381830N0772908W (3.0NM NW EZF) 276FT (116FT AGL) U/S 2607250657-2609082200
7/25/26
0656Z
9/8/26
2200Z
!EZF 07/015 EZF OBST TOWER LGT (ASN 2008-AEA-4265-OE) 381836N0772911W (3.1NM NNW EZF) 262FT (114FT AGL) U/S 2607250656-2609082200
7/24/26
1144Z
10/22/26
1144Z
!EZF 07/014 EZF OBST TOWER LGT (ASR 1041252) 380408.20N0773019.30W (12.3NM SSW EZF) 496.1FT (270.0FT AGL) U/S 2607241144-2610221144
7/24/26
0726Z
9/7/26
0725Z
!EZF 07/013 EZF OBST TOWER LGT (ASR 1016209) 381957.00N0772340.00W (4.8NM NNE EZF) 634.8FT (423.9FT AGL) U/S 2607240726-2609070725
6/24/26
2152Z
9/22/26
2152Z
!EZF 06/011 EZF OBST TOWER LGT (ASR 1224277) 381658.50N0771151.20W (11.8NM E EZF) 491.8FT (319.9FT AGL) U/S 2606242152-2609222152
9/4/25
1629Z
!EZF 09/003 EZF AIRSPACE SEE FDC 5/7224 ZDC SECURITY INSTRUCTIONS 2509041629-PERM
No
0800-1700
UNATNDD NEW YEAR'S, EASTER, INDEPENDENCE, THANKSGIVING, & CHRISTMAS DAYS.
SHANNON AIRPORT LLC
3380 SHANNON AIRPORT CIRCLE
FREDERICKSBURG, VA 22408
Phone: 540-373-4431
SHANNON AIRPORT LLC
3380 SHANNON AIRPORT CIRCLE
FREDERICKSBURG, VA 22408
Phone: 540-373-4431
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
EZF
--
ACTVT MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 06/24

2902 ft. x 100 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 06 Runway 24
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 38° 15' 49"N 38° 16' 09"N
Longitude 77° 27' 09"W 77° 26' 43"W
Elevation 83' 85'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 15/33

1300 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 137°317°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 16' 10"N 38° 16' 00"N
Longitude 77° 27' 06"W 77° 26' 55"W
Elevation 80' 83'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

30 ft. x 30 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition FAIR
Latitude 38° 16' 03"N N/A
Longitude 77° 26' 55"W N/A
Elevation 80' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 15 CLSD TO LNDG.
A110-100CLEARANCE DELIVERY PHONE: GCO AVBL ON FREQ 135.075; QUANTICO CD DURING OP HRS - 6 CLICKS, POTOMAC CD ALL OTR TIMES - 4 CLICKS. IF UNA, FOR CD CTC QUANTICO CD DURING OP HOURS AT 703-784-5990, POTOMAC APCH ALL OTR TIMES AT 866-709-4993.
A110-10124 HR SELF-SVC AVBL, FUEL TRUCK AVBL DURG OPR HRS.
A110-10415 FT ROAD, 188 FT FM THR, BOTH SIDES CNTRLN.
A110-105RWY 33 CLSD DLY SS-SR.
A110-106APCHS TO RWY 6/24 WILL BE MADE SUFLY HIGH TO CROSS RT. 2 (RWY 24) OR THE RAILROAD TRACKS (RWY 6) AT OR ABV 135 FT MSL (50 FT AGL).
A110-107TRAN ACFT PARK ON RAMP NE SIDE OF TRML.
A110-108REQ R/W ACFT NOT TAXI NEXT TO TRML.
A110-109RWY 15 APCH N/A, RWY 33 CLSD FOR TKOF.
A17-M1UNATNDD NEW YEAR'S, EASTER, INDEPENDENCE, THANKSGIVING, & CHRISTMAS DAYS.
A42-06_CONDFIRST 89 FT PAVEMENT RWY 06 MARKED AS UNUSBL.
A42-15_MARK15/33 OUTLINED WITH YELLOW CONES.
A43-06RWY 06 PVASI OTS INDEFLY.
A57-06RWY 06 +21 FT RR, DIST 348 FT, 16:1 BASED ON DSPLCD THLD.
A57-15CTLG OBSTN EXCEEDS A 45 DEG SLP.
A57-24RWY 24, 12 FT ROAD, 206 FT, 2 FT L, 0:1 BASED ON DSPLCD THR.
A58-06+20 FT TRR 180-200 FT FM RWY END 143 FT L TO 145 R.
A58-2412 FT ROAD 126 FT FM RWY END 2 FT L.
A81-APTACTVT MIRL RWY 06/24 - CTAF.
E111PRIOR TO 1959.
SHANNON (ICAO: KEZF, IATA: EZF) is a public airport located in FREDERICKSBURG, VA, US.
