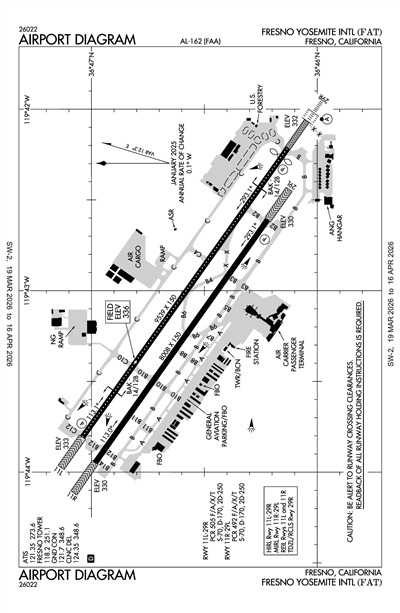

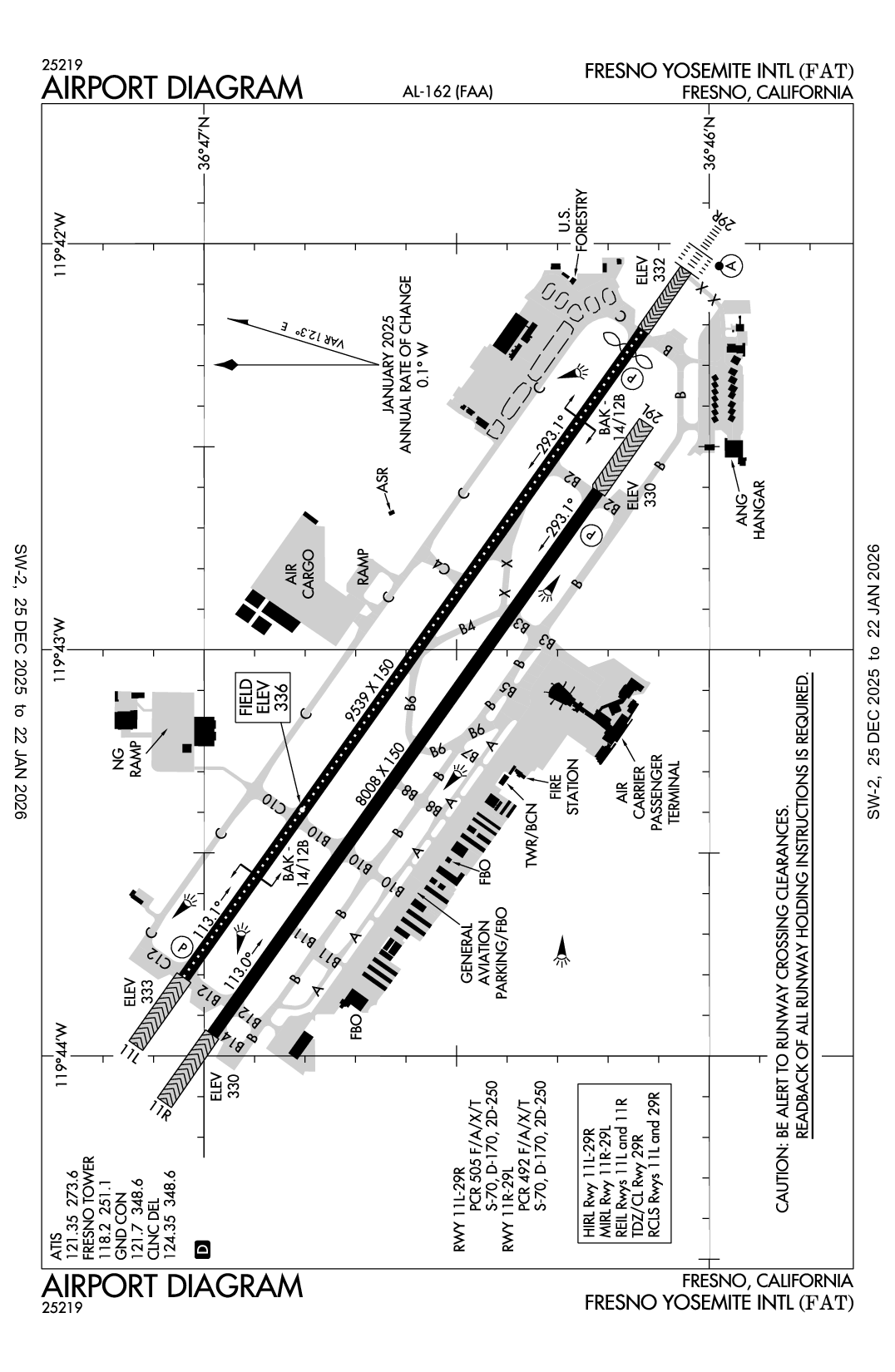

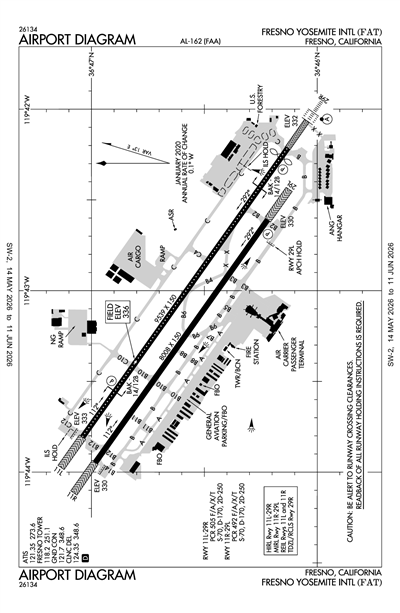

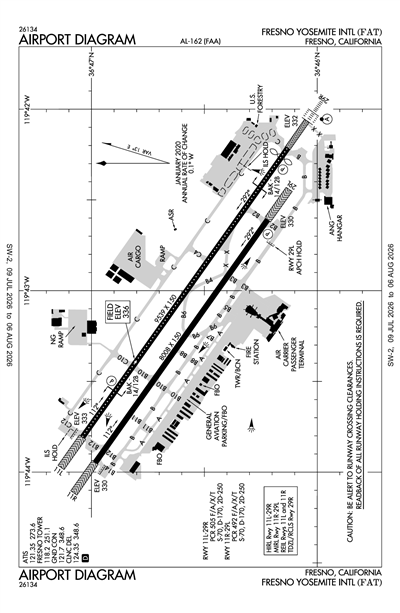

FRESNO YOSEMITE INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFAT
ICAO KFATIATA FATLocal FAT
FRESNO YOSEMITE INTL
PublicPUB

5 miles NE of FRESNO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 46' 36"N 119° 43' 08"W
Elevation
336' MSL
Pattern Alt
1303' MSL
Mag Variation
12°E
Declination
13°E
Fuel
JET A, JET A+, CILI, 100
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
7/9/26-8/6/26
KFAT VFR
10:53 AM PDT
Clear
10sm
91°F
55°F
29.79"Hg
150° 6kts
AO2 SLP082 T03280128 10328 20228 50002
METAR KFAT 041753Z 15006KT 10SM CLR 33/13 A2979 RMK AO2 SLP082 T03280128 10328 20228 50002
+ Add Your Business

KFAT FBOs

Promote Listing
Atlantic Aviation
UNICOM: 131.975
Phone: (559) 251-1555
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.85 8.76
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 130.075
Phone: (559) 721-4090
Fax: (559) 251-5289
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.02 8.69
Fuel Notes
Prices include tax

KFAT Aircraft Service & Maintenance

Promote Listing
CKC Laboratories Inc.
Phone: (209) 299-5240
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
APR Aviation
Phone: (559) 252-7967
Fax: (559) 252-9703
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 121.35
(559) 484-9843
ASOS (559) 203-3918

Common

UNICOM 122.95

Clearance

Clearance Delivery 124.35

Ground

FRESNO GROUND 121.7

Tower

FRESNO TOWER 118.2

Approach

FRESNO APPROACH 119.6
Initial Contact - 240-090
FRESNO APPROACH 132.35
091-239
FRESNO APPROACH 118.5
Secondary - S/SE VISALIA AREA

Departure

FRESNO DEPARTURE 119.6
Initial Contact - 240-090
FRESNO DEPARTURE 132.35
091-239
FRESNO DEPARTURE 118.5
Secondary - S/SE VISALIA AREA

Emergency

Emergency 121.5

Military

ANG OPS 140.0
NG OPS 40.95
NG OPS 132.0

Other

CLASS C 119.6
240-090
CLASS C 132.35
091-239

Terminal Area Forecast

KFAT
Tue, 8/4 10:20 AM PDT
Tue, 8/4 11:00 AM PDT - Wed, 8/5 11:00 AM PDT
VFR
11:00 AM PDT - 11:00 AM PDT
Sky Clear
6sm
VRB° 6kts
TAF KFAT 041720Z 0418/0518 VRB06KT P6SM SKC
KFAT
EffectiveExpiresCategoryNOTAM
Domestic
8/5/26
1315Z
8/5/26
1815Z
!FAT 08/001 FAT SVC TAR U/S 2608051315-2608051815
7/29/26
1322Z
8/5/26
2200Z
!FAT 07/027 FAT AD AP WINDCONE FOR RWY 11R LGT U/S 2607291322-2608052200
7/14/26
0305Z
!FAT 07/016 FAT SVC ATIS 559-484-9843 CHANGED TO 559-454-9843 2607140305-PERM
7/7/26
1710Z
10/30/26
0700Z
Runway!FAT 07/010 FAT RWY 11L/29R WIP CONST 2607071710-2610300700
7/6/26
1400Z
9/30/26
2355Z
!FAT 06/077 FAT AD AP RVR ALL U/S 2607061400-2609302355
7/6/26
1400Z
9/30/26
2355Z
Runway!FAT 06/076 FAT RWY 11L RWY END ID LGT U/S 2607061400-2609302355
7/6/26
1400Z
9/30/26
2355Z
Runway!FAT 06/075 FAT RWY 29R PAPI U/S 2607061400-2609302355
7/6/26
1400Z
9/30/26
2355Z
Runway!FAT 06/074 FAT RWY 11L PAPI U/S 2607061400-2609302355
7/6/26
1400Z
9/30/26
2355Z
Runway!FAT 06/073 FAT RWY 29R ALS U/S 2607061400-2609302355
7/6/26
1400Z
9/30/26
2355Z
!FAT 06/072 FAT NAV ILS RWY 29R U/S 2607061400-2609302355
7/6/26
1400Z
9/30/26
2355Z
!FAT 06/071 FAT NAV ILS RWY 11L U/S 2607061400-2609302355
7/6/26
1400Z
10/1/26
0700Z
Runway!FAT 06/066 FAT RWY 11L/29R CLSD EXC XNG 2607061400-2610010700
7/6/26
1300Z
10/1/26
0700Z
!FAT 06/070 FAT TWY C12 RUNUP PAD CLSD 2607061300-2610010700
7/6/26
1300Z
10/1/26
0700Z
!FAT 06/069 FAT TWY B12 RUNUP PAD CLSD 2607061300-2610010700
7/6/26
1300Z
10/1/26
0700Z
!FAT 06/068 FAT TWY C12 CLSD 2607061300-2610010700
7/6/26
1300Z
10/1/26
0700Z
!FAT 06/067 FAT TWY B12 BTN RWY 11R/29L AND APCH END RWY 11L CLSD 2607061300-2610010700
6/30/26
2242Z
10/1/26
0700Z
!FAT 06/078 FAT OBST SILO (ASN UNKNOWN) 364654N1194304W (0.39NM N FAT)
422FT (80FT AGL) FLAGGED AND LGTD 2606302242-2610010700
5/14/26
1629Z
9/1/26
0100Z
!FAT 05/037 FAT AIRSPACE UAS WI AN AREA DEFINED AS 364800N1194354W (1.5NM NW FAT) TO 364800N1194200W (1.5NM NE FAT) TO 364712N1194200W (1.1NM NE FAT) TO 364712N1194303W (.6NM N FAT) TO 364740N1194354W TO POINT OF ORIGIN SFC-200FT AGL 2605141629-2609010100
FDC
8/5/26
1500Z
8/12/26
1459Z
!FDC 6/1567 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
ILS Y OR LOC Y RWY 29R, AMDT 39A...
ILS Y RWY 29R (SA CAT I), AMDT 39A...
ILS Y RWY 29R (CAT II - III), AMDT 39A...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HYP VOR/DME OUT OF SERVICE. 2608051500-2608121459EST
7/24/26
0018Z
8/27/26
0018Z
!FDC 6/8336 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
LOC Y RWY 11L, AMDT 3A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PXN VORTAC UNMONITORED. 2607240018-2608270018EST
6/24/26
1411Z
!FDC 6/0353 FAT IAP U.S. DOD FRESNO YOSEMITE INTL, FRESNO, CA.
HI - LOC Z RWY 11L, AMDT 3...
MISSED APPROACH: CLIMB TO 1900 ON HEADING 112.35 FOR RADAR VECTORS. (RADAR REQUIRED).
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CZQ TACAN OUT OF SERVICE. 2606241411-2702031411EST
6/27/25
1313Z
!FDC 5/9749 FAT IAP U.S. DOD FRESNO YOSEMITE INTL, FRESNO, CA.
HI - TACAN RWY 11L, AMDT 2A...
TACAN RWY 11L, AMDT 3...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
CZQ TACAN RESTRICTED.
2506271313-2706271313EST
6/27/25
1313Z
!FDC 5/9748 FAT IAP U.S. DOD FRESNO YOSEMITE INTL, FRESNO, CA.
HI-TACAN RWY 29R, AMDT 3...
TACAN RWY 29R, AMDT 3...
PROCEDURE NA.
CZQ TACAN RESTRICTED.
2506271313-2706271313EST
Military
8/2/26
2209Z
8/5/26
2209Z
M0013/26 NOTAMC M0010/26
8/2/26
2209Z
10/1/26
2359Z
RunwayM0012/26 NOTAMN Q) ZOA/QXXXX/IV/NBO/A/000/999/3646N11943W005 A) KFAT B) 2608022209 C) 2610012359 E) RWY 29L/11R BAK 14 AAS OTS
Yes
ALL
CITY OF FRESNO
4995 E CLINTON WAY
FRESNO, CA 93727
Phone: 559-621-4500
FRANCISCO PARTIDA
4995 E CLINTON WAY
FRESNO, CA 93722
Phone: 559-621-4531
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
FAT
--
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 11L/29R

9539 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

70,000lbs
170,000lbs
250,000lbs
--
  Runway 11L Runway 29R
True Heading 125°305°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 47' 02"N 36° 46' 08"N
Longitude 119° 43' 48"W 119° 42' 13"W
Elevation 333' 332'
Threshold Crossing Height 50 ft. AGL 76 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes No

Runway 11R/29L

8008 ft. x 150 ft.
ASPH
Good
GRVD
MED

70,000lbs
170,000lbs
250,000lbs
--
  Runway 11R Runway 29L
True Heading 125°305°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 46' 59"N 36° 46' 13"N
Longitude 119° 43' 57"W 119° 42' 36"W
Elevation 330' 330'
Threshold Crossing Height -- 50 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes
A110-12NUMEROUS BIRDS INVOF ARPT.
A110-14LGTD RY DISTANCE REMAINING MARKERS ON SOUTH SIDE OF RY 11R/29L; LGTD RY DISTANCE REMAINING MARKERS BOTH SIDES OF RY 11L/29R- 11L DRM ON NORTH SIDE; 29R DRM ON SOUTH SIDE.
A110-17RETRACTABLE BAK-12/14 AVBL ON RWY 11L AND RWY 29R ARE KEPT IN RECESSED PSN UNTIL REQ FOR USE; TWR MUST BE NTFD AT LEAST 5 SECS PRIOR TO ENGAGEMENT SO THAT THE A-GEAR CABLE MAY BE RAISED. MB-100 ARST CABLE INSTLD AT RWY 11R BLAST PAD FOR RWY 29L DEPS ONLY.
A110-23MILITARY: ANG: CTC ANG OPS FOR LCL BIRD WATCH COND (BWC).
A110-24MILITARY: SVC: RWY 29R AND 11L A-GEAR CABLE AVBL UPON REQ ONLY; DEFAULT POSN DOWN.
A110-25TWY B3 CLSD BTN RWY 11L/29R AND RWY 11R/29L.
A110-26TWY A LTD TO ACFT DESIGN GROUP II.
A110-27ATCT CLNC RQRD TO PUSH ON MOV AREA.
A110-28PPR FOR ENG START AT ACR TRML GATES & ENG RUN-UP.
A110-4FRESNO YOSEMITE INTL IS NOISE SENSITIVE; NOISE ABATEMENT PROCEDURES IN EFFECT.
A110-7NO MULT APCHS AND LNDGS MON-SAT 2200-0700 AND SUN 1800-1000.
A110-9POSSIBLE WAKE TURBULENCE OR WIND SHEAR ARR TO RY 29L OR DEP FM RY 11R. JET TESTING CONDUCTED AT AIR NATIONAL GUARD RAMP LCTD AT SE CORNER OF ARPT.
A14OPS MGR - SEVAN GHAZARIANS: OFC 559-621-4508; CELL 559-840-7315; 24 HR OPNS 559-978-1835.
A24FEE FOR ACFT OVER 12500 LBS GWT.
A30-11L/29RRY 11L/29R RY 11L 1000 FT BLAST PAD; RY 29R 850 FT BLAST PAD.
A30-11R/29LRY 11R/29L RY 11R 1000 FT BLAST PAD; RY 29L 1000 FT BLAST PAD.
A39-11L/29RPCR VALUE: 505/F/A/X/T
A39-11R/29LPCR VALUE: 492/F/A/X/T
E147TPA: 967 FT AGL 1303 FT MSL SINGLE ENGINE ACFT ; 1467 FT AGL 1803 FT MSL MULTI-ENGINE ACFT; 1967 FT AGL 2303 FT MSL TURBOJET; HELICOPTERS 467 FT AGL 803 FT MSL.
E60-11L_BAK-14BAK-14 BAK-12B(B) (1500')
E60-29R_BAK-14BAK-14 BAK-12B(B) (1310')
FRESNO YOSEMITE INTL (ICAO: KFAT, IATA: FAT) is a public airport located in FRESNO, CA, US.
