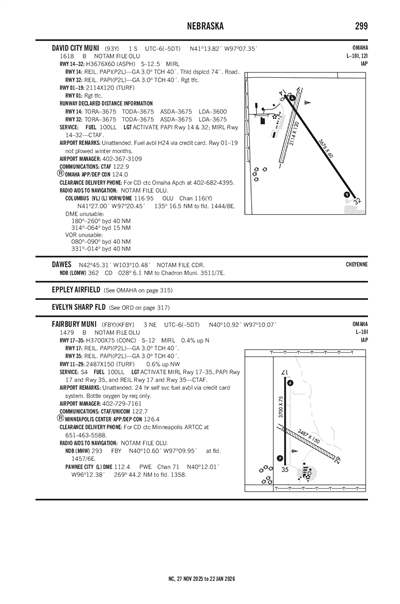

FAIRBURY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFBY
ICAO KFBYIATA FBYLocal FBY
FAIRBURY MUNI
PublicPUB

3 miles NE of FAIRBURY, NE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 10' 55"N 97° 10' 04"W
Elevation
1479' MSL
Pattern Alt
2479' MSL
Mag Variation
3°E
Declination
6°E
Fuel
100LL
FSS
COLUMBUS (OLU)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/14/26-6/11/26
KHJH (19nm) IFR
5:15 AM CDT
Light Rain
Overcast 12,000'
Broken 1,800'
Broken 700'
10sm
65°F
64°F
30.02"Hg
Calm
AO2 P0001 T01820175
METAR KHJH 041015Z AUTO 00000KT 10SM -RA BKN007 BKN018 OVC120 18/18 A3002 RMK AO2 P0001 T01820175
+ Add Your Business

KFBY FBOs

Promote Listing
Fairbury Municipal Airport
UNICOM: 122.7
Phone: (402) 729-2250
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.25
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
ACTVT MIRL RY 17/35; PAPI AND REIL RYS 17 & 35 - CTAF.
UNICOM 122.7

Center

MINNEAPOLIS CENTER 126.4
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 126.4/317.7 (MARYSVILLE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLNK (44nm)
Thu, 6/4 12:20 AM CDT
Thu, 6/4 1:00 AM CDT - Fri, 6/5 1:00 AM CDT
VFR
1:00 AM CDT - 2:00 AM CDT
Broken 13,000'
6sm
200° 12kts
VFR
2:00 AM CDT - 1:00 PM CDT
Broken 9,000'
6sm
190° 8kts
VFR
1:00 PM CDT - 4:00 PM CDT
Light Thunderstorm and Rain
Broken 4,000'
6sm
190° 10kts
VFR
4:00 PM CDT - 1:00 AM CDT
Broken 4,000'
6sm
170° 10kts
TAF KLNK 040520Z 0406/0506 20012KT P6SM BKN130
   FM040700 19008KT P6SM BKN090
   FM041800 19010KT 6SM -TSRA BKN040CB
   FM042100 17010KT P6SM BKN040
KFBY
EffectiveExpiresCategoryNOTAM
Domestic
5/24/26
1650Z
7/8/26
1650Z
!OLU 05/132 FBY OBST TOWER LGT (ASR 1290140) 400754.90N0971011.40W (3.0NM S FBY) 1518.7FT (199.1FT AGL) U/S 2605241650-2607081650
5/18/26
1929Z
7/19/26
2359Z
!OLU 05/113 FBY OBST TOWER LGT (ASR 1209061) 400842.10N0971254.50W (3.1NM SW FBY) 1789.0FT (390.1FT AGL) U/S 2605181929-2607192359
4/17/26
1728Z
6/17/26
2359Z
!OLU 04/045 FBY OBST TOWER LGT (ASR 1213352) 402028.00N0971200.10W (9.7NM N FBY) 1950.1FT (490.2FT AGL) U/S 2604171728-2606172359
No
UNATNDD
FAIRBURY AIRPORT AUTHORITY
56869 714 ROAD
FAIRBURY, NE 68352
Phone: (402) 729-2250
SANDI DECKER
56869 714 ROAD
FAIRBURY, NE 68352
Phone: 402-729-7161
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OLU
--
ACTVT MIRL RY 17/35; PAPI AND REIL RYS 17 & 35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental

Runway 11/29

2487 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 11 Runway 29
True Heading 121°301°
Traffic Pattern
Markings
Markings Condition
Latitude 40° 10' 56"N 40° 10' 43"N
Longitude 97° 10' 11"W 97° 09' 43"W
Elevation 1,472' 1,457'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

3700 ft. x 75 ft.
CONC
Good
NONE
MED

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 11' 17"N 40° 10' 40"N
Longitude 97° 10' 09"W 97° 10' 10"W
Elevation 1,479' 1,464'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A70-100LL24 HR SELF SVC FUEL AVBL VIA CREDIT CARD SYSTEM.
A73BY REQ ONLY.
A81-APTACTVT MIRL RY 17/35; PAPI AND REIL RYS 17 & 35 - CTAF.
FAIRBURY MUNI (ICAO: KFBY, IATA: FBY) is a public airport located in FAIRBURY, NE, US.
