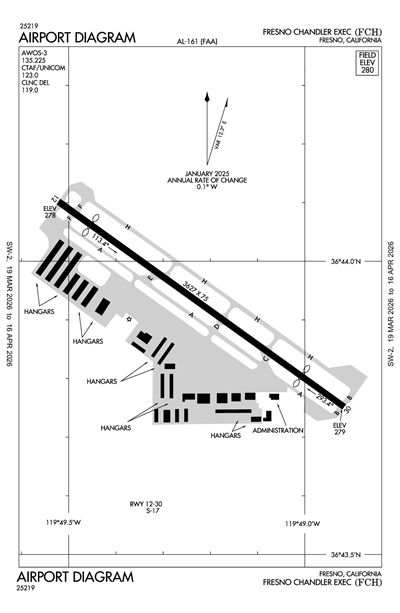

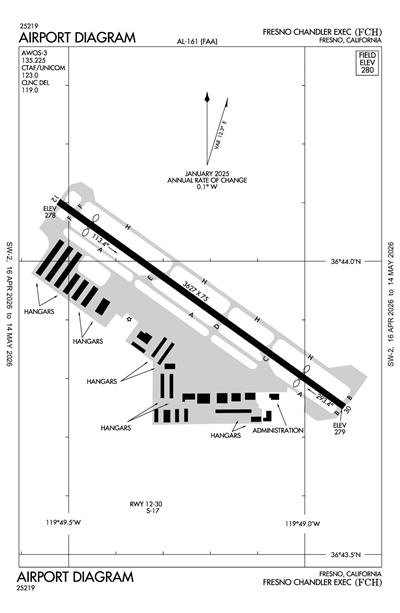

FRESNO CHANDLER EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFCH
ICAO KFCHIATA FCHLocal FCH
FRESNO CHANDLER EXEC
PublicPUB

2 miles W of FRESNO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 43' 56"N 119° 49' 13"W
Elevation
280' MSL
Pattern Alt
1280' MSL
Mag Variation
12°E
Declination
15°E
Fuel
JET A, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
10/1/26-10/29/26
KFAT (6nm) VFR
8:53 PM PDT
Light Rain
Overcast 13,000'
Broken 9,000'
Scattered 6,500'
10sm
60°F
54°F
29.96"Hg
010° 4kts
AO2 RAE13B32 SLP143 P0000 T01560122
METAR KFAT 230353Z 01004KT 10SM -RA SCT065 BKN090 OVC130 16/12 A2996 RMK AO2 RAE13B32 SLP143 P0000 T01560122
+ Add Your Business

KFCH FBOs

Promote Listing
Frank X Ruiz Avionics
UNICOM: 123.0
Phone: (559) 233-0700
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Flight Level Aviation
UNICOM: 123.0
Phone: (559) 575-8199
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 10/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.95
Full Serve 8.45 8.30 8.36
Fuel Notes
Prices include tax

KFCH Aircraft Service & Maintenance

Promote Listing
Pacific Coast Avionics
Phone: (559) 497-0957
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 135.225
(559) 488-1040

Common

CTAF 123.0
ACTVT REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 AND TWY LGTS - CTAF BTN SS-SR.
UNICOM 123.0

Clearance

Clearance Delivery 119.0

Approach

FRESNO APPROACH 119.0
FRESNO APPROACH 119.6
Secondary

Departure

FRESNO DEPARTURE 119.0

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFAT (6nm)
Thu, 10/22 4:20 PM PDT
Thu, 10/22 5:00 PM PDT - Fri, 10/23 5:00 PM PDT
VFR
5:00 PM PDT - 6:00 PM PDT
Broken 5,000'
6sm
120° 8kts
VFR
6:00 PM PDT - 5:00 PM PDT
Overcast 5,000'
6sm
VRB° 5kts
TAF KFAT 222320Z 2300/2324 12008KT P6SM BKN050
   FM230100 VRB05KT P6SM OVC050
KFCH
EffectiveExpiresCategoryNOTAM
Domestic
10/19/26
0242Z
2/16/27
0242Z
!FCH 10/007 FCH OBST TOWER LGT (ASR 1016428) 364214.90N1194434.20W (4.1NM ESE FCH) 612.9FT (315.0FT AGL) U/S 2610190242-2702160242
9/30/26
1933Z
12/31/26
2359Z
!FCH 09/002 FCH OBST TOWER LGT (ASR 1061866) 364643.00N1195030.80W (3.0NM NNW FCH) 633.9FT (339.9FT AGL) U/S 2609301933-2612312359
8/20/26
0601Z
11/18/26
2359Z
!FCH 08/005 FCH OBST TOWER LGT (ASN 2025-AWP-169-OE) 363722N1195203W (6.9NM SSW FCH) 420FT (171FT AGL) U/S 2608200601-2611182359
8/6/26
1646Z
10/30/26
0100Z
!FCH 08/002 FCH AD AP BIRD ACT FRQ XNG AP LOW ALT NE-SW/SW-NE 2608061646-2610300100
No
0800-1700
CITY OF FRESNO
4995 E. CLINTON WAY
FRESNO, CA 93727
Phone: 559-621-4500
FRANCISCO PARTIDA
510 WEST KEARNEY BLVD
FRESNO, CA 93706
Phone: 559-621-4531
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
FCH
--
ACTVT REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 AND TWY LGTS - CTAF BTN SS-SR.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

3627 ft. x 75 ft.
ASPH
Good
NONE
MED

17,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 125°305°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 44' 06"N 36° 43' 45"N
Longitude 119° 49' 31"W 119° 48' 55"W
Elevation 278' 279'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1NMRS BIRDS IN VCNTY OF ARPT.
A110-2PRACTICE LDGS & LOW APCHS & TGL OR STOP-AND-GO OPNS AUTH ONLY BTN 0700-2200.
A110-3RY 30 CALM WIND RY WHEN WIND REPORTED BY AWOS LESS THAN 5 KNOTS.
A110-4RY 12 PRACTICE LDGS & LOW APCHS & TGL OR STOP-AND-GO OPNS NOT PERMITTED DUE TO NOISE SENSITIVE RESIDENTIAL AREAS SE OF ARPT.
A110-5AFT TKOF CLIMB ON RY HEADING UNTIL PASSING 800 FT MSL; FOR SAFETY & NOISE ABATEMENT INITIAL CLIMBOUT AT BEST RATE-OF-CLIMB RECOMMENDED.
A110-6FOR CD CTC FRESNO APCH AT 559-454-9805.
A57-12APCH RATIO 46:1 FM DSPLCD THR.
A57-30APCH RATIO 43:1 FM DSPLCD THR.
A70-100LL100LL FUEL AVBL 24/7
A81-APTACTVT REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 AND TWY LGTS - CTAF BTN SS-SR.
E147VFR HEL 520 FT AGL, VFR 1020 FT AGL.
FRESNO CHANDLER EXEC (ICAO: KFCH, IATA: FCH) is a public airport located in FRESNO, CA, US.
