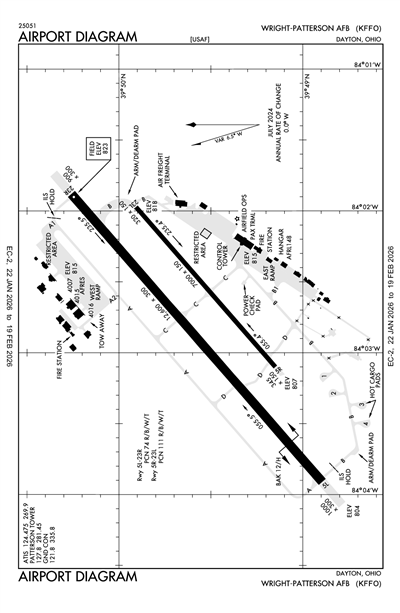

WRIGHT-PATTERSON AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFFO
ICAO KFFOIATA FFOLocal FFO
WRIGHT-PATTERSON AFB
PrivatePVT

8 miles NE of DAYTON, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 49' 33"N 84° 02' 46"W
Elevation
823' MSL
Pattern Alt
1823' MSL
Mag Variation
6°W
Declination
4°W
Fuel
None Listed
FSS
DAYTON (DAY)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
5/14/26-6/11/26
KFFO VFR
1:56 AM EDT
Clear
10sm
58°F
51°F
30.22"Hg
Calm
AO2A SLP233 T01450103 10255 20143 56001
METAR KFFO 040556Z 00000KT 10SM CLR 15/10 A3022 RMK AO2A SLP233 T01450103 10255 20143 56001
+ Add Your Business

KFFO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.475

Common

Pilot-To-Dispatcher (PTD) 126.2

Ground

PATTERSON GROUND 121.8

Tower

PATTERSON TOWER 127.8
PATTERSON TOWER 115.2
Secondary

Arrival

DANEI STAR 134.45

Approach

COLUMBUS APPROACH 118.85

Departure

COLUMBUS DEPARTURE 118.85

Emergency

Emergency 121.5

Terminal Area Forecast

KFFO
Wed, 6/3 11:00 PM EDT
Wed, 6/3 11:00 PM EDT - Fri, 6/5 5:00 AM EDT
VFR
11:00 PM EDT - 10:00 AM EDT
Few 25,000'
6sm
30.21"Hg
VRB° 6kts
VFR
Becoming 10:00 AM EDT - 11:00 PM EDT
Few 25,000'
6sm
30.06"Hg
210° 12kts
VFR
Becoming 11:00 PM EDT - 5:00 AM EDT
Broken 25,000'
Scattered 5,000'
6sm
30.06"Hg
200° 6kts
TAF KFFO 040300Z 0403/0509 VRB06KT 9999 FEW250 QNH3020INS
   BECMG 0414/0415 21012KT 9999 FEW250 QNH3007INS
   BECMG 0503/0504 20006KT 9999 SCT050 BKN250 QNH3006INS TX29/0420Z TN14/0410Z
KFFO
EffectiveExpiresCategoryNOTAM
Military
6/3/26
0227Z
6/9/26
2359Z
RunwayRWY 05R/23L 1K/6K RDM UNLIT WEST SIDE OF RWY
5/31/26
0221Z
6/6/26
2359Z
TaxiwayTWY A NORTH END INST HOLD SIGN UNLIT ON THE LEFT SIDE.
5/26/26
1552Z
6/5/26
2000Z
Obstruction!KFFO M0544/26 FFO OBST CRANE 394743N0840522W (2.28NM S FFO) 1042FT MSL
(113FT AGL) FLAGGED AND NOT LGTD 2605261552-2606052000
5/15/26
1532Z
8/10/26
2359Z
THE FOLLOWING TAXIWAYS CONTAIN FADED, NON-RETROREFLECTIVE, OR INCONSPICUOUS MARKINGS: TAXIWAYS ALPHA FULL LENGTH TO INCLUDE CROSSING AT CHARLIE AND DELTA, BRAVO NORTH OF CHARLIE TO APPROACH END OF RUNWAY 23R INCLUDING NORTH HAMMERHEAD. THE FOLLOWING APRONS CONTAIN AIRFIELD MARKINGS THAT ARE FADED, NON-RETROREFLECTIVE, OR INCONSPICUOUS: ENTIRE 445TH RAMP (WEST RAMP) DELTA, FOX, AND GOLF ROWS. THE FOLLOWING MARKINGS ON RUNWAY 05L/23R ARE FADED, NON-RETROREFLECTIVE, OR INCONSPICUOUS: DESIGNATORS, THRESHOLD MARKINGS, CENTERLINE MARKINGS, TOUCHDOWN ZONE MARKING, FIXED DISTANCE MARKERS THE FOLLOWING AIRFIELD MARKINGS ON RUNWAY 05R/23L ARE FADED, NON-RETROREFLECTIVE, OR INCONSPICUOUS: DESIGNATORS, THRESHOLD MARKINGS, CENTERLINE MARKINGS, TOUCHDOWN ZONE MARKINGS, FIXED DISTANCES MARKERS. RESTRICTED AREA MARKINGS IN ALL AREAS ARE FADED, WITH WARNING MARKINGS DIFFICULT TO READ.
5/12/26
1340Z
12/31/26
2359Z
Aerodrome!KFFO V0017/26 FFO AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES CHANGED RWY 5L, STANDARD WITH MINIMUM CLIMB OF 285 FT/NM TO 1100 FT OR 300-1 1/2. RWY 5R, STANDARD WITH MINIMUM CLIMB OF 299 FT/NM TO 1200 FT OR 300-1 3/4. RWY 23R, STANDARD WITH MINIMUM CLIMB OF 218 FT/NM TO 1300 FT OR 1000-3 FOR CLIMB IN VISUAL CONDITIONS. 2605121340-2612312359
4/20/26
1100Z
6/30/26
2000Z
AerodromeAERODROME USE CAUTION: MEN AND EQUIPMENT WORKING APPROX 3100FT NORTH OF RWY 23L THRESHOLD, AND APPROX 1400 FT EAST OF RWY 23R THRESHOLD. FROM 1100Z-2000Z MON-FRI
4/13/26
1100Z
7/10/26
2100Z
Obstruction!KFFO M0390/26 FFO OBST CRANE 394705N0840453W (2.6NM SW FFO) 1020FT MSL
(197FT AGL) FLAGGED AND NOT LGTD 2604131100-2607102100
4/9/26
1451Z
7/6/26
2359Z
OBST CRANE 394733N0840328W (1.6NM SOUTH SOUTHWEST KFFO) 1027FT MSL (210FT AGL) FLAGGED AND LGTD
3/20/26
0000Z
8/1/26
2359Z
Aerodrome!KFFO V0008/26 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 5L MINIMA TO THE FOLLOWING: S-5L: CAT AB 1480/24 675 (700-1/2); CAT CDE 1480-1 1/2 675 (700-1 1/2). CIRCLING: CAT AB 1480-1 657 (700-1); CAT C 1520-2 697 (700-2); CAT D 1600-2 1/2 777 (800-2 1/2); CAT E 1600-2 3/4 777 (800-2 3/4). NOTE: WHEN ALS INOP INCREASE CAT AB RVR TO 55, VIS TO 1 MILE; CAT CDE VIS TO 1 7/8 MILES 2603200000-2608012359
3/10/26
1252Z
6/7/26
2359Z
EAST RAMP INDIA ROW SPOT 2 CLOSED
12/19/25
1834Z
12/31/26
2359Z
Aerodrome!KFFO V0106/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 23R CHANGE STRAIGHT-IN MINIMA TO THE FOLLOWING: S-23 CAT AB 1360/40 537 (600-3/4); CAT CDE 1360/55 537 (600-1). ADD NOTE: RWY 23R HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED. 2512191834-2612312359
12/19/25
1828Z
12/31/26
2359Z
Aerodrome!KFFO V0105/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 23L ADD NOTE: RWY 23L HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. 2512191828-2612312359
12/19/25
1812Z
12/31/26
2359Z
Aerodrome!KFFO V0104/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 23R CHANGE LNAV MDA TO THE FOLLOWING: CAT AB 1340/40 517 (600-3/4); CAT CD 1340/55 517 (600-1). ADD NOTE: RWY 23R HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED. 2512191812-2612312359
12/19/25
1806Z
12/31/26
2359Z
Aerodrome!KFFO V0103/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 23L ADD NOTE: RWY 23L HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. 2512191806-2612312359
12/19/25
1635Z
12/31/26
2359Z
Aerodrome!KFFO V0102/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC RWY 23R CHANGE LOC MINIMA TO THE FOLLOWING: S-LOC CAT AB 1320/40 497 (500-3/4); CAT CDE 1320/50 497 (500-1). ADD NOTE: LOC RWY 23R HELICOPTER REDUCTION BELOW RVR 4000 NOT AUTHORIZED. 2512191635-2612312359
Yes
ALL
OPR H24 EXC AD CLSD MAJOR HOLS & OTR TIMES BY NOTAM.
US AIR FORCE
WRIGHT-PATTERSON AFB
DAYTON, OH 45433
Phone: 937-257-2131
BASE COMMANDER
WRIGHT PATTERSON AFB
DAYTON, OH 45433
Phone: 937-257-2131
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
FFO
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Cargo Handling

Runway 05L/23R

12600 ft. x 300 ft.

PEM
GRVD
HIGH
74/R/B/W/T
--
--
--
--
  Runway 05L Runway 23R
True Heading 49°229°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 48' 54"N 39° 50' 15"N
Longitude 84° 03' 55"W 84° 01' 53"W
Elevation 804' 822'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 05R/23L

7000 ft. x 150 ft.

ASPH
GRVD
MED
111/R/B/W/T
--
--
--
--
  Runway 05R Runway 23L
True Heading 49°229°
Traffic Pattern Left
Markings
Markings Condition
Latitude 39° 49' 09"N 39° 49' 54"N
Longitude 84° 03' 06"W 84° 01' 58"W
Elevation 807' 818'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11CAUTION: UNLGTD OBST SUR AFLD.
A110-13CAUTION: BIRD WATCH CONDITION PHASE I (NOV-JUN) INDICATES LGT BIRD ACT, PHASE II (JUL-OCT) INDICATES HVY BIRD ACT NML ASSOCIATED WITH MIGRATORY SEASON.
A110-16MISC: UNLGTD ABANDONED TWR W SIDE FLD.
A110-18MISC: AMOPS C937-257-4492, DSN 787-4492.
A110-19AFRC: 445 AW OPR 1200--0330Z++. MON-FRI AND TRNG WKEND.
A110-20CUST/AG/IMG: LTD CUST AVBL. US MIL REQ A MNM OF 24 HR PN, FOREIGN STATE ACFT A MNM OF 48 HR PN, AMOPS C937-257-4492, DSN 787-4492.
A110-21JASU: 7(A/M32A-86) 1(MC-1A) 4(AM32-95) 7(A/M32A-60/A).
A110-22FUEL: A++
A110-23FLUID: SP PRESAIR LHOX LOX.
A110-24OIL: O-148-156 SOAP/JOAP AVBL 1230-2130Z++WKD EXC CLSD WKEND AND HOL.
A110-25TRAN ALERT: OPR 1100-0300Z++; AVBL OT WITH 24 HR PN TO AFLD OPS. FLEET SVC IS A CONTRACTED CO AND AVBL WITH 3 HR PN. PRIOR PAYMENT RQR BY AVCARD.
A110-26MISC: STD RSRS APPLIED.
A110-29RSTD: AD PPR. CTC AFLD OPS C937-257-4492, DSN 787-4492.
A110-3CAUTION: PORTIONS OF FLAMEOUT & OVERHEAD TFC PAT NOT VIS FM TWR.
A110-31TRANS ALERT: PAX TRML IS CONTRACTED. ALL AIRCREWS RQRG SUPPORT MUST COORD PRIOR TO ARR/DEP NML DUTY HR M-F 1130-2030Z++ DSN: 787-7741/COMM: 937-257-7741 OR AFTER HR DUTY CELL: 937-815-6995.
A110-32RSTD: INBD ACFT WITH VIP CTC AFLD OPS ON PTD 30 MIN PRIOR TO ARR.
A110-34MISC: LTD COMSEC STORAGE AVBL, PRIOR COORD RQR WITH AMOPS.
A110-36CAUTION: RY 23R CNTRLN MARK OBSC BY RUBBER DEPOSITS.
A110-37NOISE ABATEMENT: QUIET HRS 0500-1000Z++: ONLY INITIAL DEP/FSL PMTD; FM 0300-0500Z++ ALL TRNG FLTS BTN THESE HRS HELD TO ABSOLUTE MNM FOR MISSION RQRMT. ALL REQ COORD THRU AMOPS WITH 88 OSS/CC APVL, C937-257-4492, DSN 787-4492.
A110-38CAUTION: NVD OPS IN PROGRESS TUE-THU SS-0400Z++. CHECK NOTAM AND ATIS FOR CURRENT OPS. WHEN NVD OPR ARE IN EFFECT, NON-PARTICIPATING ACFT CTC TWR 20 MILES OR 15 MINS PRIOR TO ENTERING CLASS D AIRSPACE AND FOR AFLD LGT ADJUSTMENT.
A110-40CTN: SML UAS OPR IN KFFO CLASS D ASP SFC-400 FT AGL SR-SS; CK ATIS/NOTAMS. HIGH DENSITY SML UAS, RECREATIONAL REMOTE CTL OPRG AREA SFC-1400 FT MSL 3.5 NM SW FFO TACAN; OPS GTR THAN 400 FT AGL PUBLD VIA NOTAM.
A110-42MISC: ARFF IS NFPA CAT 8 RDCD LVL OF SVC DUE TO 8100 GALLONS OF AGENT AVBL.
A110-43CAUTION: RWYCC NOT RPT.
A110-44SVC: RPRTD PVLG VIS MAY NOT REP ENTR HRZN DUE TO OBST FM OBSTN PT 050-210. TDZ VIS NOT OBSTD. ATC WILL ENHANCE SFC OBS WHEN VIS LESS THAN 4 SM & DIFFERENT FM RPRTD VIS.
A110-45RSTD: ACFT BACKING PROCS NA AT INT OF TWY A & A2 DUE TO INCRD FOD POTENTIAL.
A110-47CTN: GRASS CUTTING OPS ON AFLD WEF 1130-1930Z++ MON-FRI APR-OCT.
A110-48RSTD: RWY 05R/23L MKD WITH WHITE NON-REFLECTIVE LDG ZONE MRKGS 99 FT X 3624 FT; 24 HR PPR FOR ALL NON-445TH ACFT & LTD TO 2 LDG ZONE LDGS PER MISSION.
A110-49TRANS ALERT: NO C-5 OR B-52 TOWBAR AVBL, ACFT MUST ARR WITH OWN TOWBAR.
A110-50ALL ACFT EXCTG A 180 DEG TURNAROUND ARE RQRD TO USE CONC PTN OF RWY 05L/23R.
A110-6MISC: EXP DEP FR RY 23R AT TWY 'B' INT 11,600 FT AVBL; IF FULL LEN RQR, RQ BACK-TAXI FM TWR.
A14AIRFIELD MANAGER - ROMULO ALCANTARA 937-257-6206
A17-M1OPR H24 EXC AD CLSD MAJOR HOLS & OTR TIMES BY NOTAM.
A33-05L/23R_SURFSW 2600 FT CONC, NE 10000 FT ASPH.
E147RECTANGULAR FIGHTER/TACTICAL/TRAINER ACFT 2400' MSL, OTHER TURBOJET/TURBOPROP AND LGT RECIPROCATING ENG ACFT (12,500 LB OR BLW GWT) 1900', OVERHEAD 2400' MSL.
E60-05L_BAK-12BTYPE-H BAK-12B(B) (1676 FT).
WRIGHT-PATTERSON AFB (ICAO: KFFO, IATA: FFO) is a private airport located in DAYTON, OH, US.
