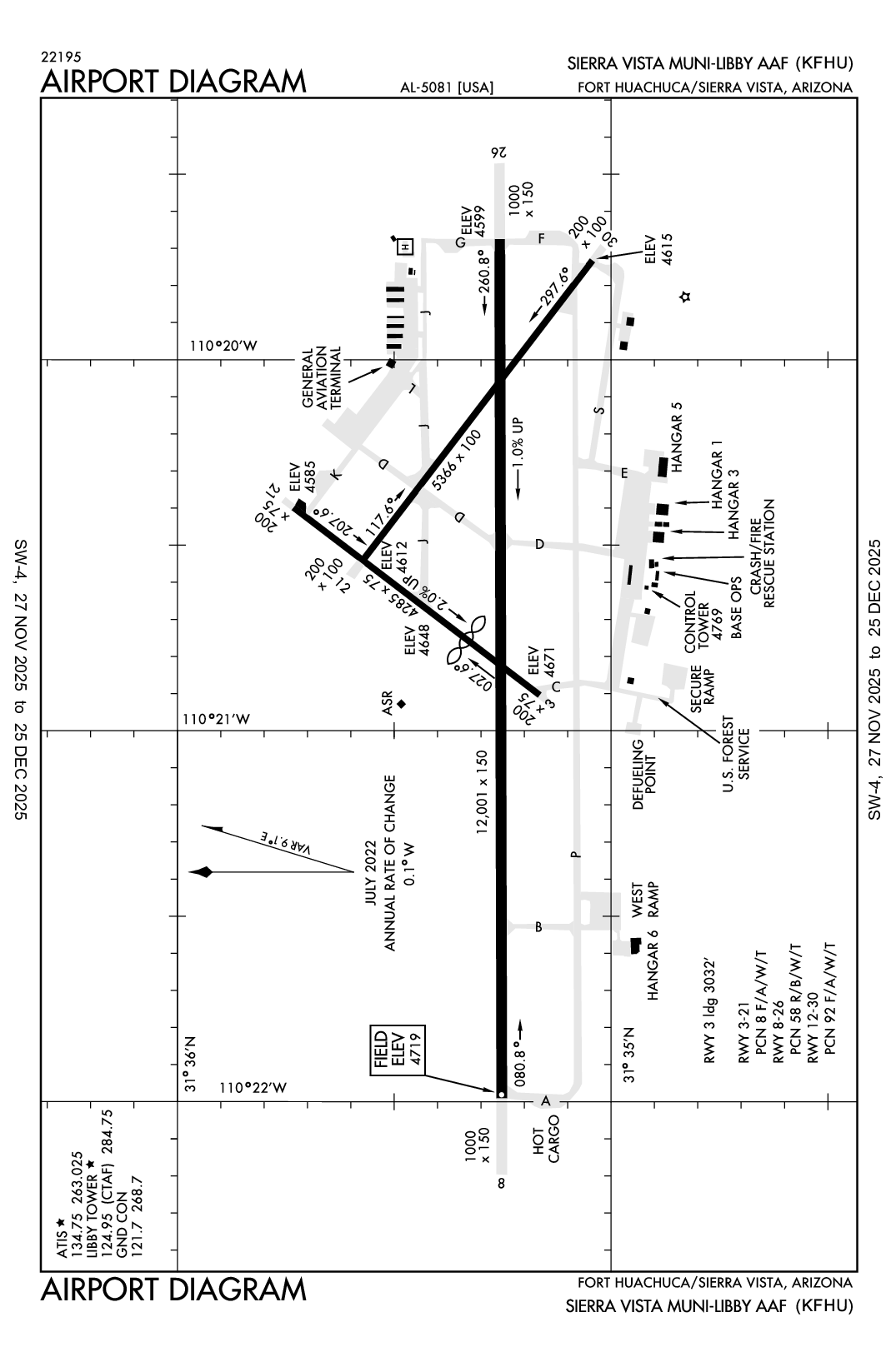

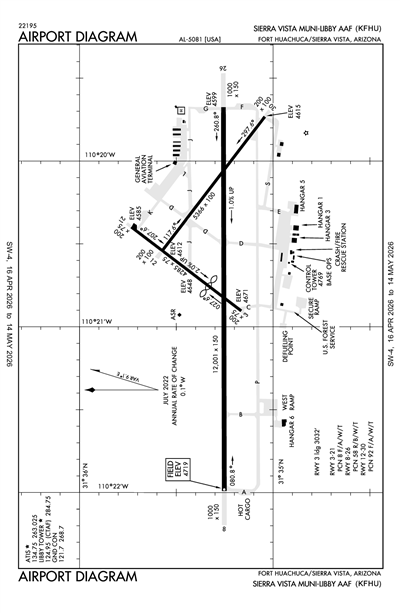

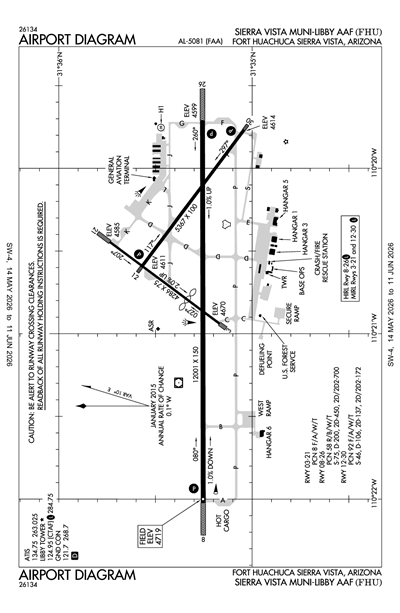

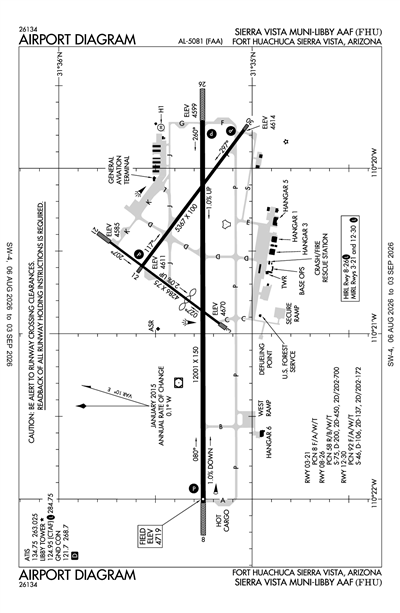

SIERRA VISTA MUNI-LIBBY AAF - Airport Diagram

KFHU

ICAO KFHUIATA FHULocal FHU

SIERRA VISTA MUNI-LIBBY AAF

PublicPUB

3 miles N of FORT HUACHUCA SIERRA VISTA, AZ, US

View on Map

Status

Operational

Coordinates

31° 35' 18"N 110° 20' 40"W

Elevation

4719' MSL

Pattern Alt

5719' MSL

Mag Variation

9°E

Declination

10°E

Fuel

JET A, 100

FSS

PRESCOTT (PRC)

Sectional

PHOENIX

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

10/29/26-11/26/26

KFHU VFR

5:55 AM MST RAW

Scattered 7,000'

Viz

8sm

Temp

53°F

Dew

37°F

Pres

30.17"Hg

Wind

Calm

RMK

AO2 SLP180 T01150030

METAR KFHU 121255Z AUTO 00000KT 8SM SCT070 12/03 A3017 RMK AO2 SLP180 T01150030

Add Your Business

KFHU FBOs

Promote Listing

Sierra Vista Municipal Airport

UNICOM: 122.95

Phone: (520) 452-7091

0 Reviews (Read | Sign In To Write)

Avfuel

As of 11/6	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	7.12
Full Serve	7.32	7.40	7.50

Fuel Notes

Prices include tax

Fuel Hours

Open Hours
Mon-Fri 0700-1530
After Hours/ $50.00 call out fee
520-234-3552

Your Information

Business

Weather and Advisory

ATIS	134.75
ASOS

Common

CTAF	124.95
WHEN ATCT CLSD 121.5 MNTD FOR EMERG.; ACTVT PAPI RWY 08, 26, 12 & 30; HIRL RWY 08/26; MIRL RWY 03/21 & 12/30; PERIMETER LGT H1 - CTAF.
UNICOM	122.95

Ground

LIBBY GROUND	121.7
0600Z MON-0600Z SAT; EXCP HOL, OTHER TIMES BY NOTAM.

Tower

LIBBY TOWER	124.95
0600Z MON-0600Z SAT; EXCP HOL, OTHER TIMES BY NOTAM.

Approach

LIBBY AAF GCA APPROACH

127.05

Departure

LIBBY AAF GCA DEPARTURE

127.05

Operations

122.95

Center

LIBBY AAF GCA CENTER	134.45
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQ 134.45 (TUCSON RCAG) AND FREQ 327.15 (TUCSON RCAG) WHEN LIBBY APCH CLSD.

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KOLS (28nm)

RAW

Reported

Thu, 11/12 4:20 AM MST

Valid

Thu, 11/12 5:00 AM MST - Fri, 11/13 5:00 AM MST

VFR

5:00 AM MST - 10:00 AM MST

Sky Clear

Viz

6sm

Wind

VRB° 3kts

VFR

10:00 AM MST - 7:00 PM MST

Few 7,000'

Viz

6sm

Wind

160° 8kts

VFR

7:00 PM MST - 5:00 AM MST

Sky Clear

Viz

6sm

Wind

100° 6kts

TAF KOLS 121120Z 1212/1312 VRB03KT P6SM SKC
FM121700 16008KT P6SM FEW070
FM130200 10006KT P6SM SKC

KFHU

Effective	Expires	Category	NOTAM
Domestic
11/11/26 1400Z	11/14/26 0030Z	Runway	!FHU 11/006 FHU RWY 08/26 CLSD DLY 1400-0030 2611111400-2611140030
11/11/26 0600Z	11/12/26 0700Z		!FHU 11/005 FHU AIRSPACE SEE FDC 6/6338 ZAB 99.7 SECURITY 2611110600-2611120700
11/7/26 0000Z	9/26/27 2359Z		!FHU 11/002 FHU AIRSPACE UAS WI AN AREA DEFINED AS 12NM RADIUS OF KFHU SFC-12000FT AGL SAT-SUN 0000-2359 2611070000-2709262359
9/12/26 0000Z	12/27/26 2359Z		!FHU 09/004 FHU AIRSPACE UAS WI AN AREA DEFINED AS 10NM RADIUS OF KFHU SFC-12000FT AGL SAT-SUN 0000-2359 2609120000-2612272359
7/2/26 1512Z	12/31/26 2359Z		!FHU 07/004 FHU TWY K NOW CIVIL RAMP 2607021512-2612312359
7/2/26 1512Z	12/31/26 2359Z	Runway	!FHU 07/003 FHU RWY 03/21 BTN TWY P AND RWY 12/30 NOW TWY C 2607021512-2612312359
6/6/26 0000Z	11/28/26 2359Z		!FHU 06/001 FHU AIRSPACE UAS WI AN AREA DEFINED AS 10NM RADIUS OF KFHU SFC-4281FT AGL SAT 0000-2359 2606060000-2611282359
1/13/26 0000Z	12/31/26 2359Z		!FHU 01/007 FHU AIRSPACE UAS WI AN AREA DEFINED AS 314723.30N1104620.30W (21.4NM SSE TUS) TO 313757.50N1104416.20W (14.1NM NNE OLS) TO 314201.20N1103006.70W (10.5NM WNW FHU) TO 315117.80N1103640.30W (15.6NM SW E95) TO POINT OF ORIGIN SFC-400FT AGL DLY 0000-2359 2601130000-2612312359
FDC
12/4/25 1724Z			!FDC 5/4696 FHU IAP SIERRA VISTA MUNI-LIBBY AAF, FORT HUACHUCA SIERRA VISTA, AZ. ILS OR LOC RWY 26, AMDT 4C... DISREGARD PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 80). 2512041724-2712041724EST
12/4/25 1724Z			!FDC 5/4693 FHU IAP SIERRA VISTA MUNI-LIBBY AAF, FORT HUACHUCA SIERRA VISTA, AZ. RNAV (GPS) RWY 26, ORIG-B... DISREGARD PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 80). 2512041724-2712041724EST
12/4/25 1724Z			!FDC 5/4691 FHU IAP SIERRA VISTA MUNI-LIBBY AAF, FORT HUACHUCA SIERRA VISTA, AZ. RNAV (GPS) RWY 8, AMDT 1D... CHANGE PROFILE NOTE: VGSI AND GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 55). 2512041724-2712041724EST
12/4/25 1724Z			!FDC 5/4689 FHU IAP SIERRA VISTA MUNI-LIBBY AAF, FORT HUACHUCA SIERRA VISTA, AZ. TACAN RWY 8, AMDT 1B... ADD PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.00/TCH 55). 2512041724-2712041724EST
12/4/25 1724Z			!FDC 5/4688 FHU IAP SIERRA VISTA MUNI-LIBBY AAF, FORT HUACHUCA SIERRA VISTA, AZ. TACAN RWY 26, AMDT 1B... VOR RWY 26, AMDT 5A... DISREGARD PROFILE NOTE: VGSI AND DESCENT ANGLE NOT COINCIDENT (VGSI ANGLE 3.00/TCH 80).. 2512041724-2712041724EST
Military
11/17/26 1400Z	11/17/26 2100Z		SITE KILO: AIRSPACE UAS WI AN AREA DEFINED AS 0.25NM RADIUS OF 313410N1102320W (2.5NM SW KFHU) SFC-300FT AGL
11/11/26 1400Z	11/14/26 0030Z	Navigation	!KFHU M0109/26 FHU NAV ILS RWY 26 GP U/S DLY 1400-0030 2611111400-2611140030
11/11/26 1400Z	11/14/26 0030Z	Runway	RWY 12/30 FSL TKOF ONLY
11/4/26 1454Z	1/1/27 2359Z	Runway	!KFHU M0108/26 FHU RWY 30 PAPI U/S 2611041454-2701012359
9/28/26 1634Z	12/25/26 2359Z	Runway	M0101/26 NOTAMN Q) ZAB/QLPAS/IV/BO/A/000/999/3135N11020W005 A) KFHU B) 2609281634 C) 2612252359 E) RWY 26 PAPI HIGH INTENSITY ON CONTINUOUS
9/28/26 1633Z	12/25/26 2359Z	Runway	!KFHU M0100/26 FHU RWY 08 PAPI HIGH INTENSITY ON CONS 2609281633-2612252359
9/28/26 1632Z	12/25/26 2359Z	Runway	M0099/26 NOTAMN Q) ZAB/QLPAS/IV/BO/A/000/999/3135N11020W005 A) KFHU B) 2609281632 C) 2612252359 E) RWY 12 PAPI HIGH INTENSITY ON CONTINUOUS

ATC Tower

Yes

Attendance

MON-FRI 1400-2230Z

Owner

US ARMY INTELLIGENCE CTR
FORT HUACHUCA
FORT HUACHUCA, AZ 85613
Phone: 520-538-2860

Manager

SHARON FLISSAR
401 GIULIO CESARE AVE
SIERRA VISTA, AZ 85635
Phone: 520-458-5775

FSS

PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF

NOTAM

FHU

Light Schedule

Lights

ACTVT PAPI RWY 08, 26, 12 & 30; HIRL RWY 08/26; MIRL RWY 03/21 & 12/30; PERIMETER LGT H1 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 03/21

Dimensions

4286 ft. x 75 ft.

Surface Type

ASPH CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

8/F/A/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	37°	217°
Traffic Pattern		Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	31° 35' 10"N	31° 35' 44"N
Longitude	110° 20' 56"W	110° 20' 27"W
Elevation	4,670'	4,585'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 08/26

Dimensions

12001 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

58/R/B/W/T

Single Wheel

75,000lbs

Double Wheel

200,000lbs

Double Tandem

450,000lbs

Dual Dbl Tand

700,000lbs

	Runway 08	Runway 26
True Heading	90°	270°
Traffic Pattern		Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	31° 35' 15"N	31° 35' 15"N
Longitude	110° 22' 01"W	110° 19' 43"W
Elevation	4,719'	4,599'
Threshold Crossing Height	55 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

Dimensions

5367 ft. x 100 ft.

Surface Type

ASPH CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

92/F/A/W/T

Single Wheel

46,000lbs

Double Wheel

106,000lbs

Double Tandem

137,000lbs

Dual Dbl Tand

172,000lbs

	Runway 12	Runway 30
True Heading	127°	307°
Traffic Pattern	Left	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	31° 35' 34"N	31° 35' 03"N
Longitude	110° 20' 36"W	110° 19' 46"W
Elevation	4,611'	4,614'
Threshold Crossing Height	23 ft. AGL	41 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4R
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway H1

Dimensions

40 ft. x 40 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

PERI

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	Not Listed	Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude	31° 35' 28"N	N/A
Longitude	110° 19' 45"W	N/A
Elevation	4,573'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A11	APRON, TRML & NE END OWNED BY CITY OF SIERRA VISTA.
A110-11	WHEN CLASS D ASP IN EFCT UNMANNED AERIAL VEHICLES OPR SFC - 7000 FT MSL.
A110-14	USAF WX FCST AVBL 0500-2000 FM DAVIS MONTHAN AFB.
A110-16	TWY G & J LMTD TO SW ACFT MAX 33000 LB; TWY K LMTD TO SW ACFT MAX 50000 LB; TWY D & ACFT APRON ON NW SIDE LMTD TO DW ACFT MAX 100000 LB.
A110-17	CRCG S OF RWY 08 & 30 NA.
A110-18	MIL JET OPS WKDAYS; BIRD HAZ INVOF RWYS ON TKOF & APCH; DEER ON & INVOF ARPT SPCLY AT NIGHT.
A110-20	MIL POL 1530-2230Z MON-FRI; EXC HOL; OTR TIMES 24 HR PRIOR NOTICE - D879-2860/2862. POL SVC RQR CREW ATND TO SPECIFY FUEL/OIL RQMNTS; FUEL LMTD TO 6000 GAL; JET A AVBL 1400-2230Z DLY; OTR TIMES C520-234-3552; SVC FEE.
A110-21	TRAN ALERT: TSNT CTC BAOPS TO COORD PRKG.
A110-28	CSTMS/AG/IMG: AVBL WITH 72 HR PN FOR US MIL OR DOD CONTR ACFT ONLY.
A110-29	MISC: TSNT & RON ACFT USING MIL SIDE SIGN IN AT BAOPS PRIOR TO DEPG FLT LINE. ASSAULT STRIP 5 NM NE 72 HR PPR. NONSKED ARR RQRG ASST - EOC 533-2291.
A110-3	PRKG MIL TSNT SIGN IN AT BASE OPS PRIOR TO LV FLT LINE.
A110-30	MILITARY USE: OPR 0600-0600Z SUN-SAT; EXC HOL. OTR TIME 72 HR PPR - D879-2860/2862/C520-538-2860/2862. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-32	MISC: WX OBSN/FCST 0600-0600Z SUN-FRI; EXC HOL. OTR TIMES ASOS. LIBBY WX AVBL - 122.95 D879-3798/2865/C520-538-3798/2865.
A110-33	RSTD: 24 HR PPR FOR TSNT MIL.
A110-34	CTN: EXP WS ALL RWYS; ARPT SW WIND MAY NOT REP WIND ON FNA.
A110-35	MISC: REMOTE BRIEFING SVC AVBL 25 OWS DAVIS-MONTHAN AFB D228-6598/6599/6588/C520-228-6598/6599/6588 OR HTTPS://25OWS.US.AF.MIL.
A110-36	MISC: LIBBY BAOPS 0600-0600Z MON-SAT; EXC HOL. TR TIME 72 HR PPR. D879-2860/2862/C520-538-2860/2862.
A110-38	RSTD: TWY G LMTD TO S33; TWY K LMTD TO S50.
A110-39	ASP CLASS D SFC AREA LMTD TO DEP & FSL DURG NGT UNMANNED ACFT OPS; EXP DELAYS. MANNED & UNMANNED ACFT NOT AUTH IN SAME TFC PAT. MANNED ARR MAY FLW UNMANNED ACFT ON FNA.
A110-40	CIVIL TFC PAT UNAVBL DURG DALGT UNMANNED ACFT TFC PAT OPS; DEP & FSL AUTH.
A110-41	TPA: 981 FT AGL FIXED WING UNMANNED ACFT.
A110-42	TPA: DO NOT EXCEED 5700 FT UNTIL DER.
A110-43	CTN: RWY 08/26 & 12/30 OVRNS UNAVBL; BLW 25 PAVEMENT COND INDEX.
A110-44	TWY P & S EDGE LGT N/A.
A110-6	TFC PAT: FIXED WING NORTH; ROTARY WING SOUTH; ALT FIXED WING RECIPROCATING 5700 FT; ROTOR WING 5500 FT; FIXED WING TURBOPROP/JET 6200 FT.
A14	MIL CAROL THOMPSON - 520-538-2861
A2	FORT HUACHUCA
A70-A	WO ICING INHIBITOR.
A81-APT	ACTVT PAPI RWY 08, 26, 12 & 30; HIRL RWY 08/26; MIRL RWY 03/21 & 12/30; PERIMETER LGT H1 - CTAF.
E100	WHEN ATCT CLSD 121.5 MNTD FOR EMERG.
E111	PER JOINT USE AGREEMENT.

SIERRA VISTA MUNI-LIBBY AAF (ICAO: KFHU, IATA: FHU) is a public airport located in FORT HUACHUCA SIERRA VISTA, AZ, US.
