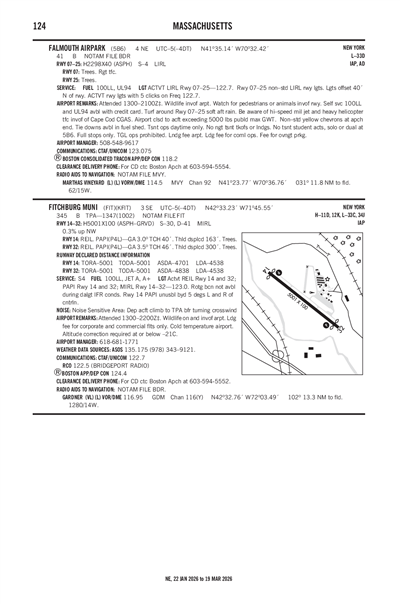

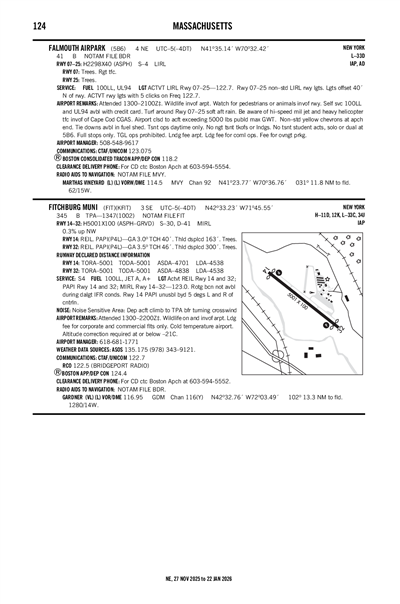

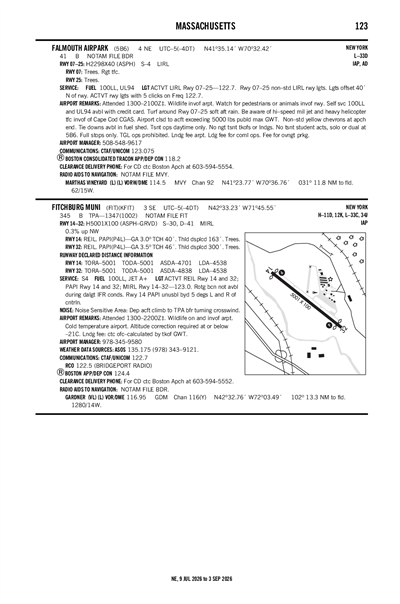

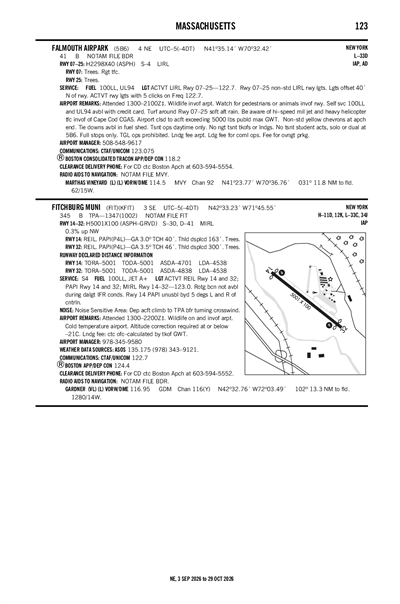

FITCHBURG MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFIT
FITCHBURG MUNI
PublicPUB

3 miles SE of FITCHBURG, MA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 33' 14"N 71° 45' 33"W
344' MSL
1346' MSL
15W
Jet A, Jet A+, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
6/16/22-7/14/22
KFIT VFR
3:52 AM EDT
Clear
10sm
59°F
54°F
30.16"Hg
Calm
AO2 SLP212 T01500122
KFIT 300752Z AUTO 00000KT 10SM CLR 15/12 A3016 RMK AO2 SLP212 T01500122
List Your Business

KFIT FBOs, Flight Schools and Ground Support

Promote Listing
Fitchburg Municipal Airport
Freq: 122.7
Phone: (978) 345-9580
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.78
Full Serve 6.98 7.00

KFIT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFIT Hotels

No hotels are listed for this airport.

KFIT Restaurants

No restaurants are listed for this airport.

KFIT Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
978-343-9121
 135.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KORH (18nm)
Thu, 6/30 1:21 AM EDT
Thu, 6/30 2:00 AM EDT - Fri, 7/1 2:00 AM EDT
VFR
2:00 AM EDT - 6:00 AM EDT
Few 7,000'
> 6sm
260° 5kts
VFR
6:00 AM EDT - 10:00 AM EDT
Few 12,000'
> 6sm
280° 5kts
VFR
10:00 AM EDT - 8:00 PM EDT
Few 12,000'
> 6sm
330° 7kts
VFR
8:00 PM EDT - 2:00 AM EDT
Few 9,000'
> 6sm
Calm
KORH 300521Z 3006/0106 26005KT P6SM FEW070
   FM301000 28005KT P6SM FEW120
   FM301400 33007KT P6SM FEW120
   FM010000 00000KT P6SM FEW090
KFIT
Domestic
6/28/220521Z !FIT 06/012 FIT OBST TOWER LGT (ASR 1232096) 423311.60N0714758.60W (1.8NM W FIT) 787.1FT (158.1FT AGL) U/S 2206280521-2207130421
6/27/220521Z !FIT 06/011 FIT OBST TOWER LGT (ASR 1257964) 423458.30N0714507.70W (1.8NM NE FIT) 661.7FT (111.9FT AGL) U/S 2206270521-2207120421
6/26/221517Z !FIT 06/010 FIT RWY 14 PAPI U/S 2206261517-2207262359
6/26/221517Z !FIT 06/009 FIT RWY 32 PAPI U/S 2206261517-2207262359
6/11/220543Z !FIT 06/003 FIT OBST TOWER LGT (ASR 1006001) 423027.00N0714935.00W (4.1NM SW FIT) 1337.9FT (442.9FT AGL) U/S 2206110543-2207260541
3/1/220501Z !FIT 02/017 FIT AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2203010501-2403010501
2/15/221310Z !FIT 02/009 FIT RWY 32 RWY END ID LGT U/S 2202151310-2208152111EST
1/19/220501Z !FIT 01/009 FIT AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
5/23/201252Z !FIT 05/007 FIT RWY 14/32 CHANGED TO 5001FT X 100FT. DECLARED DIST: RWY 14 TORA 5001FT TODA 5001FT ASDA 4701FT LDA 4539FT. RWY 32 TORA 5001FT TODA 5001FT ASDA 4839FT LDA 4539FT. 2005231252-PERM
No
0800-1700
CITY OF FITCHBURG
CITY HALL, 718 MAIN ST
FITCHBURG, MA 01420
Phone: (978) 829-1800
PETER KETTLE
FITCHBURG MUNICIPAL AIRPORT, 567 CRAWFORD ST
FITCHBURG, MA 01420
Phone: 978-345-9580
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
FIT
--
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - 123.0.
Clear-Green
ROTG BCN NOT AVBL DURG DALGT IFR CONDS.
Yes
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
81
5
1
1
0
2
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 14/32

5001 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
41,000lbs
--
--
  Runway 14 Runway 32
True Heading 130°310°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 33' 30"N 42° 32' 58"N
Longitude 71° 45' 59"W 71° 45' 07"W
Elevation 344' 328'
Threshold Crossing Height 40 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-3WILDLIFE ON & INVOF ARPT.
A110-4FOR CD CTC BOSTON APCH AT 603-594-5552.
FITCHBURG MUNI (ICAO: KFIT, IATA: FIT) is a public airport located in FITCHBURG, MA.
