FRANKFORT CLINTON COUNTY RGNL - Airport Diagram

KFKR

ICAO KFKRLocal FKR

FRANKFORT CLINTON COUNTY RGNL

PublicPUB

3 miles W of FRANKFORT, IN, US

View on Map

Status

Operational

Coordinates

40° 16' 24"N 86° 33' 44"W

Elevation

861' MSL

Pattern Alt

1861' MSL

Mag Variation

5°W

Declination

2°W

Fuel

JET A, 100LL

FSS

TERRE HAUTE (HUF)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

3/19/26-4/16/26

KFKR VFR

1:55 AM EDT RAW

Broken 4,800'
Scattered 4,000'
Few 3,300'

Viz

10sm

Temp

41°F

Dew

36°F

Pres

30.06"Hg

Wind

270° 13kts

RMK

AO2

METAR KFKR 050555Z AUTO 27013KT 10SM FEW033 SCT040 BKN048 05/02 A3006 RMK AO2

Add Your Business

KFKR FBOs

Promote Listing

Jet Access

UNICOM: 123.0

Phone: (765) 654-6275

0 Reviews (Read | Sign In To Write)

Avfuel

As of 4/3	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.95		6.75
Full Serve			7.25

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3	124.325
(765) 654-0328

Common

CTAF	123.0
ACTVT REIL RWY 09 & 27; MIRL RWY 04/22 & 09/27 - CTAF. MIRL RWY 04/22 & 09/27 PRESET LOW INTST; INCR INTST - CTAF.
UNICOM	123.0

Approach

GRISSOM APPROACH

123.85

Departure

GRISSOM DEPARTURE

123.85

Center

GRISSOM CENTER	123.85
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQ 123.85 (LAFAYETTE RCAG) WHEN GRISSOM (GUS) APCH/DEP CON CLSD.

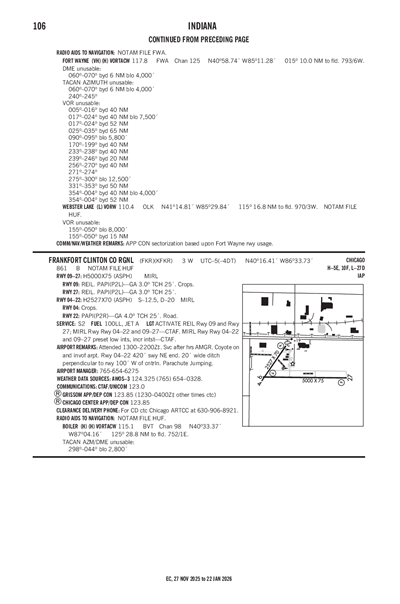

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLAF (20nm)

RAW

Reported

Sun, 4/5 1:43 AM EDT

Valid

Sun, 4/5 2:00 AM EDT - Mon, 4/6 2:00 AM EDT

VFR

2:00 AM EDT - 9:00 AM EDT

Broken 5,000'

Viz

6sm

Wind

270° 9kts

Gusts 25kts

MVFR

9:00 AM EDT - 11:00 AM EDT

Broken 2,200'

Viz

6sm

Wind

290° 10kts

Gusts 20kts

MVFR

11:00 AM EDT - 12:00 PM EDT

Broken 1,900'

Viz

6sm

Wind

300° 11kts

Gusts 20kts

MVFR

12:00 PM EDT - 1:00 PM EDT

Broken 2,300'

Viz

6sm

Wind

290° 12kts

Gusts 21kts

VFR

1:00 PM EDT - 10:00 PM EDT

Broken 4,000'

Viz

6sm

Wind

300° 12kts

Gusts 20kts

VFR

10:00 PM EDT - 2:00 AM EDT

Sky Clear

Viz

6sm

Wind

260° 5kts

TAF KLAF 050543Z 0506/0606 27009G25KT P6SM BKN050
   FM051300 29010G20KT P6SM BKN022
   FM051500 30011G20KT P6SM BKN019
   FM051600 29012G21KT P6SM BKN023
   FM051700 30012G20KT P6SM BKN040
   FM060200 26005KT P6SM SKC

KFKR

Effective	Expires	NOTAM
Domestic
3/20/26 0010Z	6/17/26 0400Z	!HUF 03/558 FKR OBST TOWER LGT (ASR 1028474) 401659.40N0862627.40W (5.6NM E FKR) 1271.0FT (370.1FT AGL) U/S 2603200010-2606170400
2/6/26 1633Z	3/22/29 2359Z	!HUF 02/304 FKR AIRSPACE LOW FLYING HEL OPS WI AN AREA DEFINED AS 5NM RADIUS OF FKR SFC-500FT 2602061633-2903222359

ATC Tower

Attendance

0800-1700
SVC AFT HR - AMGR.

Owner

FRANKFORT ARPT AUTH
3009 W STATE ROAD 28
FRANKFORT, IN 46041
Phone: 765-654-6275

Manager

NICK RASMUSSEN
3009 W STATE ROAD 28
FRANKFORT, IN 46041
Phone: 765-654-6275

FSS

TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF

NOTAM

HUF

Light Schedule

Lights

ACTVT REIL RWY 09 & 27; MIRL RWY 04/22 & 09/27 - CTAF. MIRL RWY 04/22 & 09/27 PRESET LOW INTST; INCR INTST - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 04/22

Dimensions

2527 ft. x 70 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

20,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	34°	214°
Traffic Pattern
Markings	NPI	BSC
Markings Condition	FAIR	FAIR
Latitude	40° 16' 19"N	40° 16' 40"N
Longitude	86° 34' 09"W	86° 33' 51"W
Elevation	857'	857'
Threshold Crossing Height	--	25 ft. AGL
Visual Glide Path Angle	--	4°
Visual Slope Indicator	--	P2R
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 09/27

Dimensions

5000 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	90°	270°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	40° 16' 22"N	40° 16' 22"N
Longitude	86° 34' 08"W	86° 33' 03"W
Elevation	856'	861'
Threshold Crossing Height	25 ft. AGL	25 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-4	FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-5	COYOTE ON & INVOF ARPT.
A17-H1	SVC AFT HR - AMGR.
A30-04/22	420 FT SWY NE END. 20 FT WIDE DITCH PERPENDICULAR TO RWY 100 FT W OF CNTRLN.
A55-22	CLOSEST INTCP POINT.
A57-04	CLNC SLOPE 20:1 @ THLD
A57-09	30:1 @ THLD
A81-APT	ACTVT REIL RWY 09 & 27; MIRL RWY 04/22 & 09/27 - CTAF. MIRL RWY 04/22 & 09/27 PRESET LOW INTST; INCR INTST - CTAF.

FRANKFORT CLINTON COUNTY RGNL (ICAO: KFKR, IATA: FKR) is a public airport located in FRANKFORT, IN, US.
