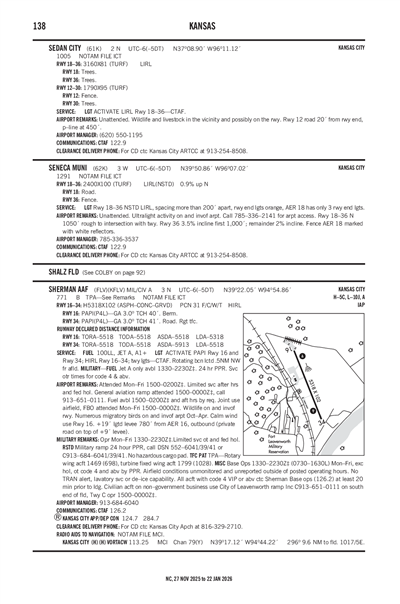

SHERMAN AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFLV
ICAO KFLVIATA FLVLocal FLV
SHERMAN AAF
PublicPUB

3 miles N of FORT LEAVENWORTH, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 22' 03"N 94° 54' 52"W
Elevation
771' MSL
Pattern Alt
1469' MSL
Mag Variation
2°E
Declination
4°E
Fuel
JET A, JET A-1+, 100LL
FSS
WICHITA (ICT)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
No METAR is available for this location.
+ Add Your Business

KFLV FBOs

Promote Listing
Leavenworth Aviation Services
UNICOM: 126.2
Phone: (913) 651-0111
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 2/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.95 8.50
Full Serve
Fuel Notes
Prices include tax
Assistance is available for self-serve 100LL and JET A.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 126.2
ACTVT PAPI RWYS 16 & 34; HIRL RWY 16/34; & TWY LGTS - CTAF.

Arrival

BRAYMER STAR 120.95
JHAWK STAR 120.95
TYGER STAR 120.95

Approach

KANSAS CITY APPROACH 124.7

Departure

KANSAS CITY DEPARTURE 124.7

Terminal Area Forecast

KMCI (10nm)
Sun, 2/22 11:20 AM CST
Sun, 2/22 12:00 PM CST - Mon, 2/23 12:00 PM CST
VFR
12:00 PM CST - 7:00 PM CST
Sky Clear
6sm
330° 13kts
Gusts 21kts
VFR
7:00 PM CST - 12:00 PM CST
Sky Clear
6sm
340° 8kts
TAF KMCI 221720Z 2218/2318 33013G21KT P6SM SKC
   FM230100 34008KT P6SM SKC
KFLV
EffectiveExpiresCategoryNOTAM
Domestic
2/13/26
0329Z
3/12/26
2359Z
!ICT 02/188 FLV OBST TOWER LGT (ASR 1033284) 390858.00N0945645.00W (13.2NM S FLV) 1950.1FT (990.2FT AGL) U/S 2602130329-2603122359
1/29/26
2231Z
3/15/26
2231Z
!ICT 01/754 FLV OBST TOWER LGT (ASR 1265670) 392151.30N0950327.20W (6.7NM W FLV) 1387.8FT (279.9FT AGL) U/S 2601292231-2603152231
1/23/26
1454Z
4/17/26
2100Z
!ICT 01/309 FLV TWY C HLDG PSN SIGN FOR RWY 16/34 LGT U/S 2601231454-2604172100
12/22/25
1642Z
2/27/26
2100Z
Runway!ICT 12/363 FLV RWY 34 1000FT DIST REMAINING SIGN LGT U/S 2512221642-2602272100
FDC
2/21/26
0059Z
3/21/26
0059Z
!FDC 6/7806 FLV SID SHERMAN AAF, FORT LEAVENWORTH, KS.
CHIEF NINE DEPARTURE...
ST JOSEPH TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
CATTS TRANSITION: DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
STJ VOR OUT OF SERVICE. 2602210059-2603210059EST
2/21/26
0059Z
3/21/26
0059Z
!FDC 6/7799 FLV SID SHERMAN AAF, FORT LEAVENWORTH, KS.
WILDCAT SIX DEPARTURE...
DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
STJ VOR OUT OF SERVICE. 2602210059-2603210059EST
2/20/26
1500Z
2/27/26
1516Z
!FDC 6/6664 FLV SID SHERMAN AAF, FORT LEAVENWORTH, KS.
TIFTO EIGHT DEPARTURE...
TIFTO TRANSITION DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SLN VORTAC OUT OF SERVICE. 2602201500-2602271516EST
2/20/26
1500Z
2/27/26
1516Z
!FDC 6/6651 FLV SID SHERMAN AAF, FORT LEAVENWORTH, KS.
WILDCAT SIX DEPARTURE...
SALINA TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SLN VORTAC OUT OF SERVICE. 2602201500-2602271516EST
3/29/24
2000Z
3/19/26
0900Z
!FDC 4/4223 FLV STAR SHERMAN ARMY AIRFIELD, FORT LEAVENWORTH, KS
BRAYMER EIGHT ARRIVAL..PROCEDURE AMEND SPINNER TRANSITION, MOCA 2700
SPI VORTAC TO BQS VOR/DME. ALL OTHER DATA REMAINS AS PUBLISHED.

2403292000-2603190900
Military
1/30/26
1950Z
3/6/26
2230Z
Services!KFLV M0003/26 FLV SVC MOBILE FUEL NOT AVBL (MIL FUEL) 2601301950-2603062230
No
M-F 0730-1630 (MIL)
0900-1800 (GA)
LIMITED SCV OT AND FED HOL. RSTD-MILITARY RAMP 24 HOUR PPR, CALL DSN 552-6041/39/41 OR C913-684-6041/39/41.
U S ARMY, ARMY AVIATION DIV
DIR OF PLANS, TRNG & OPS 290 GRANT AVE., UNIT 3
FT LEAVENWORTH, KS 66027
Phone: 913-684-6040
AIRFIELD OPS
1000 CHIEF JOSEPH LOOP
FT. LEAVENWORTH, KS 66027
Phone: 913-684-6040
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT PAPI RWYS 16 & 34; HIRL RWY 16/34; & TWY LGTS - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 16/34

5318 ft. x 102 ft.
ASPH CONC
Good
GRVD
HIGH
31/F/C/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 159°339°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 22' 28"N 39° 21' 39"N
Longitude 94° 55' 04"W 94° 54' 40"W
Elevation 771' 766'
Threshold Crossing Height 40 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A1GA RAMP ASSOCIATED W/CITY OF LEAVENWORTH.
A10U.S. ARMY AIRFIELD/CIVILIAN RAMP LEASED TO CITY.
A110-10RSTD: NO HAZARDOUS CARGO PAD.
A110-11RSTD: MILITARY RAMP 24 HOUR PPR, CALL DSN 552-6041 OR C913-684-6041.
A110-12+19 FT LGTD LEVEE 780 FT FROM AER 16, OB (PVT ROAD ON TOP OF +9 FT LEVEE).
A110-16FOR CD CTC KANSAS CITY APCH AT 816-329-2710.
A110-2WILDLIFE ON & INVOF RY.
A110-4GA RAMP ATTENDED 1500-0000Z++, CALL 913-651-0111. FUEL AVBL 1500-0200Z++ AND AFT HRS BY REQ. JOINT USE AIRFIELD, FBO ATTENDED MON-FRI 1500-0000Z++;
A110-5POTENTIAL BIRD HAZARD ON & NEAR RY EARLY MORNING & EVENING.
A110-6NUMEROUS MIGRATORY BIRDS ON & INVOF ARPT OCT-APR.
A110-7MISC: BASE OPS 0730-1630L MON-FRI, EXC HOL; OT CODE 4 AND ABV BY PPR. AIRFIELD CONDITIONS UNMONITORED AND UNREPORTED OUTSIDE OF POSTED OPERATING HOURS. NO TRAN ALERT, LAVATORY SVC OR DE-ICE CAPABILITY. ALL ACFT WITH CODE 4 VIP OR ABV CTC SHERMAN BASE OPS (126.2) AT LEAST 20 MIN PRIOR TO LDG.
A110-8MISC: CIV ACFT ON NON-GOVT BUS USE CITY OF LEAVENWORTH RAMP C913-651-0111 ON S END OF FLD OPR 0900-1800L.
A110-9CALM WIND USE RY 16.
A13FAX: 913-684-6043.
A14CITY ARPT/FBO MGR DEAN AYERS.
A16ALT: 913-684-6039; FAX: 913-684-6040; FOR GENERAL AVIATION CONTACT CITY OF LEAVENWORTH AIRPORT OFFICE, PHONE 913-651-0111, FAX: 913-682-1592.
A17-M1LIMITED SCV OT AND FED HOL. RSTD-MILITARY RAMP 24 HOUR PPR, CALL DSN 552-6041/39/41 OR C913-684-6041/39/41.
A70-100LLMIL FUEL JET A ONLY AVBL 1330-2230Z. 24 HR PPR. SVC OTR TIMES FOR CODE 4 & ABV.
A75-HGA OPEN HGRS ARE NOT SECURABLE.
A81-APTACTVT PAPI RWYS 16 & 34; HIRL RWY 16/34; & TWY LGTS - CTAF.
E147TPA: ROTARY WING 698 FT AGL, TURBINE FIXED WING ACFT 1028 FT AGL.
SHERMAN AAF (ICAO: KFLV, IATA: FLV) is a public airport located in FORT LEAVENWORTH, KS, US.
