iFlightPlanner



...

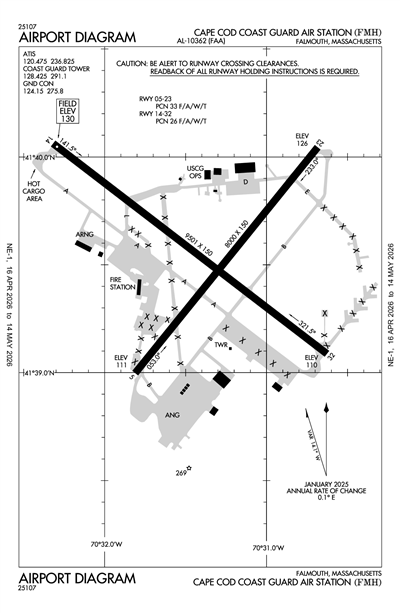

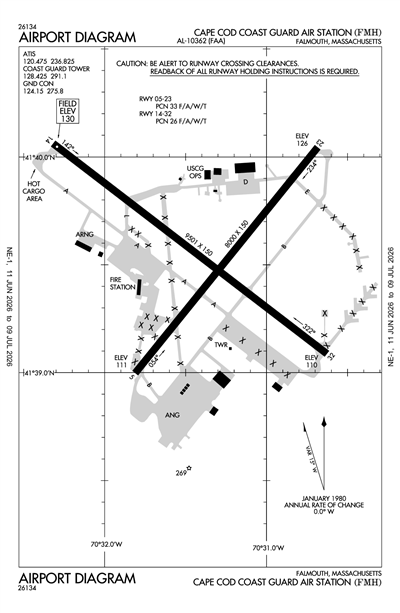

CAPE COD COAST GUARD AIR STATION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFMH
CAPE COD COAST GUARD AIR STATION
PrivatePVT

LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 39' 33"N 70° 31' 22"W
130' MSL
1100' MSL
15° W (1980)
100, Jet B+
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
11/5/20-12/3/20
KFMH VFR
8:55 PM EST
Overcast 6,000'
Broken 3,600'
Scattered 3,000'
10sm
46°F
36°F
29.74"Hg
260° 18kts
Gusts 25kts
KFMH 020155Z 26018G25KT 10SM SCT030 BKN036 OVC060 08/02 A2974

KFMH FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KFMH Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFMH Hotels

No hotels are listed for this airport.

KFMH Restaurants

No restaurants are listed for this airport.

KFMH Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
120.475

Emergency

EMERG
121.5

Ground

GND/P
124.15

Tower

LCL/P
128.425

Other

ARMY OPS
122.85
ARNG OPS
46.85
ARNG OPS
138.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

KFMH
Tue, 12/1 7:52 PM EST
Tue, 12/1 8:00 PM EST - Wed, 12/2 7:00 PM EST
VFR
8:00 PM EST - 9:00 PM EST
Overcast 8,000'
Scattered 4,500'
> 6sm
230° 17kts
Gusts 28kts
VFR
9:00 PM EST - 1:00 AM EST
Scattered 4,500'
> 6sm
230° 14kts
Gusts 25kts
VFR
1:00 AM EST - 9:00 AM EST
Scattered 4,500'
> 6sm
230° 12kts
VFR
9:00 AM EST - 5:00 PM EST
Overcast 5,000'
> 6sm
220° 16kts
Gusts 26kts
VFR
5:00 PM EST - 7:00 PM EST
Scattered 4,500'
> 6sm
250° 14kts
Gusts 23kts
KFMH 020052Z 0201/0224 23017G28KT P6SM SCT045 OVC080
   FM020200 23014G25KT P6SM SCT045
   FM020600 23012KT P6SM SCT045
   FM021400 22016G26KT P6SM OVC050
   FM022200 25014G23KT P6SM SCT045
KFMH
FDC
9/23/201400Z !FDC 0/9435 FMH IAP CAPE COD COAST GUARD AIR STATION,
FALMOUTH, MA.
RNAV (GPS) RWY 23, ORIG ...
LNAV/VNAV DA 467/HAT 341 ALL CATS. VIS RVR 3000 ALL CATS.
FOR INOPERATIVE MALSR, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO
RVR 5500, AND LNAV CATS C/D VISIBILITY TO RVR 6000.
2009231400-2209231400EST
12/18/191547Z !FDC 9/8640 FMH PART 1 OF 2 ODP CAPE COD COAST GUARD AIR STATION,
FALMOUTH, MA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES: NOTE: RWY 05, POLE 5 FT FROM DER, 8 FT
RIGHT OF CENTERLINE, 1 FT AGL/127 FT MSL. TRAVERSE_WAY 5 FT FROM
DER, 2 FT LEFT OF CENTERLINE, 1 FT AGL/127 FT MSL. TREE 1265 FT
FROM DER, 694 FT RIGHT OF CENTERLINE, 164 FT MSL. TREES BEGINNING
1422 FT FROM DER, 732 FT RIGHT OF CENTERLINE, UP TO 171 FT MSL.
TREE 1562 FT FROM DER, 726 FT LEFT OF CENTERLINE, 170 FT MSL. TREE
1826 FT FROM DER, 258 FT RIGHT OF CENTERLINE, 173 FT MSL.
TREE 1882 FT FROM DER, 234 FT LEFT OF CENTERLINE, 174 FT MSL. TREE
2029 FT FROM DER, 261 FT LEFT OF CENTERLINE, 177 FT MSL. TREE 2392
FT FROM DER, 293 FT RIGHT OF CENTERLINE, 189 FT MSL. TREE 2420 FT
FROM DER, 268 FT LEFT OF CENTERLINE, 189 FT MSL. TREE 3144 FT FROM
DER, 302 FT LEFT OF CENTERLINE, 209 FT MSL. TREE 3446 FT FROM DER,
393 FT LEFT OF CENTERLINE, 213 FT MSL. TREES BEGINNING 3572 FT FROM
DER, 243 FT LEFT OF CENTERLINE, UP TO 221 FT MSL. TREE 3976 FT FROM
DER, 63 FT RIGHT OF CENTERLINE, 225 FT MSL. TREE 4078 FT FROM DER,
196 FT RIGHT OF CENTERLINE, 228 FT MSL. NOTE: RWY 14, TREE 1138 FT
FROM DER, 749 FT RIGHT OF CENTERLINE, 148 FT MSL. TREE 1190 FT FROM
DER, 818 FT LEFT OF CENTERLINE, 150 FT MSL. TREES BEGINNING 1333 FT
FROM DER, 224 FT RIGHT OF CENTERLINE, UP TO 155 FT MSL. NOTE: RWY
ALL OTHER DATA REMAINS AS PUBLISHED. 1912181547-2112181547EST
END PART 1 OF 2

!FDC 9/8640 FMH PART 2 OF 2 ODP CAPE COD COAST GUARD AIR STATION,
FALMOUTH, MA.
23, SIGN 16 FT FROM DER, 236 FT LEFT OF CENTERLINE, 3 FT AGL/111 FT
MSL. TREE 1061 FT FROM DER, 635 FT RIGHT OF CENTERLINE, 151 FT MSL.
NOTE: RWY 32, TERRAIN 23 FT FROM DER, 25 FT LEFT OF CENTERLINE, 131
FT MSL. TERRAIN BEGINNING 45 FT FROM DER, 448 FT RIGHT OF
CENTERLINE, UP TO 137 FT MSL. TERRAIN 264 FT FROM DER, 543 FT RIGHT
OF CENTERLINE, 138 FT MSL. TREE 1947 FT FROM DER, 373 FT RIGHT OF
CENTERLINE, 180 FT MSL. TREE 1973 FT FROM DER, 300 FT RIGHT OF
CENTERLINE, 184 FT MSL. TREE 2021 FT FROM DER, 560 FT RIGHT OF
CENTERLINE, 185 FT MSL. TREE 2061 FT FROM DER, 724 FT RIGHT OF
CENTERLINE, 189 FT MSL..
ALL OTHER DATA REMAINS AS PUBLISHED. 1912181547-2112181547EST
END PART 2 OF 2
Military
11/23/201940Z M0156/20 NOTAMR M0145/20
Q) ZBW/QMMXX/V/M/A/000/999/4139N07031W005 A) KFMH B) 2011231940 C) 2012312100
E) RWY 32 HOLDING POSITION SIGN AT RWY 05 RIGHT SIDE NOT LGTD
10/13/201251Z M0144/20 NOTAMN
Q) ZBW/QLBAS/V/M/A/000/999/4139N07031W005 A) KFMH B) 2010131251 C) 2101082200
E) AERODROME BEACON UNSERVICEABLE
9/28/201909Z M0140/20 NOTAMN
Q) ZBW/QMXLC/IV/NBO/A/000/999/4139N07031W005 A) KFMH B) 2009281909 C) 2012242359
E) TWY C CLSD FROM RWY 32 TO RWY 5 DUE TO DETERIORATION. THAT
PORTION FROM RWY 5 TO TXY BRAVO UNAFFECTED AND OPEN.
Yes
MON-FRI 0730-1600 EXCEPT HOLS
US COAST GUARD
3172 HERBERT RD
BUZZARDS BAY, MA 02542
TONY HYLINSKI
3172 HERBERT RD, BUILDING 3172
BUZZARDS BAY, MA 02542
Phone: (508) 968-6674
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
FMH
--
DUSK-2300
Clear-Green
CLEAR SIDE IS SPLIT LIGHT..76... TURNED ON DAYLGT HRS WHEN A/D IS UNDER IFR CONDITIONS.
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
Low Pressure
None

Runway 05/23

8000 ft. x 150 ft.
ASPH
CONC

HIGH
33 /F/A/W/T
0 lbs
0 lbs
0 lbs
0 lbs
  Runway 05 Runway 23
Runway Heading 39° 219°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 39' 00"N 41° 40' 02"N
Longitude 70° 31' 48"W 70° 30' 42"W
Elevation 110.5 ft. 125.5 ft.
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 14/32

9501 ft. x 150 ft.
ASPH
CONC

HIGH
26 /F/A/W/T
0 lbs
0 lbs
0 lbs
0 lbs
  Runway 14 Runway 32
Runway Heading 127° 307°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 40' 03"N 41° 39' 06"N
Longitude 70° 32' 18"W 70° 30' 38"W
Elevation 130.2 ft. 110.4 ft.
Threshold Crossing Height 47 ft. AGL 50 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No
Runway End Identifier Lights Yes No
A110-16RSTD: NO TSNT ALERT SVC AVBL.
A110-22ARNG: R101 RQR FLT BRIEFING.
A110-23CG: PPR FOR ALL ACFT DESTINED FOR CGAS SVC/PRK DSN 557-6360/6361, C508-968-6360/6361, 1-800-673-1056.
A110-24CG: ARR ACFT CTC CAPE COD AIR 345.0, 122.975 OR 164.55 VHF-FM 15 MIN PRIOR TO ARR. LTD TSNT SVC.
A110-25CG: FUEL AVBL 1230-2030Z++MON-FRI, OT RSTD TO SAR AND CG MSN ACFT. BOARDING RAMPS NOT AVBL.
A110-26BEARING STRENGTH RWY 14-32: ST175
A110-27SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK AND AP/1A.
A110-28BEARING STRENGTH RWY 05-23: ST175
A110-30ARNG: PPR REQ FOR ARNG RAMP - LTD FUEL AVBL: CTC OPS C508-968-5850, DSN 557-5850 FOR PPR VERIFICATION. OPR 1200-2200Z++ MON-FRI, LTD SVC MAY BE AVBL SAT-SUN WITH PRIOR COORD. CTC BOSOX OPS 10 MIN PRIOR TO ARR ON 341.675, 46.85, 138.5. FLT BRIEFING REQ PRIOR TO OPR IN R-4101. ALL F/W AC CTC OSA F/W DET C508-968-5291/5292, DSN 557-5291/5292 TO COORD JOSAC PAX ARR AND DEP.
A110-31RSTD: OTIS ANG RAMP CLSD TO ALL TSNT ACFT.
A110-32MISC: FIRST 350 FT RWY 05 CONC, REMAINING 7650 FT ASPHALT. FIRST 2800 FT RWY 14 AND FIRST 500 FT RWY 32 CONC, MID PORTION ASPHALT.
A110-33ANG APRON IS THE ONLY APRON CAPABLE OF ACCEPTING C5 AT GROSS WEIGHT.
A110-34RSTD: PPR NOT REQ FOR MIL/LAW ENF/MED FLTS. CTC ARPT MGMT C508-968-6674 24 HR PRIOR IF PRKG/RON (EXCLDG ACTIVE AEROMED MISSIONS). NO CIVIL LDGS WITHOUT PRIOR PMSN FM ARPT MGMT. NO TSNT SVCS AVBL INCLG FUEL. ANG RAMP UNUSBL/NOT MNTND.
A110-35CAUTION: CK ATIS FOR STS OF SML UAS ACTVTY IN DELTA ASP.
A110-7CAUTION: EXTSV BIRD ACTVT VCNTY ALL RWY SPCLY DURG LOW CEILING & WET WX.
A110-8NON-STD OBSTN LGTD 368 FT TWRS NE OF ARPT.

View hangar and property listings at KFMH, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

CAPE COD COAST GUARD AIR STATION (ICAO: KFMH, IATA: FMH) is a private airport located in FALMOUTH, MA.
