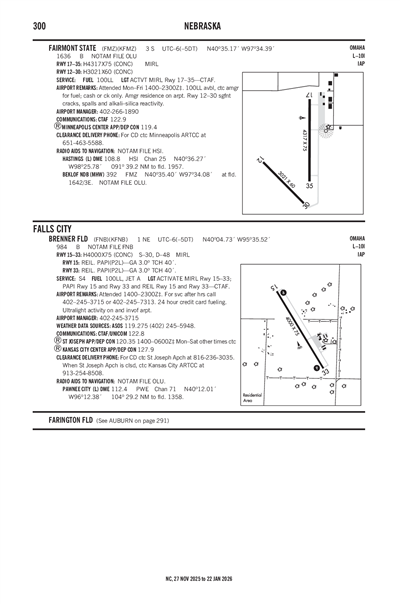

FAIRMONT STATE AIRFIELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFMZ
FAIRMONT STATE AIRFIELD
PublicPUB

3 miles S of FAIRMONT, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 35' 10"N 97° 34' 23"W
1636' MSL
2636' MSL
07E
100LL
COLUMBUS (OLU)
OMAHA
MINNEAPOLIS (ZMP)
6/16/22-7/14/22
KJYR (19nm) MVFR
6:55 AM CDT
Mist and Unknown Precipitation
Few 4,800'
5sm
70°F
70°F
29.93"Hg
050° 7kts
AO2 P0001
KJYR 061155Z AUTO 05007KT 5SM UP BR FEW048 21/21 A2993 RMK AO2 P0001
List Your Business

KFMZ FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KFMZ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFMZ Hotels

No hotels are listed for this airport.

KFMZ Restaurants

No restaurants are listed for this airport.

KFMZ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLNK (40nm)
Wed, 7/6 6:20 AM CDT
Wed, 7/6 7:00 AM CDT - Thu, 7/7 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Overcast 7,000'
Scattered 1,500'
> 6sm
030° 9kts
MVFR
Temporary 7:00 AM CDT - 9:00 AM CDT
Showers and Rain
Broken 1,500'
5sm
Calm
VFR
9:00 AM CDT - 11:00 PM CDT
Broken 10,000'
Scattered 3,000'
> 6sm
080° 7kts
VFR
11:00 PM CDT - 4:00 AM CDT
Overcast 8,000'
Scattered 3,000'
> 6sm
120° 7kts
MVFR
12:00 AM CDT - 4:00 AM CDT
Thunderstorm and Rain
Broken 3,000'
4sm
Calm
MVFR
4:00 AM CDT - 7:00 AM CDT
Showers and Rain and Mist and Thunderstorm in vicinity
Broken 2,500'
6sm
090° 6kts
KLNK 061120Z 0612/0712 03009KT P6SM SCT015 OVC070
   TEMPO 0612/0614 5SM SHRA BKN015
   FM061400 08007KT P6SM SCT030 BKN100
   FM070400 12007KT P6SM SCT030 OVC080
   PROB30 0705/0709 4SM TSRA BKN030CB
   FM070900 09006KT 6SM SHRA BR VCTS BKN025CB
KFMZ
Domestic
6/18/220640Z !OLU 06/079 FMZ OBST TOWER LGT (ASR 1290250) 403141.60N0973642.30W (3.9NM SSW FMZ) 1900.9FT (265.1FT AGL) U/S 2206180640-2207180640
No
MON-FRI 0800-1700
MGRS RESIDENCE ON ARPT.
NEBRASKA DEPT OF AERONAUTICS
PO BOX 82088
LINCOLN, NE 68501-2088
Phone: 402-471-2371
TIM KRIENERT
13 AIRBASE ROAD, FAIRMONT STATE AIRFIELD
FAIRMONT, NE 68354-4057
Phone: 402-266-1890
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OLU
--
ACTVT MIRL RY 17/35 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
18
0
0
0
0
0
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 12/30

3021 ft. x 60 ft.
CONC
Poor



--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 35' 08"N 40° 34' 47"N
Longitude 97° 34' 48"W 97° 34' 20"W
Elevation 1,636' 1,633'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4317 ft. x 75 ft.
CONC
Good

MED

--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 35' 40"N 40° 34' 58"N
Longitude 97° 34' 16"W 97° 34' 16"W
Elevation 1,635' 1,634'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT SFC CONDS: CRACKING, SPALLING & VEGETATION IN CRACKS ON ABANDONED PTNS OF RYS.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
FAIRMONT STATE AIRFIELD (ICAO: KFMZ, IATA: FMZ) is a public airport located in FAIRMONT, NE.
