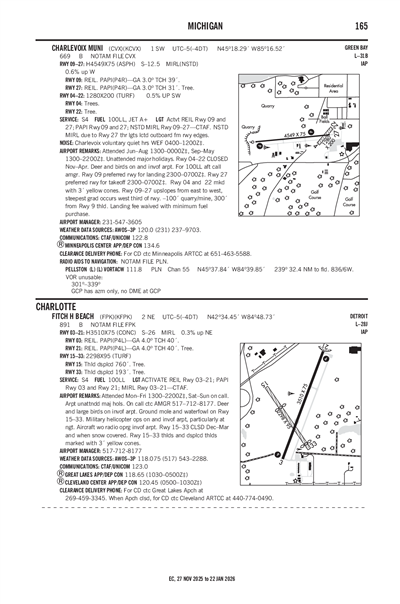

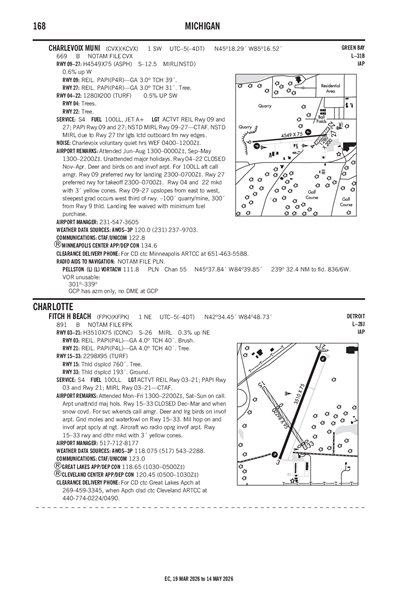

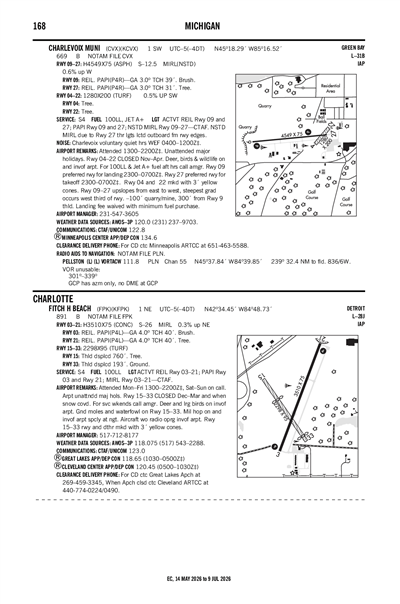

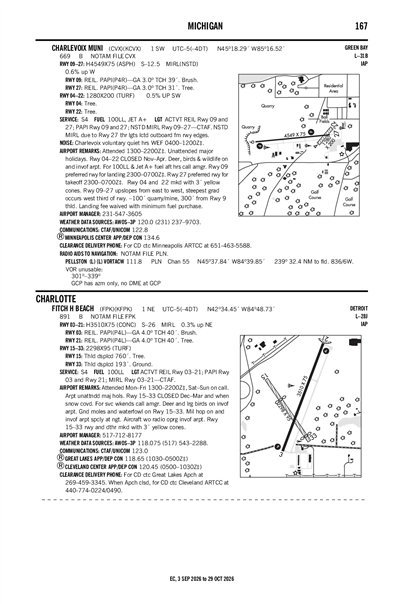

FITCH H BEACH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFPK
FITCH H BEACH
PublicPUB

2 miles NE of CHARLOTTE, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 34' 27"N 84° 48' 44"W
891' MSL
1891' MSL
06W
100LL
LANSING (LAN)
DETROIT
CLEVELAND (ZOB)
6/16/22-7/14/22
KFPK MVFR
11:35 AM EDT
Overcast 1,000'
10sm
68°F
65°F
29.98"Hg
080° 6kts
AO2 T02020184 P0001
KFPK 061535Z AUTO 08006KT 10SM OVC010 20/18 A2998 RMK AO2 T02020184 P0001
List Your Business

KFPK FBOs, Flight Schools and Ground Support

Promote Listing
Charlotte Air Services
Freq: 123.0
Phone: (517) 712-8177
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/13
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.57
Full Serve 6.57

KFPK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFPK Hotels

No hotels are listed for this airport.

KFPK Restaurants

No restaurants are listed for this airport.

KFPK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
517-543-2288
 118.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLAN (16nm)
Wed, 7/6 10:09 AM EDT
Wed, 7/6 10:00 AM EDT - Thu, 7/7 8:00 AM EDT
MVFR
10:00 AM EDT - 12:00 PM EDT
Light Rain and Mist and Showers in vicinity
Overcast 2,400'
5sm
050° 8kts
MVFR
12:00 PM EDT - 4:00 PM EDT
Broken 2,500'
> 6sm
VRB° 4kts
VFR
4:00 PM EDT - 8:00 AM EDT
Broken 4,000'
> 6sm
070° 5kts
KLAN 061409Z 0614/0712 05008KT 5SM -RA BR VCSH OVC024
   FM061600 VRB04KT P6SM BKN025
   FM062000 07005KT P6SM BKN040
KFPK
Domestic
5/25/221309Z !FPK 05/003 FPK RWY 21 RWY END ID LGT U/S 2205251309-2211252111EST
4/18/221125Z !FPK 04/001 FPK OBST CRANE (ASN UNKNOWN) 423327N0844915W (5000FT S APCH END RWY 03) 1016FT (125FT AGL) FLAGGED NOT LGTD 2204181125-2210312359
1/19/220501Z !FPK 01/001 FPK AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
5/24/221635Z !FDC 2/9119 FPK IAP FITCH H BEACH, CHARLOTTE, MI.
RNAV (GPS) RWY 21, AMDT 1A...
CIRCLING CAT A MDA 1400/HAA 509.
DISREGARD NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH - GPS.
2205241635-2405241635EST
5/20/221408Z !FDC 2/7382 FPK ODP FITCH H BEACH, CHARLOTTE, MI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKEOFF MINIMUMS: RWY 21, 300-1 OR STANDARD WITH A MINIMUM CLIMB OF 264FT PER NM TO 1100. ADD TAKEOFF OBSTACLE NOTES: RWY 21, TEMPORARY CRANES BEGINNING 4884FT FROM DER, 187FT RIGHT OF CENTERLINE, 113FT AGL/1041FT MSL (2021-AGL-10507-OE, 2021-AGL-10508-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2205201408-2307031407EST
No
0800-1700
ARPT UNATNDD MAJ HOLS
CITY OF CHARLOTTE/CITY MANAGER
111 E LAWRENCE AVE
CHARLOTTE, MI 48813
Phone: 517-543-2750
TODD COTTER
111 E LAWRENCE AVE
CHARLOTTE, MI 48813
Phone: 517-712-8177
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
FPK
--
ACTVT REIL RWY 03/21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
18
2
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 03/21

3510 ft. x 75 ft.
CONC
Good

MED

26,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 21°201°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 42° 34' 12"N 42° 34' 44"N
Longitude 84° 48' 49"W 84° 48' 33"W
Elevation 880' 891'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 15/33

2298 ft. x 95 ft.
TURF
Good



--
--
--
--
  Runway 15 Runway 33
True Heading 145°325°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 34' 34"N 42° 34' 15"N
Longitude 84° 48' 56"W 84° 48' 38"W
Elevation 880' 880'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2MIL HELI OPS ON & INVOF ARPT PARTICULARLY AT NGT.
A110-3BIRDS & DEER ON RWYS.
A110-4GND MOLE AND WATERFOWL ON RWY 15/33.
A110-5FOR CD CTC GREAT LAKES APCH AT 269-459-3345. WHEN APCH CLSD, FOR CD CTC CLEVELAND ARTCC AT 440-774-0490.
A110-6AIRCRAFT WO RADIO OPRG INVOF ARPT.
FITCH H BEACH (ICAO: KFPK, IATA: FPK) is a public airport located in CHARLOTTE, MI.
