FORT MADISON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFSW
FORT MADISON MUNI
PublicPUB

2 miles N of FORT MADISON, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 39' 33"N 91° 19' 40"W
722' MSL
1722' MSL
00E
100LL
FORT DODGE (FOD)
CHICAGO
CHICAGO (ZAU)
10/3/24-10/31/24
KFSW VFR
10:35 AM CDT
Clear
10sm
61°F
46°F
29.98"Hg
290° 20kts
Gusts 24kts
AO2
KFSW 131535Z AUTO 29020G24KT 10SM CLR 16/08 A2998 RMK AO2
Add Your Business

KFSW FBOs

Promote Listing
Fort Madison Community Airport
UNICOM: 122.8
Phone: (319) 372-1138
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 9/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.85
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
319-372-5147
 120.925

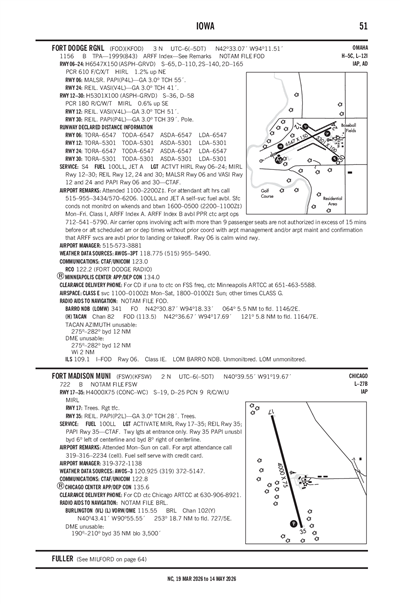

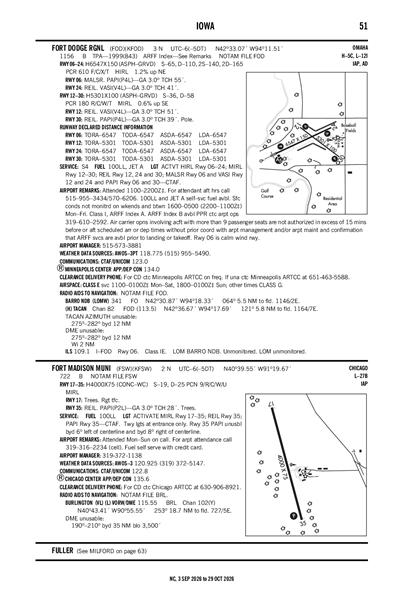

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBRL (11nm)
Sun, 10/13 9:59 AM CDT
Sun, 10/13 10:00 AM CDT - Mon, 10/14 7:00 AM CDT
VFR
10:00 AM CDT - 2:00 AM CDT
Few 25,000'
6sm
310° 18kts
Gusts 27kts
VFR
2:00 AM CDT - 7:00 AM CDT
Few 25,000'
6sm
320° 11kts
KBRL 131459Z 1315/1412 31018G27KT P6SM FEW250
   FM140700 32011KT P6SM FEW250
KFSW
Domestic
10/2/241145Z !FSW 10/001 FSW OBST TOWER LGT (ASN 2018-AGL-18260-OE) 403633N0911052W (7.3NM ESE FSW) 960FT (265FT AGL) U/S 2410021145-2411010001
9/22/240536Z !FSW 09/005 FSW OBST TOWER LGT (ASR 1233405) 403915.40N0913411.80W (11.0NM W FSW) 999.3FT (309.7FT AGL) U/S 2409220536-2501200536
8/29/241544Z !FSW 08/002 FSW OBST TOWER LGT (ASR 1008357) 403756.10N0912610.60W (5.2NM WSW FSW) 963.9FT (298.9FT AGL) U/S 2408291544-2411270400
1/2/241950Z !FSW 01/001 FSW AIRSPACE SEE ZKC 01/022 HIGH SPEED ACFT 2401021950-2501010600
FDC
6/20/231627Z !FDC 3/3350 FSW IAP FORT MADISON MUNI, FORT MADISON, IA.
RNAV (GPS) RWY 17, AMDT 1B...
RNAV (GPS) RWY 35, AMDT 1...
VOR/DME-A, AMDT 7B...
CIRCLING CAT C MDA 1260/ HAA 538.
(PERM OBST 19-064882).
2306201627-2506201626EST
No
MON-SUN ON CALL
FOR ARPT ATTENDANCE CALL 319-316-2234 (CELL).
CITY OF FORT MADISON
AVE E & 8 TH
FORT MADISON, IA 52627
Phone: 319-372-7700
DAVE WOODLEY
50 ARPT RD.
FORT MADISON, IA 52627
Phone: 319-372-1138
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FSW
--
ACTVT MIRL RY 17/35 & REIL RY 35 & PAPI RY 35 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 17/35

4000 ft. x 75 ft.
CONC
Good
WC
MED
9 /R/C/W/U
19,000lbs
25,000lbs
--
--
  Runway 17 Runway 35
True Heading 167°347°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 39' 52"N 40° 39' 14"N
Longitude 91° 19' 46"W 91° 19' 34"W
Elevation 713' 715'
Threshold Crossing Height -- 28 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1TWY LGTS AT ENTRANCE ONLY.
A110-2FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
FORT MADISON MUNI (ICAO: KFSW, IATA: FSW) is a public airport located in FORT MADISON, IA.
