iFlightPlanner



...

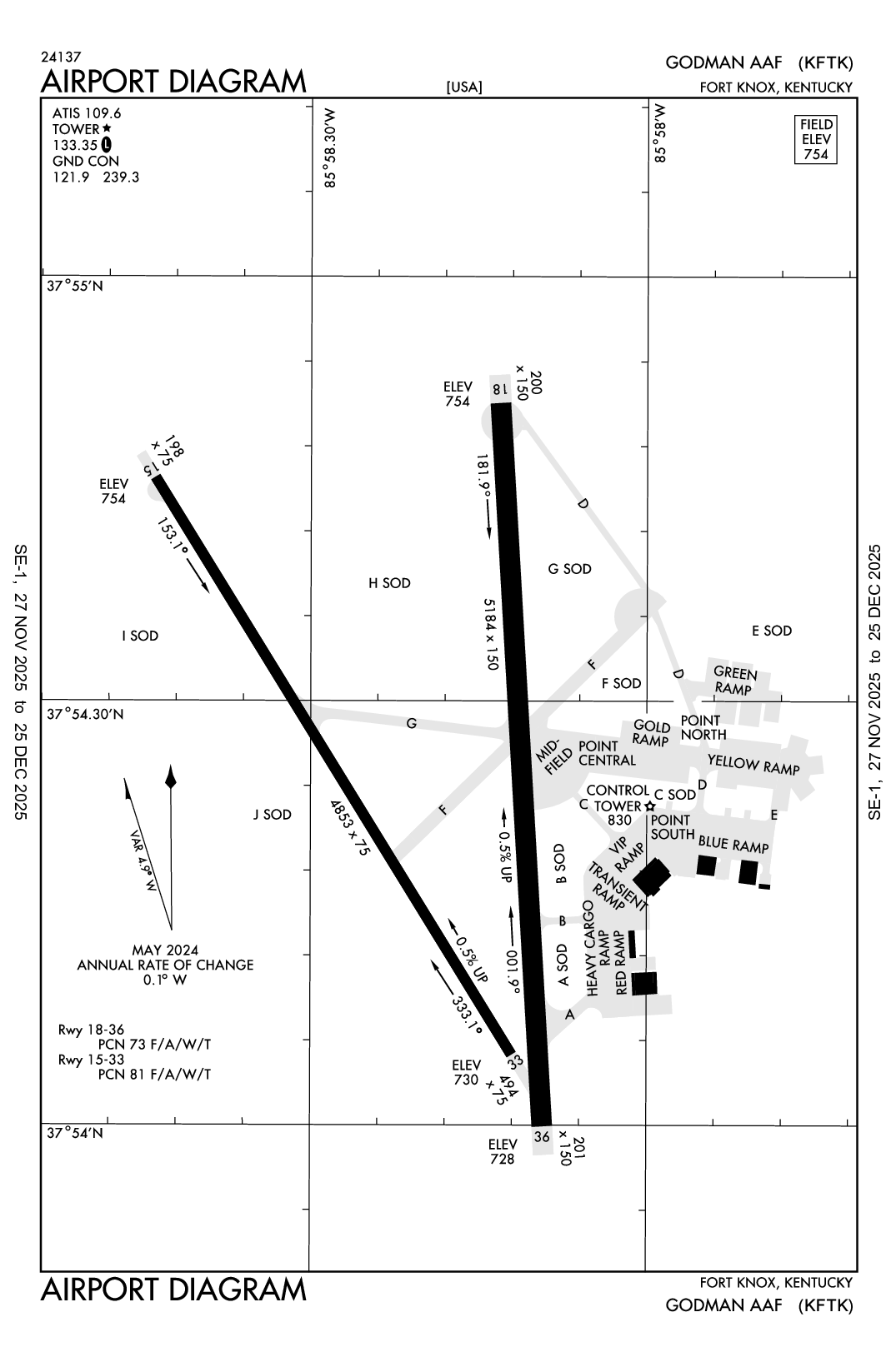

GODMAN AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFTK
GODMAN AAF
PrivatePVT

1 miles W of FORT KNOX, KY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 54' 25"N 85° 58' 19"W
754' MSL
1754' MSL
03W
Jet A+, CILI
LOUISVILLE (LOU)
ST LOUIS
INDIANAPOLIS (ZID)
6/16/22-7/14/22
KFTK VFR
2:26 PM EDT
Broken 18,000'
Scattered 15,000'
Scattered 7,500'
Few 6,000'
10sm
84°F
61°F
30.09"Hg
020° 6kts
AO2 SLP184 $
KFTK 031826Z AUTO 02006KT 10SM FEW060 SCT075 SCT150 BKN180 BKN200 29/16 A3009 RMK AO2 SLP184 $
List Your Business

KFTK FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KFTK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFTK Hotels

No hotels are listed for this airport.

KFTK Restaurants

No restaurants are listed for this airport.

KFTK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 133.35

ATIS

ATIS
Hours: 1100-0300Z++ MON-FRI, 1200-2000Z++ SAT-SUN EXCLD HOL.
 109.6

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 133.35

Other

OPS
 126.2
PMSV METRO
 139.65
PTD
 126.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KSDF (20nm)
Sun, 7/3 1:28 PM EDT
Sun, 7/3 2:00 PM EDT - Mon, 7/4 8:00 PM EDT
VFR
2:00 PM EDT - 8:00 PM EDT
Scattered 10,000'
> 6sm
100° 5kts
VFR
8:00 PM EDT - 9:00 AM EDT
Sky Clear
> 6sm
090° 4kts
VFR
9:00 AM EDT - 8:00 PM EDT
Broken 25,000'
> 6sm
140° 5kts
KSDF 031728Z 0318/0424 10005KT P6SM SCT100
   FM040000 09004KT P6SM SKC
   FM041300 14005KT P6SM BKN250
KFTK
Military
7/5/220145Z AERODROME FORT KNOX FIREWORKS DISPLAY SFC-1000FT AGL 2145L-2300L
6/29/221330Z AERODROME RWY 36 ODALS INOP
6/17/221418Z !KFTK V0273/22 FTK AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED VOR DME RWY 15 AMDT 1B... S-15 HAT 446 ALL CATS. CIRCLING CAT A MDA 1360/HAT 606, CATS B/C/D MDA 1380/HAT 626, VISIBILITY CAT A/B 1, CAT C 1 3/4, CAT D 2. RWY 15 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. CIRCLING TO RWY 36 NA AT NIGHT. 2206171418-2209082359
6/17/221401Z !KFTK V0272/22 FTK AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED VOR DME RWY 18 AMDT 1B... S- MINIMUMS ALL CATS MDA 1240/HAT 486, VISIBILTY 1. CIRCLING CAT A MDA 1360/HAT 606, CATS B/C/D MDA 1380/HAT 626, VISIBILITY CAT A/B 1, CAT C 1 3/4, CAT D 2. RWY 18 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. CIRCLING TO RWY 15 AND 36 NA AT NIGHT. 2206171401-2209082359
6/17/221359Z !KFTK V0271/22 FTK AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED VOR DME RWY 36 AMDT 1B... S-36 HAT 440 ALL CATS. CIRCLING CAT A MDA 1360/HAT 606, CATS B/C/D MDA 1380/HAT 626, VISIBILITY CAT A/B 1, CAT C 1 3/4, CAT D 2. RWY 36 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. VDP NA. STRAIGHT-IN MINIMUMS NA AT NIGHT. CIRCLING TO RWY 15 NA AT NIGHT. 2206171359-2209082359
6/17/221353Z !KFTK V0270/22 FTK AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 36 ORIG B... S-36 HAT 420 ALL CATS. CIRCLING CAT A MDA 1360/HAT 606, CAT B MDA 1380/626, CAT C MDA 1380/HAT 626, CAT D MDA1380/HAT 626. VISIBILITY CAT A/B 1, CAT C 1 3/4, CAT D 2. RWY 36 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. VDP NA. STRAIGHT-IN MINIMUMS NA AT NIGHT. CIRCLING TO RWY 15 NA AT NIGHT. 2206171353-2209082359
6/17/221351Z !KFTK V0269/22 FTK AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 15 ORIG B... S-15 HAT 446 ALL CATS. CIRCLING CAT A MDA 1360/HAT 606, CATS B/C/D MDA 1380/HAT 626, VISIBILITY CAT A/B 1, CAT C 1 3/4, CAT D 2. RWY 15 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. VDP NA. STRAIGHT-IN MINIMUMS NA AT NIGHT. CIRCLING TO RWY 36 NA AT NIGHT. 2206171351-2209082359
6/17/221350Z !KFTK V0268/22 FTK AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 18 ORIG B... S-18 HAT 446 ALL CATS. CIRCLING CAT A MDA 1360/HAT 606, CATS B/C/D MDA 1380/HAT 626, VISIBILITY CAT A/B 1, CAT C 1 3/4, CAT D 2. RWY 18 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. CIRCLING TO RWY 15 AND 36 NA AT NIGHT. 2206171350-2209082359
6/17/221349Z !KFTK V0267/22 FTK AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC DME RWY 18 ORIG C... S-ILS 18 DA 1018/HAT 264, VISIBILITY 1 ALL CATS. S-LOC HAT 366 ALL CATS. CIRCLING CAT A MDA 1360/HAT 606, CATS B/C/D MDA 1380/HAT 626, VISIBILITY CAT A/B 1, CAT C 1 3/4, CAT D 2. RWY 18 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. CIRCLING TO RWY 15 AND 36 NA AT NIGHT. 2206171349-2209082359
6/17/221348Z !KFTK V0266/22 FTK AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES CHANGED -- RWY 15 300-1 1/4 OR STANDARD WITH A MINIMUM CLIMB GRADIENT OF 24O FT/NM TO 1200. 2206171348-2209082359
6/16/221542Z OBST CRANE AT 375412N855857W SFC-175FT AGL FLAGGED
6/1/220401Z DUE TO POTENTIAL 5G INTERFERENCE, RADIO ALTIMETER MAY BE UNUSABLE. REFER TO 5G ? RADIO ALTIMETER TAB ON DAIP FOR MORE INFORMATION AND REPORTING INSTRUCTIONS.
4/13/221250Z !KFTK M0087/22 FTK SVC ATC TWR OPERATING HOURS NOW 1500L-2300L MON-FRI CLSD WEEKENDS AND HOLIDAYS 2204131250-2207080300
Yes
ALL
SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
US ARMY ATCA-ASO
CAMERON STA
ALEXANDRIA, VA 22314
RICKEY WEBB


Phone: 502-624-5737
LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF
FTK
--
ACTVT SSALR RWY 18; ODALS RWY 36; REIL RWY 18; PAPI RWY 18 & 36; HIRL 18/36 - CTAF. 0400-1200Z++.
Split-Clear-Green
ROTG BCN LCTD ON ATCT.
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 15/33

4853 ft. x 75 ft.

ASPH

MED
66 /F/A/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 54' 46"N 37° 54' 05"N
Longitude 85° 58' 44"W 85° 58' 12"W
Elevation 754' 730'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

5184 ft. x 150 ft.

ASPH

HIGH
89 /F/A/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 54' 51"N 37° 53' 60"N
Longitude 85° 58' 13"W 85° 58' 09"W
Elevation 754' 728'
Threshold Crossing Height 50 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR ODALS
Centerline Lights
Runway End Identifier Lights Yes
A110-11DEER & COYOTE INVOF ARPT SPCLY 1 HR PRIOR SR & SS.
A110-13MISC: ALL WX FCST PMSV BRIEFINGS & SUPPORT 1100-0400++ MON-FRI; CLSD HOL. OTR TIMES - SCOTT OWS D576-9755/9702/C618-256-9755/9702; HTTPS://15OWS.US.AF.MIL WX OBS AUTO & AUGMENTED.
A110-19TSNT ACFT PRKG ON GREEN RAMP UNLESS ALTN PRKG COORD. C-130 & LRGR PARK ON CONC PAD BTW TWY A & B.
A110-23MISC: RANGE INFO - 38.90; 136.075.
A110-24MISC: IR LGT INSTL APCH END RWY 15 ASSAULT STRIP.
A110-25SEE FLIP AP/1 & FT KNOX REG 95-1 SUPPLEMENTARY ARPT INFO.
A110-26RSTD: PPR FOR TSNT - D464-5536/C502-624-5536; VIP CTC OPS 20 MIN PRIOR TO LDG.
A110-32COMM: AIR TO AIR UHF 237.5 WI FORT KNOX ASP.
A110-33COMM: PTD OPS 1230-2100Z++ MON-FRI; CLSD HOL. PTD - 126.2, 234.4; ATIS - 109.6; LOUSIVILLE APP/DEP 132.075, 327.0.
A110-36AIRFIELD OPS 126.2, 234.4; 1230-2100Z++ MON-FRI; CLSD HOL.
A110-37NON-MOV AREA BLUE, YELLOW, GOLD & TWY D FM BLUE RAMP TO POINT NORTH. VEHICLE ACES TO FLIGHTLINE UNAVBL WHEN AIRFIELD OPS CLSD.
A110-38TRANS ALERT SVC NOT AVBL.
A110-41NO SHOULDERS RWY 18/36, 15/33, TWY B, C, & D. TWY F UNLGT.
A110-45MISC: RWY 33 & 36 CLEAR ZONES NSTD.
A110-47FICON UNAVBL WHEN AIRFIELD OPS CLSD.
A110-48WHEN TWR & AIRFIELD OPS CLSD USE 126.2 FOR IFR/SVFR CLNCS, RELEASES, & ARR. IF UNBL CTC LOUISVILLE APP/DEP C502-375-7499.
A110-49CTN: RAILROAD CROSSES NW - SE 625 FT FM AER 18 CNTRLN; ARR RWY 18 OR DEP RWY 36 NA WHEN RAIL CARS WI RWY CLEAR ZONE. FENCE 565 FT FM AER 18. RSTD AREA 1 NM E OF ARPT. OVERFLIGHT OF GOLD DEPOSITORY 1 NM S OF RWY 36 NA. EXTV UAS OPS IN CLASS D & R3704A/B. R/W AIRCREWS PLANNING OPS WI R3704A MUST RCV RANGE BRIEFING PRIOR TO OPS.
A110-51RSTD: TWY D RSTRD TO R/W ONLY.
GODMAN AAF (ICAO: KFTK, IATA: FTK) is a private airport located in FORT KNOX, KY.
