iFlightPlanner



...
SUSSEX - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFWN
ICAO KFWNLocal FWN
SUSSEX
PublicPUB

1 miles SW of SUSSEX, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 12' 01"N 74° 37' 23"W
Elevation
422' MSL
Pattern Alt
1422' MSL
Mag Variation
12°W
Declination
13°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
9/3/26-10/1/26
K12N (13nm) VFR
2:54 PM EDT
No Clouds
N/A
77°F
55°F
30.09"Hg
Calm
AO1 SLP185 T02500128
METAR K12N 121854Z AUTO 00000KT 25/13 A3009 RMK AO1 SLP185 T02500128
+ Add Your Business

KFWN FBOs

Promote Listing
Sussex Airport
UNICOM: 122.7
Phone: (973) 875-7337
No Rating Available
0 Reviews (Read | Sign In To Write)

KFWN Aircraft Service & Maintenance

Promote Listing
Three Crown Avionics Inc.
Phone: (973) 875-9745
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 118.525
(973) 970-3780

Common

CTAF 122.7
DUSK-DAWN. ACTVT MIRL RWY 03/21 - CTAF.
UNICOM 122.7

Approach

NEWARK APPROACH 123.775
SFC TO 7000 FT

Departure

NEWARK DEPARTURE 123.775
SFC TO 7000 FT

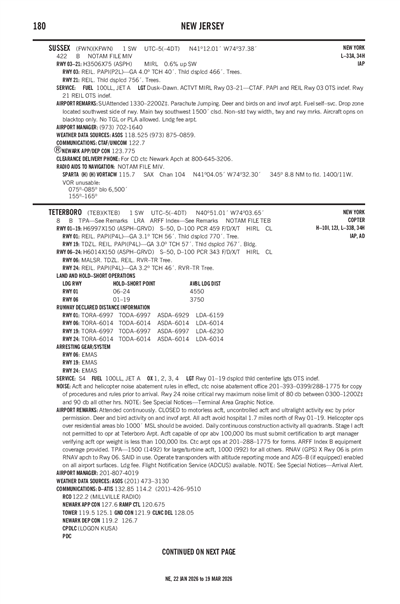

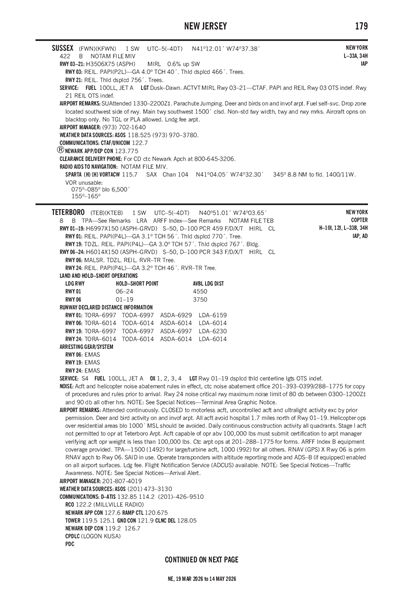

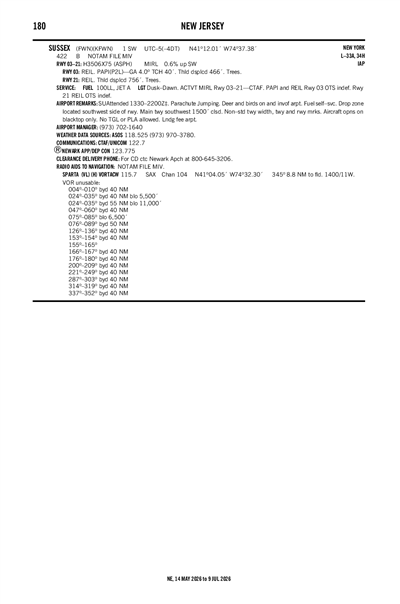

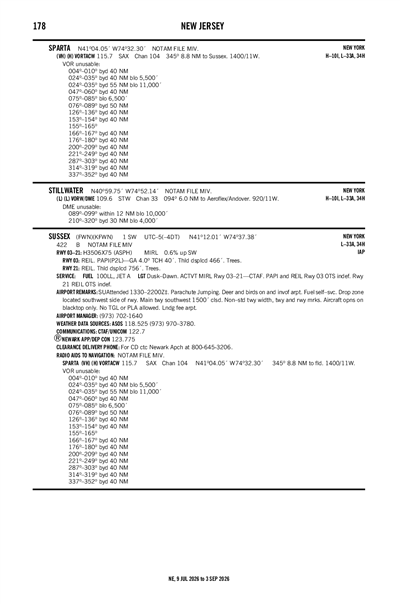

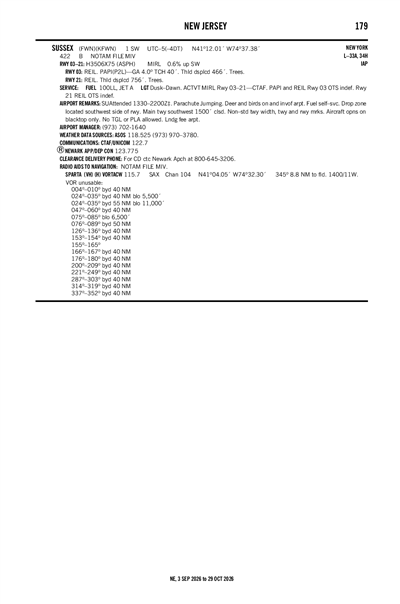

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSWF (30nm)
Sat, 9/12 2:01 PM EDT
Sat, 9/12 2:00 PM EDT - Sun, 9/13 8:00 PM EDT
VFR
2:00 PM EDT - 4:00 PM EDT
Broken 25,000'
Scattered 15,000'
Scattered 8,000'
6sm
190° 7kts
VFR
4:00 PM EDT - 2:00 AM EDT
Broken 25,000'
Broken 10,000'
Scattered 5,000'
6sm
160° 8kts
MVFR
2:00 AM EDT - 4:00 AM EDT
Light Showers and Rain and Mist
Overcast 5,000'
Broken 2,500'
Scattered 1,500'
5sm
130° 5kts
IFR
4:00 AM EDT - 10:00 AM EDT
Showers and Rain and Mist
Broken 600'
4sm
100° 5kts
IFR
4:00 AM EDT - 10:00 AM EDT
Thunderstorm and Rain
Broken 600'
2sm
Calm
IFR
10:00 AM EDT - 12:00 PM EDT
Light Showers and Rain and Mist
Broken 800'
5sm
340° 4kts
IFR
10:00 AM EDT - 12:00 PM EDT
Light Thunderstorm and Rain
Broken 800'
4sm
Calm
MVFR
12:00 PM EDT - 2:00 PM EDT
Broken 2,500'
6sm
300° 7kts
VFR
2:00 PM EDT - 8:00 PM EDT
Broken 4,000'
6sm
300° 6kts
TAF KSWF 121801Z 1218/1324 19007KT P6SM SCT080 SCT150 BKN250
   FM122000 16008KT P6SM SCT050 BKN100 BKN250
   FM130600 13005KT 5SM -SHRA BR SCT015 BKN025 OVC050
   FM130800 10005KT 4SM SHRA BR BKN006
   PROB30 1308/1314 2SM TSRA BKN006CB
   FM131400 34004KT 5SM -SHRA BR BKN008
   PROB30 1314/1316 4SM -TSRA BKN008CB
   FM131600 30007KT P6SM BKN025
   FM131800 30006KT P6SM BKN040 AMD NOT SKED
KFWN
EffectiveExpiresCategoryNOTAM
Domestic
9/7/26
1124Z
12/6/26
0400Z
!MIV 09/186 FWN OBST TOWER LGT (ASR 1284238) 412127.30N0745523.60W (16.3NM NW FWN) 1586.9FT (185.0FT AGL) U/S 2609071124-2612060400
8/19/26
2025Z
10/7/26
1700Z
!MIV 08/267 FWN OBST TOWER LGT (ASR 1057750) 411816.60N0744025.90W (6.7NM NNW FWN) 1797.2FT (221.1FT AGL) U/S 2608192025-2610071700
8/14/26
0111Z
9/14/26
2300Z
!MIV 08/209 FWN OBST TOWER LGT (ASN 1990-AEA-1118-OE) 410834N0743223W (5.1NM SE FWN) 1528FT (220FT AGL) U/S 2608140111-2609142300
FDC
2/17/26
1423Z
!FDC 6/4756 FWN ODP SUSSEX, SUSSEX, NJ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
DEPARTURE PROCEDURE: RWY 3, NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE. 2602171423-2609291423EST
No
0830-1700
SUSSEX AVIATION LLC
PO BOX 311
SUSSEX, NJ 07461
Phone: (973) 702-1640
JOHN MASSARI
PO BOX 311
SUSSEX, NJ 07461
Phone: (973) 702-1640
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
DUSK-DAWN. ACTVT MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance
Avionics
Pilot Instruction
Parachute Jump Activity

Runway 03/21

3506 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 03 Runway 21
True Heading 16°196°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 11' 44"N 41° 12' 17"N
Longitude 74° 37' 29"W 74° 37' 17"W
Elevation 421' 401'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1PAJA, DROP ZONE LCTD SW SIDE OF RWY.
A110-10NO TGL OR PLA ALLOWED.
A110-3NON-STD TWY WIDTH, TWY AND RWY MRKGS. AIRCRAFT OPNS ON BLACKTOP ONLY.
A110-6MAIN TWY SW 1500 FT CLSD.
A110-8FOR CD CTC NEWARK APCH AT 800-645-3206.
A110-9DEER AND BIRDS ON AND INVOF ARPT.
A43-03RWY 03 PAPI OTS INDEFLY.
A48-03RWY 03 REIL OTS INDEFLY.
A48-21RWY 21 REIL OTS INDEFLY.
A57-03RWY 03 APCH RATIO 14:1 TO DSPLCD THR.
A57-21RWY 21 APCH RATIO 16:1 TO DSPLCD THR.
A58-0315 FT TREE, 38 FT FM RWY END, 176 FT RIGHT.
A58-2110 FT SIGN, 41 FT FM RWY END, 44 FT RIGHT.
A70-ASELF-SVC.
A81-APTDUSK-DAWN. ACTVT MIRL RWY 03/21 - CTAF.
E111BUILT PRIOR TO 1959.
SUSSEX (ICAO: KFWN, IATA: FWN) is a public airport located in SUSSEX, NJ, US.
