NORTHEAST WYOMING RGNL - Airport Diagram

KGCC

ICAO KGCCIATA GCCLocal GCC

NORTHEAST WYOMING RGNL

PublicPUB

4 miles NW of GILLETTE, WY, US

View on Map

Status

Operational

Coordinates

44° 20' 56"N 105° 32' 22"W

Elevation

4365' MSL

Pattern Alt

5165' MSL

Mag Variation

9°E

Declination

9°E

Fuel

JET A, JET A (FSII), 100LL

FSS

CASPER (CPR)

Sectional

CHEYENNE

ARTCC

DENVER (ZDV)

Data Effective

2/19/26-3/19/26

KGCC VFR

7:53 AM MDT RAW

Mist

Overcast 3,400'
Few 1,200'

Viz

6sm

Temp

12°F

Dew

8°F

Pres

30.26"Hg

Wind

340° 13kts

Gusts 24kts

RMK

AO2 PK WND 34028/1301 UPB40E50SNE40B50E51 SLP300 P0000 T11111133 $

METAR KGCC 151353Z AUTO 34013G24KT 6SM BR FEW012 OVC034 M11/M13 A3026 RMK AO2 PK WND 34028/1301 UPB40E50SNE40B50E51 SLP300 P0000 T11111133 $

Add Your Business

KGCC FBOs

Promote Listing

Thunder Basin Aviation

UNICOM: 122.95

Phone: (307) 687-6469

0 Reviews (Read | Sign In To Write)

Avfuel

As of 3/3	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.79
Full Serve	6.10	6.35	6.50

Fuel Notes

FSII (Prist) available on request for $0.15 per gal.

Fuel Hours

Self Serve 100LL open 24 hours a day.
FBO Hours 0400 - 2200 7 days a week
After Hours 2200 - 0400 On Call Available 307-660-0069

Your Information

Business

Weather and Advisory

ASOS	124.175
(307) 225-9101

Common

CTAF	118.5
ACTVT MALSR RWY 34; REILS RWYS 03, 16, &21; HIRL RWY 16/34; MIRL RWY 03/21 - CTAF. SEQUENCE FLASHERS RWY 34 AVBL ON HIGH SETTING ONLY. PAPI RWYS 03, 16, 21, 34 OPR CONSLY.
UNICOM	122.95

Center

DENVER CENTER	135.6
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 135.6/363.025 (SUNDANCE RCAG).

Flight Service

Flight Service	122.3
(CPR)

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

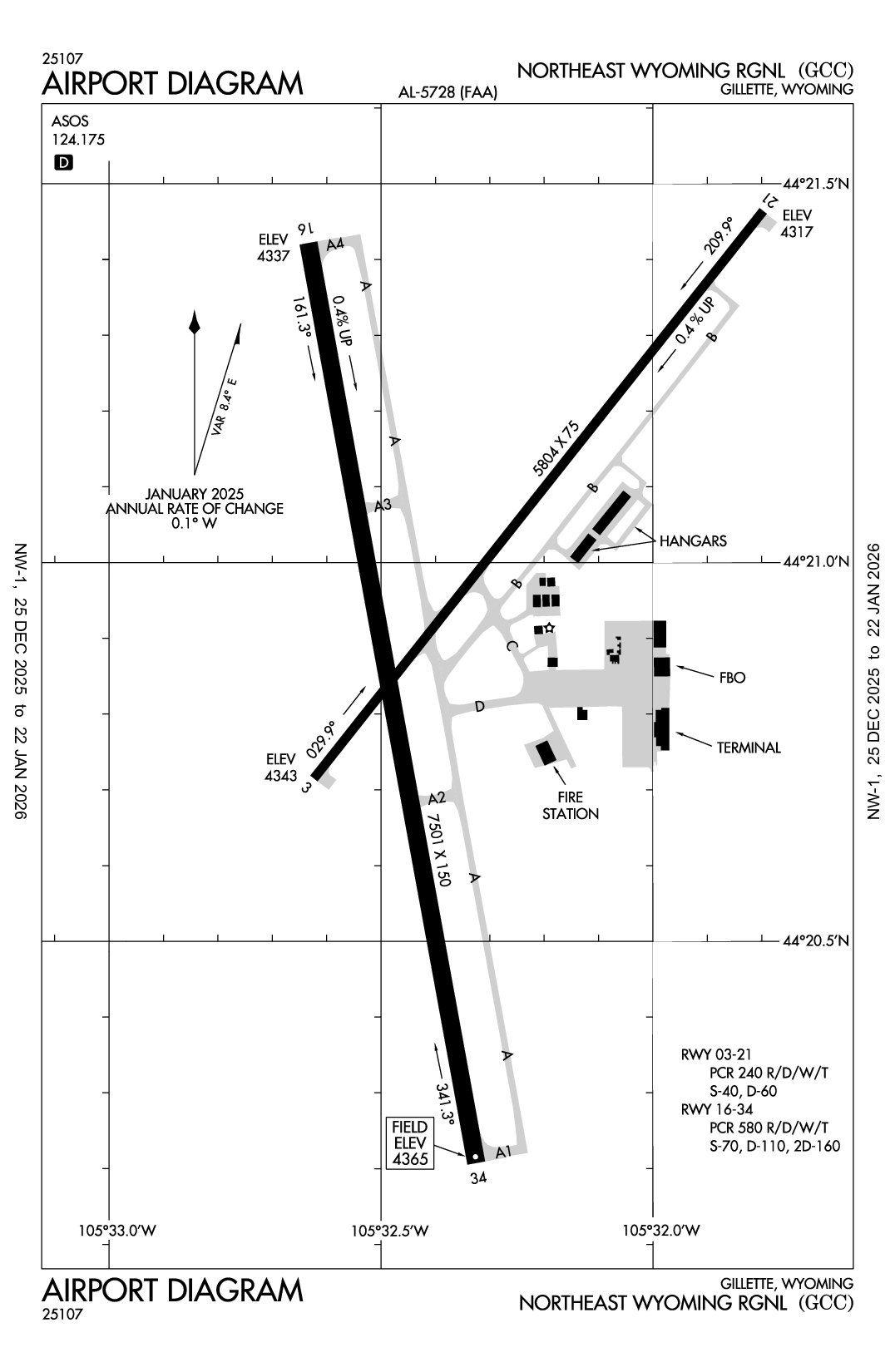

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGCC

RAW

Reported

Sun, 3/15 6:55 AM MDT

Valid

Sun, 3/15 7:00 AM MDT - Mon, 3/16 6:00 AM MDT

IFR

7:00 AM MDT - 11:00 AM MDT

Light Snow

Overcast 1,500'

Viz

2sm

Wind

330° 18kts

Gusts 28kts

MVFR

11:00 AM MDT - 8:00 PM MDT

Broken 2,500'

Viz

6sm

Wind

340° 11kts

VFR

8:00 PM MDT - 6:00 AM MDT

Few 25,000'

Viz

6sm

Wind

260° 7kts

TAF KGCC 151255Z 1513/1612 33018G28KT 2SM -SN OVC015
FM151700 34011KT P6SM BKN025
FM160200 26007KT P6SM FEW250

KGCC

Effective	Expires	Category	NOTAM
Domestic
3/16/26 1330Z	3/16/26 2000Z		!GCC 03/097 GCC NAV ILS RWY 34 U/S 2603161330-2603162000
3/15/26 1432Z	3/16/26 1432Z		!GCC 03/150 GCC TWY A4 FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2603151432. 2603151432-2603161432
3/15/26 1431Z	3/16/26 1431Z		!GCC 03/149 GCC TWY D FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2603151431. 2603151431-2603161431
3/15/26 1431Z	3/16/26 1431Z		!GCC 03/148 GCC TWY C FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2603151431. 2603151431-2603161431
3/15/26 1431Z	3/16/26 1431Z		!GCC 03/147 GCC TWY A FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2603151431. 2603151431-2603161431
3/15/26 1430Z	3/16/26 1430Z	Runway	!GCC 03/146 GCC RWY 34 FICON 25 PCT COMPACTED SN OBS AT 2603151430. 2603151430-2603161430
3/15/26 1406Z	3/15/26 2300Z		!GCC 03/145 GCC TWY A3 CLSD 2603151406-2603152300
3/15/26 1405Z	3/15/26 2300Z		!GCC 03/144 GCC TWY A2 CLSD 2603151405-2603152300
3/15/26 1405Z	3/15/26 2300Z		!GCC 03/143 GCC TWY B CLSD 2603151405-2603152300
3/15/26 1404Z	3/15/26 2300Z	Runway	!GCC 03/142 GCC RWY 21 CLSD 2603151404-2603152300
3/15/26 1122Z	3/15/26 2100Z		!GCC 03/141 GCC AD AP ALL SFC WIP SN REMOVAL 2603151122-2603152100
3/15/26 1059Z	3/16/26 1059Z		!GCC 03/140 GCC APRON ALL FICON PATCHY ICE AND PATCHY 1/8IN DRY SN OVER COMPACTED SN OBS AT 2603151059. 2603151059-2603161059
3/15/26 0143Z	3/15/26 1300Z		!GCC 03/111 GCC TWY A3 CLSD 2603150143-2603151300
3/15/26 0142Z	3/15/26 1300Z		!GCC 03/110 GCC TWY A2 CLSD 2603150142-2603151300
3/15/26 0140Z	3/15/26 1300Z		!GCC 03/109 GCC TWY B CLSD 2603150140-2603151300
3/15/26 0138Z	3/15/26 1300Z	Runway	!GCC 03/108 GCC RWY 21 CLSD 2603150138-2603151300
3/12/26 0515Z	4/26/26 0739Z		!GCC 03/053 GCC OBST TOWER LGT (ASN 1988-ANM-43-OE) 440011N1053722W (21.1NM S GCC) 5655FT (705FT AGL) U/S 2603120515-2604260739
3/3/26 1844Z	3/23/26 2359Z		!GCC 03/001 GCC OBST TOWER LGT (ASR 1061218) 441657.80N1053836.10W (6.0NM SW GCC) 5178.8FT (232.0FT AGL) U/S 2603031844-2603232359
2/17/26 2124Z	9/1/26 2359Z		!GCC 02/039 GCC OBST TOWER LGT (ASR 1257220) 435957.00N1051517.00W (24.3NM SSE GCC) 5829.7FT (1152.9FT AGL) U/S 2602172124-2609012359

ATC Tower

Attendance

0500-0000

Owner

CAMPBELL CO
307 TERMINAL LOOP SUITE 108
GILLETTE, WY 82716
Phone: 307-686-1042

Manager

TODD CHATFIELD
307 TERMINAL LOOP SUITE 108
GILLETTE, WY 82716
Phone: 307-686-1042

FSS

CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF

NOTAM

GCC

Light Schedule

Lights

ACTVT MALSR RWY 34; REILS RWYS 03, 16, &21; HIRL RWY 16/34; MIRL RWY 03/21 - CTAF. SEQUENCE FLASHERS RWY 34 AVBL ON HIGH SETTING ONLY. PAPI RWYS 03, 16, 21, 34 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 03/21

Dimensions

5804 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

40,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	38°	218°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	44° 20' 43"N	44° 21' 28"N
Longitude	105° 32' 37"W	105° 31' 48"W
Elevation	4,343'	4,317'
Threshold Crossing Height	41 ft. AGL	39 ft. AGL
Visual Glide Path Angle	4°	4°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 16/34

Dimensions

7501 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

70,000lbs

Double Wheel

110,000lbs

Double Tandem

160,000lbs

Dual Dbl Tand

	Runway 16	Runway 34
True Heading	170°	350°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	44° 21' 25"N	44° 20' 12"N
Longitude	105° 32' 38"W	105° 32' 20"W
Elevation	4,337'	4,365'
Threshold Crossing Height	43 ft. AGL	56 ft. AGL
Visual Glide Path Angle	3.17°	3.2°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes

A110-10	OPN ON UNPAVED SFCS PROHIBITED.
A110-11	AFT HRS OPS CTC - 307-257-3137
A110-3	MINING/BLASTING OPNS 1/2 MILE N OF AOA DURG DALGT HRS.
A110-7	BIRDS INVOF ARPT.
A110-8	CONDS UNMON.
A16	307-686-1042
A26	PPR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 307-686-1042.
A39-03/21	PCR VALUE: 240/R/D/W/T
A39-16/34	PCR VALUE: 580/R/D/W/T
A52-16	+56 FT BLDG 1600 FT FM RWY END 568 FT R.
A70-100LL	FUEL AVBL H24 VIA CREDIT CARD.
A81-APT	ACTVT MALSR RWY 34; REILS RWYS 03, 16, &21; HIRL RWY 16/34; MIRL RWY 03/21 - CTAF. SEQUENCE FLASHERS RWY 34 AVBL ON HIGH SETTING ONLY. PAPI RWYS 03, 16, 21, 34 OPR CONSLY.
E111	ESTABLISHED PRIOR TO 1959.
E147	TPA: 800 FT AGL LGT ACFT, 1200 FT AGL LRG ACFT.

NORTHEAST WYOMING RGNL (ICAO: KGCC, IATA: GCC) is a public airport located in GILLETTE, WY, US.
