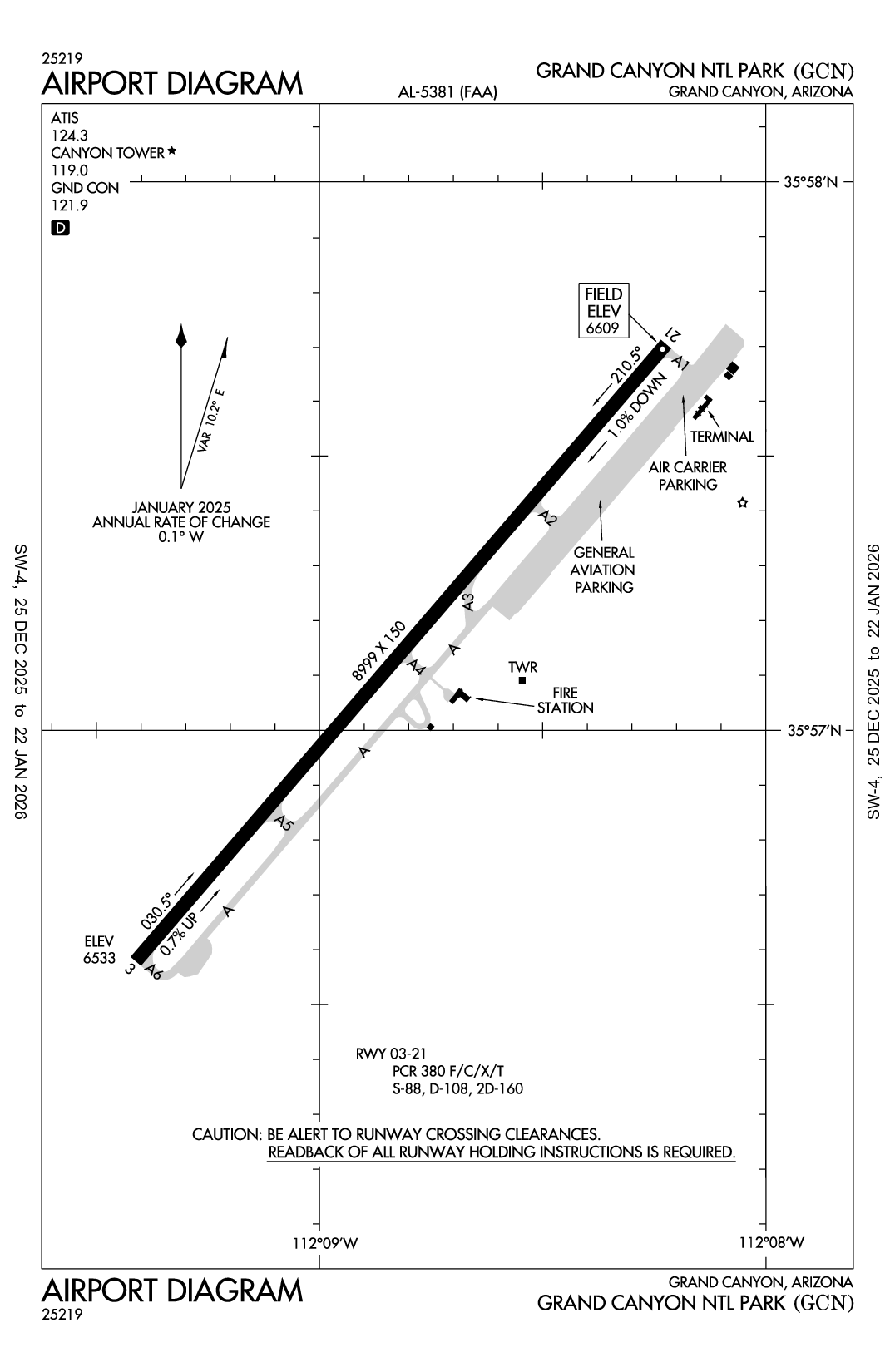

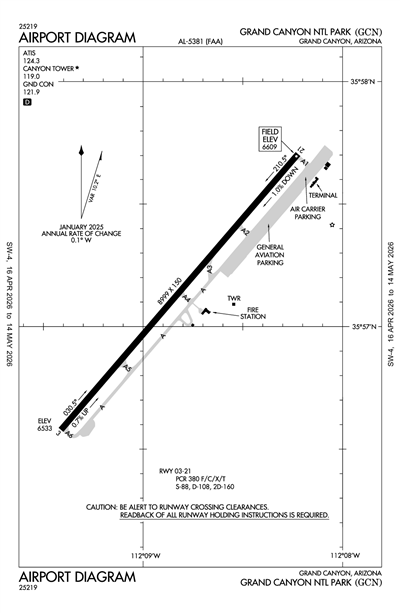

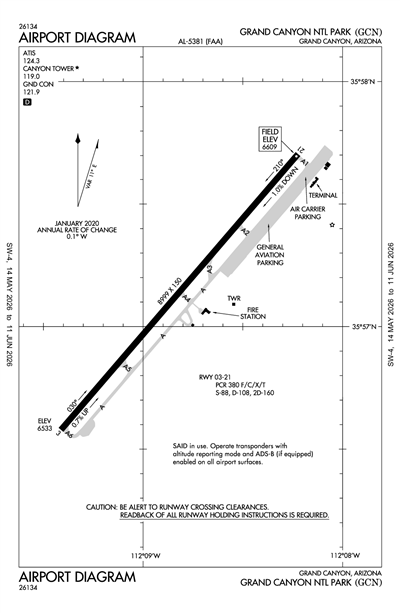

GRAND CANYON NTL PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGCN
GRAND CANYON NTL PARK
PublicPUB

6 miles S of GRAND CANYON, AZ
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 57' 08"N 112° 08' 49"W
6609' MSL
7609' MSL
11E
Jet A, 100LL
PRESCOTT (PRC)
LAS VEGAS
LOS ANGELES (ZLA)
6/16/22-7/14/22
KGCN VFR
6:54 AM MST
Clear
10sm
54°F
24°F
30.32"Hg
Calm
AO2 SLP167 T01221044 $
KGCN 071354Z 00000KT 10SM CLR 12/M04 A3032 RMK AO2 SLP167 T01221044 $

KGCN FBOs, Flight Schools and Ground Support

Grand Canyon Airlines
Freq: 122.95
Phone: (928) 638-7117
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 6/7
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.13 6.91 6.96

KGCN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGCN Hotels

No hotels are listed for this airport.

KGCN Restaurants

No restaurants are listed for this airport.

KGCN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.0

ATIS

ATIS
124.3

ASOS

ASOS
928-638-0672
124.3

Emergency

EMERG
121.5

Ground

GND/P
121.9

Tower

LCL/P
119.0

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGCN
Thu, 7/7 4:20 AM MST
Thu, 7/7 5:00 AM MST - Fri, 7/8 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Sky Clear
> 6sm
VRB° 5kts
VFR
11:00 AM MST - 7:00 PM MST
Sky Clear
> 6sm
230° 12kts
Gusts 22kts
VFR
7:00 PM MST - 5:00 AM MST
Sky Clear
> 6sm
VRB° 5kts
KGCN 071120Z 0712/0812 VRB05KT P6SM SKC
   FM071800 23012G22KT P6SM SKC
   FM080200 VRB05KT P6SM SKC
KGCN
Domestic
7/3/220526Z !GCN 07/001 GCN OBST TOWER LGT (ASR 1279754) 355929.60N1120736.90W (2.5NM NNE GCN) 6859.9FT (128.0FT AGL) U/S 2207030526-2207180426
3/2/221200Z !GCN 03/001 GCN AIRSPACE PJE WI AN AREA DEFINED AS 2NM RADIUS OF GCN SFC-17500FT DLY 1200-0001 2203021200-2302280001
Yes
OCT 1 - MAY 31 0700-1900
JUN 1 - SEP 30 0600-2000
STATE OF ARIZONA
DEPARTMENT OF TRANS-ASD, 206 S. 17TH AVE MD178
PHOENIX, AZ 85007
Phone: (602) 712-6255
MATT SMITH
PO BOX 3399
GRAND CANYON, AZ 86023
Phone: 928-638-2446
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
GCN
--
ACTVT MIRL RWY 03/21 - CTAF WHEN ATCT CLSD. ACTVT PAPI RWY 21 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
4
2
0
33
0
0
Minor
Major
Low Pressure
Low Pressure
Air Freight
Avionics
Charter Service

Runway 03/21

8999 ft. x 150 ft.
ASPH
Good
GRVD
MED
52 /F/C/W/T
88,000lbs
108,000lbs
160,000lbs
--
  Runway 03 Runway 21
True Heading 41°221°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 35° 56' 35"N 35° 57' 42"N
Longitude 112° 09' 25"W 112° 08' 13"W
Elevation 6,533' 6,609'
Threshold Crossing Height -- 56 ft. AGL
Visual Glide Path Angle --
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1PART 77 OBSTNS-TREES BOTH SIDES OF RWY.
A110-2CONDORS INVOF ARPT.
A110-3HVY VOLUME OF AIR TAXI FLIGHTS INVOF GRAND CANYON. NOTE: SEE SPECIAL NOTICES GRAND CANYON SPECIAL FLIGHT RULES AREA.
A110-4RWY 03/21 LGTD DISTANCE REMAINING SIGNS ON E SIDE.
A110-5ARFF INDEX B AVBL WITH 24 HR PPR CALL AMGR 928-638-2446.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
GRAND CANYON NTL PARK (ICAO: KGCN, IATA: GCN) is a public airport located in GRAND CANYON, AZ.
