iFlightPlanner



...

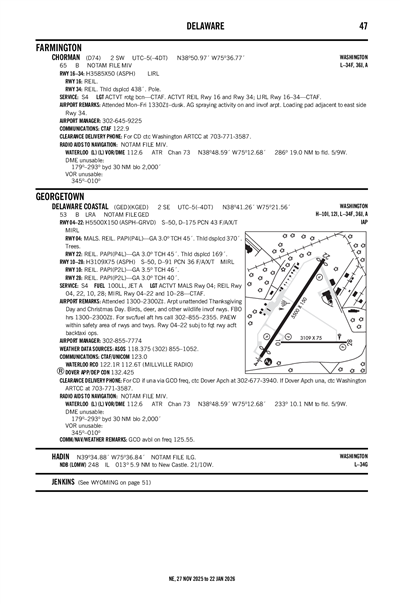

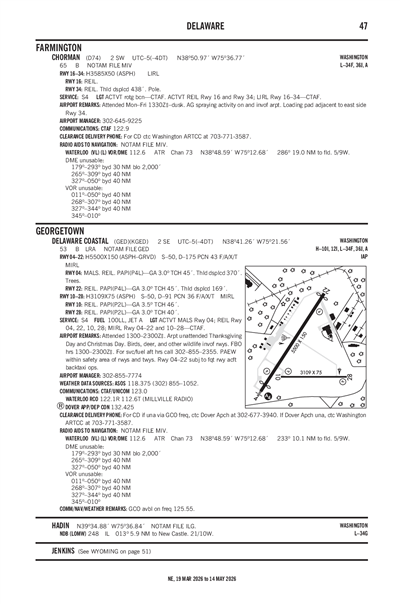

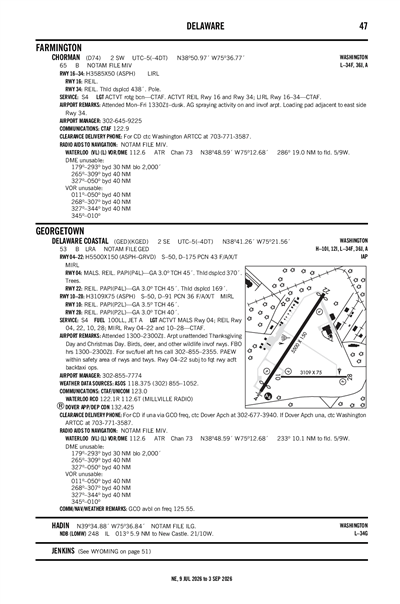

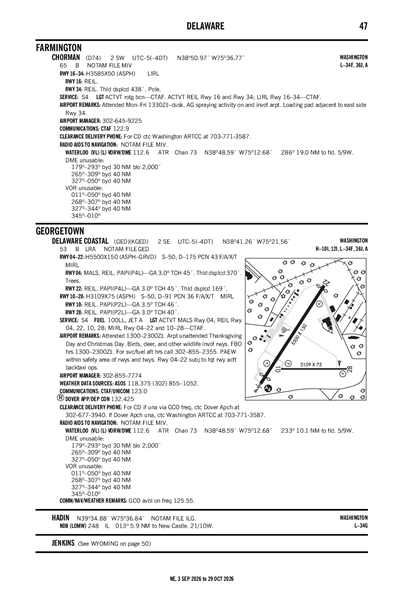

DELAWARE COASTAL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGED
DELAWARE COASTAL
PublicPUB

2 miles SE of GEORGETOWN, DE
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 41' 15"N 75° 21' 33"W
53' MSL
1053' MSL
12W
Jet A, 100LL
MILLVILLE (MIV)
WASHINGTON
WASHINGTON (ZDC)
6/16/22-7/14/22
KGED VFR
4:54 AM EDT
Overcast 8,000'
Broken 6,500'
10sm
76°F
72°F
29.89"Hg
150° 5kts
AO2 SLP121 T02440222 53000
KGED 070854Z AUTO 15005KT 10SM BKN065 OVC080 24/22 A2989 RMK AO2 SLP121 T02440222 53000

KGED FBOs, Flight Schools and Ground Support

Georgetown Air Services
Freq: 123.0
Phone: (302) 855-2355
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/30
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.43 7.50

KGED Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGED Hotels

No hotels are listed for this airport.

KGED Restaurants

No restaurants are listed for this airport.

KGED Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
302-855-1052
118.375

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBY (22nm)
Thu, 7/7 1:39 AM EDT
Thu, 7/7 2:00 AM EDT - Fri, 7/8 2:00 AM EDT
VFR
2:00 AM EDT - 6:00 AM EDT
Showers in vicinity
Broken 4,000'
Scattered 700'
> 6sm
VRB° 3kts
IFR
6:00 AM EDT - 10:00 AM EDT
Mist and Showers in vicinity
Broken 700'
5sm
Calm
MVFR
10:00 AM EDT - 2:00 PM EDT
Showers in vicinity
Broken 2,500'
> 6sm
060° 6kts
VFR
2:00 PM EDT - 9:00 PM EDT
Showers in vicinity
Broken 3,500'
> 6sm
090° 6kts
MVFR
9:00 PM EDT - 2:00 AM EDT
Broken 1,500'
> 6sm
060° 4kts
KSBY 070539Z 0706/0806 VRB03KT P6SM VCSH SCT007 BKN040
   FM071000 00000KT 5SM BR VCSH BKN007
   FM071400 06006KT P6SM VCSH BKN025
   FM071800 09006KT P6SM VCSH BKN035
   FM080100 06004KT P6SM BKN015
KGED
Domestic
7/9/220015Z !GED 07/003 GED AIRSPACE SEE FDC 2/8094 ZDC 91.141 VIP TFR 2207090015-2207110300
7/7/220847Z !GED 07/004 GED OBST TOWER LGT (ASR 1034804) 383124.00N0751754.00W (10.3NM SSE GED) 560.0FT (520.0FT AGL) U/S 2207070847-2208060001
7/6/221332Z !GED 07/002 GED TWY A BTN TWY B AND TWY H WIP 2207061332-2207102200
7/5/221100Z !GED 06/041 GED RWY 04/22 BACK TAX OPS 2207051100-2207182200
7/5/221100Z !GED 06/040 GED TWY A BTN 500FT NORTHEAST TWY B AND TWY A RUNUP PAD FOR RWY 22 CLSD TO TRANSIENT 2207051100-2207182200
7/5/221100Z !GED 06/039 GED TWY A BTN TWY B AND 500FT NORTHEAST OF TWY B CLSD LGTD
AND BARRICADED 2207051100-2207182200
7/1/220758Z !GED 07/001 GED OBST TOWER LGT (ASR 1310440) 384608.90N0751821.60W (5.46NM NNE GED) 224FT (199FT AGL) U/S 2207010758-2208150758
6/21/221522Z !GED 06/026 GED OBST TOWER LGT (ASR 1308923) 384025.50N0751413.80W (5.7NM E GED) 182FT (151FT AGL) U/S 2206211522-2207211700EST
6/2/221806Z !GED 06/003 GED TWY A BTN TWY B AND APCH END RWY 22 WIP CONST ADJ 2206021806-2208022359
6/2/221805Z !GED 06/002 GED TWY B BTN RWY 04/22 AND TWY A WIP CONST ADJ 2206021805-2208022359
3/30/221432Z !GED 03/022 GED RWY 04 PAPI UNUSABLE 2203301432-2209302111EST
3/29/221901Z !GED 03/021 GED RWY 28 PAPI U/S 2203291901-2209292359
1/19/220501Z !GED 01/075 GED AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
6/16/221541Z !FDC 2/0339 GED IAP DELAWARE COASTAL, GEORGETOWN, DE.
RNAV (GPS) RWY 4, AMDT 3...
LPV DA 355/HAT 304. CHART NOTE: RWY 4 HELICOPTER VISIBILITY
REDUCTION BELOW 3/4 SM NOT AUTHORIZED. DELETE NOTE: DME/DME RNP-0.3
NA. PBN REQUIREMENTS NOTE: RNP APCH-GPS. DELETE NOTE: WHEN LOCAL
ALTIMETER SETTING NOT RECEIVED, USE SALISBURY ALTIMETER SETTING AND
INCREASE LPV DA TO 353 FT, LNAV/VNAV DA TO 555 FT. INCREASE ALL MDA
60 FT. INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 1/2 MILE, LNAV
CATS C/D VISIBILITY TO 1 1/4 MILE AND INCREASE CIRCLING CAT C
VISIBILITY TO 2 MILES AND CAT D VISIBILITY TO 2 1/4 MILES. CHANGE
NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA
BELOW -13 C OR ABOVE 54 C. DELETE NOTE: BARO-VNAV AND VDP NA WHEN
USING SALISBURY ALTIMETER SETTING. CHANGE NOTE TO READ: FOR
INOPERATIVE ALS, INCREASE LNAV/VNAV ALL CATS AND LNAV CATS C/D
VISIBILITY 1/4 MILE. DELETE NOTE: FOR INOPERATIVE MALS WHEN USING
SALISBURY ALTIMETER INCREASE LPV VISIBILITY ALL CATS, LNAV/VNAV AND
LNAV CAT D 1/4 MILE. DELETE NOTE: NIGHT LANDING: RWY 10, 28 NA.
THIS IS RNAV (GPS) RWY 4, AMDT 3A. 2206161541-PERM
6/16/221540Z !FDC 2/0337 GED IAP DELAWARE COASTAL, GEORGETOWN, DE.
VOR RWY 22, AMDT 7B...
CHART APT ELEV 53. CIRCLING CATS A/B HAA 627, CATS C/D HAA 667.
OTBAE FIX MINIMUMS CIRCLING CAT A HAA 507, CAT B HAA 527, CAT C/D
HAA 667. CHART NOTE: RWY 22 HELICOPTER VISIBILITY REDUCTION BELOW 1
SM NOT AUTHORIZED. CHART NOTE: RWY 22 STRAIGHT-IN AND CIRCLING
MINIMUMS NA AT NIGHT. DELETE NOTE: WHEN LOCAL ALTIMETER SETTING NOT
RECEIVED, USE SALISBURY ALTIMETER SETTING AND INCREASE ALL MDA 60
FEET; INCREASE S-22 AND CIRCLING CATS C/D VISIBILITY 1/4 MILE;
OTBAE FIX MINIMUMS INCREASE S-22 AND CIRCLING CATS C/D VISIBILITY
1/4 MILE. DELETE FROM PROFILE VIEW: ASTERISK 680 AT OTBAE. DELETE
PROFILE VIEW NOTE: ASTERISK 740 WHEN USING SALISBURY ALTIMETER
SETTING. DELETE VDP AT ATR 8.6 DME. CHART PROFILE NOTE: VGSI AND
DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE {3.0}/TCH {45}. DELETE
NOTE: CIRCLING RWY 10, 28 NA AT NIGHT.
THIS IS VOR RWY 22, AMDT 7C. 2206161540-PERM
No
0800-1800
ARPT UNATNDD THANKSGIVING DAY AND CHRISTMAS DAY.
SUSSEX COUNTY COUNCIL
PO BOX 589
GEORGETOWN, DE 19947
Phone: 302-855-7770
ROBERT L. BRYANT
21553 RUDDER LANE
GEORGETOWN, DE 19947
Phone: 302-855-7774
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
GED
--
ACTVT MALS RWY 4; REIL RWY 04, 22, 10, 28; MIRL RWY 04/22 & 10/28 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
46
10
5
8
0
0
Major
Major
None
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

5500 ft. x 150 ft.
ASPH
Good
GRVD
MED
43 /F/A/X/T
50,000lbs
175,000lbs
--
--
  Runway 04 Runway 22
True Heading 33°213°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 40' 58"N 38° 41' 44"N
Longitude 75° 21' 57"W 75° 21' 19"W
Elevation 49' 48'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 10/28

3109 ft. x 75 ft.
ASPH
Good

MED
36 /F/A/X/T
50,000lbs
91,000lbs
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 41' 05"N 38° 41' 05"N
Longitude 75° 21' 45"W 75° 21' 06"W
Elevation 49' 53'
Threshold Crossing Height 46 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3PAEW WITHIN SAFETY AREA OF RWYS & TWYS.
A110-4BIRDS, DEER, AND OTHER WILDLIFE INVOF RWYS.
A110-5FOR CD IF DOVER APCH UNA VIA GCO 125.55, CTC WASHINGTON ARTCC AT 703-771-3587.
A110-7FBO HRS 0800-1600 LST. FOR SVC/FUEL AFT HRS CALL 302-855-2355
DELAWARE COASTAL (ICAO: KGED, IATA: GED) is a public airport located in GEORGETOWN, DE.
