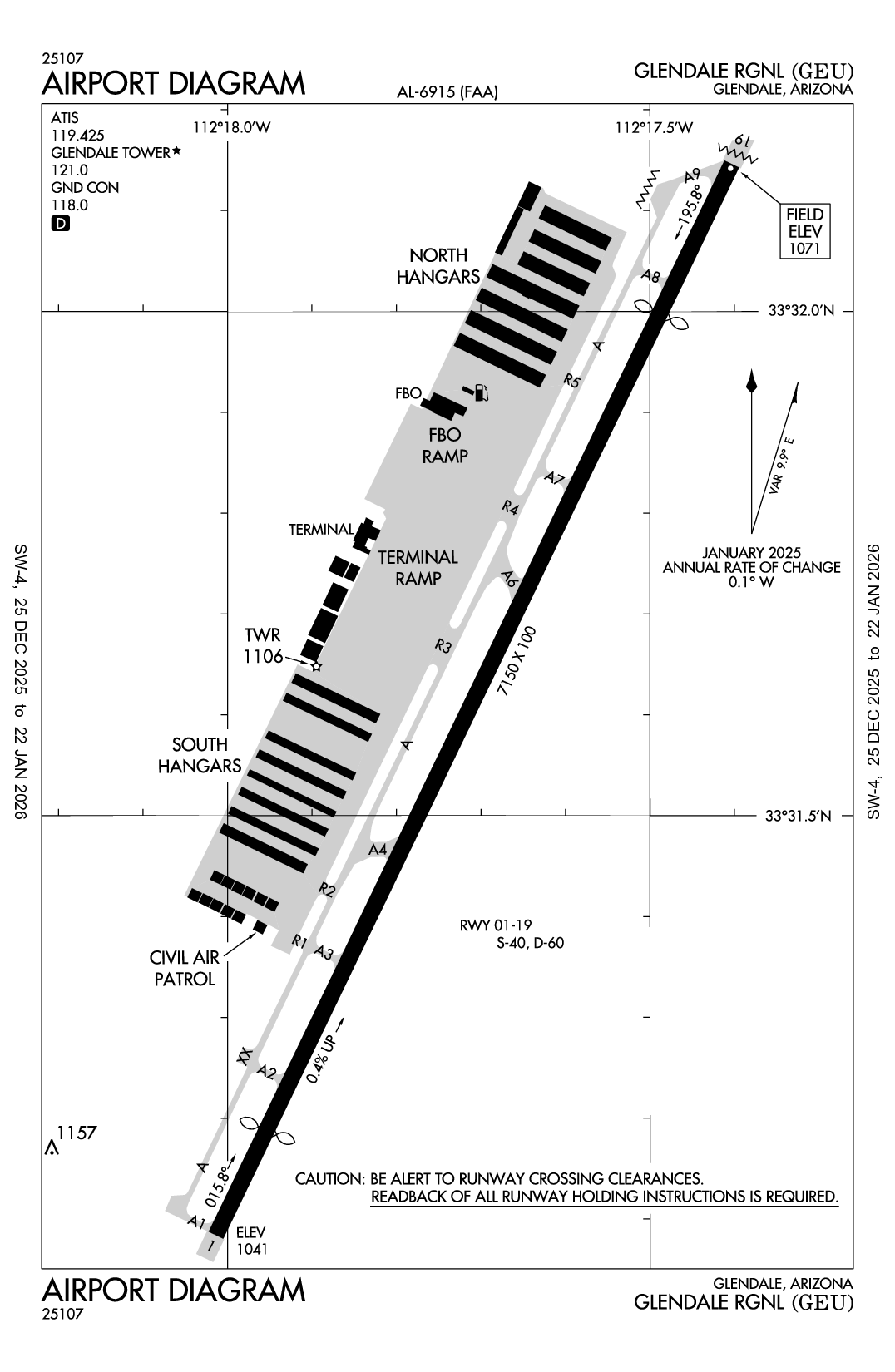

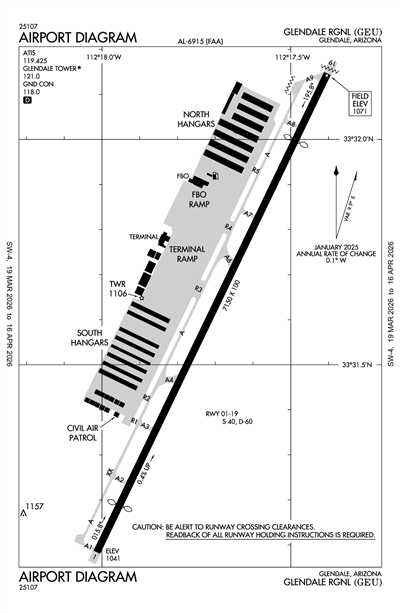

GLENDALE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGEU
GLENDALE MUNI
PublicPUB

6 miles W of GLENDALE, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 31' 37"N 112° 17' 42"W
1071' MSL
2101' MSL
12E
Jet A-1+, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
6/16/22-7/14/22
KGEU VFR
7:54 PM MST
Sky Clear
10sm
99°F
30°F
29.78"Hg
240° 8kts
LAST
KGEU 070254Z 24008KT 10SM SKC 37/M01 A2978 RMK LAST
List Your Business

KGEU FBOs, Flight Schools and Ground Support

Promote Listing
Glendale Aero Services
Freq: 122.95
Phone: (623) 877-3333
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/10
 100LL Jet A Jet A+ Mogas UL94
Self Serve 7.32
Full Serve 7.47 6.96

KGEU Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGEU Hotels

No hotels are listed for this airport.

KGEU Restaurants

No restaurants are listed for this airport.

KGEU Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 121.0

ATIS

ATIS
 119.425

Ground

GND/P
 118.0

Tower

LCL/P
 121.0

Terminal Area Forecast

KLUF (4nm)
Wed, 7/6 9:00 PM MST
Wed, 7/6 9:00 PM MST - Fri, 7/8 3:00 AM MST
VFR
9:00 PM MST - 12:00 AM MST
Sky Clear
> 6sm
29.76"Hg
230° 9kts
VFR
Becoming 12:00 AM MST - 11:00 AM MST
Sky Clear
> 6sm
29.85"Hg
VRB° 6kts
VFR
Becoming 11:00 AM MST - 12:00 AM MST
Sky Clear
> 6sm
29.82"Hg
210° 10kts
Gusts 15kts
VFR
Becoming 12:00 AM MST - 3:00 AM MST
Sky Clear
> 6sm
29.82"Hg
VRB° 6kts
TAF KLUF 070400Z 0704/0810 23009KT 9999 SKC QNH2976INS
   BECMG 0707/0708 VRB06KT 9999 SKC QNH2985INS
   BECMG 0718/0719 21010G15KT 9999 SKC QNH2983INS
   BECMG 0807/0808 VRB06KT 9999 SKC QNH2983INS TX41/0723Z TN27/0713Z
KGEU
Domestic
6/22/222213Z !GEU 06/010 GEU OBST TOWER LGT (ASR 1020594) 333456.00N1121557.00W (3.6NM NNE GEU) 1219.2FT (104.0FT AGL) U/S 2206222213-2208312359
6/22/222203Z !GEU 06/009 GEU OBST TOWER LGT (ASR 1020592) 332704.00N1121231.00W (6.3NM SE GEU) 1294.0FT (253.9FT AGL) U/S 2206222203-2210142359
6/21/222146Z !GEU 06/008 GEU OBST CRANE (ASN 2022-AWP-11519-OE) 333116N1121636W (1NM ESE GEU) 1230FT (180FT AGL) FLAGGED AND LGTD 2206212146-2207232359
6/1/222211Z !GEU 06/001 GEU RWY 01 PAPI U/S 2206012211-2207312359
5/2/220700Z !GEU 04/017 GEU OBST CRANE (ASN 2022-AWP-2294-OE) 333215N1121637W (1.11NM NE GEU) 1169FT (100FT AGL) NOT LGTD 2205020700-2311030700
4/28/222321Z !GEU 04/025 GEU OBST CRANE (ASN UNKNOWN) 333115N1121628W (1.08NM ESE GEU) 1143FT (100FT AGL) NOT LGTD 2204282321-2304282359
4/21/220142Z !GEU 04/013 GEU OBST CRANE (2022-AWP-7886-OE) 333033N1121804W (3900FT S ACPH END RWY 01) 1114FT (80FT AGL) FLAGGED AND LGTD 2204210142-2304132359
1/19/220501Z !GEU 01/005 GEU AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
1/2/221921Z !GEU 01/001 GEU OBST CRANE (ASN-2021-AWP-8437-OE) 333107N1121811W (1200FT WSW APCH END RWY 01) 1207FT (180FT AGL) FLAGGED AND LGTD 2201021921-2211042359
FDC
7/5/221100Z !FDC 2/7524 GEU SID GLENDALE MUNI, GLENDALE, AZ.
GLENDALE ONE DEPARTURE...
TAKEOFF MINIMUMS: RWY 1, 300-1 WITH A MINIMUM CLIMB OF 230FT PER NM TO 3600. ADD TAKEOFF OBSTACLE NOTE: RWY 1, TEMPORARY CRANE 2749FT FROM DER, 154FT LEFT OF CENTERLINE, 200FT AGL/1272FT MSL (2022-AWP-12361-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2207051100-2207201100EST
7/5/221100Z !FDC 2/7523 GEU SID GLENDALE MUNI, GLENDALE, AZ.
BNYRD SIX DEPARTURE (RNAV)...
FTHLS SIX DEPARTURE (RNAV)...
IZZZO SEVEN DEPARTURE (RNAV)...
JUDTH SEVEN DEPARTURE (RNAV)...
KATMN SIX DEPARTURE (RNAV)...
LALUZ SIX DEPARTURE (RNAV)...
MAYSA SEVEN DEPARTURE (RNAV)...
SNOBL SIX DEPARTURE (RNAV)...
YOTES SIX DEPARTURE (RNAV)...
TAKEOFF MINIMUMS: RWY 1, 300-1. ADD TAKEOFF OBSTACLE NOTE: RWY 1, TEMPORARY CRANE 2749FT FROM DER, 154FT LEFT OF CENTERLINE, 200FT AGL/1272FT MSL (2022-AWP-12361-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2207051100-2207201100EST
7/5/221100Z !FDC 2/7522 GEU IAP GLENDALE MUNI, GLENDALE, AZ.
RNAV (GPS) RWY 19, AMDT 2B...
LPV NA ALL CATS. LNAV/VNAV NA ALL CATS. LNAV MDA 1580/HAT 515 ALL CATS, VISIBILITY CAT C 1 1/2. VDP NA. TEMPORARY CRANE 1272 MSL 2749FT NE RWY 19 (2022-AWP-12361-OE).
2207051100-2207201100EST
7/5/221100Z !FDC 2/7521 GEU ODP GLENDALE MUNI, GLENDALE, AZ.
DRAKE TWO DEPARTURE (RNAV) ...
TAKEOFF MINIMUMS: RWY 1, 300-1 WITH A MINIMUM CLIMB OF 500FT PER NM TO 1580. ADD TAKEOFF OBSTACLE NOTE: RWY 1, TEMPORARY CRANE 2749FT FROM DER, 154FT LEFT OF CENTERLINE, 200FT AGL/1272FT MSL (2022-AWP-12361-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2207051100-2207201100EST
7/5/221100Z !FDC 2/7520 GEU ODP GLENDALE MUNI, GLENDALE, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
ADD TAKEOFF OBSTACLE NOTE: RWY 1, TEMPORARY CRANE 2749FT FROM DER, 154FT LEFT OF CENTERLINE, 200FT AGL/1272FT MSL (2022-AWP-12361-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2207051100-2207201100EST
Yes
0630-1930
CITY OF GLENDALE
5850 W GLENDALE AVE.
GLENDALE, AZ 85301
Phone: (623) 930-2188
CARL NEWMAN
6801 N. GLEN HARBOR BLVD 201
GLENDALE, AZ 85307
Phone: 623-930-4744
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
GEU
--
WHEN ATCT CLSD ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
No
82
8
0
2
0
1
Major
Major
Low Pressure
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

7150 ft. x 100 ft.
ASPH
Good

MED

40,000lbs
60,000lbs
--
--
  Runway 01 Runway 19
True Heading 26°206°
Traffic Pattern Right
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 33° 31' 05"N 33° 32' 09"N
Longitude 112° 18' 01"W 112° 17' 24"W
Elevation 1,041' 1,071'
Threshold Crossing Height 38 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BE ALERT TO HVY MILITARY JET TFC 5 MILES WEST.
A110-2HIGH TENSION POWER LINES 1/4 MILE WEST PARALLEL TO RWY UNMARKED AND UNLIGHTED.
A110-3COYOTES & BIRDS ON AND INVOF ARPT.
A110-4TGL DISCOURAGED BTN 2200-0600.
A110-6AVOID NOISE SENSITIVE AREAS N & SE OF ARPT. RWY 01 PREFERRED FOR NOISE ABATEMENT.
A110-7CTC ARPT MGMT FOR ADDITIONAL NOISE ABATEMENT PROCEDURES.
A110-8WEST SIDE HELICOPTER PATTERN NOT AVBL SS-SR.
A110-9FOR CD WHEN ATCT CLSD, CTC PHOENIX APCH AT 602-306-2565.
GLENDALE MUNI (ICAO: KGEU, IATA: GEU) is a public airport located in GLENDALE, AZ.
