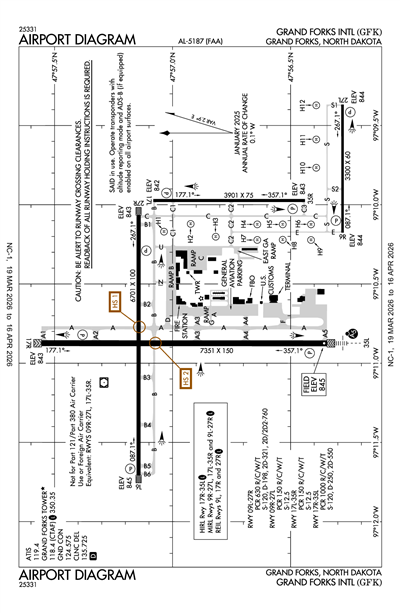

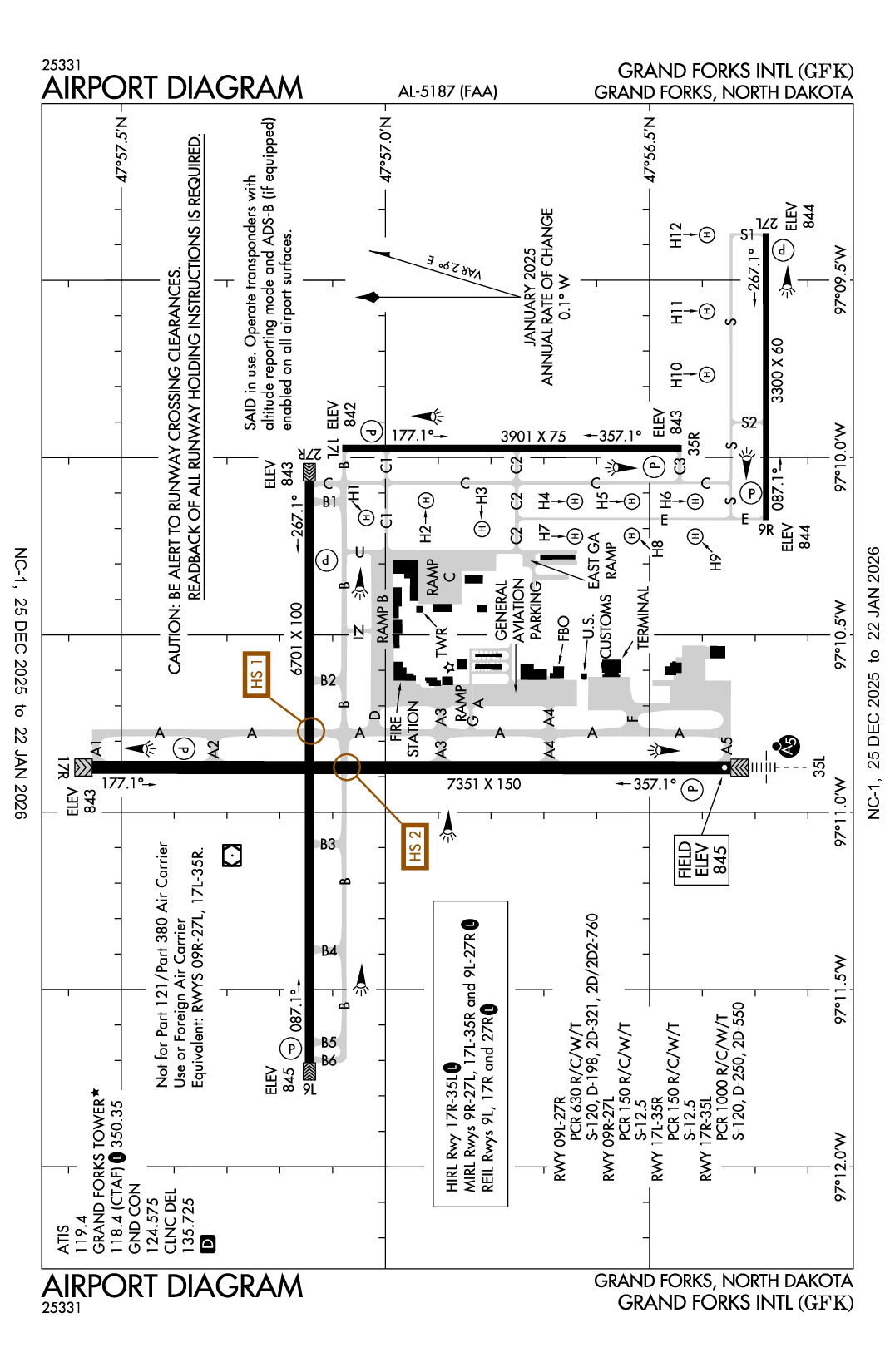

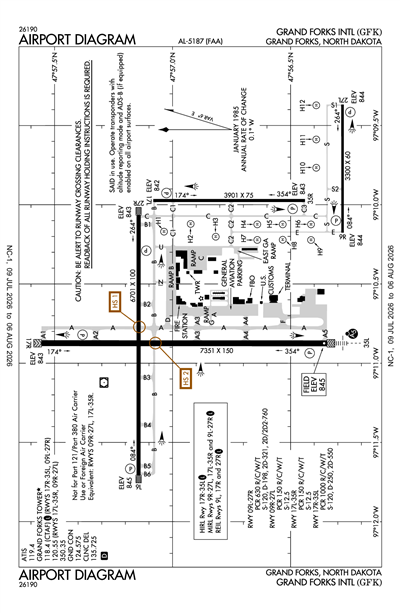

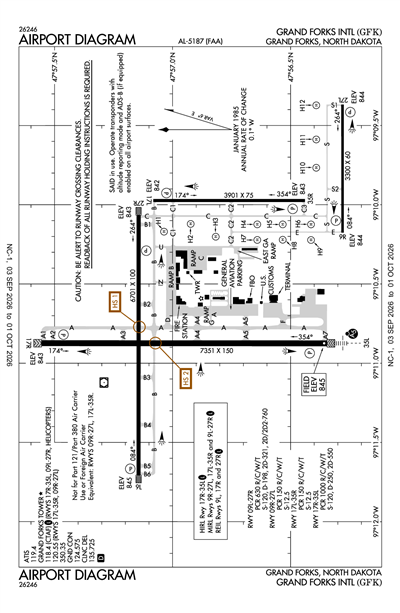

GRAND FORKS INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGFK
GRAND FORKS INTL
PublicPUB

5 miles NW of GRAND FORKS, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 56' 50"N 97° 10' 26"W
845' MSL
1645' MSL
06E
JET A, 100LL
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
9/5/24-10/3/24
KGFK VFR
10:53 PM CDT
Overcast 9,000'
10sm
66°F
62°F
29.93"Hg
150° 6kts
AO2 SLP132 T01890167
KGFK 140353Z 15006KT 10SM OVC090 19/17 A2993 RMK AO2 SLP132 T01890167
Add Your Business

KGFK FBOs

Avflight Grand Forks
UNICOM: 129.95
Phone: (844) 383-5435
Fax: (701) 772-8917
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 9/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.85 6.74 6.84
Fuel Notes
Prices include tax

KGFK Flight Schools & Aircraft Rental

Promote Listing
University of North Dakota
Phone: (701) 777-7843
Fax: (701) 777-7929
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.4

ATIS

ATIS
 119.4

Clearance Delivery

CD/P
 135.725

Ground

GND/P
 124.575

Tower

LCL/P
 118.4
LCL/S
 120.55

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGFK
Fri, 9/13 6:20 PM CDT
Fri, 9/13 7:00 PM CDT - Sat, 9/14 7:00 PM CDT
VFR
7:00 PM CDT - 8:00 PM CDT
Showers in vicinity
Broken 6,000'
6sm
270° 12kts
VFR
8:00 PM CDT - 10:00 PM CDT
Light Rain
Overcast 6,000'
Scattered 2,500'
6sm
220° 10kts
VFR
10:00 PM CDT - 1:00 AM CDT
Showers in vicinity
Broken 9,000'
Scattered 4,000'
6sm
170° 9kts
VFR
1:00 AM CDT - 5:00 AM CDT
Broken 10,000'
6sm
140° 9kts
VFR
5:00 AM CDT - 7:00 PM CDT
Scattered 25,000'
6sm
VRB° 5kts
KGFK 132320Z 1400/1424 27012KT P6SM VCSH BKN060
   FM140100 22010KT P6SM -RA SCT025 OVC060
   FM140300 17009KT P6SM VCSH SCT040 BKN090
   FM140600 14009KT P6SM BKN100
   FM141000 VRB05KT P6SM SCT250
KGFK
Domestic
9/14/240213Z !GFK 09/105 GFK RWY 17R FICON 5/5/5 100 PCT WET OBS AT 2409140213. 2409140213-2409150213
9/14/240212Z !GFK 09/104 GFK RWY 17L FICON 5/5/5 100 PCT WET OBS AT 2409140212. 2409140212-2409150212
9/14/240033Z !GFK 09/101 GFK RWY 27L FICON 5/5/5 100 PCT WET OBS AT 2409140033. 2409140033-2409150033
9/14/240032Z !GFK 09/100 GFK TWY ALL FICON WET OBS AT 2409140032. 2409140032-2409150032
9/14/240032Z !GFK 09/099 GFK APRON ALL FICON WET OBS AT 2409140032. 2409140032-2409150032
9/11/241542Z !GFK 09/070 GFK TWY B BTN TWY C AND APCH END RWY 17L CLSD 2409111542-2409162200
9/11/241542Z !GFK 09/069 GFK TWY C BTN TWY C1 AND TWY B CLSD 2409111542-2409162200
9/11/241542Z !GFK 09/068 GFK RWY 17L PAPI U/S 2409111542-2409162200
9/11/241541Z !GFK 09/067 GFK RWY 17L/35R N 489FT CLSD. DECLARED DIST: RWY 17L TORA 3412FT TODA 3412FT
ASDA 3412FT LDA 3412FT. RWY 35R TORA 3412FT TODA 3412FT ASDA 3412FT LDA 3412FT. 2409111541-2409162200
8/21/240430Z !GFK 08/186 GFK RWY 17L/35R OPN DLY 0430-1100 2408210430-2410151100
6/24/241435Z !GFK 06/320 GFK RWY 27R RWY END ID LGT U/S 2406241435-2410152300
6/24/241431Z !GFK 06/319 GFK RWY 27R PAPI U/S 2406241431-2410152300
4/25/240430Z !GFK 04/201 GFK RWY 09R/27L OPN DLY 0430-1100 2404250430-2410151100
3/20/241200Z !GFK 03/158 GFK TWY U BTN BRAVO RAMP AND TWY B CLSD 2403201200-2410152300
3/20/241200Z !GFK 03/157 GFK TWY C BTN APCH END RWY 27R AND TWY B CLSD 2403201200-2410152300
3/20/241200Z !GFK 03/156 GFK TWY B1 CLSD 2403201200-2410152300
3/20/241200Z !GFK 03/155 GFK TWY B BTN TWY A AND TWY C CLSD 2403201200-2410152300
3/20/241200Z !GFK 03/154 GFK RWY 09L/27R CLSD 2403201200-2410152300
3/19/241200Z !GFK 03/193 GFK APRON HELIPAD H1 CLSD 2403191200-2410312200
3/6/241430Z !GFK 03/104 GFK OBST CRANE (2024-AGL-1367-OE) 475705.62N0970837.32W (1.24NM E GFK) 1015FT (170FT AGL) FLAGGED AND LGTD 2403061430-2412312359
12/20/231331Z !GFK 12/357 GFK RWY 17R/35L BTN TWY A3 AND TWY A4 IRREGULAR SFC 2312201331-2412312330
FDC
8/28/241519Z !FDC 4/7424 GFK ODP GRAND FORKS INTL, GRAND FORKS, ND.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKE-OFF MINIMUMS: RWY 27R, NA - RWY CONSTRUCTION.
2408281519-2410311519EST
8/28/241519Z !FDC 4/7420 GFK IAP GRAND FORKS INTL, GRAND FORKS, ND.
RNAV (GPS) RWY 9L, AMDT 1A...
PROCEDURE NA.
2408281519-2410311519EST
7/26/242114Z !FDC 4/8630 GFK ODP GRAND FORKS INTL, GRAND FORKS, ND.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TEXTUAL DEPARTURE PROCEDURE RWY 9R/27L DEPARTURES NA - ENVIRONMENTAL.
2407262114-2607252112EST
7/15/241320Z !FDC 4/2139 GFK IAP GRAND FORKS INTL, GRAND FORKS, ND.
ILS OR LOC RWY 35L, AMDT 12C...
MISSED APPROACH: CLIMB TO 3600 THEN RIGHT TURN DIRECT HISER LOM/I-GFK 6.94 DME/RADAR AND HOLD (ADF REQUIRED).
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GFK VOR OUT OF SERVICE. 2407151320-2502241320EST
7/15/241320Z !FDC 4/2138 GFK IAP GRAND FORKS INTL, GRAND FORKS, ND.
LOC BC RWY 17R, AMDT 13A...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GFK VOR OUT OF SERVICE. 2407151320-2502241320EST
6/26/241554Z !FDC 4/3926 GFK IAP GRAND FORKS INTL, GRAND FORKS, ND.
ILS OR LOC RWY 35L, AMDT 12C...
LOC BC RWY 17R, AMDT 13A...
RNAV (GPS) RWY 17R, AMDT 1A...
RNAV (GPS) RWY 35L, ORIG-C...
RNAV (GPS) RWY 9L, AMDT 1A...
VOR RWY 17R, AMDT 6B...
VOR RWY 35L, AMDT 7B...
CIRCLING CAT D MDA 1420/HAA 575.
2406261554-2502051554EST
5/23/241554Z !FDC 4/8724 GFK IAP GRAND FORKS INTL, GRAND FORKS, ND.
ILS OR LOC RWY 35L, AMDT 12C...
S-LOC RWY 35L MDA 1200/HAT 355 ALL CATS. VIS CAT C/D RVR 3000.
2405231554-2605231554EST
Yes
ALL
GRAND FORKS REG ARPT AUTH
2301 AIRPORT DRIVE
GRAND FORKS, ND 58203
Phone: 701-795-6981
RYAN RIESINGER
2301 AIRPORT DR
GRAND FORKS, ND 58203
Phone: 701-795-6981
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT REIL RWY 27R & RWY 17R - CTAF. WHEN TWR CLSD ACTVT HIRL RWY 17R/35L & MALSR RWY 35L; MIRL RWY 09L/27R - CTAF. PAPI RWY 27R, PAPI RWY 9 L/R, 17L/R, 27L AND 35L/R OPR CONSLY.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09L/27R

4206 ft. x 100 ft.
CONC
Good
GRVD
MED
24 /R/B/W/T
43,000lbs
55,000lbs
115,000lbs
--
  Runway 09L Runway 27R
True Heading 90°270°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 57' 09"N 47° 57' 09"N
Longitude 97° 11' 06"W 97° 10' 04"W
Elevation 841' 843'
Threshold Crossing Height 39 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 09R/27L

3300 ft. x 60 ft.
CONC
Good
NONE
MED
10 /R/C/W/T
12,000lbs
--
--
--
  Runway 09R Runway 27L
True Heading 90°270°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 56' 17"N 47° 56' 17"N
Longitude 97° 10' 11"W 97° 09' 22"W
Elevation 844' 844'
Threshold Crossing Height 21 ft. AGL 21 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17L/35R

3901 ft. x 75 ft.
CONC
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 17L Runway 35R
True Heading 180°0°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 57' 05"N 47° 56' 26"N
Longitude 97° 09' 58"W 97° 09' 58"W
Elevation 842' 843'
Threshold Crossing Height 21 ft. AGL 21 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

7351 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

101,000lbs
160,000lbs
270,000lbs
--
  Runway 17R Runway 35L
True Heading 180°0°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 57' 33"N 47° 56' 21"N
Longitude 97° 10' 52"W 97° 10' 52"W
Elevation 843' 845'
Threshold Crossing Height 53 ft. AGL 61 ft. AGL
Visual Glide Path Angle 3° 2.76°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway H1

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H10

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H10 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 23"N N/A
Longitude 97° 09' 46"W N/A
Elevation 841' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H11

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H11 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 23"N N/A
Longitude 97° 09' 35"W N/A
Elevation 840' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H12

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H12 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 23"N N/A
Longitude 97° 09' 22"W N/A
Elevation 841' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H2 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 55"N N/A
Longitude 97° 10' 07"W N/A
Elevation 839' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H3 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 49"N N/A
Longitude 97° 10' 12"W N/A
Elevation 839' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H4 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 38"N N/A
Longitude 97° 10' 07"W N/A
Elevation 840' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H5

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H5 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 32"N N/A
Longitude 97° 10' 07"W N/A
Elevation 841' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H6

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H6 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 25"N N/A
Longitude 97° 10' 07"W N/A
Elevation 841' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H7

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H7 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 38"N N/A
Longitude 97° 10' 13"W N/A
Elevation 840' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H8

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H8 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 32"N N/A
Longitude 97° 10' 13"W N/A
Elevation 840' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H9

60 ft. x 60 ft.

TURF
NONE


--
--
--
--
  Runway H9 Runway
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 56' 25"N N/A
Longitude 97° 10' 13"W N/A
Elevation 841' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HVY STUDENT TRNG ACTVTY WI 15 MI OF ARPT.
A110-11TWY G & TWY U CLSD TO FIXED WING ACFT 12,500 LBS & OVER.
A110-12WESTERN MOST 100 FT OF TWY C1 IS AN EXTENSION OF THE BRAVO APRON & NOT VSBL FR THE TWR.
A110-15RWYS 09R, 27L, 17L, 35R & TWY C, TWY E & TWY S NOT AVBL FOR UNSKED ACR WITH MORE THAN 30+ PAX SEATS.
A110-16RWYS 09R, 27L, 17L AND 35R CLOSED WHEN TWR CLSD.
A110-17TWY C, TWY E, TWY S NOT AVBL FOR SCHEDULED ACR OPNS WITH MORE THAN 9 PSGR SEATS OR UNSCHEDULED ACR OPNS WITH AT LEAST 31 PSGR SEATS.
A110-18ALPHA APRON BTN TWY A3 & TWY A4 RSTRD TO ACFT MAX. WT 60,000 LBS. OR MAX. ACN 24.
A110-19FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-2BIRDS ON & INVOF ARPT.
A110-20RWY 17R SEGMENTED CIRCLE U/S.
A110-21(CONTACT NAME) ARPT OPERATIONS & FACILITY MANAGER.
A110-4LGTD ENTRANCE RD 1600' EAST OF RY 17R/35L.
A110-5CUSTOMS AVBL 24/7/365. YOU MUST SPEAK WITH AN OFFICER BEFORE ARRIVAL (USE PHONE OPTIONS) 701-772-3301 OR 701-772-6433.
A110-8PAEW 2330-0600 LOCAL
A110-9HVY STUDENT HELICOPTER TRAINING AT ARPT BTN PARALLEL TWYS.-
GRAND FORKS INTL (ICAO: KGFK, IATA: GFK) is a public airport located in GRAND FORKS, ND.
