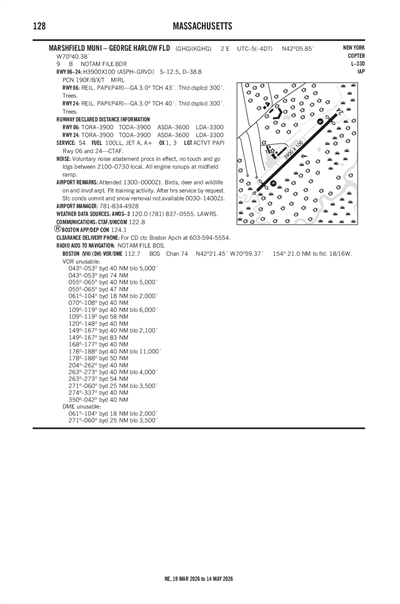

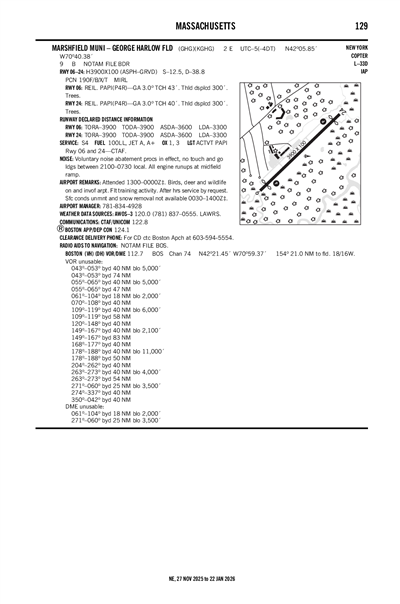

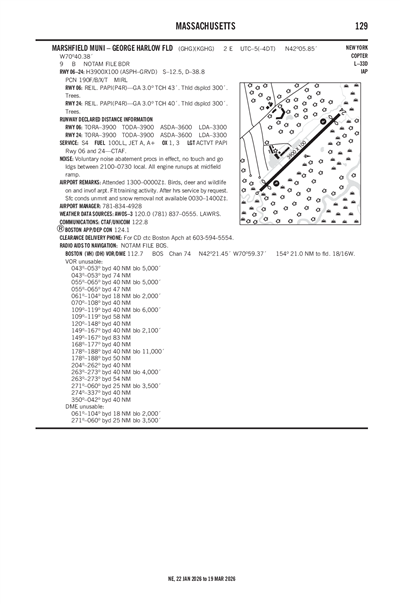

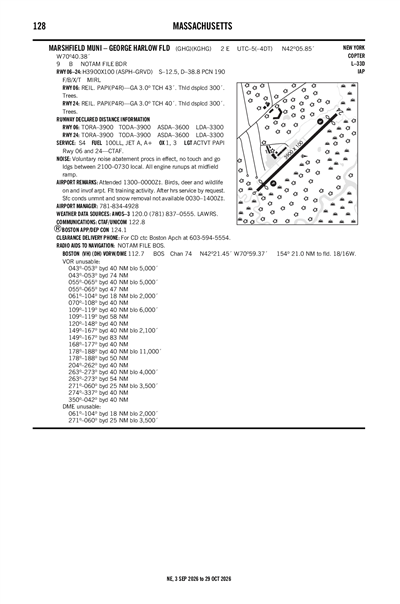

MARSHFIELD MUNI - GEORGE HARLOW FLD - Airport Diagram

KGHG

MARSHFIELD MUNI - GEORGE HARLOW FLD

PublicPUB

2 miles E of MARSHFIELD, MA, US

View on Map

Status

Operational

Coordinates

42° 05' 51"N 70° 40' 23"W

Elevation

9' MSL

Pattern Alt

1009' MSL

Mag Variation

14W

Fuel

JET A, JET A (FSII), 100LL

FSS

BRIDGEPORT (BDR)

Sectional

NEW YORK

ARTCC

BOSTON (ZBW)

Data Effective

1/22/26-2/19/26

KGHG MVFR

6:35 AM EST RAW

Light Snow

Overcast 1,400'

Viz

5sm

Temp

21°F

Dew

18°F

Pres

29.82"Hg

Wind

010° 11kts

Gusts 20kts

RMK

AO2

METAR KGHG 011135Z AUTO 01011G20KT 320V040 5SM -SN OVC014 M06/M08 A2982 RMK AO2

Add Your Business

KGHG FBOs

Promote Listing

Shoreline Aviation

UNICOM: 122.8

Phone: (781) 834-4928

0 Reviews (Read | Sign In To Write)

Titan

As of 1/14	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.50		5.99

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3	120.0
(781) 837-0555

Common

CTAF	122.8
ACTVT PAPI RWY 6 & 24 - CTAF.
UNICOM	122.8

Arrival

WOONS STAR

120.6

Approach

BOSTON APPROACH

124.1

Departure

BOSTON DEPARTURE

124.1

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Arrival Procedures

WOONS TWO

Instrument Approach

Terminal Area Forecast

KBOS (22nm)

RAW

Reported

Sun, 2/1 6:20 AM EST

Valid

Sun, 2/1 7:00 AM EST - Mon, 2/2 1:00 PM EST

MVFR

7:00 AM EST - 10:00 AM EST

Light Snow

Overcast 1,500'

Viz

6sm

Wind

010° 14kts

Gusts 25kts

MVFR

10:00 AM EST - 4:00 PM EST

Overcast 2,500'

Viz

6sm

Wind

360° 16kts

Gusts 30kts

VFR

4:00 PM EST - 10:00 PM EST

Broken 10,000'
Scattered 3,000'

Viz

6sm

Wind

340° 14kts

Gusts 25kts

VFR

10:00 PM EST - 1:00 PM EST

Scattered 25,000'

Viz

6sm

Wind

330° 12kts

TAF KBOS 011120Z 0112/0218 01014G25KT P6SM -SN OVC015
   FM011500 36016G30KT P6SM OVC025
   FM012100 34014G25KT P6SM SCT030 BKN100
   FM020300 33012KT P6SM SCT250

KGHG

Effective	Expires	Category	NOTAM
Domestic
1/30/26 2021Z	2/2/26 0001Z		!BDR 01/326 GHG TWY A CLSD 2601302021-2602020001

ATC Tower

Attendance

0800-1900

Owner

TOWN OF MARSHFIELD
870 MORAINE ST
MARSHFIELD, MA 02050
Phone: 781-536-2500

Manager

JASON TIBBETTS
93 OLD COLONY LANE
MARSHFIELD, MA 02050
Phone: 781-834-4928

FSS

BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF

NOTAM

BDR

Light Schedule

Lights

ACTVT PAPI RWY 6 & 24 - CTAF.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High Pressure

Bulk Oxygen

High Pressure

Other Services

Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

Dimensions

3900 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

190/F/B/X/T

Single Wheel

12,000lbs

Double Wheel

39,000lbs

Double Tandem

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	46°	226°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	42° 05' 38"N	42° 06' 04"N
Longitude	70° 40' 42"W	70° 40' 04"W
Elevation	5'	4'
Threshold Crossing Height	43 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	BIRDS, DEER & WILDLIFE ON & INVOF ARPT.
A110-3	ALL ENG RUNUPS AT MIDFIELD RAMP.
A110-4	VOLUNTARY NOISE ABATEMENT PROCS IN EFCT, NO TGLS BTN 2100 & 0730 LCL.
A110-5	FLT TRNG ACTVY.
A110-6	AFT HRS SVC BY REQ.
A110-7	SFC CONDS UNMNT & SNOW REMOVAL NA APRXLY 1930-0900.
A110-8	FOR CD CTC BOSTON APCH AT 603-594-5554.
A81-APT	ACTVT PAPI RWY 6 & 24 - CTAF.
E111	FILED FOR RECORD PURPOSES ONLY.

MARSHFIELD MUNI - GEORGE HARLOW FLD (ICAO: KGHG, IATA: GHG) is a public airport located in MARSHFIELD, MA, US.
