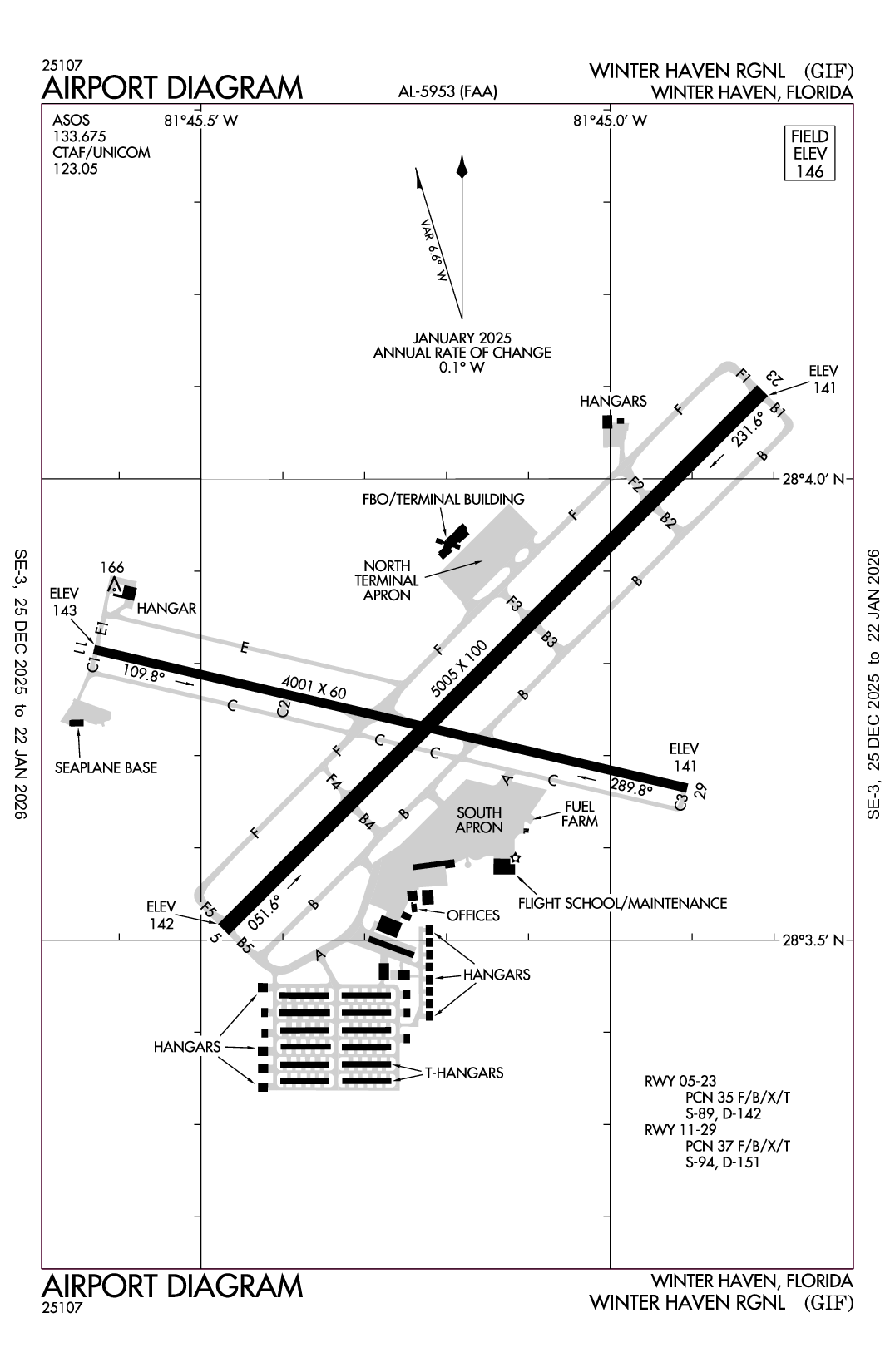

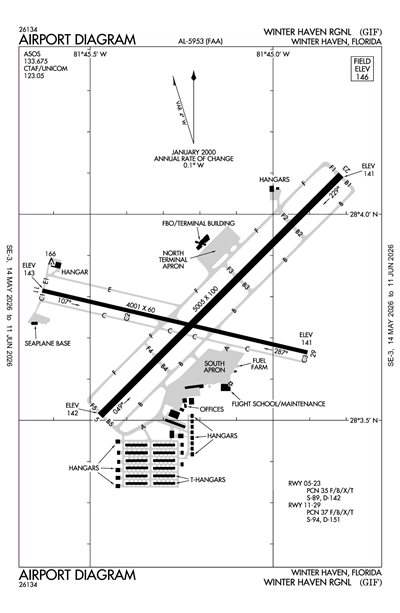

WINTER HAVEN RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGIF
WINTER HAVEN RGNL
PublicPUB

3 miles NW of WINTER HAVEN, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 03' 46"N 81° 45' 12"W
145' MSL
1000' MSL
04W
Jet A, 100LL, MOGAS
SAINT PETERSBURG (PIE)
JACKSONVILLE
MIAMI (ZMA)
7/15/21-8/12/21
KGIF VFR
4:53 AM EDT
Clear
10sm
77°F
74°F
30.01"Hg
Calm
AO2 SLP160 T02500233 56006
KGIF 290853Z AUTO 00000KT 10SM CLR 25/23 A3001 RMK AO2 SLP160 T02500233 56006

KGIF FBOs, Flight Schools and Ground Support

Preston Aviation
Freq: 123.5
Phone: (863) 956-2526
No Rating Available
0 Reviews (Read | Sign In To Write)
Winter Haven Regional Airport
Freq: 123.05
Phone: (863) 298-4551
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 7/27
  100LL Jet A Jet A+ Mogas UL94
SS 3.70 3.60 3.75
FS 4.30 4.25 4.30

KGIF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGIF Hotels

No hotels are listed for this airport.

KGIF Restaurants

No restaurants are listed for this airport.

KGIF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

ASOS

ASOS
863-956-2097
133.675

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLAL (15nm)
Thu, 7/29 1:20 AM EDT
Thu, 7/29 2:00 AM EDT - Fri, 7/30 2:00 AM EDT
VFR
2:00 AM EDT - 12:00 PM EDT
Broken 25,000'
Scattered 8,000'
Scattered 2,000'
> 6sm
VRB° 2kts
VFR
12:00 PM EDT - 8:00 PM EDT
Showers and Rain and Thunderstorm in vicinity
Broken 20,000'
Broken 10,000'
Scattered 3,000'
6sm
280° 5kts
VFR
8:00 PM EDT - 2:00 AM EDT
Broken 25,000'
Broken 10,000'
Scattered 4,000'
> 6sm
VRB° 4kts
KLAL 290520Z 2906/3006 VRB02KT P6SM SCT020 SCT080 BKN250
   FM291600 28005KT 6SM SHRA VCTS SCT030CB BKN100 BKN200
   FM300000 VRB04KT P6SM SCT040 BKN100 BKN250 AMD NOT SKED TIL 291100
KGIF
Domestic
7/27/211451Z !GIF 07/013 GIF OBST TREES (ASN UNKNOWN) 280328N0814533W (520FT SW APCH END RWY 05) UNKNOWN (34FT AGL) NOT LGTD 2107271451-2206302359
7/25/211538Z !GIF 07/012 GIF OBST TOWER LGT (ASR 1065312) 280649.70N0813722.70W (7.7NM ENE GIF) 452.1FT (268.0FT AGL) U/S 2107251538-2109252359
7/18/210431Z !GIF 07/007 GIF OBST TOWER LGT (ASR 1029660) 281033.90N0814510.40W (6.8NM NE GIF) 418.6FT (283.8FT AGL) U/S 2107180431-2108020331
7/15/211913Z !GIF 07/006 GIF OBST TOWER LGT (ASR 1030294) 281738.20N0815006.60W (14.3NM NNW GIF) 394.7FT (234.9FT AGL) U/S 2107151913-2107311912
FDC
7/12/211223Z !FDC 1/7518 GIF ODP WINTER HAVEN RGNL, WINTER HAVEN, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A...
TAKEOFF OBSTACLE NOTES: RWY 11, TEMPORARY CRANES BEGINNING 159FT FROM DER, 406FT RIGHT OF CENTERLINE, UP TO 100FT AGL/240FT MSL (2020-ASO-24982/24983-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2107121223-2202211223EST
7/8/211730Z !FDC 1/6116 GIF IAP WINTER HAVEN RGNL,
WINTER HAVEN, FL.
VOR-A, AMDT 7A...
CIRCLING CAT C MDA 820/HAA 675, CAT D MDA 960/HAA 815, CAT C VIS 2,
CAT D VIS 2 3/4. CHART NOTE: CIRCLING RWY 11 NA AT NIGHT. ALTERNATE
MINIMUMS STANDARD EXCEPT CAT D 900-2 3/4, NA WHEN LOCAL WEATHER NOT
AVAILABLE.
THIS IS VOR-A, AMDT 7B. 2107081730-PERM
7/8/211730Z !FDC 1/6113 GIF IAP WINTER HAVEN RGNL,
WINTER HAVEN, FL.
RNAV (GPS) RWY 5, AMDT 1C...
CIRCLING CAT C MDA 820/HAA 675, CAT D MDA 960/HAA 815, CAT C VIS 2,
CAT D VIS 2 3/4. CHART NOTE: CIRCLING RWY 11 NA AT NIGHT. CHANGE
PBN REQUIREMENTS NOTE TO READ: RNP APCH-GPS. ALTERNATE MINIMUMS
STANDARD EXCEPT CAT D 900-2 3/4, NA WHEN LOCAL WEATHER NOT
AVAILABLE.
THIS IS RNAV (GPS) RWY 5, AMDT 1D. 2107081730-PERM
7/8/211730Z !FDC 1/6111 GIF IAP WINTER HAVEN RGNL,
WINTER HAVEN, FL.
RNAV (GPS) RWY 11, ORIG-A...
CIRCLING CAT C MDA 820/HAA 675, CAT D MDA 960/HAA 815, CAT C VIS 2,
CAT D VIS 2 3/4. DELETE VDP. CHANGE PBN REQUIREMENTS NOTE TO READ:
RNP APCH-GPS. CHART NOTE: STRAIGHT-IN AND CIRCLING RWY 11 NA AT
NIGHT. ALTERNATE MINIMUMS STANDARD EXCEPT CAT D 900-2 3/4, NA WHEN
LOCAL WEATHER NOT AVAILABLE.
THIS IS RNAV (GPS) RWY 11, ORIG-B. 2107081730-PERM
4/21/211838Z !FDC 1/3087 GIF IAP WINTER HAVEN RGNL, WINTER HAVEN, FL.
RNAV (GPS) RWY 11, ORIG-A...
VDP NA.
CHANGE NIGHT RESTRICTION NOTE TO READ: STRAIGHT-IN RWY 11 NA AT NIGHT AND CIRCLING RWY 11 NA AT NIGHT.
2104211838-2304211838EST
No
0700-1900
CITY OF WINTER HAVEN
P.O. BOX 2277
WINTER HAVEN, FL 33883-2277
Phone: 863-291-5600
ALEXANDER VACHA
2073 HWY 92 WEST
WINTER HAVEN, FL 33881
Phone: 863-298-4551
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
GIF
--
ACTVT REIL RWY 11 & 29; PAPI RWY 05 & 23; MIRL RWY 05/23 & 11/29 - CTAF.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
138
10
0
2
0
0
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

5006 ft. x 100 ft.
ASPH
Good

MED
35 /F/B/X/T
89,000lbs
142,000lbs
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 03' 31"N 28° 04' 06"N
Longitude 81° 45' 28"W 81° 44' 49"W
Elevation 141.7 ft. 141.2 ft.
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

4001 ft. x 60 ft.
ASPH
Excellent

MED
37 /F/B/X/T
94,000lbs
151,000lbs
--
--
  Runway 11 Runway 29
True Heading 103°283°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 28° 03' 49"N 28° 03' 40"N
Longitude 81° 45' 38"W 81° 44' 54"W
Elevation 143 ft. 141 ft.
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BROWN'S SPB LOCATED ON ADJACENT LAKE.
A110-2ANEMOMETER REMOTED TO FBO OFFICE.
A110-3GLIDER ACFT OPERG ON AND INVOF ARPT.
A110-7GCO AVBL ON FREQ 121.725 THRU TAMPA CD.
A110-8RWY 05 PREFERRED FOR CALM OR LIGHT WINDS
A110-9FOR CD IF UNA VIA GCO CTC TAMPA APCH AT 813-878-2528 OR 813-371-7745.

View hangar and property listings at KGIF, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

WINTER HAVEN RGNL (ICAO: KGIF, IATA: GIF) is a public airport located in WINTER HAVEN, FL.
