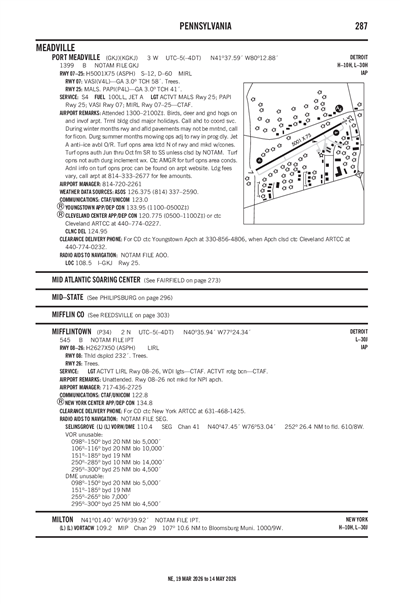

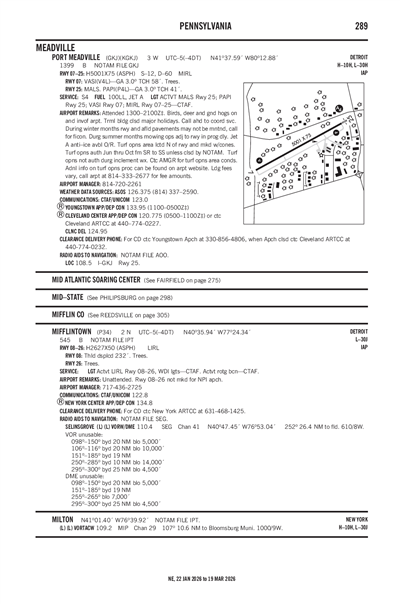

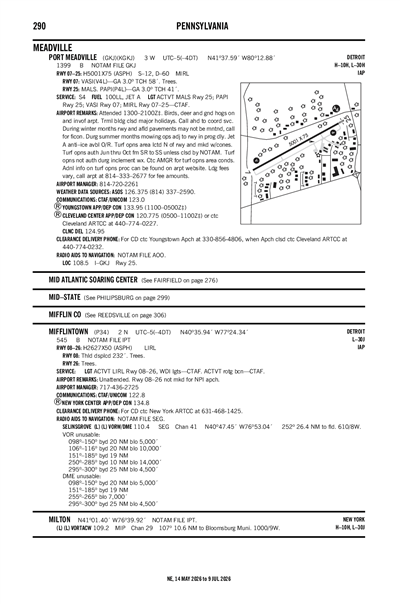

PORT MEADVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGKJ
ICAO KGKJIATA MEJLocal GKJ
PORT MEADVILLE
PublicPUB

3 miles W of MEADVILLE, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 37' 35"N 80° 12' 53"W
Elevation
1399' MSL
Pattern Alt
2399' MSL
Mag Variation
9°W
Declination
8°W
Fuel
JET A, 100LL
FSS
ALTOONA (AOO)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
4/16/26-5/14/26
KGKJ VFR
2:53 PM EDT
Broken 7,000'
10sm
78°F
50°F
29.77"Hg
270° 7kts
AO2 SLP073 T02560100
METAR KGKJ 241853Z AUTO 27007KT 10SM BKN070 26/10 A2977 RMK AO2 SLP073 T02560100
+ Add Your Business

KGKJ FBOs

Promote Listing
Port Meadville Airport
UNICOM: 123.0
Phone: (814) 720-2261
Other: (814) 333-2677
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.75 5.65 5.49
Full Serve 5.65 5.49
Fuel Notes
Prices include tax
Fuel truck with JET A FSII (Prist) available upon request.
Fuel Hours
Jet-A full serve at the pump during business hours.
Self-serve Jet-A and Avgas available 24/7.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 126.375
(814) 337-2590

Common

CTAF 123.0
ACTVT MALS RWY 25; PAPI RWY 25; VASI RWY 07; MIRL RWY 07/25 - CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 124.95

Approach

YOUNGSTOWN APPROACH 133.95

Departure

YOUNGSTOWN DEPARTURE 133.95

Center

YOUNGSTOWN CENTER 120.775
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 120.775/298.95 (CHARDON RCAG) WHEN YOUNGSTOWN APCH CTL CLSD.

Terminal Area Forecast

KFKL (22nm)
Fri, 4/24 1:29 PM EDT
Fri, 4/24 2:00 PM EDT - Sat, 4/25 2:00 PM EDT
VFR
2:00 PM EDT - 4:00 AM EDT
Scattered 25,000'
6sm
270° 5kts
VFR
4:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain
Broken 7,000'
6sm
270° 10kts
Gusts 20kts
MVFR
4:00 AM EDT - 8:00 AM EDT
Light Showers and Rain
Broken 2,500'
6sm
150° 4kts
IFR
8:00 AM EDT - 2:00 PM EDT
Light Showers and Rain
Broken 900'
6sm
240° 7kts
TAF KFKL 241729Z 2418/2518 27005KT P6SM SCT250
   PROB30 2420/2424 27010G20KT 6SM -TSRA BKN070CB
   FM250800 15004KT 6SM -SHRA BKN025
   FM251200 24007KT 6SM -SHRA BKN009 AMD NOT SKED
KGKJ
EffectiveExpiresCategoryNOTAM
Domestic
4/22/26
2037Z
Runway!GKJ 04/014 GKJ RWY 07 VASI U/S 2604222037-2604292000EST
4/19/26
1140Z
8/17/26
1140Z
!GKJ 04/010 GKJ OBST TOWER LGT (ASR 1025851) 413429.00N0802006.00W (6.2NM WSW GKJ) 1514.1FT (265.1FT AGL) U/S 2604191140-2608171140
4/4/26
0025Z
8/2/26
0025Z
!GKJ 04/003 GKJ OBST TOWER LGT (ASR 1031965) 414552.30N0801051.20W (8.5NM NE GKJ) 1903.9FT (458.0FT AGL) U/S 2604040025-2608020025
3/28/26
1102Z
6/27/26
0400Z
!GKJ 03/020 GKJ OBST TOWER LGT (ASR 1212118) 414000.80N0801144.90W (2.6NM NNE GKJ) 1669.0FT (265.1FT AGL) U/S 2603281102-2606270400
2/27/26
0214Z
!GKJ 02/014 GKJ NAV ILS RWY 25 LOC NOT MNT 2602270214-2606262000EST
2/19/26
1551Z
5/19/26
2359Z
!GKJ 02/007 GKJ OBST TOWER LGT (ASR 1027115) 414210.00N0800953.00W (5.1NM NNE GKJ) 1811.7FT (402.9FT AGL) U/S 2602191551-2605192359
1/16/26
1930Z
!GKJ 01/016 GKJ NAV LOC RWY 25 OM U/S 2601161930-2607312111EST
FDC
4/3/26
1339Z
!FDC 6/7881 GKJ IAP PORT MEADVILLE, MEADVILLE, PA.
LOC RWY 25, AMDT 6E...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FKL VOR UNMONITORED. 2604031339-2605031339EST
3/18/26
1459Z
!FDC 6/9951 GKJ IAP PORT MEADVILLE, MEADVILLE, PA.
RNAV (GPS) RWY 25, AMDT 1F...
LP CATS C/D VISIBILITY 1 3/4. CHANGE PBN REQUIREMENTS NOTE TO READ:
RNP APCH GPS. CHANGE FOR INOPERATIVE ALS NOTE TO READ: FOR
INOPERATIVE ALS, INCREASE LP CATS C/D VISIBILITY TO 1 7/8 SM AND
LNAV CATS C/D VISIBILITY TO 2 SM.
THIS IS RNAV (GPS) RWY 25, AMDT 1G. 2603181459-PERM
No
0800-1600
CCRAA
16306 CORPORATE DR
MEADVILLE, PA 16335
Phone: 814-333-2677
KEITH A. CHIOCCO
16306 CORPORATE DR
MEADVILLE, PA 16335
Phone: 814-720-2261
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
GKJ
--
ACTVT MALS RWY 25; PAPI RWY 25; VASI RWY 07; MIRL RWY 07/25 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction

Runway 07/25

5001 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
60,000lbs
--
--
  Runway 07 Runway 25
True Heading 61°241°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 37' 24"N 41° 37' 47"N
Longitude 80° 13' 22"W 80° 12' 24"W
Elevation 1,392' 1,397'
Threshold Crossing Height 58 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights
A11CRAWFORD COUNTY REGIONAL AIRPORT AUTHORITY.
A110-1BIRDS, DEER & GND HOGS ON & INVOF ARPT.
A110-3TRML BLDG CLSD MAJOR HOL. CALL AHD TO COORD SVC.
A110-4FOR CD CTC YOUNGSTOWN APCH AT 330-856-4806, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0232.
A110-5DURING WINTER MONTHS RWY & AFLD PAVEMENTS MAY NOT BE MNTND, CALL FOR FICON.
A110-6DURG SUMMER MONTHS MOWING OPS ADJ TO RWY IN PROG DLY.
A110-7TURF OPNS AREA LCTD N OF RWY & MKD W/CONES. TURF OPNS AUTH JUN THRU OCT FM SR TO SS UNLESS CLSD BY NOTAM. TURF OPNS NOT AUTH DURG INCLEMENT WX. CTC AMGR FOR TURF OPNS AREA CONDS.
A110-8ADNL INFO ON TURF OPNS PROC CAN BE FOUND ON ARPT WEBSITE.
A24LANDING FEES VARY, CALL AIRPORT AT 814-333-2677 FOR FEE AMOUNTS.
A70-AJET A ANTI-ICE AVBL O/R.
A75-HTIE DOWN ROPES ARE NOT SUPPLIED.
A81-APTACTVT MALS RWY 25; PAPI RWY 25; VASI RWY 07; MIRL RWY 07/25 - CTAF.
E111IN OPERN PRIOR TO 1959.
PORT MEADVILLE (ICAO: KGKJ, IATA: GKJ) is a public airport located in MEADVILLE, PA, US.
