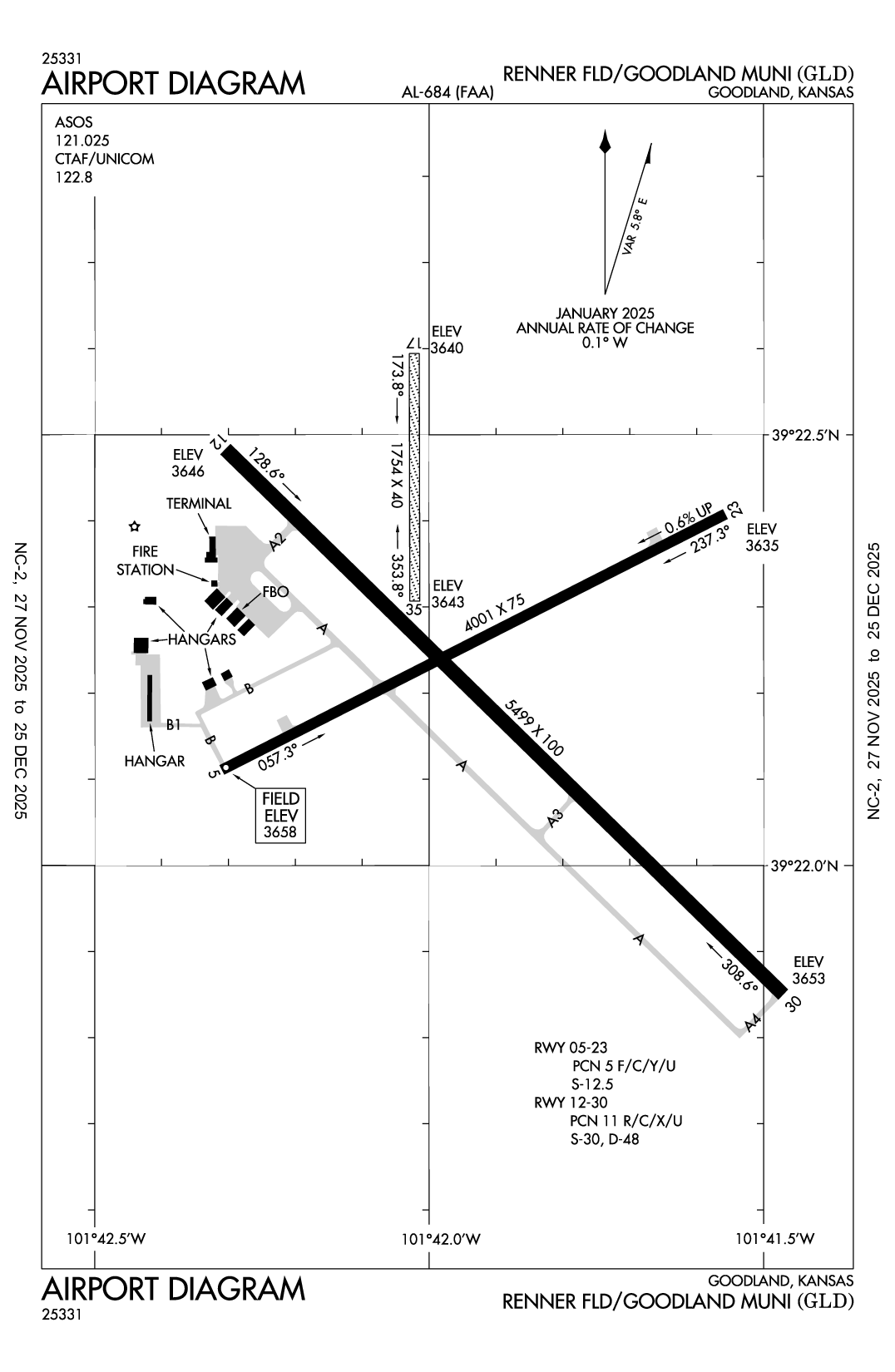

RENNER FLD/GOODLAND MUNI - Airport Diagram

KGLD

RENNER FLD/GOODLAND MUNI

PublicPUB

2 miles N of GOODLAND, KS, US

View on Map

Status

Operational

Coordinates

39° 22' 15"N 101° 41' 55"W

Elevation

3658' MSL

Pattern Alt

4658' MSL

Mag Variation

06E

Fuel

JET A (FSII), 100LL

FSS

WICHITA (ICT)

Sectional

WICHITA

ARTCC

DENVER (ZDV)

Data Effective

1/22/26-2/19/26

KGLD VFR

1:53 AM MST RAW

Clear

Viz

10sm

Temp

28°F

Dew

22°F

Pres

30.21"Hg

Wind

260° 9kts

RMK

AO2 SLP250 T10221056 58001

METAR KGLD 010853Z AUTO 26009KT 10SM CLR M02/M06 A3021 RMK AO2 SLP250 T10221056 58001

Add Your Business

KGLD FBOs

Promote Listing

Butterfly Aviation

UNICOM: 122.8

Phone: (785) 890-7531

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 1/25	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.17		4.33

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ASOS	121.025
(785) 576-2383

Common

CTAF	122.8
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 05 & 23; MIRL RWY 05/23 & 12/30 - CTAF.
UNICOM	122.8

Center

DENVER CENTER	132.7
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/226.675 (GOODLAND RCAG).

Flight Service

Flight Service	122.4
(ICT)

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

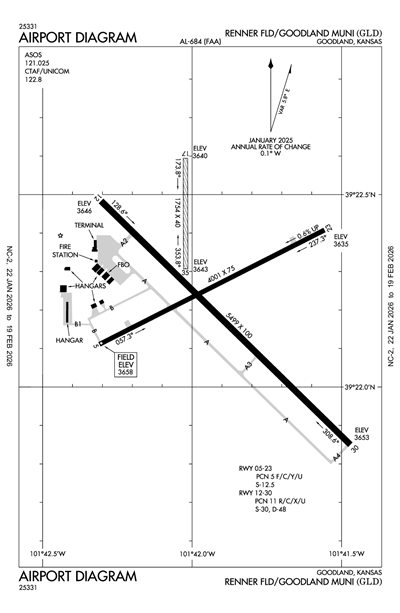

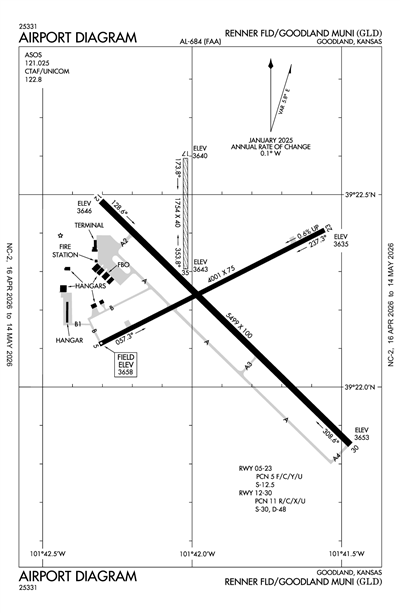

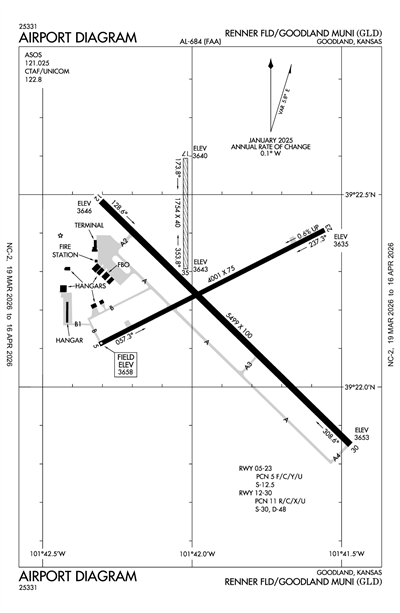

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGLD

RAW

Reported

Sat, 1/31 10:20 PM MST

Valid

Sat, 1/31 11:00 PM MST - Sun, 2/1 11:00 PM MST

VFR

11:00 PM MST - 9:00 AM MST

Few 25,000'

Viz

6sm

Wind

270° 10kts

VFR

9:00 AM MST - 1:00 PM MST

Sky Clear

Viz

6sm

Wind

260° 15kts

VFR

1:00 PM MST - 8:00 PM MST

Sky Clear

Viz

6sm

Wind

310° 9kts

VFR

8:00 PM MST - 11:00 PM MST

Few 21,000'

Viz

6sm

Wind

210° 7kts

TAF KGLD 010520Z 0106/0206 27010KT P6SM FEW250 WS005/34045KT
   FM011600 26015KT P6SM SKC
   FM012000 31009KT P6SM SKC
   FM020300 21007KT P6SM FEW210

KGLD

Effective	Expires	Category	NOTAM
FDC
9/8/25 1623Z			!FDC 5/9603 GLD IAP RENNER FLD/GOODLAND MUNI, GOODLAND, KS. VOR RWY 30, AMDT 9C... PROCEDURE NA. 2509081623-2709081622EST

ATC Tower

Attendance

DALGT
FOR SVC CALL 785-890-7531 (DAY) OR 785-443-1328 (NIGHT).

Owner

CITY OF GOODLAND
P. O. BOX 59
GOODLAND, KS 67735
Phone: 785-890-4500

Manager

KENT BROWN
204 W. 11TH ST.
GOODLAND, KS 67735
Phone: 785-890-4501

FSS

WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF

NOTAM

GLD

Light Schedule

Lights

ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 05 & 23; MIRL RWY 05/23 & 12/30 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

Low Pressure

Other Services

Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 05/23

Dimensions

4001 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

5/F/C/Y/U

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	63°	243°
Traffic Pattern	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	39° 22' 07"N	39° 22' 25"N
Longitude	101° 42' 19"W	101° 41' 33"W
Elevation	3,658'	3,635'
Threshold Crossing Height	36 ft. AGL	42 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

Dimensions

5499 ft. x 100 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

11/R/C/X/U

Single Wheel

30,000lbs

Double Wheel

48,000lbs

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	134°	314°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	39° 22' 29"N	39° 21' 51"N
Longitude	101° 42' 18"W	101° 41' 28"W
Elevation	3,646'	3,653'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes

Runway 17/35

Dimensions

1754 ft. x 40 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	180°	360°
Traffic Pattern	Left	Left
Markings
Markings Condition	FAIR	FAIR
Latitude	39° 22' 36"N	39° 22' 18"N
Longitude	101° 42' 01"W	101° 42' 01"W
Elevation	3,640'	3,643'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	TWY A2 ONLY AVBL FOR ACFT OVER 12500 LBS.
A110-2	FOR CD CTC DENVER ARTCC ON FREQ. IF UNA, CTC FSS ON FREQ VIA RCO. IF UNA, CTC DENVER ARTCC AT 303-651-4257.
A14	CITY/ARPT MGR.
A17-M1	FOR SVC CALL 785-890-7531 (DAY) OR 785-443-1328 (NIGHT).
A30A-23	TURN-AROUND DOES NOT HAVE CLNC FOR HLDG.
A30A-30	CALM WIND RWY.
A42-17_MARK	3 FT DIA YELLOW CONES MARK THLD.
A42-35_MARK	3 FT DIA YELLOW CONES MARK THLD.
A43-05	PAPI UNUSBL BYD 8 DEGS L OF CNTRLN.
A52-17	UNMKD 30 FT PLINE, 1300 FT DSTC, ACRS APCH, 43:1.
A81-APT	ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 05 & 23; MIRL RWY 05/23 & 12/30 - CTAF.

RENNER FLD/GOODLAND MUNI (ICAO: KGLD, IATA: GLD) is a public airport located in GOODLAND, KS, US.
