iFlightPlanner



...

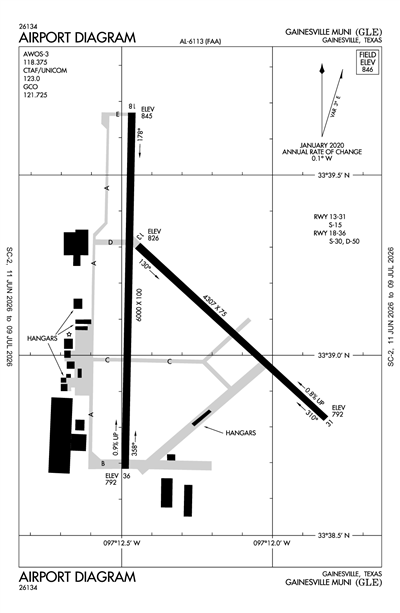

GAINESVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGLE
ICAO KGLEIATA GLELocal GLE
GAINESVILLE MUNI
PublicPUB

3 miles W of GAINESVILLE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 39' 08"N 97° 11' 50"W
Elevation
846' MSL
Pattern Alt
1846' MSL
Mag Variation
3°E
Declination
3°E
Fuel
JET A (FSII), 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
10/1/26-10/29/26
KGLE LIFR
6:55 PM CDT
Haze
Broken 19,000'
0.25sm
67°F
47°F
30.22"Hg
Calm
AO2 T01950083 10233 20195 58002
METAR KGLE 192355Z AUTO 00000KT M1/4SM HZ BKN190 19/08 A3022 RMK AO2 T01950083 10233 20195 58002
+ Add Your Business

KGLE FBOs

Promote Listing
Gainesville Municipal Airport
UNICOM: 123.0
Phone: (940) 668-4565
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 10/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.63
Full Serve 7.63 6.20 6.30
Fuel Notes
Prices include tax
Fuel Hours
Avgas SS Pumps Available 24/7, after hours Jet Fuel by call out $150 Hour.

KGLE Other Aviation Services

Promote Listing
Worldwide Aerospace Inc.
Phone: (817) 439-1996
Fax: (817) 439-3520
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.375
(940) 612-3549

Common

CTAF 123.0
RWY 18/36 MIRL PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
UNICOM 123.0

Center

FORT WORTH CENTER 124.75
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 124.75/323.0 (GAINESVILLE RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAFW (40nm)
Mon, 10/19 6:20 PM CDT
Mon, 10/19 7:00 PM CDT - Tue, 10/20 7:00 PM CDT
VFR
7:00 PM CDT - 7:00 PM CDT
Few 25,000'
6sm
130° 6kts
TAF KAFW 192320Z 2000/2024 13006KT P6SM FEW250
KGLE
EffectiveExpiresCategoryNOTAM
Domestic
9/25/26
1709Z
12/1/26
2359Z
!GLE 09/006 GLE OBST TOWER LGT (ASR 1011053) 335021.00N0970724.00W (11.8NM NNE GLE) 1107.9FT (208.0FT AGL) U/S 2609251709-2612012359
No
0800-1700
CITY OF GAINESVILLE
200 S. RUSK
GAINESVILLE, TX 76240
Phone: 940-668-4500
ANDREW HOLLEY
2300 AIRPORT DR
GAINESVILLE, TX 76240
Phone: 940-668-4565
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
GLE
--
RWY 18/36 MIRL PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 13/31

4307 ft. x 75 ft.
ASPH
Poor
NONE


15,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 133°313°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 33° 39' 18"N 33° 38' 49"N
Longitude 97° 11' 57"W 97° 11' 19"W
Elevation 826' 792'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 18/36

6000 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
50,000lbs
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 39' 40"N 33° 38' 41"N
Longitude 97° 11' 58"W 97° 11' 60"W
Elevation 845' 792'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-2HEL SKID LDG PROHIBITED ON ALL ASPH SFCS.
A33-13/31_CONDEXTSV CRACKING.
A42-13_CONDMRKGS FADED.
A42-13_MARKRWY HAS AIM POINTS.
A42-31_CONDMRKGS FADED.
A52-18ALSO 32 FT PLINE, 1290 FT DSTC, 445 L/R. APCH SLOPE 34:1.
A70-100LL100LL SELF-SERVE & FULL SERVE.
A81-APTRWY 18/36 MIRL PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
E111PRE-DATES ACT.
GAINESVILLE MUNI (ICAO: KGLE, IATA: GLE) is a public airport located in GAINESVILLE, TX, US.
