GRANBY-GRAND COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGNB
GRANBY-GRAND COUNTY
PublicPUB

1 miles NE of GRANBY, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 05' 24"N 105° 54' 60"W
8207' MSL
9207' MSL
08E
JET A, 100LL
DENVER (DEN)
CHEYENNE
DENVER (ZDV)
10/3/24-10/31/24
KGNB VFR
12:15 PM MDT
Clear
10sm
46°F
34°F
30.43"Hg
Calm
AO2 T00750013
KGNB 221815Z AUTO 00000KT 10SM CLR 08/01 A3043 RMK AO2 T00750013
Add Your Business

KGNB FBOs

Promote Listing
Granby-Grand County Airport
UNICOM: 123.0
Phone: (641) 743-2183
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 10/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.85 6.01
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
970-887-1803
 119.925

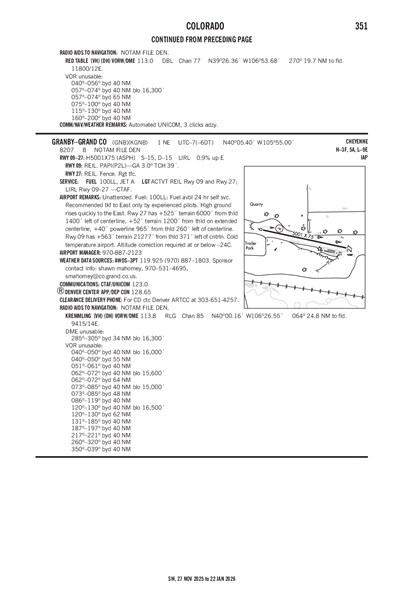

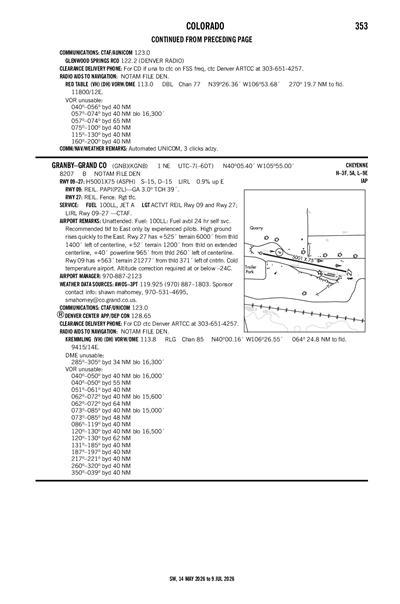

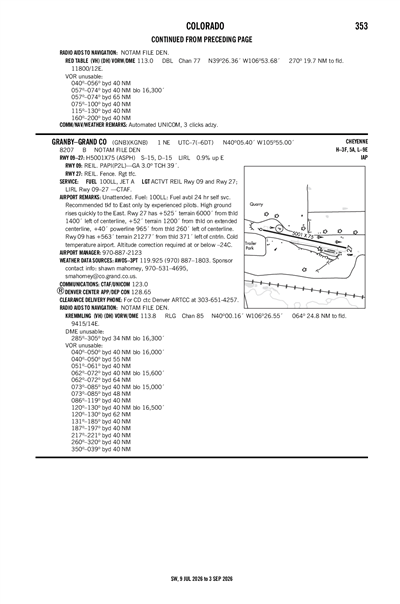

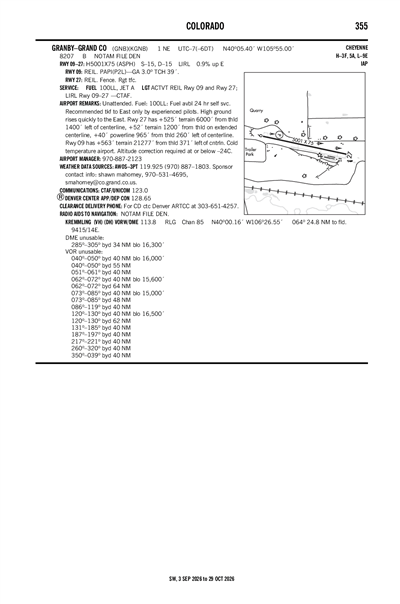

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBJC (39nm)
Tue, 10/22 11:34 AM MDT
Tue, 10/22 12:00 PM MDT - Wed, 10/23 12:00 PM MDT
VFR
12:00 PM MDT - 7:00 PM MDT
Few 15,000'
6sm
VRB° 6kts
VFR
7:00 PM MDT - 10:00 PM MDT
Few 15,000'
6sm
150° 6kts
VFR
10:00 PM MDT - 2:00 AM MDT
Few 15,000'
6sm
240° 6kts
VFR
2:00 AM MDT - 5:00 AM MDT
Few 15,000'
6sm
300° 6kts
VFR
5:00 AM MDT - 8:00 AM MDT
Sky Clear
6sm
020° 8kts
VFR
8:00 AM MDT - 12:00 PM MDT
Few 15,000'
6sm
320° 7kts
KBJC 221734Z 2218/2318 VRB06KT P6SM FEW150
   FM230100 15006KT P6SM FEW150
   FM230400 24006KT P6SM FEW150
   FM230800 30006KT P6SM FEW150
   FM231100 02008KT P6SM SKC
   FM231400 32007KT P6SM FEW150
KGNB
Domestic
10/21/241324Z !DEN 10/418 GNB RWY 09 PAPI UNUSABLE 2410211324-2504212111EST
FDC
7/16/241810Z !FDC 4/3062 GNB IAP GRANBY-GRAND COUNTY, GRANBY, CO.
RNAV (GPS)-C, ORIG...
DELETE NOTE: CIRCLING RWY 27 NA AT NIGHT.
CHART NOTE: PROCEDURE NA AT NIGHT.
THIS IS RNAV (GPS)-C, ORIG-A. 2407161810-PERM
5/8/241513Z !FDC 4/0773 GNB IAP GRANBY-GRAND COUNTY, GRANBY, CO.
RNAV (GPS)-C, ORIG ...
PROCEDURE NA AT NIGHT 2405081513-2512181513EST
No
UNATNDD
GRAND COUNTY
P.O. BOX 264, P.O. BOX 264
HOT SULPHUR SPRINGS, CO 80451
Phone: 970-725-3347
JOSHUA SCHROEDER
P O BOX 264
HOT SULPHUR SPRINGS, CO 80451
Phone: 970-887-2123
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT REIL RWY 09 & 27; LIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction

Runway 09/27

5001 ft. x 75 ft.
ASPH
Fair
NONE
LOW

15,000lbs
15,000lbs
--
--
  Runway 09 Runway 27
True Heading 102°282°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition POOR POOR
Latitude 40° 05' 29"N 40° 05' 19"N
Longitude 105° 55' 31"W 105° 54' 29"W
Elevation 8,160' 8,207'
Threshold Crossing Height 39 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2RCMD TKOF TO EAST ONLY BY EXPERIENCED PILOTS; HIGH GROUND RISES QUICKLY TO THE EAST.
A110-4RWY 27 HAS +525 FT TERRAIN 6000 FT FM THLD 1400 LEFT OF CNTRLN, +52 FT TERRAIN 1200 FT FM THLD ON EXTNDD CNTRLN, +40 FT POWERLINE 965 FT FM THLD 260 LEFT OF CNTRLN.
A110-6FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-7RWY 09 HAS +563 FT TERRAIN 21277 FT FM THLD 371 FT LEFT OF CNTRLN.
A110-8COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -24C.
GRANBY-GRAND COUNTY (ICAO: KGNB, IATA: GNB) is a public airport located in GRANBY, CO.
