KGNB

ICAO KGNBLocal GNB

GRANBY-GRAND COUNTY

PublicPUB

1 miles NE of GRANBY, CO, US

View on Map

Status

Operational

Coordinates

40° 05' 24"N 105° 54' 60"W

Elevation

8207' MSL

Pattern Alt

9207' MSL

Mag Variation

8°E

Declination

8°E

Fuel

JET A, 100LL

FSS

DENVER (DEN)

Sectional

CHEYENNE

ARTCC

DENVER (ZDV)

Data Effective

8/6/26-9/3/26

K0CO (19nm) VFR

2:35 AM MDT RAW

Clear

Viz

10sm

Temp

46°F

Dew

23°F

Pres

30.77"Hg

Wind

290° 13kts

Gusts 23kts

RMK

AO2

METAR K0CO 180835Z AUTO 29013G23KT 10SM CLR 08/M05 A3077 RMK AO2

Add Your Business

KGNB FBOs

Promote Listing

Granby-Grand County Airport

UNICOM: 123.0

Phone: (641) 743-2183

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 8/5	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.74		6.18
Full Serve

Fuel Notes

Prices include tax
JET A is premixed with Prist (FSII).

Fuel Hours

Fuel is self-serve only. Available 24 hours a day.

Your Information

Business

Weather and Advisory

AWOS-3PT	119.925
(970) 887-1803, SPONSOR CONTACT INFO: SHAWN MAHORNEY, 970-531-4695, SMAHORNEY@CO.GRAND.CO.US.

Common

CTAF	123.0
ACTVT REIL RWY 09 & 27; LIRL RWY 09/27 - CTAF.
UNICOM	123.0

Center

DENVER CENTER	128.65
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 128.65/282.2 (KREMMLING RCAG).

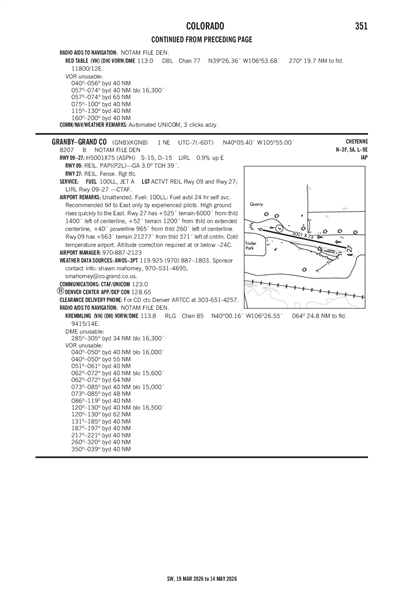

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Departure Procedures

JANKE ONE (OBSTACLE) (RNAV)

Instrument Approach

RNAV (GPS)-C

Terminal Area Forecast

KBJC (39nm)

RAW

Reported

Mon, 8/17 11:35 PM MDT

Valid

Tue, 8/18 12:00 AM MDT - Wed, 8/19 12:00 AM MDT

VFR

12:00 AM MDT - 3:00 AM MDT

Few 10,000'

Viz

6sm

Wind

300° 7kts

VFR

3:00 AM MDT - 6:00 AM MDT

Few 10,000'

Viz

6sm

Wind

330° 12kts

VFR

6:00 AM MDT - 9:00 AM MDT

Few 10,000'

Viz

6sm

Wind

290° 7kts

VFR

9:00 AM MDT - 2:00 PM MDT

Scattered 15,000'
Few 10,000'

Viz

6sm

Wind

VRB° 6kts

VFR

2:00 PM MDT - 8:00 PM MDT

Light Thunderstorm and Rain

Broken 8,000'

Viz

N/A

Wind

VRB° 20kts

Gusts 35kts

VFR

2:00 PM MDT - 8:00 PM MDT

Scattered 15,000'
Few 10,000'

Viz

6sm

Wind

030° 11kts

VFR

8:00 PM MDT - 12:00 AM MDT

Broken 15,000'
Few 10,000'

Viz

6sm

Wind

350° 9kts

TAF KBJC 180535Z 1806/1906 30007KT P6SM FEW100
   FM180900 33012KT P6SM FEW100
   FM181200 29007KT P6SM FEW100
   FM181500 VRB06KT P6SM FEW100 SCT150
   FM182000 03011KT P6SM FEW100 SCT150
   PROB30 1820/1902 VRB20G35KT -TSRA BKN080CB
   FM190200 35009KT P6SM FEW100 BKN150

KGNB

Effective	Expires	Category	NOTAM
Domestic
7/16/26 0030Z	10/16/26 2359Z		!DEN 07/434 GNB APRON WEST APRON CLSD EXC FIRE FIGHTING OPS 2607160030-2610162359
4/21/26 1851Z		Runway	!DEN 04/483 GNB RWY 09 PAPI UNUSABLE 2604211851-2610212111EST

ATC Tower

Attendance

UNATNDD

Owner

GRAND COUNTY
P.O. BOX 264 P.O. BOX 264
HOT SULPHUR SPRINGS, CO 80451
Phone: 970-725-3347

Manager

SHAWN MAHORNEY
P O BOX 264
HOT SULPHUR SPRINGS, CO 80451
Phone: 970-887-2123

FSS

DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF

NOTAM

DEN

Light Schedule

Lights

ACTVT REIL RWY 09 & 27; LIRL RWY 09/27 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction

Runway 09/27

Dimensions

5001 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

LOW

Pavement Class

Single Wheel

15,000lbs

Double Wheel

15,000lbs

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	102°	282°
Traffic Pattern	Left	Right
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	40° 05' 29"N	40° 05' 19"N
Longitude	105° 55' 31"W	105° 54' 29"W
Elevation	8,160'	8,207'
Threshold Crossing Height	39 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P2L	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-2	RCMD TKOF TO EAST ONLY BY EXPERIENCED PILOTS; HIGH GROUND RISES QUICKLY TO THE EAST.
A110-4	RWY 27 HAS +525 FT TERRAIN 6000 FT FM THLD 1400 LEFT OF CNTRLN, +52 FT TERRAIN 1200 FT FM THLD ON EXTNDD CNTRLN, +40 FT POWERLINE 965 FT FM THLD 260 LEFT OF CNTRLN.
A110-6	FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-7	RWY 09 HAS +563 FT TERRAIN 21277 FT FM THLD 371 FT LEFT OF CNTRLN.
A110-8	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -24C.
A16	ARPT CONTACT; JOSHUA SCHROEDER - JSCHROEDER@CO.GRAND.CO.US, 970-887-2123.
A70-100LL	FUEL AVBL 24 HR SELF SVC.
A81-APT	ACTVT REIL RWY 09 & 27; LIRL RWY 09/27 - CTAF.
E111	ESTABLISHED PRIOR TO 1959.

GRANBY-GRAND COUNTY (ICAO: KGNB, IATA: GNB) is a public airport located in GRANBY, CO, US.
